Product Overview

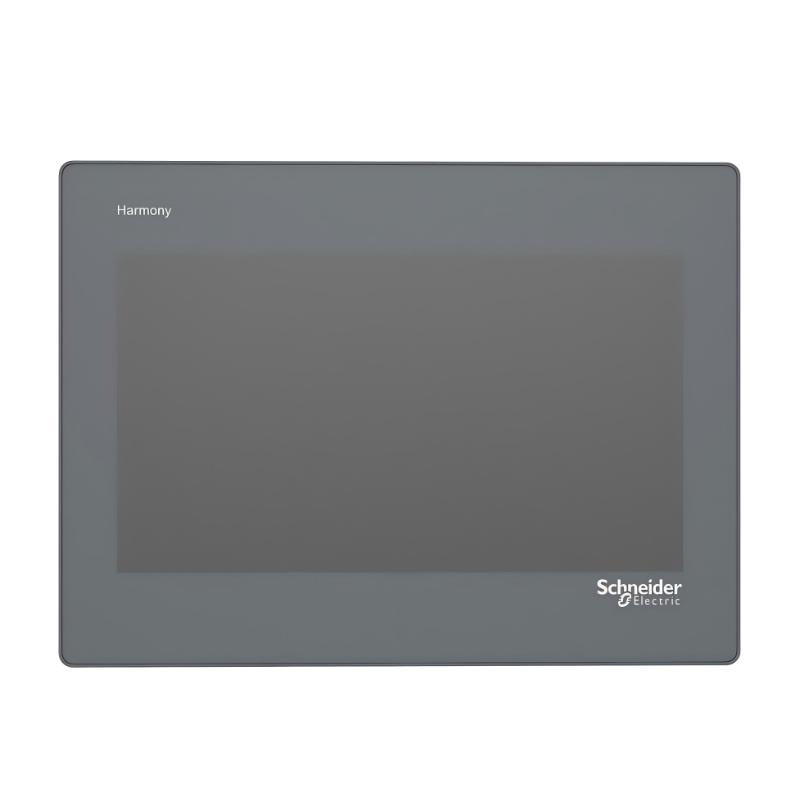

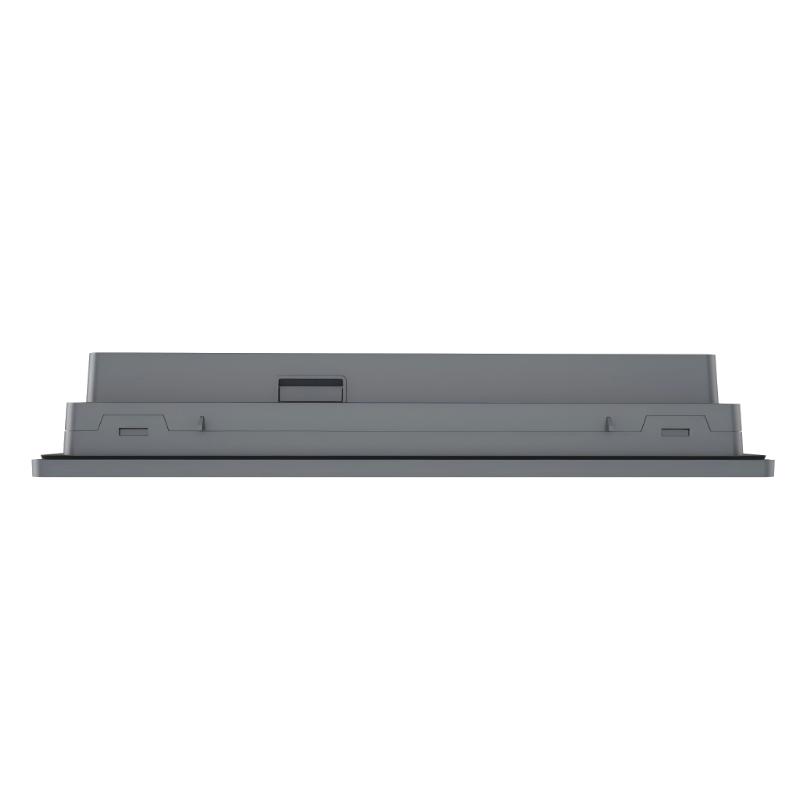

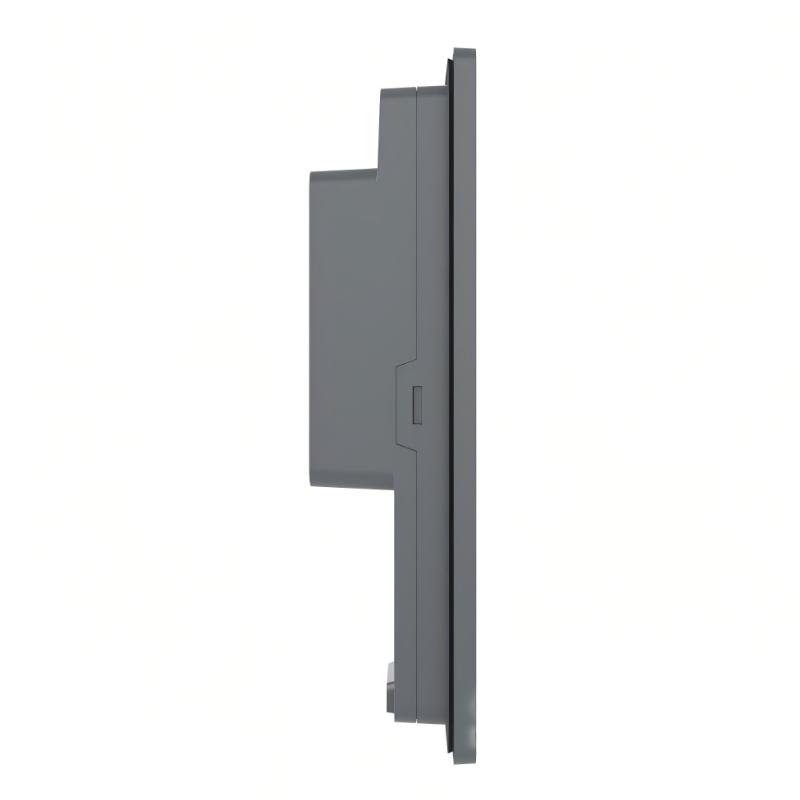

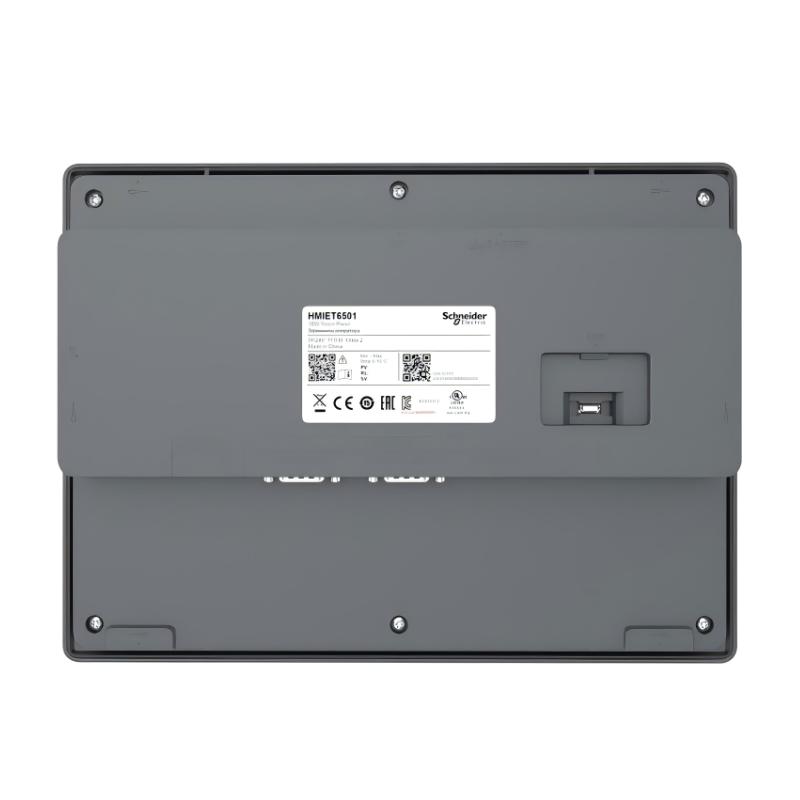

The Schneider HMIET6501 is a Harmony ET6 wide screen touch panel for industrial machine and equipment operator interfaces. The 10-inch screen provides a practical workspace for displaying operating information, alarms, process values, and control functions on a single HMI.
The HMIET6501 can be integrated into PLC-based control systems where operators need direct access to machine functions without working directly with the control cabinet. Typical operator tasks include monitoring equipment status, changing operating parameters, acknowledging alarms, and navigating between different machine functions.
Its panel-mounted format makes it suitable for control cabinets, machine enclosures, and dedicated operator stations where a touchscreen interface is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Wide screen touch panel |
| Product Family | Harmony ET6 |
| Model | HMIET6501 |
| Screen Size | 10″ |
| Display Type | Wide screen |
| User Interface | Touchscreen |
| Application | Machine and equipment operator interface |
| Mounting | Panel mounting |
| HMI Function | Operator control and monitoring |
| Display Application | Process values, alarms, status information, and control screens |
| System Integration | PLC and industrial automation control systems |
| Dimensions | 271 × 47 × 201 mm |
| Weight | 0.99 kg |
Product Features
- 10-inch wide screen format for industrial operator interfaces
- Touchscreen operation for direct machine interaction
- Part of the Harmony ET6 HMI platform
- Suitable for displaying process values, alarms, and equipment status
- Supports centralized operator access to machine control functions
- Panel-mounted installation for control cabinets and machine enclosures
- Suitable for PLC-based automation architectures
- Practical display format for machine and equipment monitoring
Working Principle
The HMIET6501 serves as the operator interface between personnel and the connected automation system. The HMI application presents operating information received from the control system through configured screens.
When an operator selects a control object or enters a parameter, the HMI processes the interaction and exchanges the corresponding data with the connected controller. This allows functions such as equipment commands, setpoint changes, alarm acknowledgement, and screen navigation to be handled from the operator panel.
During machine operation, the HMI can continuously display equipment states and process information while giving operators access to the control functions required for routine operation.
Role in a Harmony ET6 HMI Control Architecture
| System Element | Role |
|---|---|
| HMIET6501 | Provides the touchscreen operator interface |
| PLC | Executes machine logic and control sequences |
| Remote I/O | Collects field signals and controls connected devices |
| Variable Speed Drive | Controls motor operation and supplies drive status |
| Sensors | Provides process and equipment information |
| Actuators | Performs physical operations commanded by the control system |
| Industrial Network | Exchanges application data between the HMI and automation devices |
Industrial Applications
| Application | HMIET6501 Usage |
|---|---|
| Machine Automation | Machine operation, status monitoring, and alarm handling |
| Packaging Equipment | Production monitoring and operating parameter adjustment |
| Material Handling | Conveyor and handling equipment status display |
| Process Equipment | Process monitoring and operator control |
| Pump Systems | Pump status monitoring and parameter adjustment |
| Motor Control Panels | Centralized access to motor and drive information |
| Production Lines | Equipment status display and operator interaction |
Installation and Maintenance
- Install the HMI in a suitable control cabinet, machine enclosure, or operator station.
- Verify the required panel opening before mounting the unit.
- Secure the panel firmly to prevent movement caused by machine vibration.
- Route communication wiring away from high-power cables where practical.
- Check all communication and power connections before commissioning.
- Verify communication between the HMI and connected controller during startup.
- Confirm that displayed values correspond to the intended control-system variables.
- Test touchscreen commands to ensure each operator control performs the intended function.
- Check alarm display and acknowledgement functions during commissioning.
- Keep the touchscreen surface clean and free from contaminants.
- Avoid applying excessive force or using sharp objects on the touchscreen.
- Place the machine and control system in a safe state before performing maintenance or electrical work.
Compatible System Components
| Component | Function in the System |
|---|---|
| Schneider PLC | Executes control logic and exchanges data with the HMI |
| Schneider Remote I/O | Handles distributed field signals |
| Schneider Variable Speed Drive | Provides motor control and operating feedback |
| Schneider Contactors and Protection Devices | Controls and protects electrical loads |
| Industrial Ethernet Devices | Supports communication within the automation system |
| Machine Sensors | Supplies process and equipment status information |
| Motor Starters | Provides motor switching and control functions |
Recommended Related Models
| Model | Product Category | Typical Use |
|---|---|---|
| HMIET6401 | Harmony ET6 Wide Screen Touch Panel | Compact operator interface applications |
| HMIET6500 | Harmony ET6 Wide Screen Touch Panel | 10-inch class operator interface applications |
| HMIET6501 | Harmony ET6 Wide Screen Touch Panel | 10-inch class operator interface applications |
| HMIDT551 | Harmony GTU Advanced Touchscreen Panel | Advanced modular HMI applications |
| HMIDT952 | Harmony GTU Flat Screen | Larger industrial HMI applications |
Key Advantages
- 10-inch wide screen operator interface
- Direct touchscreen operation
- Suitable for PLC-based machine control
- Centralized access to operating information
- Suitable for panel-mounted industrial applications
- Fits machine and equipment monitoring requirements
Technical FAQs
What type of HMI is the Schneider HMIET6501?
The HMIET6501 is a Harmony ET6 wide screen touch panel intended for industrial operator interface applications.
What is the main function of the HMIET6501?
It provides a touchscreen interface for operators to monitor equipment information, view alarms, adjust operating parameters, and interact with connected control functions.
Can the HMIET6501 be integrated with a PLC control system?
Yes. The HMIET6501 can serve as the operator interface within a PLC-based automation architecture, allowing application data and operator commands to be exchanged with the connected control system.
Where can the HMIET6501 be used?
Typical applications include machine automation, packaging equipment, material handling, process equipment, pump systems, motor control panels, and production lines.
