Product Overview

In industrial automation, outdoor control systems and harsh operating environments require operator interfaces that can withstand temperature variations, dust, moisture, and direct sunlight. The Schneider Electric HMIDT75X Harmony GTUX Extreme Display is a 15.6-inch widescreen industrial touchscreen display designed for demanding outdoor applications.

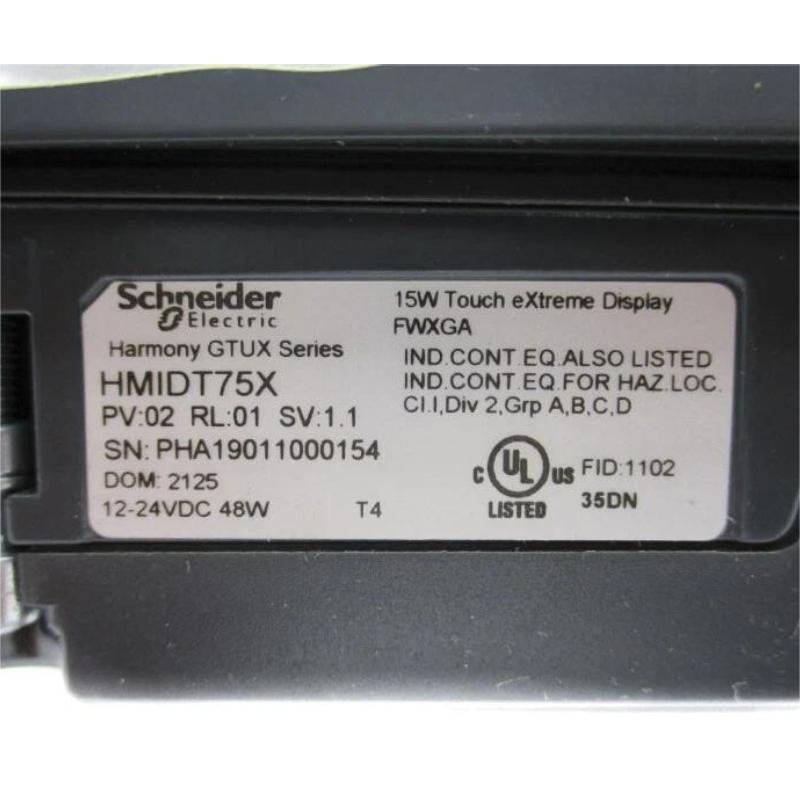

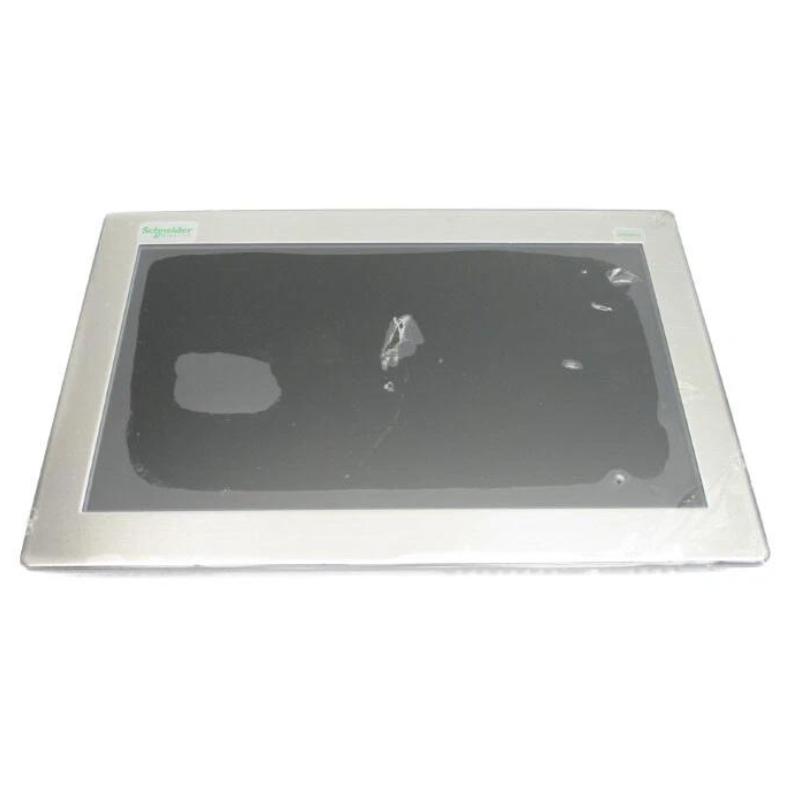

The HMIDT75X combines a colour TFT LCD with a resolution of 1366 × 768 pixels and a high-brightness display rated at 1000 cd/m². Its display design incorporates UV protection to improve visibility in environments exposed to direct sunlight. The product also features a rugged construction and a coated design intended for applications where environmental resistance is important.

Unlike a standalone industrial computer, the HMIDT75X is a modular display unit. It is designed to operate with a compatible Harmony GTUX box module, which provides the processing and communication functions required to run the HMI application and connect to industrial controllers.

With overall dimensions of 408 × 264 × 68 mm and a net weight of approximately 4.8 kg, the HMIDT75X can be installed in a suitably designed control panel. Its outdoor-oriented design makes it particularly relevant to oil and gas facilities, water and wastewater infrastructure, mining and mineral processing, and other industrial applications where conventional indoor HMI displays may not be suitable.

Technical Specifications

Function and Working Principle

The Schneider Electric HMIDT75X provides a visual interface between industrial operators and an automation system. It displays information generated by the HMI application and allows operators to interact with configured screens through its analogue resistive touchscreen.

Its operation depends on a compatible Harmony GTUX box module. The box module executes the HMI application, processes operator inputs, and communicates with supported PLCs and other automation devices.

1. Industrial Process Visualization

The HMIDT75X displays graphical information such as machine operating status, process measurements, alarms, equipment conditions, and maintenance messages.

Its 1366 × 768-pixel resolution provides a widescreen interface suitable for industrial monitoring applications. The high-brightness display, rated at 1000 cd/m², is designed to improve readability in bright environments, including installations exposed to direct sunlight.

2. Touchscreen Operator Interaction

The HMIDT75X uses analogue resistive single-touch technology. Operators can select screen elements, navigate menus, enter values, and activate configured controls through touch input.

Although the model name may be used informally to describe a touchscreen panel, the HMIDT75X should not be confused with a projected-capacitive multi-touch display. Its specified touch technology is analogue resistive single-touch.

The touchscreen does not independently execute PLC logic. Operator commands are processed by the HMI application and transmitted to the appropriate control system through the compatible box module.

3. Communication with Industrial Controllers

The HMIDT75X forms the display portion of a modular HMI system. Its compatible box module provides the computing hardware and communication interfaces needed to connect the HMI application with industrial controllers.

Depending on the selected box module and application configuration, the complete system can support machine monitoring, equipment diagnostics, alarm visualization, and operator control.

4. Outdoor Visibility and Environmental Protection

Outdoor industrial equipment may be exposed to sunlight, dust, rain, and changing temperatures. The HMIDT75X is designed for demanding outdoor environments and incorporates high brightness, UV protection, and a rugged coated construction.

Its specified front-panel protection ratings support installation in suitable industrial enclosures. Correct mounting, sealing, and compliance with the manufacturer’s environmental requirements remain essential to achieving the intended protection.

5. Thermal Management

The HMIDT75X uses natural convection cooling. Its installation should provide sufficient clearance and avoid conditions that cause excessive heat accumulation.

For outdoor installations, engineers should evaluate ambient temperature, direct solar exposure, enclosure ventilation, and the thermal characteristics of the complete HMI assembly.

Role in Industrial Control Systems

The HMIDT75X serves as the operator-facing display in a compatible Schneider Electric Harmony GTUX system. It allows personnel to monitor equipment and interact with the automation application in locations where environmental resistance is a key consideration.

Outdoor equipment monitoring: Displays equipment status, operating values, alarm conditions, and diagnostic information at outdoor control stations.

Machine operation: Provides touch-based access to configured HMI screens and authorized control commands.

Process visualization: Presents process information in a graphical format that supports operator decision-making.

Maintenance support: Helps technicians review equipment conditions and access available diagnostic screens during troubleshooting.

Remote equipment management: Supports operator-interface installations associated with distributed equipment, provided that the complete HMI system is connected to the relevant automation and communication infrastructure.

Harsh-environment integration: Provides a display option for compatible Harmony GTUX systems intended for outdoor or demanding industrial conditions.

The HMIDT75X is a display module rather than a complete standalone HMI computer. Its processing, communication, and application functions depend on the compatible GTUX box module.

Industrial Applications

The Schneider Electric HMIDT75X is designed for outdoor and harsh-environment industrial applications. Its high-brightness display and rugged construction make it relevant to installations where visibility and environmental resistance are important.

Oil and Gas Facilities

Oil and gas operations frequently use distributed control stations, equipment monitoring points, and outdoor machinery interfaces.

The HMIDT75X can serve as an operator display in compatible systems used to monitor equipment status, operating parameters, and alarm information. The complete installation must still meet the site’s electrical, environmental, and hazardous-area requirements.

Water and Wastewater Infrastructure

Water treatment plants, pumping stations, and wastewater facilities may require outdoor operator interfaces for equipment monitoring and process supervision.

When integrated with a compatible control system, the HMIDT75X can display pump conditions, process measurements, alarms, and operating information.

Mining and Mineral Processing

Mining and mineral-processing environments may expose equipment to dust, sunlight, moisture, and substantial temperature variations.

The HMIDT75X can provide a local HMI interface for compatible machinery and process-monitoring systems, subject to the installation’s environmental and mechanical requirements.

Outdoor Industrial Machinery

Equipment installed in open industrial areas may require a display that remains readable under bright ambient light.

The HMIDT75X’s high-brightness display and outdoor-oriented design make it a potential choice for suitable machinery interfaces and equipment monitoring stations.

Utility and Infrastructure Systems

Utilities and infrastructure installations often operate distributed equipment that requires local monitoring and operator access.

The HMIDT75X may be integrated into compatible systems for displaying operating conditions, alarm messages, and equipment diagnostics.

Harsh-Environment Automation

For industrial applications where a standard indoor HMI may not meet environmental requirements, the Harmony GTUX family provides a specialized modular platform.

The HMIDT75X is particularly relevant when the system requires a 15.6-inch widescreen display with outdoor-oriented protection features.

Installation and System Integration

Correct installation is essential for reliable operation, electrical safety, touchscreen performance, and environmental protection.

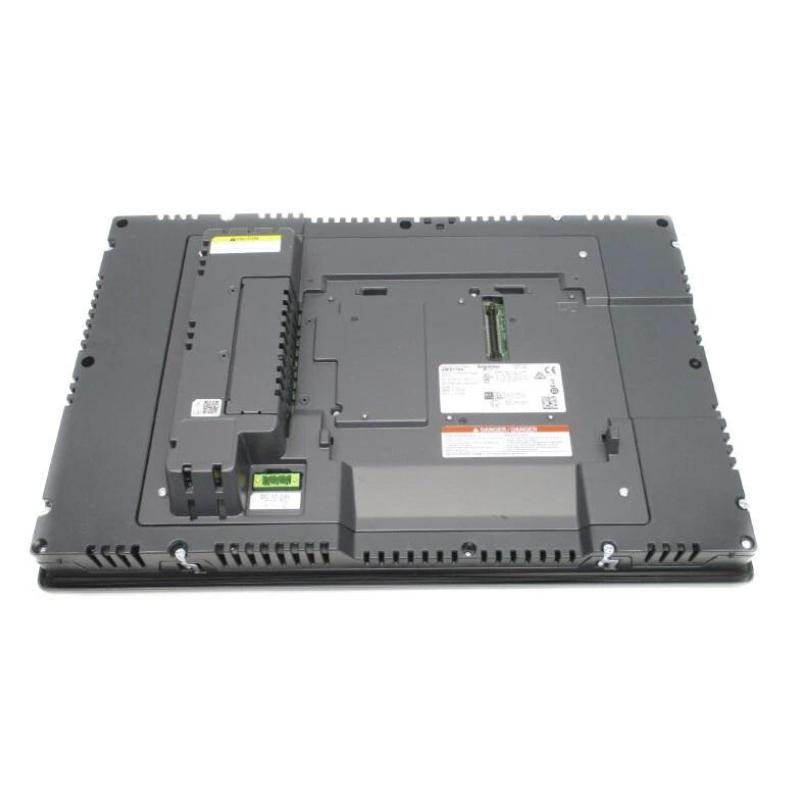

1. Panel Mounting

The HMIDT75X has overall dimensions of 408 × 264 × 68 mm. Its panel cut-out dimensions are 394 × 250 mm, subject to the specified installation tolerance.

Before installation, verify the control-panel opening, panel thickness, mounting hardware, and clearance against the manufacturer’s installation instructions.

The panel and mounting arrangement must be suitable for the operating environment. Correct sealing is necessary to maintain the specified front-panel protection.

2. Power Supply Connection

The HMIDT75X has a rated supply voltage of 12 V DC and specified supply voltage limits of 10.8–28.8 V DC.

The power supply must meet the manufacturer’s requirements for voltage, polarity, wiring, and protective devices. Its capacity should account for the needs of the complete system and any connected accessories.

The documented inrush current is 30 A. Appropriate supply and protection arrangements should therefore be selected according to the applicable technical documentation rather than relying only on the normal power-consumption figure.

3. Connection to a Compatible Box Module

The HMIDT75X must be paired with a compatible Harmony GTUX box module. The standard Harmony GTU and Harmony GTUX families are not interchangeable simply because their product names are similar.

The HMIDT75X is associated with the GTUX platform and the HMIG3X box module. Other GTUX variants, including full-coated configurations, must be selected according to the exact display and box-module references.

Before purchasing a replacement, verify the complete model number and the environmental protection configuration of both modules.

4. HMI Application Configuration

After installation, check the HMI application, display settings, controller communication, and configured operator functions.

If the display is being replaced, follow the relevant commissioning procedure to verify that the application starts correctly and that the touch input, alarms, and process screens function as intended.

5. Outdoor Environmental Protection

The HMIDT75X is designed for outdoor-oriented industrial use and has specified front-panel protection ratings of IP66F/IP67F, Type 4X, Type 12, and Type 13 under applicable installation conditions.

These ratings do not automatically make the entire control cabinet waterproof or suitable for every chemical or environmental exposure. The panel enclosure, mounting arrangement, cable entries, and surrounding equipment must be evaluated as a complete installation.

6. Temperature and Thermal Management

The allowable ambient temperature range must be checked against the current HMIDT75X installation documentation and the intended mounting conditions.

Outdoor installations should account for direct sunlight, enclosure temperature, nearby heat sources, and the natural-convection cooling arrangement. Additional thermal management may be necessary if the complete installation cannot maintain the specified operating conditions.

7. Commissioning and Functional Testing

After installation, verify the display image, touchscreen response, application operation, controller communication, and alarm presentation.

If a fault remains, investigate the complete HMI system rather than assuming that the display is the only possible cause. The box module, power supply, communication connections, software configuration, or connected controller may also require inspection.

Compatible System Components

The HMIDT75X belongs to the Schneider Electric Harmony GTUX modular HMI family. Its display module and processing box must be selected as a compatible combination.

Compatibility note: The HMIDT75X and HMIDT75XFH are different product references. The standard GTUX and full-coated GTUX configurations must be paired according to the manufacturer’s compatibility instructions. A full-coated box module should be used with its corresponding full-coated display, and the standard HMIG3X configuration should be matched with a supported standard GTUX display.

Recommended Alternative Models

The following products are related Schneider Electric Harmony GTUX display options that may be considered when selecting a replacement or planning a different panel size.

These models are related product options rather than universal drop-in replacements. Differences in screen size, cut-out dimensions, coating configuration, and box-module compatibility must be checked before substitution.

For an existing HMIDT75X installation, the original model is the preferred starting point for replacement. If an alternative is being considered, verify the complete part number, processing module, installation dimensions, application configuration, and environmental requirements before ordering.

Key Advantages

• 15.6-inch widescreen display: Provides a practical viewing area for industrial monitoring and equipment operation.
• FWXGA resolution: Offers a 1366 × 768-pixel graphical interface for process values, alarms, and operating screens.
• High-brightness display: The specified 1000 cd/m² luminance supports visibility in bright environments.
• UV protection: Designed for outdoor installations exposed to direct sunlight.
• Rugged coated construction: Supports demanding industrial applications when used within the specified environmental limits.
• Resistive touchscreen: Provides reliable single-touch interaction through the specified analogue resistive technology.
• Outdoor-oriented protection: Specified front-panel ratings include IP66F/IP67F and Type 4X, Type 12, and Type 13 under applicable installation conditions.
• Modular system architecture: Separates the display from the compatible processing box, supporting flexible HMI configurations.
• Natural convection cooling: Supports thermal management without requiring a dedicated internal forced-air cooling system.
• Industrial maintenance flexibility: Provides a defined model reference for compatible outdoor HMI replacement and maintenance.

Technical FAQs

What is the Schneider Electric HMIDT75X?

The HMIDT75X is a 15.6-inch Harmony GTUX Extreme Display designed for outdoor-oriented industrial HMI applications. It provides high-brightness visualization and analogue resistive single-touch input.

What are the dimensions and weight of the HMIDT75X?

The overall dimensions are 408 × 264 × 68 mm, and the net weight is approximately 4.8 kg. The specified panel cut-out dimensions are 394 × 250 mm, subject to the manufacturer’s installation tolerances.

What is the screen resolution?

The HMIDT75X uses a colour TFT LCD with a resolution of 1366 × 768 pixels, also known as FWXGA.

Does the HMIDT75X support capacitive multi-touch?

No. The specified touch technology is analogue resistive single-touch. It should not be described as a projected-capacitive multi-touch display.

What is the display brightness?

The specified display luminance is 1000 cd/m², which is designed to support visibility in bright outdoor environments.

What power supply does the HMIDT75X require?

The rated supply voltage is 12 V DC, with specified voltage limits of 10.8–28.8 V DC. The power supply and protective devices must be selected according to the manufacturer’s installation requirements.

Is the HMIDT75X suitable for outdoor applications?

Yes. The HMIDT75X belongs to the Harmony GTUX family, which is designed for demanding outdoor environments. Its suitability for a specific installation still depends on the complete enclosure, mounting, temperature, and environmental conditions.

Which box module is compatible with the HMIDT75X?

The HMIDT75X is associated with the Harmony GTUX platform and the HMIG3X box module. Confirm the exact compatibility and configuration before ordering.

Can the HMIDT75X be used with the HMIG3U box module?

Do not assume compatibility. HMIG3U belongs to the standard Harmony GTU family, whereas HMIDT75X belongs to Harmony GTUX. Schneider Electric identifies firmware and compatibility differences between the GTU and GTUX platforms.

What is the difference between HMIDT75X and HMIDT75XFH?

Both belong to the Harmony GTUX family, but they represent different product configurations. HMIDT75XFH is the full-coated display variant. The corresponding box module and environmental configuration must be matched according to the manufacturer’s instructions.

What should be checked before purchasing an HMIDT75X replacement?

Confirm the complete model number, the installed box module, the panel cut-out, the power supply, the coating configuration, the product’s physical condition, and the environmental requirements of the installation.

Conclusion

The Schneider Electric HMIDT75X Harmony GTUX Extreme Display is a 15.6-inch industrial touchscreen display designed for outdoor and demanding industrial applications. Its 1366 × 768-pixel resolution, 1000 cd/m² brightness, UV protection, and rugged coated construction make it a relevant operator-interface option for oil and gas facilities, water and wastewater infrastructure, mining, and outdoor machinery.

With overall dimensions of 408 × 264 × 68 mm and a net weight of approximately 4.8 kg, the HMIDT75X is intended for installation in a suitably designed industrial panel. Its modular architecture allows the display to work with a compatible GTUX box module that provides the processing and communication functions needed for the HMI application.

For maintenance engineers, system integrators, and industrial spare-parts buyers, the most important considerations are the exact model reference, the compatible box module, the environmental protection configuration, and the panel mounting requirements. Verifying these details before ordering helps reduce compatibility errors and supports reliable operation in demanding industrial environments.
