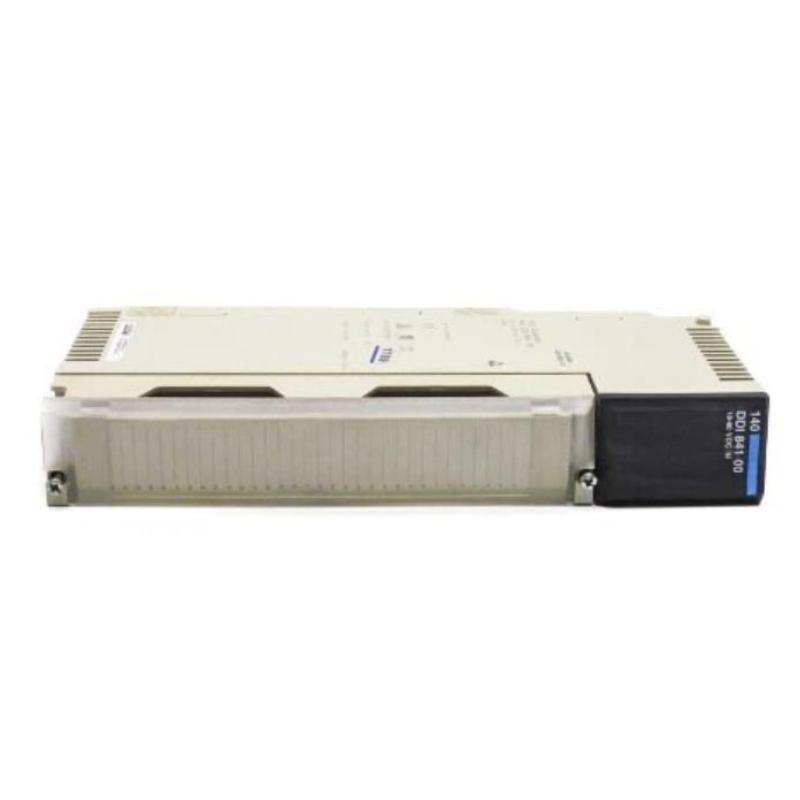

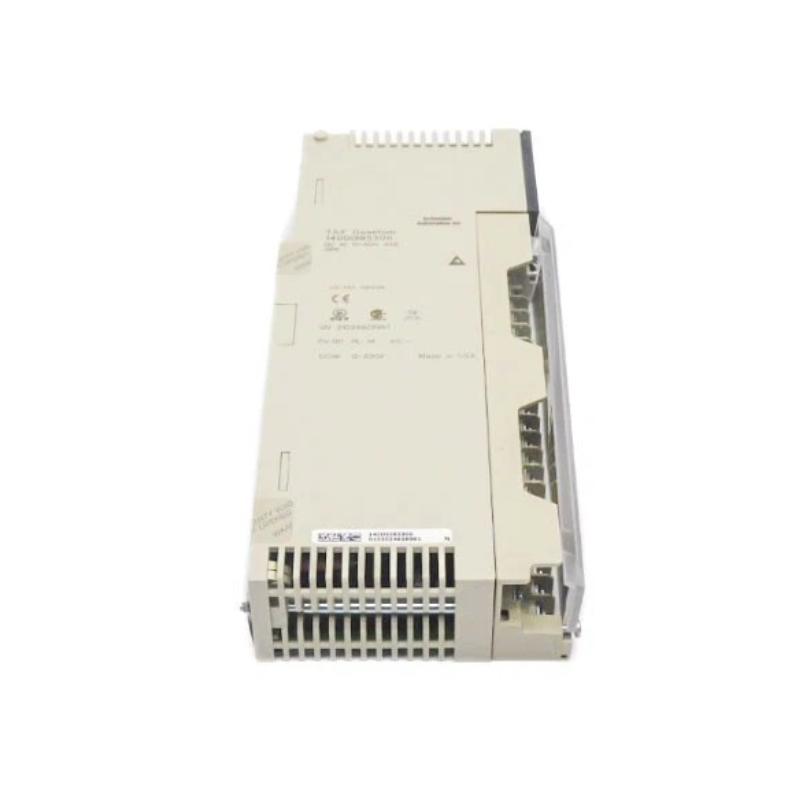

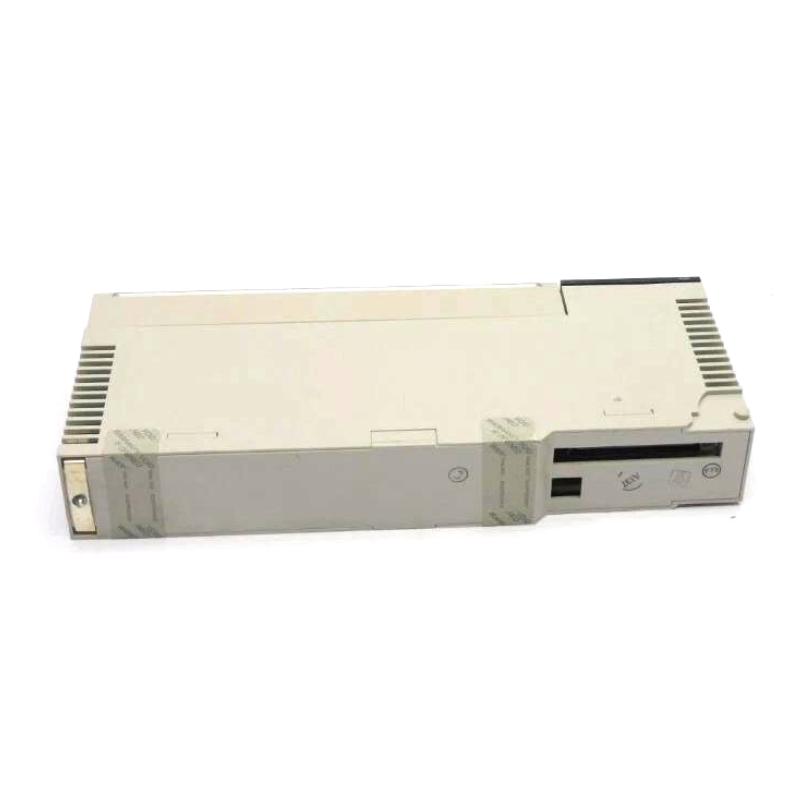

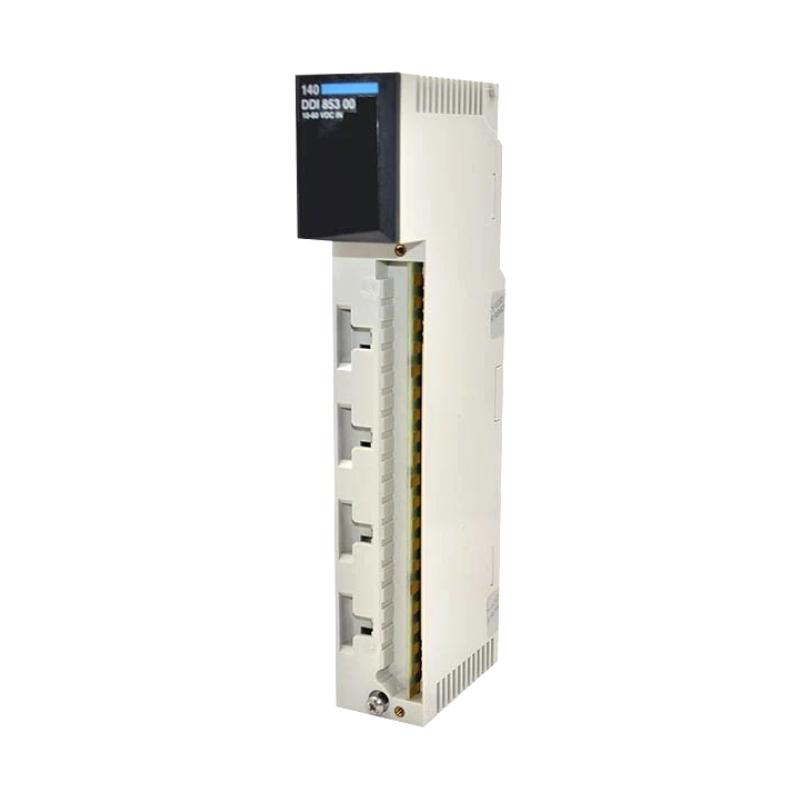

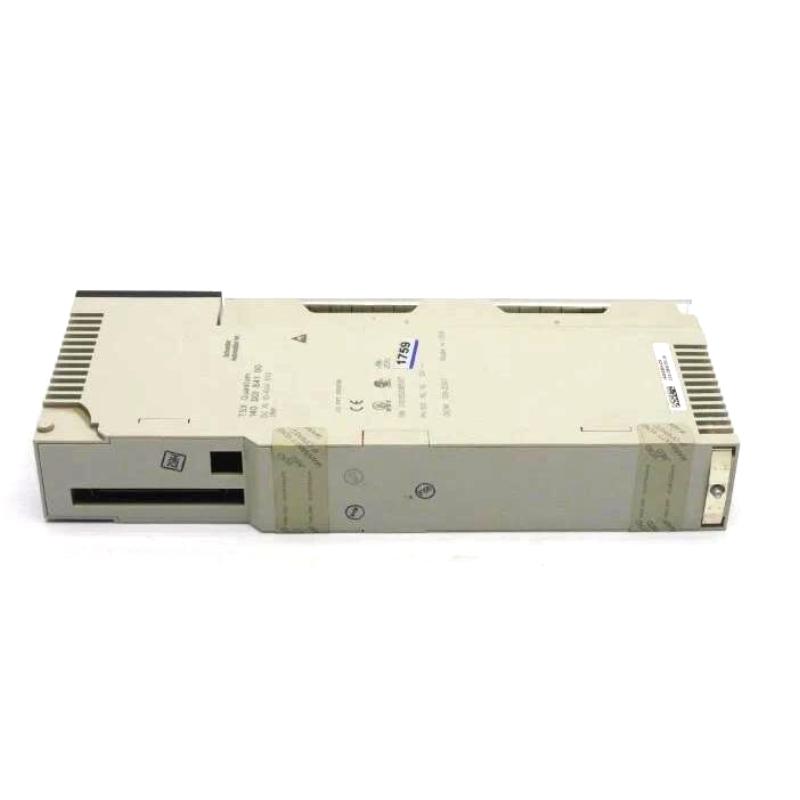

Schneider Electric 140DDI85300C Product Overview
The Schneider Electric 140DDI85300C is a digital input module specifically designed for use with the Modicon Premium PLC series. This module offers a high level of input signal processing capability, with support for 32 digital inputs, which are ideal for handling signals from devices such as sensors, switches, and relays. It operates at a 24V DC input voltage, making it compatible with a wide range of industrial equipment.
The module is equipped with Modbus communication, ensuring smooth integration with other components of the Modicon Premium PLC system. This enables seamless control and monitoring in automation systems. Its DIN rail mountable design ensures easy installation in control cabinets, making it a space-efficient and highly versatile solution. The 140DDI85300C also features an extended operating temperature range from -25°C to +70°C, making it highly suitable for challenging industrial environments where temperature fluctuations are common.
This module provides reliable and efficient operation, ensuring stable performance over long periods in industrial applications. Below are the key features and detailed specifications of the 140DDI85300C.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 140DDI85300C |
| Type | Digital Input Module |
| I/O Type | Digital Input |
| Number of Inputs | 32 Inputs |
| Voltage Range | 24V DC |
| Current Consumption | 200mA |
| Signal Type | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 45 mm x 160 mm x 90 mm |
| Weight | 0.4 kg |
| Mounting Type | DIN Rail |
Product Description
The 140DDI85300C is designed to offer 32 inputs for processing 24V DC digital signals from external devices. This makes it an excellent choice for a wide range of industrial applications where high-density input signal processing is required. It allows for the monitoring of multiple input devices simultaneously, improving the efficiency and accuracy of control systems.
The module is optimized for use within Modicon Premium PLC systems and integrates seamlessly with other Modicon devices via Modbus communication. This communication protocol ensures that the module can be easily connected to other system components, simplifying the setup of a complete automation network.
Its compact form factor ensures it can be installed in limited space within control panels, with the added convenience of DIN rail mounting. The 140DDI85300C is engineered to withstand a wide range of environmental conditions, offering reliable operation even in extreme temperatures ranging from -25°C to +70°C. This makes it a robust solution for industrial environments where environmental conditions are challenging.
Product Applications
The 140DDI85300C module is suitable for numerous applications across various industrial sectors:
-
Manufacturing Automation: The module is used for controlling and monitoring devices such as sensors, switches, and relays. It allows real-time monitoring and control of the manufacturing process, improving production efficiency.
-
Process Control Systems: In industries such as chemical production, oil & gas, and pharmaceuticals, it is used to monitor inputs from devices like pressure sensors, valves, and flow meters, ensuring accurate control of complex processes.
-
Building Automation: The module is employed in HVAC systems, lighting controls, and security systems to process input from sensors like motion detectors, temperature sensors, and security alarms.
-
Energy Management: The 140DDI85300C helps monitor critical infrastructure such as energy meters, circuit breakers, and transformers, ensuring the proper functioning of energy distribution systems.
-
Water and Wastewater Management: The module is essential in water treatment facilities, where it can process signals from equipment such as pumps, flow meters, and valves, ensuring smooth and efficient water treatment operations.
Product Advantages
-
High Input Density: The 140DDI85300C module supports 32 digital inputs, allowing for efficient monitoring and control of a large number of devices simultaneously. This high-density input processing is ideal for applications with extensive input requirements.
-
Compact and Space-saving Design: The module is DIN rail mountable, which allows for easy installation in confined spaces, making it a perfect choice for control panels where space is limited.
-
Wide Temperature Range: With an operating temperature range of -25°C to +70°C, the 140DDI85300C can function effectively in extreme environments, providing reliability even in harsh industrial conditions.
-
Seamless Integration with Modicon PLCs: The 140DDI85300C integrates seamlessly with Modicon Premium PLC systems using Modbus communication, facilitating easy setup and expansion of automation systems.
-
Reliable Performance: Built for demanding industrial applications, the module offers high durability and long-lasting performance, reducing the need for frequent maintenance or replacements.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon Premium
-
Product Type: Digital Input Module
-
PLC Compatibility: Modicon Premium PLC
Recommended Models in the Same Series or Related Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140DDI85310 | Digital Input Module | 32 | 24V DC | 150mA | -25°C to +70°C | 45 mm x 160 mm x 90 mm | 0.4 kg |
| 140DDI85320 | Digital Input Module | 32 | 24V DC | 200mA | -25°C to +70°C | 45 mm x 160 mm x 90 mm | 0.4 kg |
| 140CRA93100 | Communication Adapter | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.3 kg |
| 140DRA94010 | Analog Output Module | 16 | 24V DC | 120mA | -25°C to +70°C | 30 mm x 150 mm x 90 mm | 0.3 kg |
| 140MGA93110 | Motion Control Adapter | N/A | 24V DC | 200mA | -25°C to +70°C | 50 mm x 120 mm x 90 mm | 0.4 kg |
Top 5 Popular Schneider Electric Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140CPU67160 | CPU Module | N/A | 24V DC | 350mA | -25°C to +70°C | 200 mm x 160 mm x 150 mm | 0.6 kg |
| 170ENT11010 | Ethernet Interface | N/A | 24V DC | 150mA | -25°C to +70°C | 100 mm x 160 mm x 110 mm | 0.4 kg |
| 120A1E25 | Power Supply | N/A | 24V DC | 500mA | -25°C to +70°C | 50 mm x 100 mm x 150 mm | 0.3 kg |
| 140CRP93100 | Modbus Communication | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.2 kg |
| 160ATP62100 | Analog Input Module | 8 | 24V DC | 90mA | -25°C to +70°C | 30 mm x 150 mm x 100 mm | 0.3 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 140DDI85300C module?
A1: The 140DDI85300C is a digital input module designed to monitor and process 24V DC digital signals from external devices such as sensors, switches, and relays in industrial automation systems.
Q2: How many inputs does the 140DDI85300C support?
A2: The module supports 32 digital inputs, which allows it to process multiple signals simultaneously.
Q3: What voltage range does the 140DDI85300C support for input signals?
A3: The 140DDI85300C supports 24V DC input signals.
Q4: Can the 140DDI85300C be used with PLC systems other than Modicon Premium?
A4: No, the 140DDI85300C is designed specifically for use with Modicon Premium PLC systems.
Q5: What is the operating temperature range of the 140DDI85300C?
A5: The 140DDI85300C operates in a temperature range of -25°C to +70°C, making it suitable for use in industrial environments with varying temperatures.
Q6: How is the 140DDI85300C installed?
A6: The module is mounted on a DIN rail, making installation easy and space-efficient in control cabinets or electrical enclosures.
Q7: Does the 140DDI85300C support communication with other devices?
A7: Yes, the module supports Modbus communication, allowing it to integrate seamlessly with other Modicon Premium PLC components.
Q8: What is the power consumption of the 140DDI85300C?
A8: The 140DDI85300C has a current consumption of approximately 200mA.
Q9: What are the dimensions of the 140DDI85300C module?
A9: The module has dimensions of 45 mm x 160 mm x 90 mm.
Q10: How much does the 140DDI85300C weigh?
A10: The module weighs approximately 0.4 kg.
