Product Overview

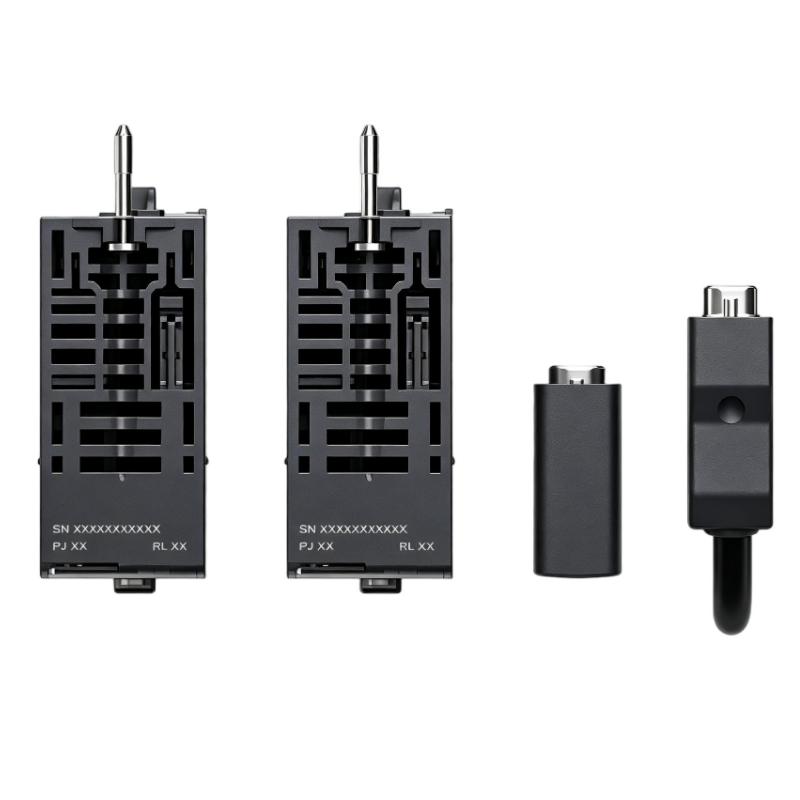

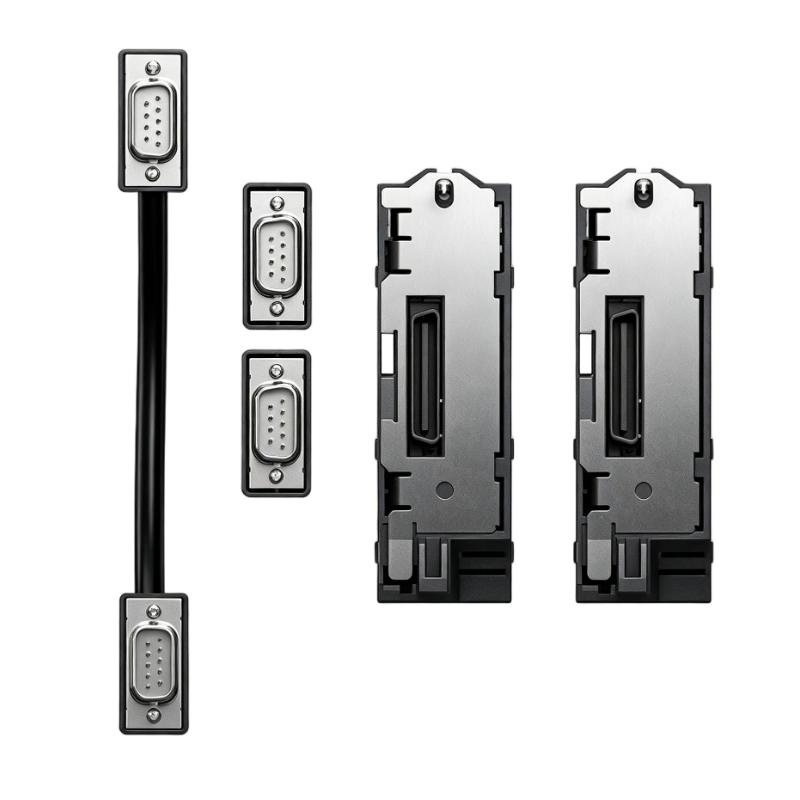

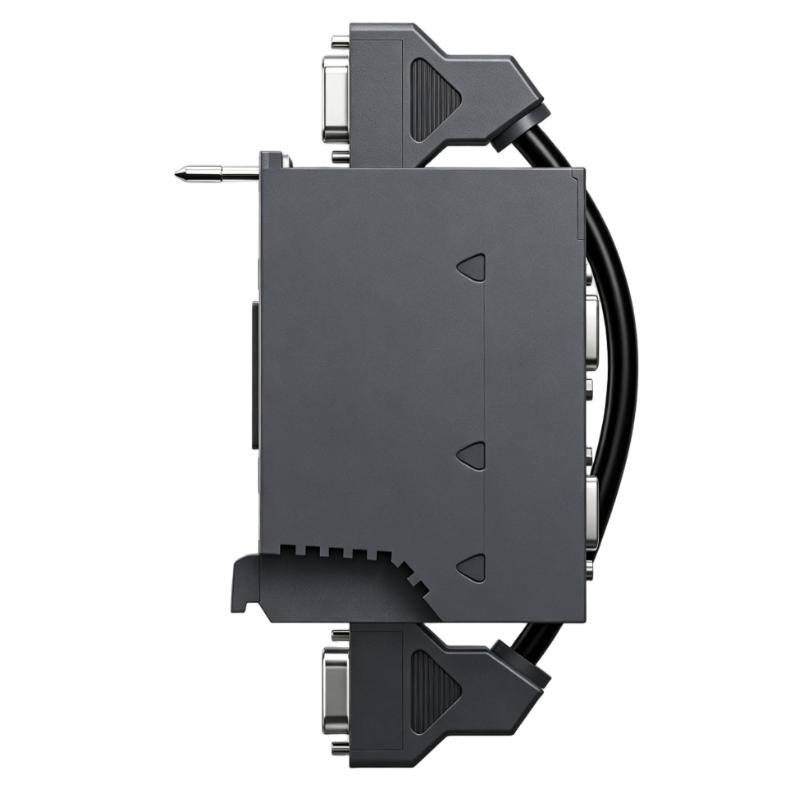

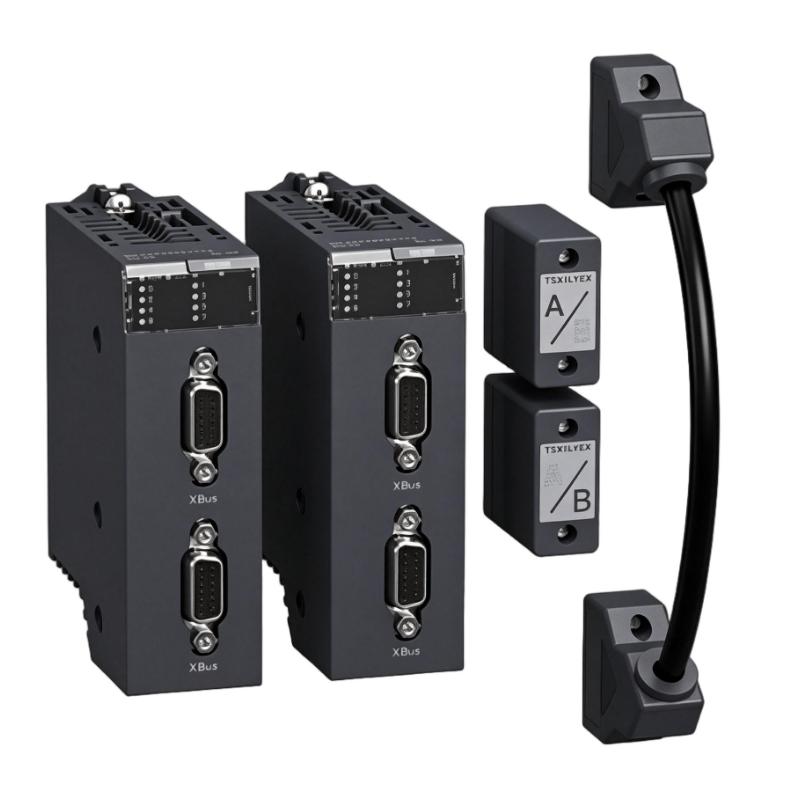

The Schneider BMXXBE2005 M340 Backplane Extension Kit is an industrial automation accessory designed to support the extension and physical organization of compatible Modicon M340 modular control-system configurations. It is intended for applications where the standard arrangement of automation modules requires additional flexibility in the system layout.
With listed dimensions of 153.3 × 112 × 40 mm and a weight of 0.567 kg, the BMXXBE2005 provides a compact mechanical solution for extending a compatible M340 backplane arrangement.
In modular PLC systems, the backplane provides the interconnection structure through which compatible modules are arranged within the control architecture. When the physical layout of a machine, control cabinet, or production system requires additional separation or expansion, a suitable backplane extension kit can help accommodate the required configuration.
The BMXXBE2005 should be regarded as an installation and system-integration component rather than a standalone PLC processor or conventional I/O module. Its suitability depends on the specific Modicon M340 architecture, compatible backplane configuration, modules, and installation requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXXBE2005 |
| Product Series | Modicon M340 |
| Product Type | Backplane Extension Kit |
| Primary Function | Backplane Extension / Modular System Interconnection |
| Dimensions | 153.3 × 112 × 40 mm |
| Weight | 0.567 kg |
| Application | Industrial Automation |
| Installation | M340 Modular Control System |
| System Role | Backplane Extension and Configuration Support |
| Typical Use | PLC Cabinet and Machine Automation |
The physical specifications supplied for the BMXXBE2005 are 153.3 × 112 × 40 mm and 0.567 kg. Exact kit contents, connector details, supported configurations, and installation requirements should be confirmed against the applicable M340 system documentation.
What Is the Schneider BMXXBE2005?
The Schneider BMXXBE2005 is a Modicon M340 Backplane Extension Kit intended to support the physical extension or organization of compatible M340 modular automation systems.
The Modicon M340 platform uses modular components to build industrial control systems. Depending on the application, a system may contain a processor, I/O modules, communication modules, power-related components, and other accessories.
A backplane provides the physical interconnection framework for compatible modules. An extension kit can be used when the physical arrangement of the control system requires a different or expanded configuration.
The BMXXBE2005 therefore contributes to the infrastructure of the automation system rather than directly executing application logic.
Backplane Extension Concept
A modular PLC architecture can be viewed as a combination of functional modules and the infrastructure that connects them.
A simplified arrangement is:
M340 Processor / Modules → Backplane Structure → Extension Arrangement → Additional Compatible Modules
The exact arrangement depends on the system design.
The purpose of a backplane extension kit is to support this physical organization while maintaining the required system architecture.
This can be useful when:
- The cabinet layout requires additional space
- Modules must be arranged in a larger physical structure
- Machine construction limits compact module placement
- The automation system is expanded
- Existing equipment requires a modified module arrangement
The BMXXBE2005 should only be installed in configurations supported by the relevant M340 system architecture.
Role in Modicon M340 Automation
The Modicon M340 is a modular PLC platform used for industrial control applications.
A typical M340 control architecture may include:
- Processor module
- Digital input modules
- Digital output modules
- Analog input modules
- Analog output modules
- Communication modules
- Power supply
- Backplane
- Backplane extension accessories
- Terminal and field-wiring equipment
The BMXXBE2005 contributes to the physical organization of this modular architecture.
It does not replace the function of a PLC CPU or I/O module. Instead, it supports the system infrastructure required to arrange compatible modules.
Industrial Applications
Manufacturing Automation
Manufacturing systems often use modular PLC architectures to control production machinery.
A backplane extension kit can support the physical arrangement of M340 components within larger control cabinets or machine structures.
Machine Control
Automated machines may require PLC hardware to be arranged according to available cabinet space and machine geometry.
The BMXXBE2005 can be used where the supported M340 configuration requires a backplane extension arrangement.
Process Automation
Industrial process equipment may contain larger control cabinets with multiple PLC and I/O modules.
Flexible backplane arrangements can simplify equipment organization where supported by the M340 architecture.
Production Lines
Production lines can contain multiple machine sections and control assemblies. Modular PLC infrastructure can help organize these systems into structured control architectures.
Automation System Expansion
When an existing M340 installation needs additional modules, an extension arrangement may provide greater flexibility for system expansion, subject to the limits and configuration rules of the platform.
Physical Characteristics
Dimensions
The listed dimensions of the BMXXBE2005 are:
153.3 × 112 × 40 mm
These dimensions should be included when planning:
- Control cabinet layout
- Mounting space
- Module arrangement
- Equipment clearances
- Cable routing
- Maintenance access
- Replacement procedures
The dimensions should be considered together with the surrounding M340 components rather than evaluated independently.
Weight
The listed weight is:
0.567 kg
This value is relevant for handling, cabinet installation, transportation planning, and equipment design.
The weight should also be considered when designing mounting arrangements where multiple components are installed together.
Installation Guidelines
Correct installation is important for maintaining the mechanical and electrical integrity of the M340 control system.
1. Confirm the Model
Verify the complete identification:
Schneider BMXXBE2005
Also confirm that the intended application is compatible with the Modicon M340 platform.
2. Inspect the Extension Kit
Before installation, inspect the kit and associated components for:
- Physical damage
- Cracked housings
- Damaged interfaces
- Contamination
- Missing components
- Packaging damage
3. Verify the System Layout
Confirm the intended backplane arrangement and module locations before installation.
The 153.3 × 112 × 40 mm dimensions should be incorporated into the cabinet layout.
4. Install According to the M340 Architecture
The extension kit should be installed according to the applicable system configuration and mechanical requirements.
Avoid forcing any connection into place.
5. Verify Connections
Check all associated interfaces and ensure that the relevant components are securely installed.
6. Inspect Cable Routing
Ensure that cables do not place unnecessary mechanical stress on the extension arrangement.
7. Perform a Final Check
Before powering the system, verify:
- Correct component identification
- Mechanical installation
- Module arrangement
- Connection integrity
- Cabinet clearance
- Wiring
- System configuration
Cabinet Layout and Mechanical Planning
The physical arrangement of a modular PLC system can have a direct impact on maintenance and reliability.
The BMXXBE2005 dimensions of 153.3 × 112 × 40 mm should be included in the overall cabinet design.
Available Space
Ensure that sufficient space is available for the extension kit and surrounding hardware.
Maintenance Access
Technicians should be able to inspect and service the system without unnecessary disassembly.
Cable Management
Cables should be routed cleanly and protected from sharp edges, excessive bending, and mechanical interference.
Environmental Protection
The installation should protect the automation hardware from excessive dust, moisture, vibration, and other environmental stresses.
Mechanical Stability
The extension arrangement should be installed securely according to the system’s mechanical requirements.
System Integration
The BMXXBE2005 functions as part of the M340 system infrastructure.
A simplified control architecture may be represented as:
M340 Controller → Backplane → Extension Arrangement → I/O / Communication Modules → Field Devices
The overall system can include:
| Component | General Function |
|---|---|
| M340 Processor | Executes PLC control logic |
| Backplane | Provides modular interconnection |
| BMXXBE2005 | Supports backplane extension |
| Digital I/O | Interfaces with discrete field devices |
| Analog I/O | Interfaces with analog process signals |
| Communication Modules | Connect the PLC to industrial networks |
| Power Supply | Provides system power |
| HMI | Provides operator interaction |
| Sensors | Monitor process conditions |
| Actuators | Perform physical control actions |
The BMXXBE2005 therefore acts as a supporting infrastructure component within the larger control architecture.
Troubleshooting the BMXXBE2005
Because the BMXXBE2005 is associated with backplane extension and system organization, problems can affect the behavior of connected modules.
Modules Are Not Detected
Possible causes may include:
- Incorrect installation
- Improper system configuration
- Connection problems
- Incompatible module arrangement
- Power-related problems
- Damaged interface components
Check the entire backplane arrangement rather than immediately replacing the affected I/O module.
Intermittent Module Faults
Intermittent behavior may be associated with:
- Loose connections
- Mechanical vibration
- Connector problems
- Environmental contamination
- Incorrect installation
- Damaged components
The extension kit and surrounding interfaces should be inspected carefully.
PLC System Reports Unexpected Errors
When the PLC reports module or system errors, investigate:
- Controller status
- Backplane configuration
- Extension arrangement
- Module installation
- Power supply
- Communication status
- System configuration
This approach helps distinguish an actual module fault from an interconnection problem.
Physical Damage
Visible cracks, deformation, damaged interfaces, or other physical defects should be investigated before returning the equipment to service.
Preventive Maintenance
The BMXXBE2005 should be included in the preventive maintenance program for the M340 control system.
Visual Inspection
Inspect the extension kit and surrounding hardware for physical damage or contamination.
Connection Inspection
Check that associated connections remain secure.
Cabinet Environment
Maintain suitable environmental conditions inside the control cabinet.
Vibration Inspection
Where machinery vibration is significant, inspect the mounting arrangement periodically.
System Diagnostics
Review PLC diagnostic information during scheduled maintenance.
Documentation
Keep records of the installed M340 architecture and module arrangement to simplify future maintenance and replacement.
Replacement Considerations
When replacing a BMXXBE2005, the complete product identification should be checked.
Important verification points include:
- Manufacturer
- Model number
- Product family
- Product type
- Dimensions
- Compatible M340 configuration
- Connection arrangement
- Installation requirements
- Associated backplane hardware
The supplied physical dimensions are 153.3 × 112 × 40 mm, and the listed weight is 0.567 kg.
A visually similar extension component should not automatically be treated as an equivalent replacement.
Compatibility must be established from the complete M340 system configuration.
Engineering Considerations
When designing or modifying an M340 automation system using a backplane extension kit, several factors should be evaluated.
System Architecture
Confirm that the planned extension arrangement is supported by the M340 platform.
Module Arrangement
Determine the intended location of processor, I/O, communication, and other modules.
Cabinet Space
Include the BMXXBE2005’s 153.3 × 112 × 40 mm dimensions in the mechanical layout.
Cable Routing
Plan wiring paths before finalizing the cabinet arrangement.
Serviceability
Leave enough access for inspection and replacement.
Environmental Conditions
Consider temperature, dust, moisture, vibration, and other conditions that may affect the control cabinet.
Key Advantages
The Schneider BMXXBE2005 provides several useful characteristics for compatible Modicon M340 installations:
- Designed for the Modicon M340 platform
- Backplane extension kit configuration
- Compact 153.3 × 112 × 40 mm physical size
- Listed weight of 0.567 kg
- Supports flexible modular control-system organization
- Useful for larger cabinet and machine layouts
- Can assist with compatible system expansion
- Supports structured industrial automation architectures
- Suitable for control-system infrastructure applications
Technical FAQs
What is the Schneider BMXXBE2005?
The BMXXBE2005 is a Modicon M340 Backplane Extension Kit used to support compatible modular PLC system arrangements.
What is the product type?
It is a Backplane Extension Kit rather than a PLC processor or I/O module.
What are the dimensions of the BMXXBE2005?
The specified dimensions are 153.3 × 112 × 40 mm.
How much does the BMXXBE2005 weigh?
The listed weight is 0.567 kg.
What is the BMXXBE2005 used for?
It is used to support the extension and physical organization of compatible Modicon M340 modular control-system configurations.
Is the BMXXBE2005 an I/O module?
No. It is an infrastructure component associated with backplane extension rather than a conventional digital or analog I/O module.
Can it be installed in any Modicon PLC system?
It should only be used in configurations for which the component is compatible. The intended M340 system architecture should be verified before installation.
What can cause problems with a backplane extension arrangement?
Potential causes include incorrect installation, incompatible configuration, loose connections, damaged interfaces, power problems, environmental contamination, or mechanical stress.
What should be checked before replacement?
Verify the complete model number, M340 compatibility, dimensions, connection arrangement, system configuration, and associated backplane components.
Why are backplane extension kits important?
They provide additional flexibility for arranging modular automation hardware when a standard compact backplane configuration does not meet the physical requirements of the installation.
Conclusion
The Schneider BMXXBE2005 M340 Backplane Extension Kit is a modular automation-system accessory designed to support the physical extension and organization of compatible Modicon M340 control architectures. With listed dimensions of 153.3 × 112 × 40 mm and a weight of 0.567 kg, it provides a compact solution for installations where additional flexibility is required in the arrangement of modular PLC hardware.
The BMXXBE2005 can be relevant to manufacturing equipment, machine automation, process-control cabinets, production lines, and M340 system expansion projects. Its role is primarily associated with system infrastructure and backplane organization rather than direct control logic or field I/O processing.
For installation, maintenance, or replacement, the complete BMXXBE2005 model designation should be verified together with the associated M340 backplane, modules, and system architecture. Correct mechanical installation, secure connections, adequate cabinet space, and appropriate system configuration are essential for reliable industrial automation operation.
