Product Overview

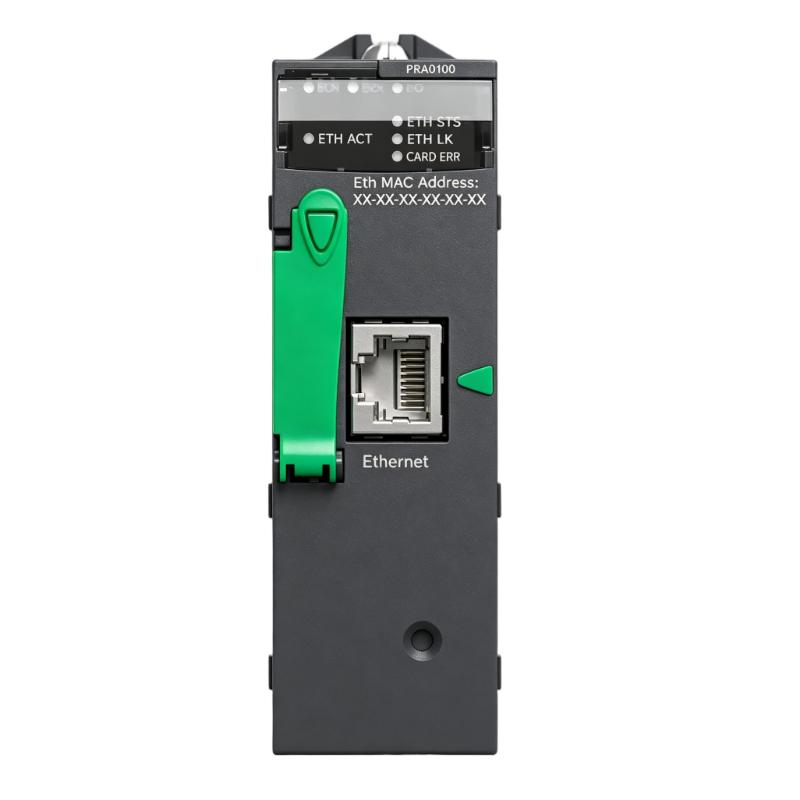

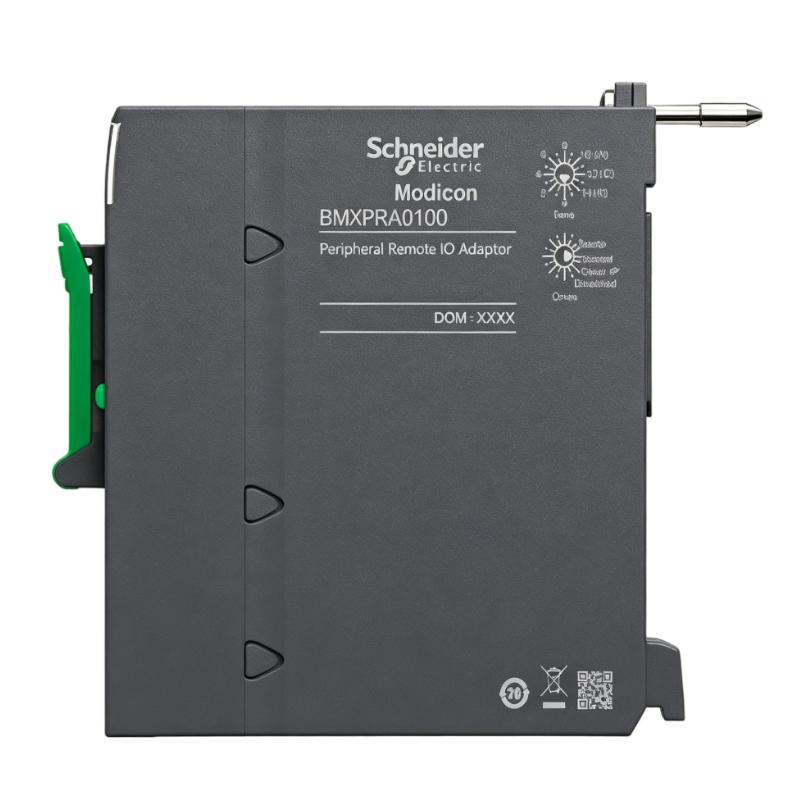

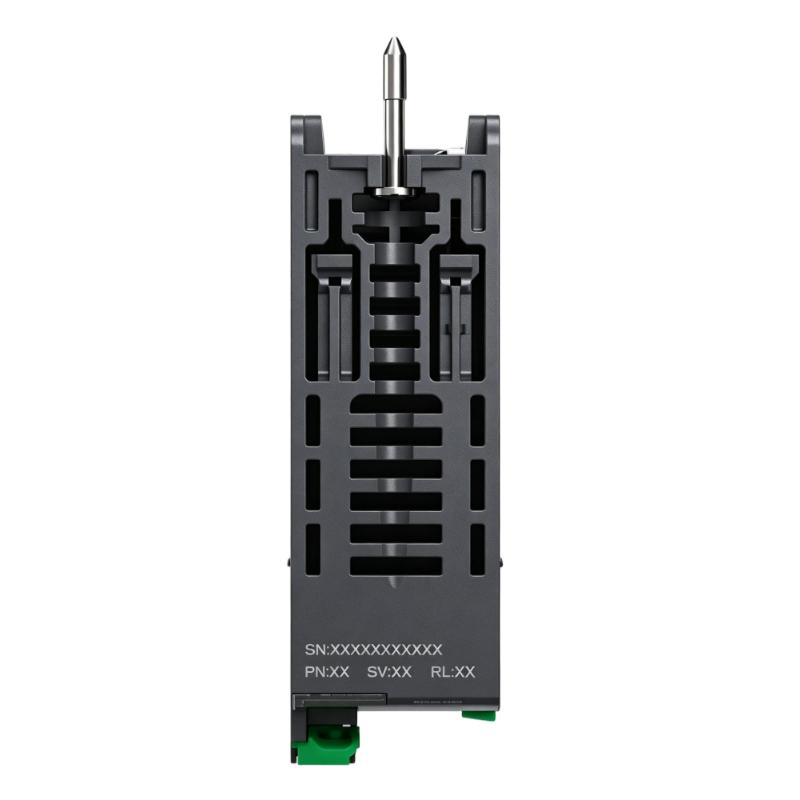

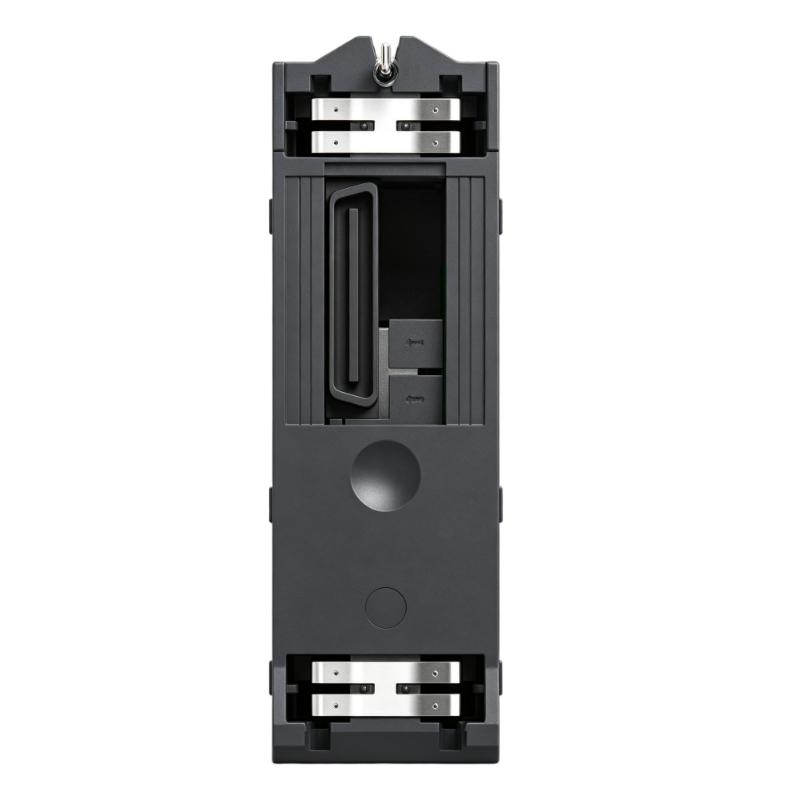

The Schneider BMXPRA0100 Peripheral Remote I/O Adapter Module is an industrial automation communication component designed to provide an interface between a compatible control system and remote I/O equipment. Remote I/O architectures allow input and output devices to be installed closer to the physical process while transferring their signals back to a central controller through an appropriate communication infrastructure.

In large machines, production lines, process installations, and distributed automation systems, placing every I/O module next to the central PLC can result in extensive field wiring. A remote I/O architecture provides an alternative by locating I/O equipment closer to sensors and actuators. This can simplify physical wiring, improve system organization, and make distributed control architectures easier to implement.

The BMXPRA0100 has listed dimensions of 104 × 100 × 33 mm and a weight of 0.215 kg. Its compact form factor allows it to be incorporated into industrial control cabinets and remote I/O stations where efficient space utilization is important.

The adapter module acts as an interface within the remote I/O architecture. Its exact communication functions, supported remote I/O architecture, and system requirements depend on the associated Schneider Electric platform and configured installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	BMXPRA0100
Product Type	Peripheral Remote I/O Adapter Module
Primary Function	Remote I/O System Interface
Application	Industrial Automation / Distributed I/O
Dimensions	104 × 100 × 33 mm
Weight	0.215 kg
Installation	Remote I/O Station / Industrial Control Cabinet
Product Category	Remote I/O Adapter
System Role	Remote I/O Communication Interface

The exact communication protocol, network configuration, supported I/O architecture, electrical characteristics, environmental ratings, and system capacity should be confirmed against the applicable Schneider Electric hardware documentation and system configuration.

---

What Is the Schneider BMXPRA0100?

The Schneider BMXPRA0100 is a Peripheral Remote I/O Adapter Module designed to form part of a distributed I/O architecture.

In a centralized PLC system, the controller and I/O modules are often installed in the same physical cabinet. A remote I/O architecture allows I/O equipment to be installed closer to the machinery or process.

A simplified arrangement can be represented as:

Central PLC → Communication Network → BMXPRA0100 → Remote I/O Modules → Field Devices

The adapter provides the interface between the remote I/O station and the broader control architecture.

This arrangement can reduce the need to route every individual field signal back to the central PLC cabinet.

---

Remote I/O Working Principle

Remote I/O systems divide the physical location of the control system into central and distributed sections.

Central Controller

The PLC processor executes the application program and determines the required control actions.

Communication Network

A communication infrastructure transfers information between the central controller and the remote I/O station.

Remote I/O Adapter

The BMXPRA0100 operates as the interface between the communication architecture and the associated remote I/O equipment.

Remote I/O Modules

Input and output modules process signals from sensors and control connected field devices.

Field Equipment

Sensors, switches, actuators, valves, motors, and other devices interact directly with the industrial process.

The overall information flow can therefore be represented as:

Field Devices → Remote I/O → BMXPRA0100 → Control Network → PLC

Control commands travel in the opposite direction:

PLC → Control Network → BMXPRA0100 → Remote I/O → Field Devices

---

Main Functions of the BMXPRA0100

Remote I/O Interface

The module provides an interface between the remote I/O station and the control-system communication architecture.

Distributed Signal Management

Remote I/O allows field signals to be processed closer to their physical source.

Reduced Field Wiring

Instead of routing every field signal individually over long distances, a distributed I/O architecture can consolidate communication between the remote station and the central control system.

System Expansion

Remote I/O architectures can provide additional flexibility when automation systems need to support equipment distributed across a larger physical area.

Control-System Integration

The adapter can form part of the communication path connecting remote I/O equipment with the central automation system.

---

Role in Industrial Automation

Remote I/O is particularly valuable when field devices are distributed across machines, production lines, or process areas.

A typical architecture may look like:

Sensors / Actuators → Remote I/O Station → BMXPRA0100 → Industrial Network → PLC

This structure can help separate the physical location of field wiring from the central controller.

The BMXPRA0100 can therefore contribute to:

• Distributed I/O architectures
• Remote signal acquisition
• Remote actuator control
• Machine-level I/O distribution
• Process-area I/O
• Reduced long-distance field wiring
• Modular automation system design
• Centralized control of distributed equipment

The exact system configuration depends on the installed PLC platform and remote I/O architecture.

---

Industrial Applications

Distributed Machine Automation

Large machines can use remote I/O stations to place field interfaces close to motors, sensors, valves, and other equipment.

Manufacturing Lines

Production lines often contain multiple physically separated stations. Remote I/O can provide local signal interfaces while maintaining centralized PLC control.

Process Automation

Process equipment distributed throughout a facility can benefit from remote I/O architectures that reduce long field-wire runs.

Material Handling

Conveyors, transfer systems, sorting equipment, and storage systems may require I/O stations distributed along a production area.

Packaging Systems

Large packaging machines can use distributed I/O to reduce wiring between the central PLC cabinet and machine sections.

Utility and Infrastructure Systems

Remote equipment can be connected to central control systems through distributed I/O architectures.

---

Centralized vs. Remote I/O Architecture

A centralized I/O system typically follows:

Field Devices → Local I/O → PLC

A remote I/O architecture can instead use:

Field Devices → Remote I/O → Network → PLC

The second approach can be useful when the distance between the central control cabinet and field equipment is significant.

Potential advantages of distributed I/O include:

• Shorter local field wiring
• More organized machine wiring
• Flexible cabinet placement
• Easier distribution of I/O points
• Reduced concentration of field cables
• Modular system expansion

The appropriate architecture depends on the machine design, physical layout, communication requirements, and engineering standards.

---

Installation Guidelines

1. Verify the Module

Confirm the complete product designation:

Schneider BMXPRA0100

Verify that it corresponds to the intended remote I/O architecture.

2. Select the Installation Location

The remote I/O adapter should be installed in an appropriate control cabinet or remote I/O enclosure according to the system design.

3. Install Associated I/O Modules

The remote I/O station should be assembled according to the intended hardware configuration.

4. Connect the Communication Network

Connect the remote I/O station to the appropriate control-system communication infrastructure.

5. Connect Field Wiring

Field sensors and actuators should be wired to the associated I/O modules according to the control-system design.

6. Verify the Complete Station

Before commissioning, check module installation, wiring, communication connections, and configuration.

---

Remote I/O Network Planning

A reliable remote I/O installation requires more than simply connecting an adapter to a network.

Engineers should consider:

• Central PLC location
• Remote I/O station locations
• Communication topology
• Cable routes
• Field-device distribution
• Power distribution
• Cabinet locations
• Service access
• Environmental conditions
• Network diagnostics

Remote I/O stations should be positioned so that field wiring remains practical while maintaining suitable communication infrastructure.

---

Commissioning Procedure

A systematic commissioning process can help identify wiring and configuration problems.

Step 1: Verify Hardware

Confirm the BMXPRA0100 and associated remote I/O modules.

Step 2: Inspect Installation

Check the remote I/O station, cabinet, connectors, and mechanical installation.

Step 3: Check Field Wiring

Verify sensor and actuator connections.

Step 4: Check Communication Connections

Inspect the communication network between the central PLC and remote I/O station.

Step 5: Verify Hardware Configuration

Confirm that the remote I/O station corresponds to the configured PLC architecture.

Step 6: Establish Communication

Check that the central controller can correctly recognize and communicate with the remote station.

Step 7: Test Inputs

Activate representative field devices and verify that the PLC receives the expected input information.

Step 8: Test Outputs

Command representative outputs and verify that the connected field equipment responds correctly.

Step 9: Test the Complete Process

Run the system through its intended operating sequence under controlled conditions.

---

Troubleshooting the BMXPRA0100

Remote I/O Station Not Communicating

If the central PLC cannot communicate with the remote I/O station, inspect:

• Communication cabling
• Network connections
• Module installation
• Hardware configuration
• Power supply
• Remote I/O configuration
• System diagnostics

The adapter should not be assumed to be defective until the complete communication path has been checked.

Remote Inputs Are Not Available

If remote input signals are missing, inspect:

• Sensor wiring
• Input modules
• Remote station power
• Communication connection
• Hardware configuration
• Field devices

Remote Outputs Do Not Operate

If output commands are not reaching the field devices, check:

• PLC output logic
• Remote I/O configuration
• Output module
• Field wiring
• Actuator power
• Communication status

Intermittent Remote I/O Communication

Intermittent operation may be caused by:

• Loose connections
• Cable damage
• Power instability
• Electrical interference
• Network problems
• Configuration errors
• Environmental conditions

The complete remote I/O system should be investigated.

---

Maintenance Recommendations

Inspect Communication Connections

Check communication cables and connectors periodically for visible damage or looseness.

Inspect Remote I/O Modules

Verify that associated modules remain correctly installed.

Check Field Wiring

Inspect sensor and actuator wiring for mechanical damage, loose connections, and other abnormalities.

Monitor Diagnostics

Repeated communication or I/O errors should be investigated rather than ignored.

Maintain Configuration Records

Keep accurate records of remote station configuration and network connections.

Check Cabinet Conditions

Remote I/O cabinets should be maintained in suitable environmental conditions for industrial electronic equipment.

---

Physical Dimensions and Weight

The Schneider BMXPRA0100 has listed dimensions of:

104 × 100 × 33 mm

The listed weight is:

0.215 kg

These specifications are useful for:

• Remote cabinet planning
• I/O station layout
• Equipment handling
• Transportation
• Inventory management
• Replacement preparation

When designing a remote I/O enclosure, the module dimensions should be considered together with adjacent module space, wiring clearance, communication connections, ventilation, and maintenance access.

---

Compatible System Components

A remote I/O architecture containing the BMXPRA0100 may include several types of equipment:

Component	Typical Function
Central PLC Processor	Executes application logic
Communication Network	Transfers data between controller and remote station
BMXPRA0100	Interfaces with the remote I/O architecture
Digital Input Modules	Receive discrete field signals
Digital Output Modules	Control discrete devices
Analog Input Modules	Receive process measurements
Analog Output Modules	Provide analog control signals
Sensors	Detect process conditions
Actuators	Perform physical actions
HMI	Operator monitoring and control
SCADA System	Supervisory monitoring

The exact components and compatibility requirements depend on the complete Schneider Electric automation architecture.

---

Replacement Considerations

When replacing a Schneider BMXPRA0100, the complete model designation should be verified.

Important considerations include:

• Full module number
• Remote I/O architecture
• Host PLC platform
• Associated I/O modules
• Communication network
• Hardware configuration
• Field wiring
• Cabinet installation
• Application requirements

A physically similar adapter should not automatically be considered a compatible replacement.

After replacement, communication between the central PLC and remote I/O station should be verified before normal operation resumes.

Input and output points should also be tested to confirm that the remote station is correctly integrated into the application.

---

Engineering Best Practices

Position Remote I/O Near Field Devices

Placing remote I/O closer to the equipment it serves can help reduce unnecessary field-wiring distances.

Maintain Clear Station Identification

Each remote I/O station should be clearly identified in drawings and physical installations.

Document Network Connections

Maintain accurate records of communication paths between the central controller and remote stations.

Label Field Wiring

Clear identification of sensors, actuators, and I/O points can significantly simplify troubleshooting.

Separate Appropriate Wiring

Communication, power, and sensitive signal wiring should be routed according to the requirements of the overall installation.

Maintain Service Access

Remote I/O equipment should remain accessible for inspection and replacement.

Keep Configuration Documentation Updated

PLC hardware configuration, network documentation, wiring diagrams, and the physical installation should remain consistent.

---

Key Advantages

The Schneider BMXPRA0100 Peripheral Remote I/O Adapter Module provides several practical benefits within a distributed automation architecture:

• Supports remote I/O system architectures
• Provides an interface between remote I/O and the control system
• Helps distribute I/O closer to field equipment
• Can reduce long field-wiring requirements
• Supports modular automation system design
• Compact 104 × 100 × 33 mm dimensions
• Listed weight of 0.215 kg
• Suitable for industrial control cabinet installation
• Supports distributed machine and process automation
• Facilitates organized remote I/O system architecture

---

Technical FAQs

What is the Schneider BMXPRA0100?

The Schneider BMXPRA0100 is a Peripheral Remote I/O Adapter Module designed to provide an interface between a compatible remote I/O station and the broader industrial control system.

What is the main function of the BMXPRA0100?

Its main function is to support communication between the remote I/O architecture and the central automation control system.

What are the dimensions of the BMXPRA0100?

The listed dimensions are 104 × 100 × 33 mm.

How much does the BMXPRA0100 weigh?

The listed weight is 0.215 kg.

Why use remote I/O instead of centralized I/O?

Remote I/O can place I/O modules closer to sensors and actuators, potentially reducing long field-wiring runs and improving the physical organization of distributed automation systems.

Is the BMXPRA0100 a PLC processor?

No. It is a Peripheral Remote I/O Adapter Module. The PLC processor executes the control program, while the remote I/O adapter provides the interface for the distributed I/O architecture.

What can cause remote I/O communication failure?

Possible causes include communication-cable problems, configuration errors, power issues, incorrect module installation, network faults, I/O configuration problems, or faults elsewhere in the remote I/O system.

What should be checked after replacing the adapter?

The remote station configuration, communication connection, I/O status, field wiring, diagnostics, and representative input/output points should be tested before returning the system to normal operation.

Can a different Schneider module with similar dimensions replace the BMXPRA0100?

Not necessarily. Compatibility must be verified from the complete model number, PLC platform, remote I/O architecture, communication requirements, and system configuration.

---

Conclusion

The Schneider BMXPRA0100 Peripheral Remote I/O Adapter Module is a compact industrial automation component designed to support distributed I/O architectures. By providing an interface between remote I/O equipment and the central control system, it can help position I/O closer to sensors and actuators while maintaining centralized PLC-based control.

With listed dimensions of 104 × 100 × 33 mm and a weight of 0.215 kg, the BMXPRA0100 is suitable for compact remote I/O stations and industrial control installations.

Remote I/O reliability depends on the complete system, including the adapter, associated I/O modules, communication infrastructure, field wiring, power supply, PLC configuration, and connected devices. Proper installation, structured commissioning, clear documentation, and systematic troubleshooting are therefore important.

For installation or replacement, the complete Schneider BMXPRA0100 model should be verified against the intended remote I/O architecture. Correct configuration and testing of both communication and field I/O can help maintain stable and dependable distributed automation performance.
