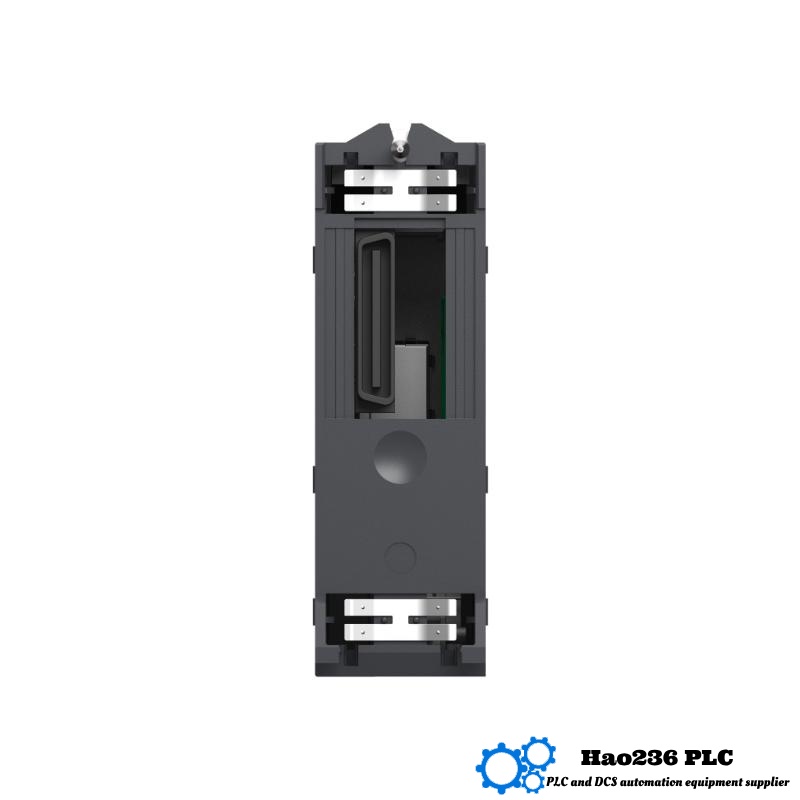

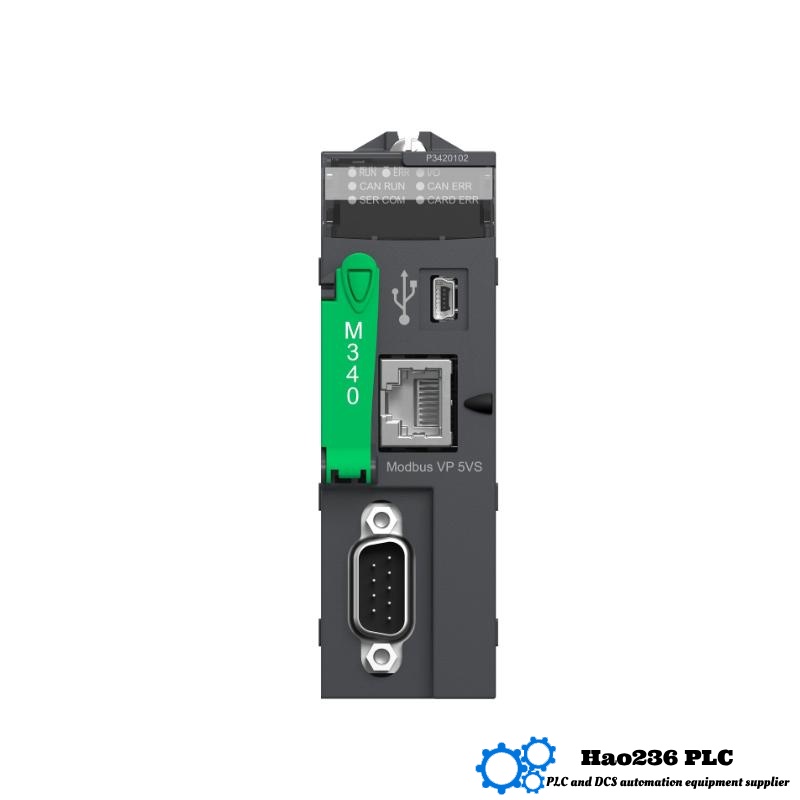

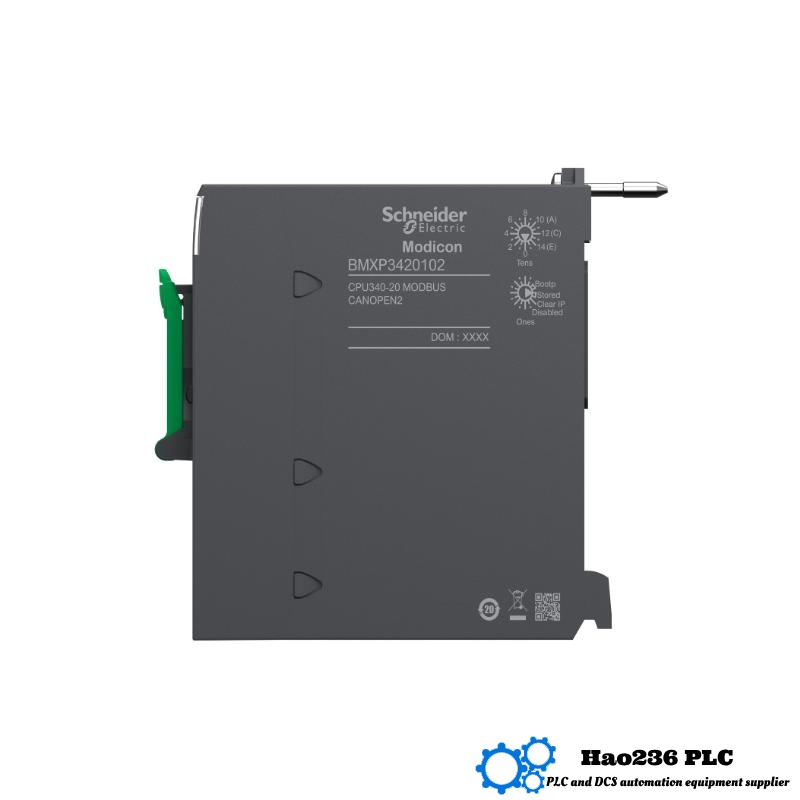

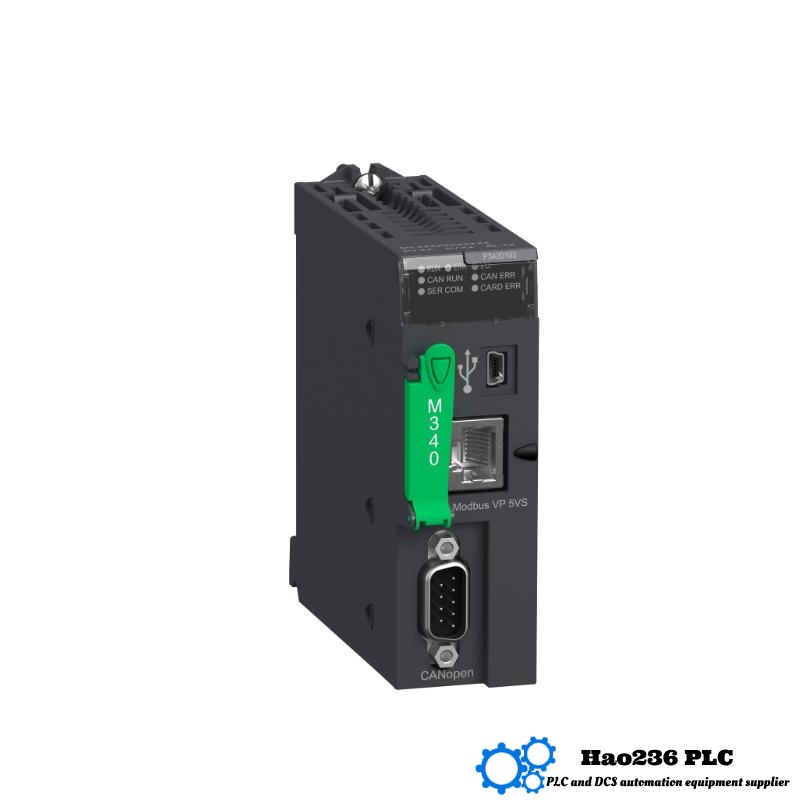

Schneider BMXP3420102 Processor Module
Product Introduction
The Schneider BMXP3420102 is a next-generation processor module in the Modicon M340 PLC series. Building on the BMXP342010, it features enhanced on-board memory, integrated security, and ultra-compact dimensions (160 × 100 × 35 mm) to serve as a modular edge controller. Designed for small-footprint installations, the BMXP3420102 supports complex logic, data logging, and secure communications for modern industrial IoT applications.
Product Applications
-
Edge computing in distributed automation architectures, reducing load on central CPUs.
-
Secure machine-to-cloud data exchange for Industry 4.0 analytics and predictive maintenance.
-
Compact OEM machinery control where panel space is limited.
-
Remote equipment monitoring in water treatment booster stations and pump skids.
-
Safety-enhanced process loops requiring authenticated code and user access control.
Product Advantages
-
Ultra-Compact Form Factor: At 160 × 100 × 35 mm and 0.21 kg, it fits in tight control cabinets or DIN-rail micro-enclosures.
-
Enhanced Memory: 1 MB user program and 512 KB data memory for advanced function blocks, recipes, and historical data.
-
Integrated Security: Hardware TLS engine and secure boot protect intellectual property and ensure firmware integrity.
-
Flexible Connectivity: Dual Modbus RTU ports plus 10/100 Mbps Ethernet with OPC UA support for seamless integration.
-
High-Speed Performance: 10 MIPS processing engine with sub-millisecond I/O update rates for real-time control.
Brand and Series
Brand: Schneider Electric
Series: Modicon M340 PLC Family
The Modicon M340 series provides a scalable mid-range PLC platform with modular CPUs, I/O, and communication options, backed by Schneider Electric’s global support and lifecycle commitment.
Detailed Technical Parameters
| Specification | Details |
|---|---|
| Model Number | BMXP3420102 |
| CPU Engine | 32-bit ARM Cortex-M7 @ 400 MHz |
| User Program Memory | 1 MB Flash |
| Data Memory | 512 KB SRAM |
| Communication Ports | 1 × 10/100 Mbps Ethernet (RJ45) 2 × RS-485 Modbus RTU |
| Protocols Supported | Modbus TCP/RTU, OPC UA, MQTT |
| Security Features | Secure Boot, TLS 1.2, Role-Based Access Control |
| I/O Update Rate | <1 ms cycle time |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % RH (non-condensing) |
| Dimensions (W × H × D) | 160 × 100 × 35 mm |
| Weight | 0.21 kg |
| Power Supply | 24 V DC ±10 % |
| Mounting | DIN rail TS35 or panel mount |
Related Modicon M340 Series / Function Models
| Model Number | Description |
|---|---|
| BMXP342000 | Standard M340 CPU, 256 KB program memory |
| BMXP342001 | M340 CPU, 512 KB memory + battery backup |
| BMXP342005 | M340 CPU with dual Ethernet ports |
| BMXP342020 | M340 CPU with advanced encryption and tagging |
| BMXP342002 | Compact M340 CPU with 128 KB memory |
Popular Schneider Electric Models
| Model Number | Description |
|---|---|
| TSXPSY2600 | 24 V DC power supply module for M340 racks |
| BMXDDO1602 | 16-channel transistor output module |
| BMXFTB2010 | Fieldbus terminal block for Profibus DP |
| BMEP584040 | High-performance X80 CPU with expanded I/O capacity |
| TM221CE16T | Modicon M221 logic controller with embedded Ethernet |
Frequently Asked Questions (FAQ)
Q: What makes the BMXP3420102 different from the BMXP342010?
A: It offers double user memory (1 MB), hardware security (TLS, secure boot), and a smaller footprint.
Q: Can I program this CPU with the same tools as other M340 modules?
A: Yes, use EcoStruxure Control Expert (formerly Unity Pro) or SoMachine for configuration and programming.
Q: How is secure boot implemented?
A: A root-of-trust in the bootloader verifies firmware signatures before execution, preventing unauthorized code.
Q: Does it support cloud protocols?
A: Yes—OPC UA and MQTT enable direct, secure device-to-cloud communication without gateways.
Q: What is the maximum I/O scan rate?
A: The module supports I/O cycles under 1 ms, suitable for high-speed control loops.
Q: Is battery backup available for data retention?
A: Internal SRAM is volatile; use external SD card or network storage for persistent logging.
Q: Can I mount it on any DIN-rail?
A: It fits standard TS35 DIN-rail or can be panel-mounted with an optional bracket.
Q: How does the CPU handle extreme temperatures?
A: Operating between –20 °C and +60 °C, it is rated for most industrial settings.
Q: How many devices can connect to its Ethernet port?
A: Up to 4 simultaneous Modbus TCP clients or OPC UA sessions are supported.
Q: What certifications does it hold?
A: CE, UL 508, and cULus approvals for industrial control equipment.
