Overview

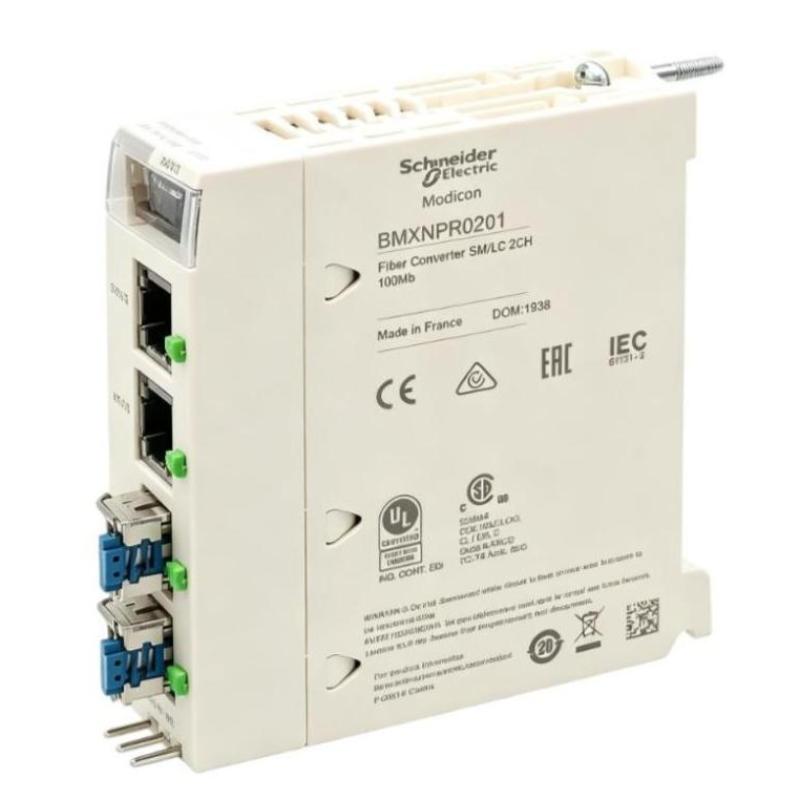

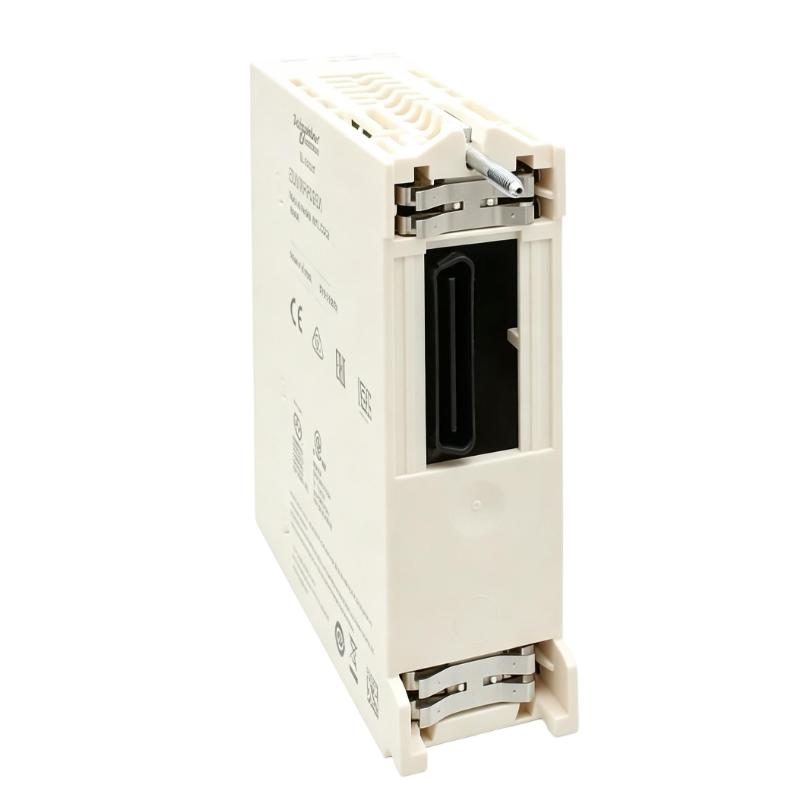

The Schneider BMXNRP0201 is a Modicon X80 Fiber Optic Converter designed for industrial Ethernet communication systems.
This module provides fiber optic conversion between Ethernet networks, allowing automation systems to achieve longer-distance communication, improved noise immunity, and more flexible network architectures. It is commonly used in distributed I/O systems, industrial Ethernet networks, and automation environments where reliable data transmission is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model | BMXNRP0201 |
| Product Type | Fiber Optic Converter |
| Series | Modicon X80 |
| Dimensions | 32 × 100 × 86 mm |
| Weight | 0.203 kg |
| Fiber Type | Single Mode Fiber |
| Communication Type | Industrial Ethernet |
| Ethernet Interface | 100BASE-TX |
| Fiber Interface | 100BASE-FX |
| Fiber Connector Type | LC Connector |
| Operating Voltage | 24 V DC |
| Main Function | Ethernet to Fiber Optic Conversion |
| Application | Industrial Communication Networks |
Applications
Industrial Ethernet Networks
The BMXNRP0201 is used to connect Ethernet-based automation devices through fiber optic communication networks.
Remote I/O Systems
It supports distributed I/O architectures by extending communication links between control systems and remote equipment.
Process Automation
The module is suitable for process industries where long-distance and stable communication between automation devices is required.
Factory Automation Systems
It helps integrate PLC systems, remote stations, and industrial devices into reliable Ethernet networks.
High-Interference Environments
Fiber optic communication provides better resistance to electromagnetic interference in industrial areas.
How It Works
The Schneider BMXNRP0201 converts electrical Ethernet signals into optical signals for transmission through fiber optic cables.

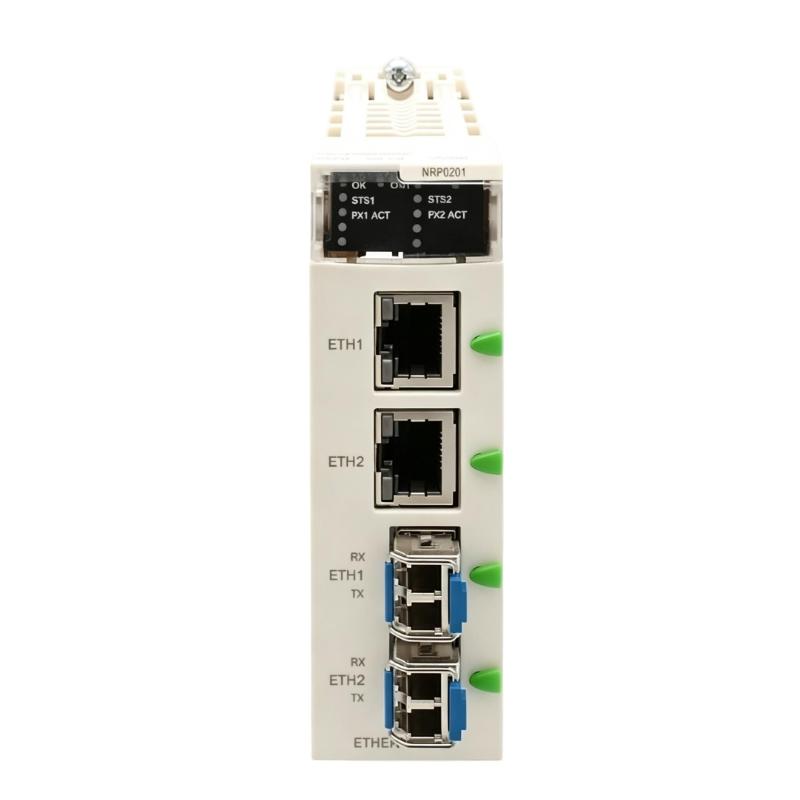

The module receives Ethernet communication data through RJ45 interfaces, converts the data into optical signals, and transfers them through single-mode fiber connections. At the receiving end, the optical signals are converted back into Ethernet data for communication with connected automation equipment.
The typical working process is:
Ethernet Device → BMXNRP0201 Converter → Fiber Optic Cable → Remote Ethernet Device
This conversion method allows industrial networks to achieve longer transmission distances and improved communication reliability.
Key Advantages
| Feature | Benefit |
|---|---|
| Fiber Optic Communication | Enables reliable long-distance industrial networking. |
| Single Mode Fiber Support | Suitable for extended communication distances. |
| Strong Noise Immunity | Reduces the impact of electromagnetic interference. |
| Compact X80 Module Design | Saves installation space in control cabinets. |
| Industrial Ethernet Compatibility | Supports integration with automation networks. |
| Stable Data Transmission | Improves communication reliability in harsh environments. |
Related Components
| Component | Function |
|---|---|
| BMXNRP0201 Fiber Converter | Converts Ethernet signals to fiber optic communication. |
| Modicon M580 Controller | Provides PLC control and automation processing. |
| Modicon X80 Remote I/O Modules | Collect and process field signals. |
| Ethernet Communication Modules | Provide network communication functions. |
| Fiber Optic Cable | Transfers optical communication signals. |
| Industrial Ethernet Switch | Manages network communication connections. |
Installation
The Schneider BMXNRP0201 should be installed in a compatible Modicon X80 rack system according to the network configuration requirements.
Before installation, check:
- Fiber type compatibility
- Ethernet connection requirements
- Power supply availability
- Rack installation position
- Network topology design
Ensure that Ethernet cables and fiber optic connections are correctly installed. After powering the system, check communication indicators and verify data exchange between connected devices.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| No Network Communication | Incorrect cable connection | Check Ethernet and fiber connections. |
| Fiber Link Failure | Fiber cable issue | Inspect fiber cable condition and connector installation. |
| Unstable Communication | Network interference or configuration issue | Check network settings and cable quality. |
| Module Not Operating | Power supply problem | Verify 24 V DC input and module status. |
| Data Transmission Delay | Network configuration issue | Check communication architecture and connected devices. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| BMXNRP0201 | Fiber Optic Converter | Single-mode industrial Ethernet networks |
| BMXNRP0200 | Fiber Optic Converter | Multimode fiber communication systems |
| BMENOC0301 | Ethernet Communication Module | PLC network communication |
| BMXNOC0401 | Ethernet Communication Module | Industrial Ethernet applications |
| BMENOS0300 | Ethernet Switch Module | Automation network expansion |
| BMXPRA0100 | Remote I/O Adapter Module | Distributed I/O systems |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| Schneider Modicon X80 Series | PLC Expansion Platform | Industrial automation systems |
| Schneider Modicon M580 Series | PAC Controllers | Process and factory control |
| Schneider Ethernet Communication Modules | Network Modules | Industrial data exchange |
| Schneider Remote I/O Systems | I/O Equipment | Distributed automation |
| Schneider Industrial Ethernet Products | Network Components | Factory communication |
| Schneider PLC Accessories | System Components | Automation installation |
Technical FAQs
1. What is the main function of the Schneider BMXNRP0201?
The BMXNRP0201 is a fiber optic converter used to connect Ethernet communication networks through optical fiber.
2. What type of fiber does the BMXNRP0201 support?
The module supports single-mode fiber communication.
3. Why use fiber optic communication in industrial systems?
Fiber optic communication provides longer transmission distances and better resistance to electromagnetic interference.
4. What Ethernet communication standard does the BMXNRP0201 support?
The module supports 100BASE-TX Ethernet and 100BASE-FX fiber communication.
5. What should be checked if the fiber communication fails?
Check power supply, Ethernet connections, fiber cable condition, connector installation, and network configuration.
