Overview

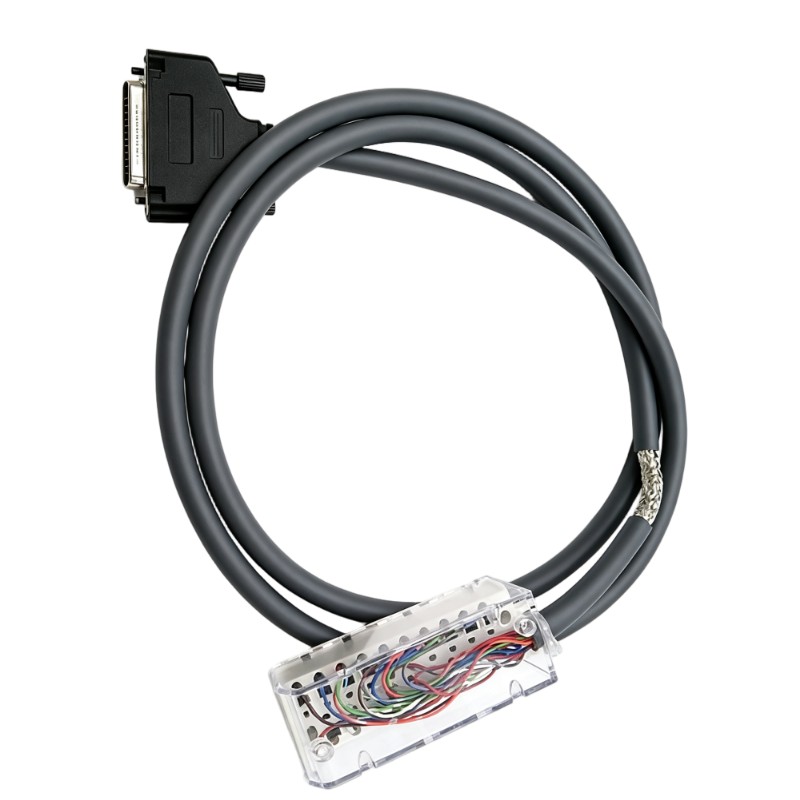

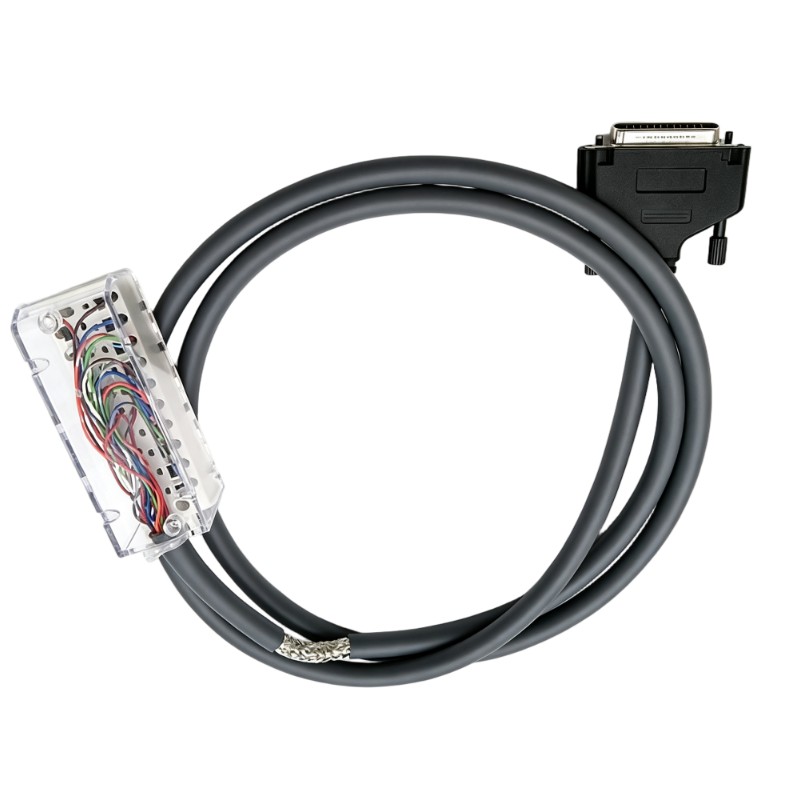

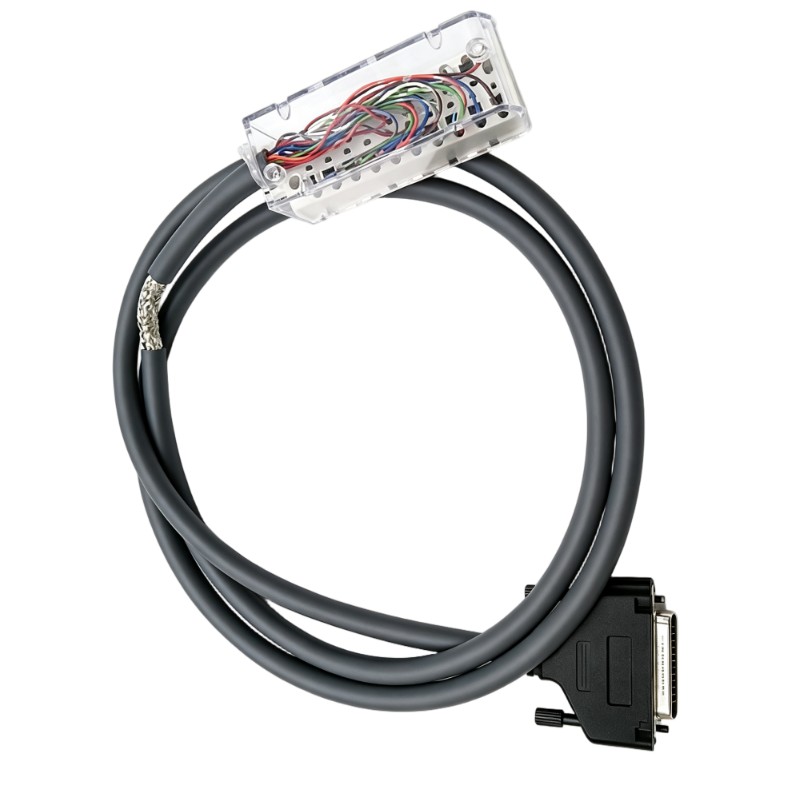

The Schneider BMXFTA152 is a Cable Assembly designed for industrial automation wiring applications within Schneider PLC systems.
This cable assembly provides a convenient connection solution between automation modules and external terminal interfaces, helping improve wiring organization and installation efficiency. It is mainly used in control cabinets and industrial systems where reliable signal connection between PLC components and field devices is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model | BMXFTA152 |
| Product Type | Cable Assembly |
| Series | Modicon Accessories |
| Cable Length | 1.5 meters |
| Weight | 0.32 kg |
| Connection Type | Preassembled Cable Connection |
| Main Function | I/O Signal Connection |
| Cable Application | PLC and Terminal Interface Wiring |
| Installation Type | Control Cabinet Installation |
| Application | Industrial Automation Systems |
Applications
PLC I/O Wiring Systems
The BMXFTA152 is used to connect PLC modules with terminal interfaces, providing a reliable path for transferring input and output signals.
Control Cabinet Integration
It helps simplify cabinet wiring by replacing complex manual connections with a ready-made cable assembly.
Machine Automation Equipment
The cable assembly is suitable for automated machines that require organized and stable connections between control modules and field devices.
Industrial Production Lines
It supports automation systems where multiple signal connections must be installed efficiently and maintained reliably.
Distributed Automation Systems
The BMXFTA152 can be used in systems requiring flexible connections between PLC components and remote equipment.
How It Works
The Schneider BMXFTA152 transfers electrical signals between compatible automation modules and connected terminal devices.
The preassembled cable structure provides fixed wiring connections, reducing installation time and helping prevent wiring mistakes. Once installed, the cable allows signals from PLC I/O modules to pass between the control system and external devices.
The typical working process is:
PLC Module → BMXFTA152 Cable Assembly → Terminal Connection → Field Devices
This connection method improves system wiring efficiency and supports stable signal transmission in industrial environments.
Key Advantages
| Feature | Benefit |
|---|---|
| Preassembled Cable Structure | Reduces wiring workload and installation time. |
| Reliable Connection Performance | Helps maintain stable signal transmission. |
| Compact Cable Design | Suitable for control cabinet environments with limited space. |
| Easy System Integration | Simplifies connection between automation components. |
| Reduced Wiring Errors | Minimizes incorrect manual wiring during installation. |
| Industrial Application Design | Suitable for long-term automation operation. |
Related Components
| Component | Function |
|---|---|
| BMXFTA152 Cable Assembly | Provides signal connection between automation components. |
| Schneider PLC I/O Modules | Collect and control field signals. |
| Terminal Blocks | Provide connection points for field wiring. |
| Modicon M340 Controllers | Execute automation control programs. |
| Modicon X80 Modules | Provide PLC expansion and signal processing. |
| Field Sensors and Actuators | Send or receive industrial signals. |
Installation
The Schneider BMXFTA152 should be installed according to the connection requirements of the related PLC modules and terminal equipment.
Before installation, check:
- Connector compatibility
- Cable routing space
- Terminal connection position
- Module wiring requirements
- Cable condition
During installation, ensure connectors are properly inserted and secured. Avoid excessive bending, pulling, or mechanical stress on the cable to maintain connection reliability.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| No Signal Transmission | Loose cable connection | Check connector installation and contact condition. |
| Incorrect Signal Output | Wrong connection point | Verify wiring configuration and module assignment. |
| Intermittent Signal Loss | Cable damage or poor contact | Inspect cable and connector condition. |
| Installation Difficulty | Incorrect cable routing | Check cabinet layout and cable placement. |
| Communication Error | Module compatibility issue | Confirm connected devices and system configuration. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| BMXFTA152 | Cable Assembly | PLC terminal connection |
| BMXFTA150 | Cable Assembly | Standard I/O wiring applications |
| BMXFCC203 | 40-pin Connector Cable | Multi-signal I/O connection |
| BMXFCA152 | Connection Cable | Automation system wiring |
| BMXFCA150 | Connection Cable | Cabinet signal connection |
| BMXFTB2000 | Terminal Block Accessory | Field wiring interface |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| Schneider Modicon M340 Series | PLC Systems | Machine automation control |
| Schneider Modicon X80 Series | I/O Platform | Industrial signal management |
| Schneider PLC I/O Modules | Automation Modules | Data acquisition and control |
| Schneider Terminal Accessories | Wiring Components | Field connection management |
| Schneider Communication Modules | Network Components | Industrial communication |
| Schneider Automation Accessories | System Components | PLC installation support |
Technical FAQs
1. What is the main function of the Schneider BMXFTA152?
The BMXFTA152 is a cable assembly used to connect Schneider automation modules with terminal interfaces for signal transmission.
2. What is the cable length of the BMXFTA152?
The cable assembly has a cable length of 1.5 meters.
3. What applications commonly use the BMXFTA152?
It is commonly used in PLC systems, control cabinets, machine automation, and industrial wiring applications.
4. What are the benefits of using a cable assembly?
A preassembled cable reduces installation time, improves wiring accuracy, and simplifies system maintenance.
5. What should be checked if the cable does not work properly?
Check connector installation, cable condition, terminal contacts, wiring configuration, and connected module compatibility.
