Overview

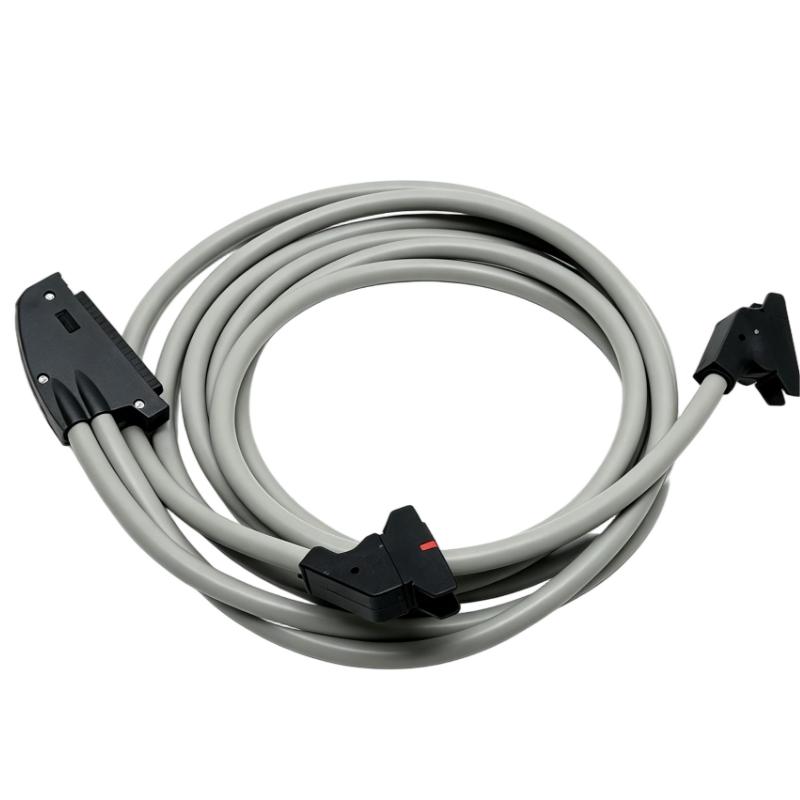

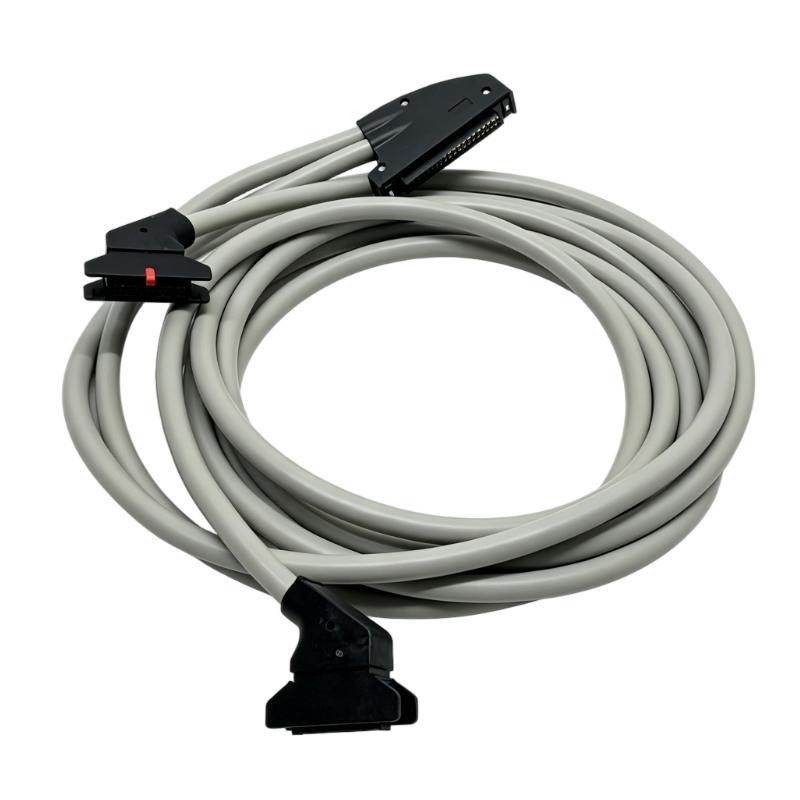

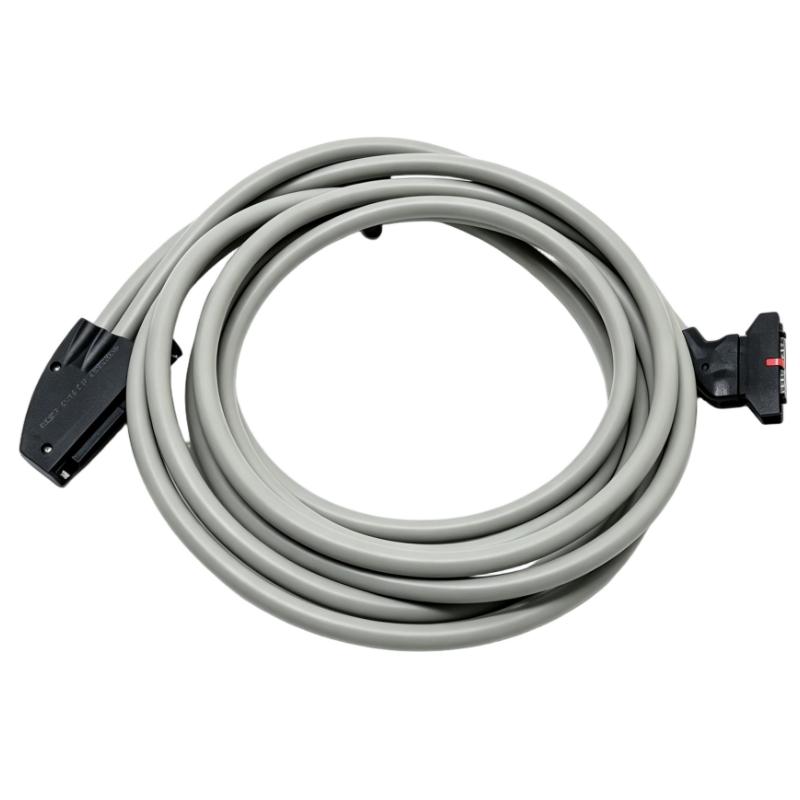

The Schneider BMXFCC203 is a 40-pin Connector Cable designed for Schneider industrial automation systems and I/O module connections.
This cable provides a reliable connection between automation modules and terminal interfaces, helping simplify field wiring and improve signal transmission stability. It is commonly used with Schneider Modicon systems where flexible and organized connections between I/O modules and external devices are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model | BMXFCC203 |
| Product Type | Connector Cable |
| Series | Modicon X80 / M340 Accessories |
| Cable Length | 2 meter |
| Weight | 0.63 kg |
| Connector Type | 40-pin Connector |
| Cable Structure | Preformed Cordset |
| Connection Type | 40-way Terminal / HE10 Connectors |
| Number of Wires | 40 |
| Main Function | I/O Module Signal Connection |
| Application | Industrial Automation Wiring Systems |
Applications
PLC I/O Connection
The BMXFCC203 is used to connect PLC I/O modules with external terminal interfaces for reliable signal transmission.
Industrial Control Cabinets
It helps organize cabinet wiring by providing preassembled connections between automation components.
Machine Automation Systems
The cable is suitable for automated machinery requiring stable communication between control modules and field devices.
Remote I/O Systems
It supports distributed control architectures where multiple I/O signals need to be connected efficiently.
Factory Automation Equipment
The cable provides a convenient wiring solution for industrial production systems using Schneider automation platforms.
How It Works
The Schneider BMXFCC203 transfers electrical signals between PLC I/O modules and connected terminal systems.
The preformed cable assembly uses dedicated connectors to simplify installation and reduce wiring errors. When connected between compatible automation components, it provides an organized path for transmitting digital or control signals between the PLC system and field devices.
The typical working process is:
PLC I/O Module → BMXFCC203 Connector Cable → Terminal Interface → Field Devices
This connection method improves wiring efficiency and helps maintain reliable signal communication within industrial automation systems.
Key Advantages
| Feature | Benefit |
|---|---|
| Preassembled Cable Design | Reduces installation time and simplifies wiring. |
| 40-pin Connection Structure | Supports multiple signal connections through one cable. |
| Reliable Signal Transmission | Helps maintain stable communication between devices. |
| Industrial Application Design | Suitable for control cabinet environments. |
| Easy Installation | Reduces wiring complexity during system integration. |
| Schneider System Compatibility | Designed for Schneider automation applications. |
Related Components
| Component | Function |
|---|---|
| BMXFCC203 Connector Cable | Provides connection between I/O modules and terminal systems. |
| Schneider PLC I/O Modules | Process digital and analog field signals. |
| Terminal Blocks | Provide field wiring connection points. |
| Modicon M340 Controllers | Execute automation programs. |
| Modicon X80 Modules | Provide system expansion and signal processing. |
| Field Devices | Supply input signals or receive control outputs. |
Installation
The Schneider BMXFCC203 should be installed according to the wiring requirements of the connected PLC and terminal equipment.
Before installation, check:
- Connector compatibility
- Cable routing requirements
- Terminal connection points
- Signal requirements
- Mechanical installation space
The cable should be installed securely with proper connector alignment. Avoid excessive bending or mechanical stress to maintain long-term connection reliability.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| No Signal Transmission | Loose connector connection | Check cable connectors and terminal contacts. |
| Incorrect I/O Signal | Wiring mismatch | Verify cable connection and module configuration. |
| Intermittent Communication | Cable damage or poor contact | Inspect cable condition and connector locking. |
| Module Communication Failure | Incorrect installation | Check compatibility and connection points. |
| Signal Interference | Poor cable routing | Separate signal cables from strong interference sources. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| BMXFCC203 | 40-pin Connector Cable | PLC I/O module connection |
| BMXFCC201 | Connector Cable | Compact I/O wiring applications |
| BMXFCA150 | Connection Cable | Automation cabinet wiring |
| BMXFCA152 | Connection Cable | Industrial module connection |
| BMXFTB2800 | Terminal Block | PLC field wiring |
| BMXFTB2000 | Terminal Accessory | I/O module connection |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| Schneider Modicon M340 Series | PLC Systems | Machine automation control |
| Schneider Modicon X80 Series | I/O Platform | Industrial signal processing |
| Schneider PLC I/O Modules | Automation Modules | Field signal acquisition |
| Schneider Terminal Accessories | Wiring Components | Control cabinet connections |
| Schneider Communication Modules | Network Components | Industrial data exchange |
| Schneider Automation Accessories | System Components | PLC installation support |
Technical FAQs
1. What is the main function of the Schneider BMXFCC203?
The BMXFCC203 is a connector cable used to connect Schneider I/O modules with terminal interfaces in industrial automation systems.
2. What type of connection does the BMXFCC203 provide?
It provides a 40-pin connection interface for transferring multiple I/O signals between automation components.
3. What systems can use the BMXFCC203 cable?
It is mainly used with Schneider Modicon automation systems and compatible I/O modules.
4. Why use a preformed connector cable instead of standard wiring?
A preformed cable reduces wiring time, minimizes connection errors, and improves cabinet installation efficiency.
5. What should be checked if the cable connection fails?
Check connector alignment, cable condition, terminal contacts, module compatibility, and wiring configuration.
