Product Overview

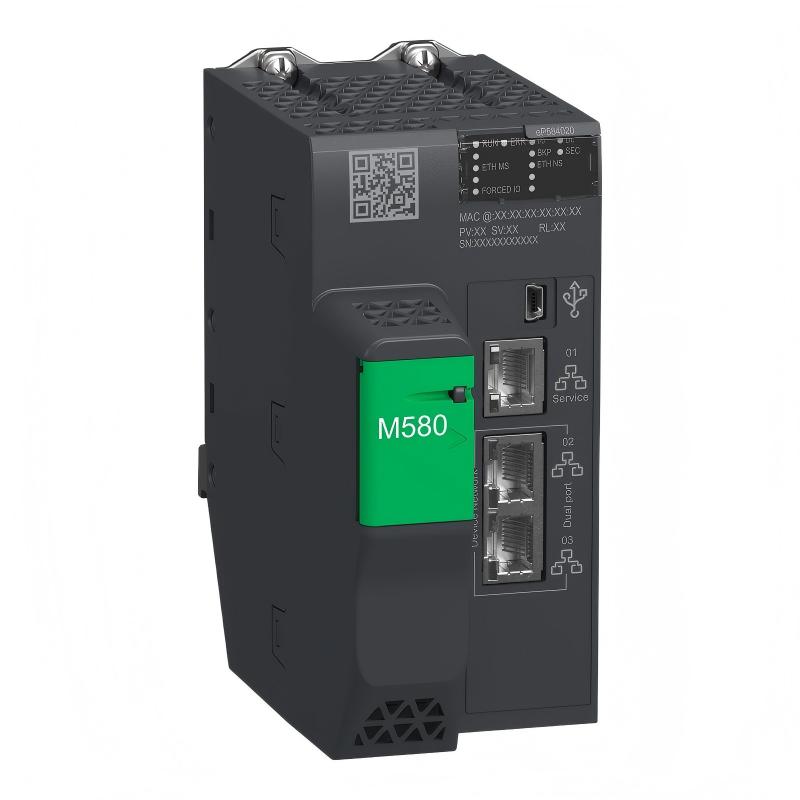

Modern industrial automation applications require powerful processors capable of managing complex control logic, large-scale communication networks, and extensive field devices. The Schneider BMEP584020 Modicon M580 Independent Processor is a high-performance PLC CPU module designed for the Modicon M580 automation platform, providing advanced processing capability, flexible system architecture, and reliable control performance for demanding industrial environments.
The BMEP584020 functions as the core processing unit of a Modicon M580 PLC system. It executes user application programs, manages local and distributed I/O communication, processes real-time industrial data, and coordinates automation devices through high-speed industrial networks.
Designed for large automation architectures, the processor provides enhanced memory resources and powerful system management capabilities. It is suitable for industries requiring continuous operation, advanced process control, and reliable automation performance, including manufacturing, energy, infrastructure, and process industries.
With compact dimensions of 134.6 × 64.6 × 130.3 mm and a weight of 0.849 kg, the BMEP584020 provides high-level PLC control capability while maintaining efficient installation space inside industrial cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMEP584020 |
| Product Type | Independent Processor Module |
| Automation Platform | Modicon M580 |
| Processor Type | PLC CPU Module |
| Program Memory | 16 MB |
| Data Memory | 1 MB |
| Flash Storage Expansion | Up to 4 GB |
| Local I/O Rack Support | Up to 8 Racks |
| Digital I/O Capacity | Up to 3072 Points |
| Analog I/O Capacity | Up to 768 Points |
| Distributed Device Support | Large Distributed Automation Networks |
| Ethernet Communication | Industrial Ethernet TCP/IP |
| Programming Interface | Mini USB Port |
| Installation Method | Modicon X80 Rack |
| Mounting Type | Rack Mounted |
| Dimensions | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.849 kg |
| Application | Advanced Industrial Automation Control |
Product Features
The BMEP584020 is designed for high-demand automation systems requiring advanced processing performance and system scalability.
Key features include:
- High-performance PLC processing architecture
- Large application memory capacity
- Support for complex automation programs
- Advanced Ethernet communication capability
- Support for distributed control architectures
- Compatible with Modicon X80 I/O modules
- Flexible system expansion capability
- Designed for continuous industrial operation
Its powerful processing structure enables engineers to develop reliable automation solutions for complex manufacturing and process applications.
Working Principle
The BMEP584020 operates as the central intelligence unit of a Modicon M580 automation system.
During operation, the processor continuously exchanges data with connected I/O modules, communication devices, and field equipment. It analyzes collected information, executes programmed instructions, and sends control commands to connected industrial devices.
The main operating process includes:
- Collecting input data from sensors and field devices
- Executing PLC application logic
- Performing industrial calculations and data processing
- Managing communication between automation components
- Controlling output devices and actuators
- Monitoring system status and diagnostics
Through real-time processing, the processor ensures stable and coordinated operation of complex automation systems.
Role in Industrial Control Systems
The BMEP584020 plays a central role in advanced industrial automation architectures.
| Function | Description |
|---|---|
| PLC Program Execution | Runs complex control applications |
| Data Processing | Handles industrial operation data |
| I/O Management | Controls local and distributed I/O systems |
| Communication Management | Coordinates Ethernet-based networks |
| Process Control | Supports advanced industrial control functions |
| System Integration | Connects multiple automation devices |
Industrial Applications
The Schneider BMEP584020 is commonly used in industries requiring powerful and reliable PLC control.
| Industry | Typical Applications |
|---|---|
| Manufacturing | Automated production systems |
| Automotive | Multi-axis assembly and testing systems |
| Oil & Gas | Process monitoring and control |
| Chemical Industry | Continuous process automation |
| Power Generation | Plant automation systems |
| Water Treatment | Large-scale control applications |
| Mining | Equipment monitoring and control |
| Transportation | Infrastructure automation systems |
Its high processing performance makes it suitable for applications requiring advanced control strategies and reliable operation.
Installation and System Integration
Proper installation and configuration are important for achieving stable processor performance.
Recommended installation procedures include:
- Install the processor on a compatible Modicon X80 rack.
- Verify system power supply compatibility.
- Connect industrial Ethernet communication correctly.
- Configure processor parameters through engineering software.
- Install required I/O and communication modules.
- Download and verify PLC programs.
- Perform system diagnostics and communication testing.
Correct commissioning improves system reliability and ensures stable long-term operation.
Compatible System Components
The BMEP584020 integrates with various Modicon M580 automation components.
| Compatible Component | Function |
|---|---|
| Modicon X80 I/O Modules | Digital and analog signal processing |
| Power Supply Modules | Provide rack power distribution |
| Ethernet Communication Modules | Industrial network expansion |
| Remote I/O Stations | Distributed field control |
| Human Machine Interface (HMI) | Operator monitoring and control |
| SCADA Systems | Supervisory operation management |
| Industrial Ethernet Devices | Data communication |
Together, these components create a powerful and scalable industrial automation platform.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| BMEP581020 | Modicon M580 Processor | Standard PLC CPU | General automation systems |
| BMEP582020 | Enhanced Processor | Improved processing performance | Medium-scale control systems |
| BMEP583020 | High Performance Processor | Large I/O management capability | Large automation projects |
| BMEP583040 | Advanced Processor | Expanded industrial control functions | Complex automation systems |
| BMEP584020 | Premium Independent Processor | Advanced processing and scalability | High-performance applications |
Key Advantages
- High-performance PLC processing capability
- Large memory capacity for advanced programs
- Supports large automation architectures
- Flexible Modicon M580 system expansion
- Reliable industrial Ethernet communication
- Suitable for distributed control applications
- Compact and efficient cabinet installation
- Designed for long-term industrial operation
Technical FAQs
What is the Schneider BMEP584020 used for?
The BMEP584020 is a high-performance PLC processor module used as the main controller of Modicon M580 automation systems. It manages application execution, communication, and industrial control processes.
Which automation platform uses the BMEP584020?
The processor is designed specifically for the Schneider Modicon M580 automation platform and works with Modicon X80 rack-based modules.
What types of applications are suitable for this processor?
It is suitable for large manufacturing systems, process industries, infrastructure automation, energy management, and other applications requiring advanced PLC control performance.
What are the main benefits of the BMEP584020?
The main benefits include high processing capability, large memory resources, flexible communication functions, scalable architecture, and reliable industrial operation.
Conclusion
The Schneider BMEP584020 Modicon M580 Independent Processor is an advanced PLC CPU module designed for complex industrial automation systems requiring powerful processing, reliable communication, and flexible expansion.
Featuring 16 MB program memory, large-scale I/O management capability, Ethernet communication support, compact dimensions of 134.6 × 64.6 × 130.3 mm, and a weight of 0.849 kg, the processor provides excellent performance for demanding industrial applications.
For automation engineers, system integrators, and industrial maintenance teams, the BMEP584020 offers a dependable control solution for manufacturing, process automation, energy systems, infrastructure projects, and other advanced industrial environments.
