Product Overview

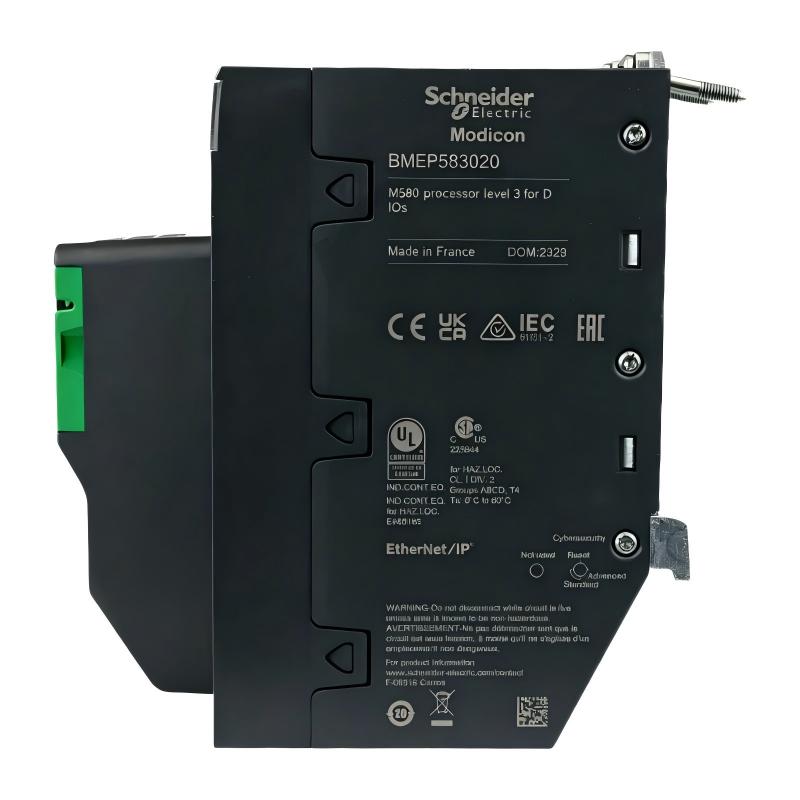

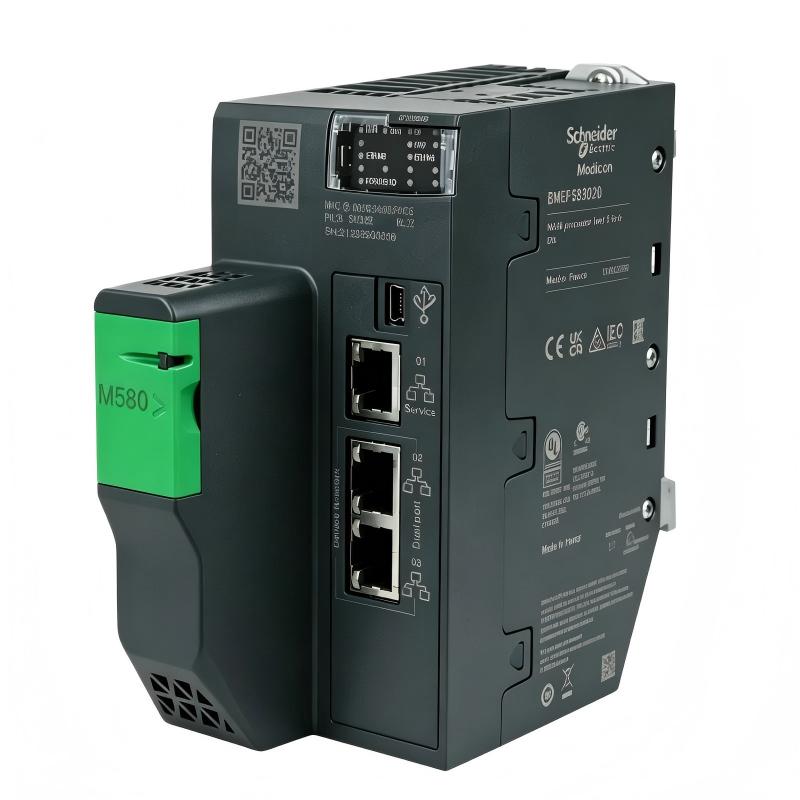

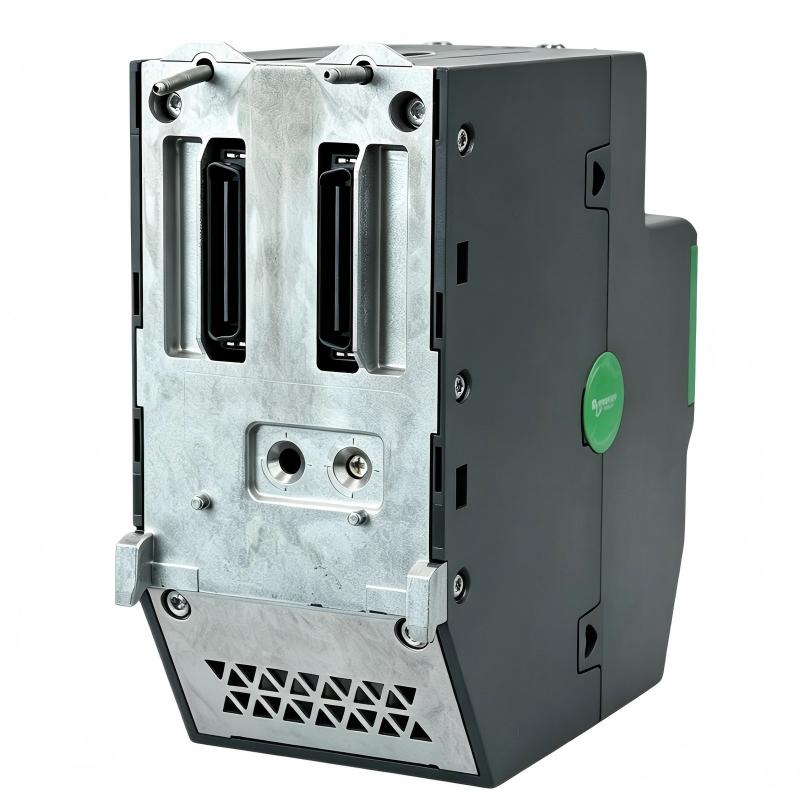

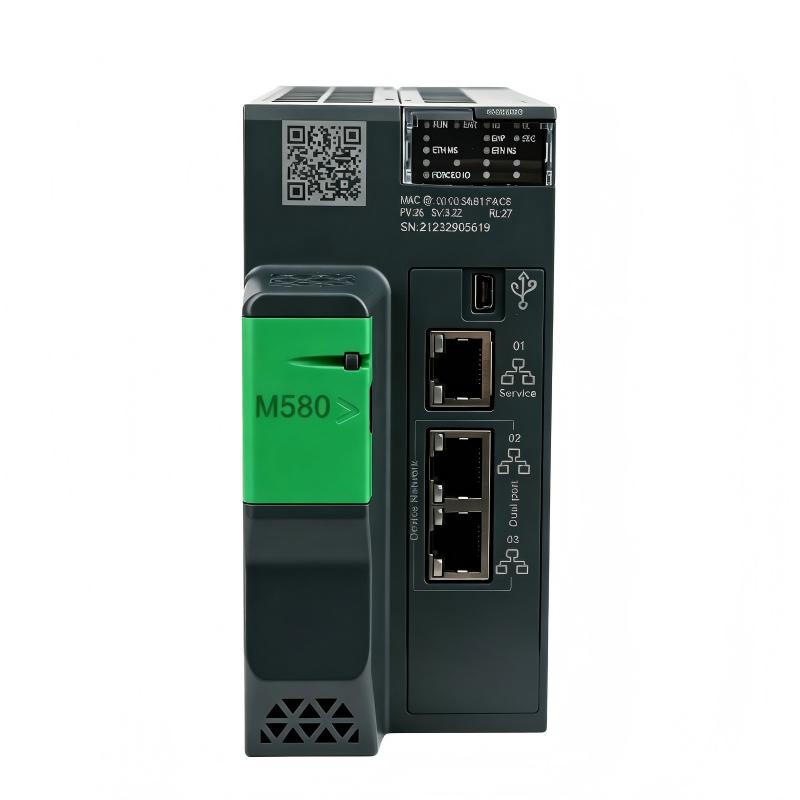

In modern industrial automation environments, complex production processes require powerful control processors capable of handling large amounts of data, advanced communication networks, and distributed control architectures. The Schneider BMEP583020 Modicon M580 Independent Processor is a high-performance PLC processor module designed for demanding industrial applications, providing advanced computing capability, flexible system expansion, and reliable automation control.
The BMEP583020 operates as the central processing unit of the Modicon M580 automation platform, responsible for executing application programs, managing I/O communication, coordinating industrial networks, and controlling automated processes. It is designed for large-scale automation projects where high processing capacity, extensive I/O management, and reliable communication performance are required.
Compared with standard PLC processors, the BMEP583020 provides enhanced memory capacity, expanded rack support, and higher I/O handling capability, making it suitable for large manufacturing systems, infrastructure projects, and process industries.
With compact dimensions of 134.6 × 64.6 × 130.3 mm and a weight of 0.849 kg, this processor provides powerful control performance while maintaining efficient cabinet space utilization.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMEP583020 |
| Product Type | Independent Processor Module |
| Automation Platform | Modicon M580 |
| Processor Type | PLC CPU / Controller Module |
| Program Memory | 12 MB |
| Data Memory | 1 MB |
| System Memory | 10 kB |
| Flash Storage Expansion | Up to 4 GB |
| Local Rack Capacity | Up to 8 Racks |
| Digital I/O Capacity | Up to 3072 Points |
| Analog I/O Capacity | Up to 768 Points |
| Distributed Devices Support | Up to 128 Devices |
| Ethernet Communication | Ethernet TCP/IP Communication |
| Programming Interface | Mini USB Port |
| Installation Method | Modicon X80 Rack Mounting |
| Communication Functions | Ethernet Network Management, Remote I/O Communication |
| Dimensions | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.849 kg |
| Application | Large-Scale Industrial Automation Control |
Product Features
The BMEP583020 is designed to meet the requirements of advanced industrial control systems.
Key features include:
- High-performance PLC processing capability
- Large memory capacity for complex automation programs
- Support for extensive local I/O configurations
- Advanced Ethernet communication capability
- Support for distributed control architectures
- Compatible with Modicon X80 I/O modules
- Suitable for process control and manufacturing applications
- Reliable operation in continuous industrial environments
The processor provides a scalable automation foundation that allows engineers to design flexible and future-ready control systems.
Working Principle
The BMEP583020 works as the main control intelligence of a Modicon M580 PLC system.
During operation, sensors and field devices collect real-time production information through connected input modules. The processor receives these signals, analyzes the data, executes the programmed control logic, and sends commands to output devices.
The working process includes:
- Receiving input signals from distributed I/O modules
- Executing PLC application programs
- Processing automation logic and calculations
- Managing Ethernet communication between devices
- Controlling actuators and industrial equipment
- Monitoring system status and diagnostics
Through continuous data processing, the processor ensures coordinated operation between different automation components.
Role in Industrial Control Systems
The BMEP583020 plays a central role in large industrial automation architectures.
| Function | Description |
|---|---|
| Control Processing | Executes complex PLC programs |
| Data Management | Processes industrial operation data |
| I/O Coordination | Controls large numbers of field devices |
| Network Communication | Manages industrial Ethernet communication |
| Process Automation | Supports advanced control applications |
| System Integration | Connects multiple automation components |
Industrial Applications
The Schneider BMEP583020 is widely used in industries requiring powerful and reliable PLC control.
| Industry | Typical Applications |
|---|---|
| Manufacturing | Large automated production lines |
| Automotive | Multi-station assembly systems |
| Oil & Gas | Process monitoring and control |
| Chemical Industry | Continuous process automation |
| Power Generation | Plant control systems |
| Water Treatment | Large-scale pump and treatment systems |
| Mining | Heavy equipment automation |
| Transportation | Infrastructure control systems |
Its high processing performance makes it ideal for applications requiring advanced logic execution and large-scale system coordination.
Installation and System Integration
Proper installation and configuration are important for maintaining stable processor operation.
Recommended installation procedures include:
- Install the processor on a compatible Modicon X80 rack.
- Verify system power supply before operation.
- Connect Ethernet communication networks correctly.
- Configure processor parameters through engineering software.
- Install compatible I/O and communication modules.
- Download and verify PLC application programs.
- Perform communication and functional testing.
Correct commissioning improves system stability and ensures reliable long-term operation.
Compatible System Components
The BMEP583020 is commonly integrated with the following automation components:
| Compatible Component | Function |
|---|---|
| Modicon X80 I/O Modules | Digital and analog signal processing |
| Power Supply Modules | Provide system operating power |
| Ethernet Communication Modules | Expand network connectivity |
| Remote I/O Stations | Distributed field control |
| Human Machine Interface (HMI) | Operator monitoring and control |
| SCADA Systems | Supervisory monitoring and data management |
| Industrial Network Devices | Automation communication |
Together, these components create a complete industrial automation control platform.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| BMEP581020 | Modicon M580 Processor | Standard processing capability | General automation systems |
| BMEP582020 | Modicon M580 Processor | Enhanced CPU performance | Medium-scale control systems |
| BMEP583020 | Advanced Independent Processor | High I/O capacity and large applications | Large industrial projects |
| BMEP584020 | High Performance Processor | Advanced control functions | Complex automation systems |
| BMEP584040 | Premium Processor | High availability control solution | Critical industrial applications |
Key Advantages
- Powerful processing capability for complex automation tasks
- Supports large-scale industrial control systems
- High digital and analog I/O management capacity
- Flexible Ethernet communication architecture
- Compatible with Modicon M580 automation platform
- Supports distributed automation solutions
- Compact industrial design
- Reliable long-term operation
Technical FAQs
What is the Schneider BMEP583020 used for?
The BMEP583020 is a high-performance PLC processor module used as the main controller of Modicon M580 automation systems. It executes application programs, manages communication, and controls industrial processes.
What makes the BMEP583020 suitable for large automation systems?
The processor provides larger memory capacity, expanded rack support, and high I/O handling capability, making it suitable for complex industrial automation projects.
How many I/O points can the BMEP583020 manage?
The processor supports up to 3072 digital I/O points and 768 analog I/O points, allowing it to control large numbers of field devices.
Which platform uses the BMEP583020 processor?
The module is designed for the Schneider Modicon M580 automation platform and works with Modicon X80-based system architectures.
Conclusion
The Schneider BMEP583020 Modicon M580 Independent Processor is a powerful PLC CPU module designed for advanced industrial automation applications requiring high processing performance, extensive I/O capability, and reliable communication.
With 12 MB program memory, support for up to 8 local racks, capacity for 3072 digital I/O points and 768 analog I/O points, compact dimensions of 134.6 × 64.6 × 130.3 mm, and a weight of 0.849 kg, the processor provides excellent scalability and operational reliability.
For automation engineers, system integrators, and industrial maintenance teams, the BMEP583020 delivers a dependable control solution for large manufacturing systems, process industries, infrastructure projects, and other demanding industrial environments.
