Product Overview

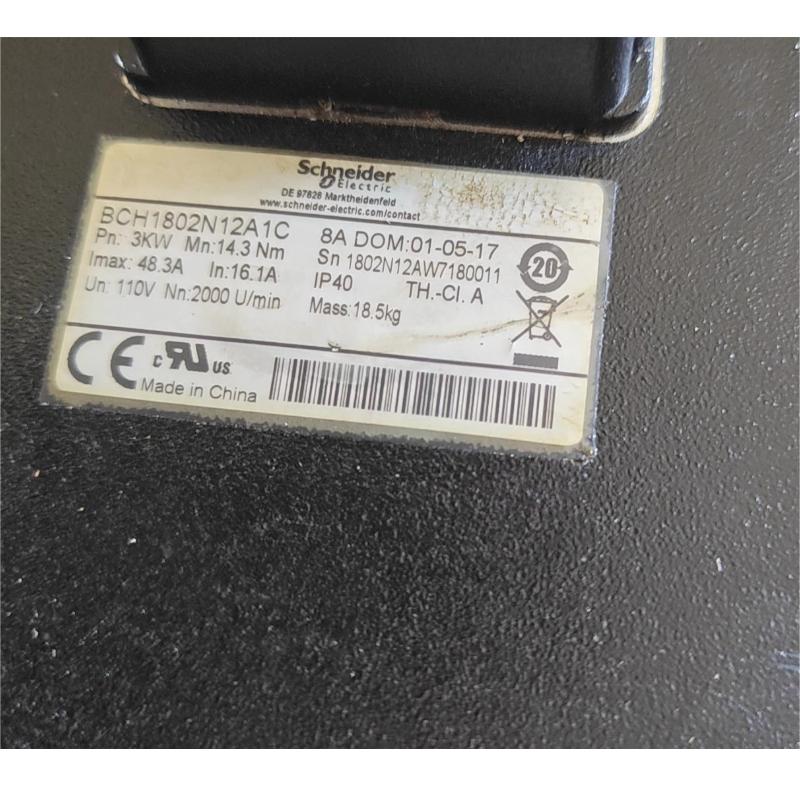

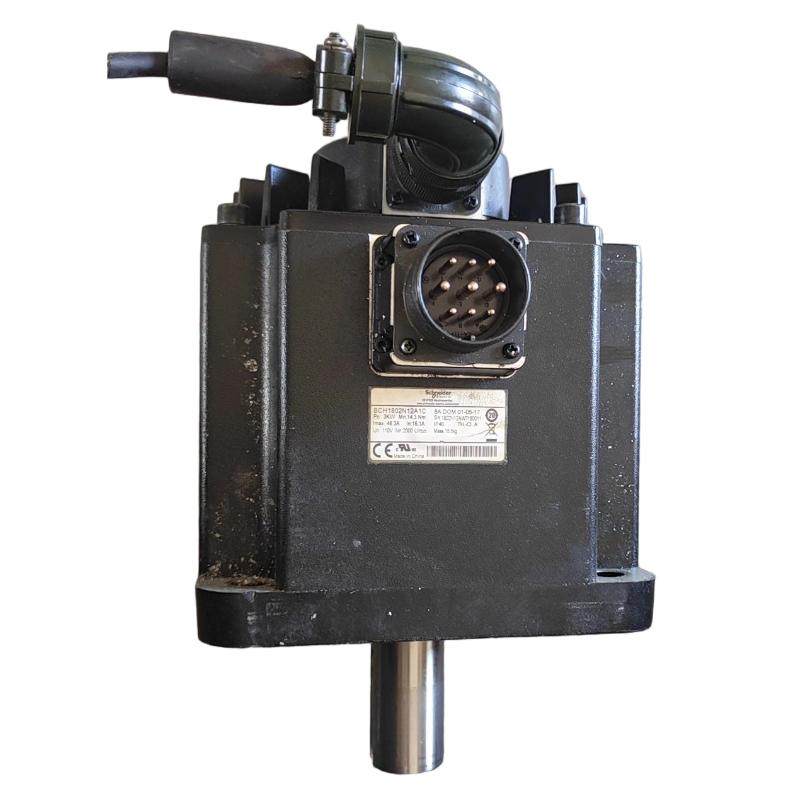

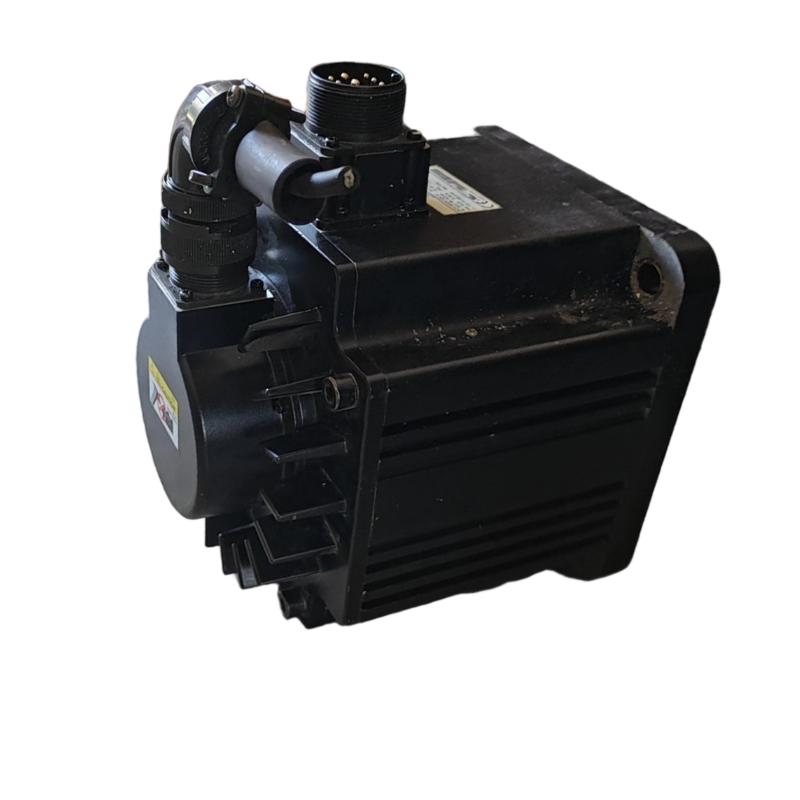

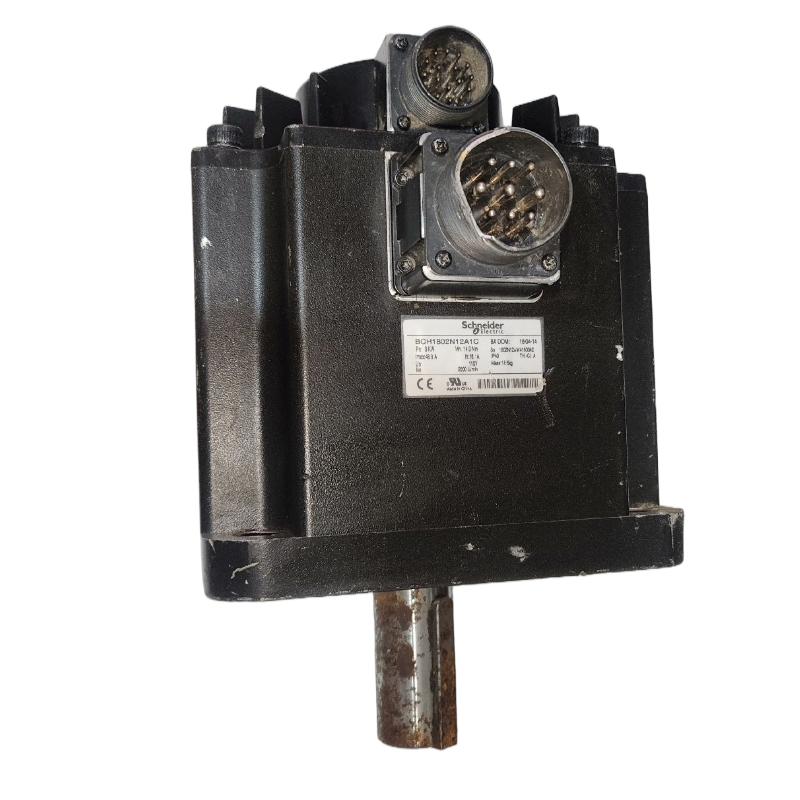

The Schneider BCH1802N12A1C Servo Motor is an industrial AC servo motor designed for automated machinery requiring controlled, repeatable, and responsive rotary motion. As part of Schneider Electric’s BCH servo motor family, the BCH1802N12A1C can be integrated into a closed-loop motion-control system together with a compatible servo drive, motion controller, feedback system, and mechanical load.

Servo motors are widely used in industrial automation where accurate positioning, controlled speed, repeatable movement, and coordinated operation are important. Rather than operating only as a conventional rotating motor, a servo motor works with feedback and control electronics to monitor actual motion and adjust motor operation according to the commanded movement.

The BCH1802N12A1C can be used as a motion actuator in automated production equipment, positioning systems, packaging machinery, assembly equipment, material-handling systems, indexing mechanisms, and other industrial applications requiring controlled rotary motion.

The supplied physical specifications for this model are a length of 202.1 mm and a weight of 18.5 kg. These values are useful for mechanical layout, machine mounting, transportation, replacement planning, and spare-parts management.

Exact electrical and performance characteristics such as rated power, torque, voltage, operating speed, encoder configuration, brake configuration, shaft dimensions, mounting arrangement, and connector details should be verified against the applicable Schneider Electric documentation and the motor nameplate before installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	BCH1802N12A1C
Product Type	AC Servo Motor
Product Family	Schneider Electric BCH Servo Motor
Motor Technology	Industrial Servo Motor
Control Architecture	Closed-Loop Servo Control
Primary Function	Controlled Rotary Motion
Application	Industrial Automation and Motion Control
Motor Length	202.1 mm
Weight	18.5 kg
Installation	Machine-Mounted
Typical System	Servo Motor + Servo Drive + Motion Controller
Typical Applications	Positioning, Indexing, Packaging, Assembly, Material Handling and Automated Machinery

The dimensions and weight above are based on the supplied product information. Other electrical and mechanical specifications should be confirmed for the exact BCH1802N12A1C configuration before engineering, purchasing, installation, or replacement.

---

What Is the Schneider BCH1802N12A1C?

The Schneider BCH1802N12A1C is an industrial servo motor intended to generate controlled rotary movement as part of a closed-loop machine automation system.

A servo motor normally works together with a compatible servo drive and motion controller. The controller generates the required motion command, while the servo drive controls the electrical operation of the motor.

A simplified architecture can be represented as:

PLC / Motion Controller → Servo Drive → BCH1802N12A1C → Mechanical Load → Feedback → Servo Drive

The BCH1802N12A1C converts electrical energy into mechanical rotation. Feedback information allows the control system to monitor actual motor movement and compare it with the commanded position or motion.

This architecture makes servo motors suitable for machines where movement must be accurately controlled rather than simply switched on or off.

---

Servo Motor Working Principle

The BCH1802N12A1C participates in a continuous feedback-control process.

Motion Command

A PLC, motion controller, CNC controller, or machine-control system generates a motion command.

Depending on the application, the command can represent a target position, speed, direction, acceleration, or coordinated motion profile.

Servo Drive Processing

The compatible servo drive receives the command and calculates the motor-control output required to produce the requested movement.

The drive continuously evaluates feedback information during operation.

Motor Movement

The BCH1802N12A1C converts the electrical output from the servo drive into controlled rotary motion.

The motor shaft can drive a machine mechanism through a suitable coupling, gearbox, belt, pulley, screw mechanism, rotary table, or other transmission arrangement.

Feedback Monitoring

The feedback system provides information about actual motor operation.

This information allows the servo drive to determine whether the motor is following the commanded movement.

Motion Correction

When a difference exists between commanded and actual movement, the control system can adjust motor operation to reduce the error.

This closed-loop behavior is fundamental to industrial servo motion control.

---

Role in Industrial Automation

The BCH1802N12A1C can serve as a controlled motion actuator within a larger industrial automation system.

Typical functions can include:

• Precision positioning
• Controlled rotary movement
• Indexing
• Speed regulation
• Acceleration and deceleration
• Repetitive motion
• Coordinated multi-axis movement
• Machine synchronization
• Automated positioning sequences

A complete system may combine the motor with Schneider Electric PLCs, motion controllers, servo drives, HMIs, industrial networks, sensors, and mechanical transmission components.

The controller determines the required machine sequence, while the servo drive and motor execute the physical movement.

---

Industrial Applications

Packaging Machinery

Packaging equipment often requires synchronized movement of conveyors, feeders, cutters, sealing mechanisms, and positioning systems.

Servo motors can provide controlled movement that follows the production cycle.

Automated Assembly Equipment

Assembly machines frequently require repeatable positioning of tools, components, and mechanical assemblies.

Servo motors can control indexing stations, rotary mechanisms, positioning systems, and automated handling equipment.

Material Handling

Automated material-handling equipment can use servo motors for controlled transfer, positioning, lifting, and movement operations.

Indexing Systems

Indexing applications require repeated movement between defined positions.

Closed-loop servo control can help maintain repeatable machine movement across production cycles.

Production Machinery

Manufacturing systems may contain several moving mechanisms that need to operate in a coordinated sequence.

Servo motors can provide controlled rotary motion while the controller coordinates the machine.

Printing and Converting

Printing and converting systems often require synchronized movement between multiple machine sections.

Servo-control technology can be used where controlled speed and coordinated motion are required.

Textile Machinery

Textile equipment may contain rollers, feeders, winding mechanisms, and other moving assemblies that require controlled motion.

Servo motors can be incorporated into such systems when the complete motor and drive configuration is suitable.

---

Servo Motion-Control Architecture

The BCH1802N12A1C can be integrated into a complete machine-level motion-control architecture.

Component	Typical Function
PLC / Motion Controller	Generates machine and motion commands
Servo Drive	Controls motor operation
BCH1802N12A1C	Generates controlled rotary movement
Feedback System	Provides motor movement information
Mechanical Transmission	Transfers motor movement to the machine
Sensors	Detect machine conditions and positions
HMI	Provides operator control and monitoring
Industrial Network	Transfers commands and diagnostic information

The exact architecture depends on the application.

In multi-axis systems, multiple servo motors can be controlled by a central motion system. The controller can coordinate individual axes to achieve synchronized machine movement.

---

Mechanical Installation

The supplied 202.1 mm length and 18.5 kg weight should be considered when designing the mechanical installation of the BCH1802N12A1C.

Before installation, verify:

• Mounting arrangement
• Available machine space
• Shaft compatibility
• Coupling selection
• Mechanical alignment
• Load inertia
• Radial loading
• Axial loading
• Mounting rigidity
• Motor orientation
• Cable routing

The motor weighs 18.5 kg, so suitable handling procedures should be used during installation, removal, and maintenance.

The motor should be securely mounted to a rigid machine structure capable of supporting the motor and the mechanical forces generated during operation.

Correct alignment is important because excessive misalignment can increase vibration, mechanical loading, and wear.

---

Servo Drive Integration

The BCH1802N12A1C should be paired with a compatible servo drive selected for the complete motor configuration.

Before commissioning, verify:

• Complete motor model
• Servo drive compatibility
• Feedback compatibility
• Motor power wiring
• Feedback wiring
• Connector arrangement
• Protective grounding
• Drive parameters
• Controller configuration
• Mechanical load
• Brake configuration, if applicable

The motor and drive should be considered a matched control system.

An incorrect motor configuration or incompatible drive can lead to startup alarms, excessive current, unstable operation, poor positioning, or abnormal vibration.

---

Electrical and Feedback Connections

Motor Power Connection

The servo drive supplies controlled electrical power to the BCH1802N12A1C through the motor power connection.

Correct wiring and secure connections are essential for reliable operation.

Feedback Connection

Feedback wiring transfers motor operating information to the servo drive.

Problems with the feedback circuit can result in:

• Position errors
• Servo alarms
• Startup failure
• Unstable movement
• Incorrect motor response

Grounding

The motor and associated equipment should be properly grounded according to applicable electrical requirements.

Cable Routing

Motor power and feedback cables should be routed appropriately.

Where necessary, sensitive feedback wiring should be separated from high-power switching conductors to reduce electromagnetic interference.

---

Commissioning Procedure

A controlled commissioning procedure helps reduce startup risks.

1. Verify Motor Identification

Confirm that the motor is the correct Schneider BCH1802N12A1C model.

Inspect the motor for shipping or installation damage.

2. Verify Mechanical Installation

Confirm that the motor is securely mounted and properly aligned with the driven mechanism.

Check the coupling and mechanical transmission before applying power.

3. Inspect Electrical Connections

Check motor power, feedback, grounding, and control connections.

Ensure that connectors are fully inserted and securely fastened.

4. Configure the Servo Drive

Enter or select the appropriate motor configuration in the compatible servo drive.

The exact parameter procedure depends on the selected drive and controller.

5. Perform Initial Motion Testing

Perform the first motor movement under controlled conditions.

Observe:

• Rotation direction
• Motor noise
• Vibration
• Temperature
• Feedback status
• Drive status
• Position response

6. Test the Complete Machine

After successful initial motor testing, gradually test the complete machine sequence.

Verify positioning, acceleration, deceleration, synchronization, and repeatability according to the application requirements.

---

Troubleshooting the BCH1802N12A1C

Troubleshooting should consider the motor, servo drive, controller, feedback system, wiring, and mechanical load as one complete system.

Motor Does Not Rotate

Possible causes include:

• Servo drive not enabled
• Incorrect motor configuration
• Feedback fault
• Incorrect wiring
• Controller command problem
• Drive protection state
• Mechanical obstruction
• Incorrect system configuration

Check the servo drive diagnostic information before concluding that the motor itself has failed.

Servo Alarm During Startup

Possible causes include:

• Feedback connection problems
• Incorrect motor parameters
• Drive configuration mismatch
• Wiring faults
• Mechanical restrictions
• Protective functions

The exact alarm code should be identified before corrective action is taken.

Excessive Vibration

Potential causes include:

• Mechanical misalignment
• Loose mounting
• Coupling problems
• Incorrect servo tuning
• Excessive load inertia
• Mechanical resonance
• Mechanical wear

Both mechanical and control-system factors should be evaluated.

Positioning Error

Possible causes include:

• Feedback problems
• Incorrect motion parameters
• Mechanical backlash
• Excessive load
• Incorrect tuning
• Coupling problems
• Controller configuration

The entire motion chain should be inspected rather than focusing only on the motor.

Motor Overheating

Potential causes include:

• Excessive mechanical load
• Mechanical resistance
• Insufficient cooling
• Incorrect drive configuration
• Excessive acceleration demands
• Operating conditions outside the intended application

Motor load and environmental conditions should be evaluated before continued operation.

---

Preventive Maintenance

Regular maintenance helps preserve the performance of the BCH1802N12A1C servo system.

Mechanical Inspection

Inspect mounting hardware, couplings, alignment, and mechanical transmission components for looseness or wear.

Cable Inspection

Check motor and feedback cables for:

• Abrasion
• Cuts
• Heat damage
• Loose connectors
• Excessive bending
• Moisture exposure

Vibration Monitoring

Changes in vibration can indicate mechanical misalignment, coupling problems, bearing-related issues, or servo-control problems.

Temperature Monitoring

An unexpected increase in operating temperature may indicate excessive load, mechanical resistance, or incorrect operating conditions.

Drive Diagnostic Monitoring

Servo drive alarms and diagnostic records should be reviewed regularly.

Repeatedly resetting alarms without investigating the underlying cause should be avoided.

---

Replacement Considerations

When replacing a Schneider BCH1802N12A1C Servo Motor, verify the complete model designation rather than relying only on physical appearance.

Important compatibility factors include:

• Complete motor model
• Motor family
• Servo drive compatibility
• Feedback configuration
• Electrical characteristics
• Mechanical mounting
• Shaft configuration
• Connector arrangement
• Brake configuration, if applicable
• Machine load
• Controller configuration

The supplied physical specifications are:

Length: 202.1 mm

Weight: 18.5 kg

A motor with similar dimensions or appearance should not automatically be treated as an interchangeable replacement.

Electrical, mechanical, feedback, and performance compatibility must be confirmed before installation.

---

Physical Dimensions and Weight

The supplied physical information for the BCH1802N12A1C is summarized below.

Physical Parameter	Value
Length	202.1 mm
Weight	18.5 kg

These values can support:

• Machine layout
• Mechanical installation planning
• Spare-parts management
• Replacement preparation
• Transportation planning
• Equipment handling
• Maintenance logistics

Additional dimensions such as shaft diameter, flange dimensions, mounting-hole pattern, and connector position should be verified from the applicable technical documentation before mechanical fabrication or installation.

---

Engineering Best Practices

Match the Motor and Servo Drive

Confirm that the BCH1802N12A1C and selected servo drive are compatible before commissioning.

Maintain Mechanical Alignment

Correct alignment reduces unnecessary mechanical loading and vibration.

Protect Feedback Wiring

Feedback cables should be protected from physical damage and excessive electromagnetic interference.

Verify Control Parameters

Incorrect drive or controller parameters can affect positioning, acceleration, stability, and motor temperature.

Use Appropriate Handling Procedures

Because the supplied motor weight is 18.5 kg, appropriate lifting and handling procedures should be followed during installation and replacement.

Commission Gradually

Initial testing should be performed under controlled conditions before full production operation.

Monitor Operating Trends

Changes in temperature, vibration, noise, positioning performance, and drive alarms can provide early indications of developing problems.

---

Compatible Automation Components

Depending on the machine architecture, the BCH1802N12A1C may be integrated with:

• Schneider Electric servo drives
• Lexium motion-control systems
• Modicon PLCs
• Motion controllers
• Harmony HMI systems
• Industrial Ethernet components
• Machine sensors
• Safety controllers
• Servo feedback systems
• Motor cables
• Mechanical transmission equipment

Exact compatibility should be verified against the complete BCH1802N12A1C configuration and the selected automation architecture.

---

Recommended Related Schneider Product Categories

Product Category	Typical Function
Schneider BCH Servo Motors	Industrial servo motion
Schneider Lexium Servo Drives	Servo motor control
Schneider Motion Controllers	Coordinated motion control
Modicon PLCs	Machine automation and sequencing
Harmony HMIs	Operator control and monitoring
Industrial Network Components	Automation communication
Servo Feedback Components	Closed-loop feedback
Machine Safety Components	Safety-related machine control

These are related automation categories and should not automatically be considered direct replacements for the BCH1802N12A1C.

---

Key Advantages

Closed-Loop Motion Control

The BCH1802N12A1C can operate within a feedback-based servo architecture for controlled machine movement.

Precision Motion

Servo technology is suitable for applications requiring controlled positioning, speed, acceleration, and coordinated movement.

Industrial Automation Integration

The motor can form part of a PLC-, motion-controller-, and servo-drive-based automation system.

Suitable for Automated Equipment

Potential applications include packaging, assembly, indexing, material handling, production machinery, and positioning systems.

Defined Physical Characteristics

The supplied 202.1 mm length and 18.5 kg weight provide useful information for machine layout, handling, and replacement planning.

Multi-Axis Motion Potential

When correctly integrated into a compatible control architecture, servo motors can participate in coordinated multi-axis machine movement.

---

Technical FAQs

What is the Schneider BCH1802N12A1C?

The Schneider BCH1802N12A1C is an industrial AC servo motor designed for integration into closed-loop industrial motion-control systems.

What is the length of the BCH1802N12A1C?

The supplied motor length is 202.1 mm.

How much does the BCH1802N12A1C weigh?

The supplied motor weight is 18.5 kg.

What is the purpose of a servo motor?

A servo motor converts electrical energy into controlled mechanical movement and is normally integrated with a servo drive and feedback system for positioning, speed control, and coordinated motion.

Does the BCH1802N12A1C require a servo drive?

The motor should be used as part of a compatible servo-control architecture. The correct servo drive and feedback configuration should be verified before installation.

What can cause abnormal vibration?

Possible causes include mechanical misalignment, loose mounting, coupling problems, excessive load, incorrect tuning, mechanical resonance, or mechanical wear.

What should be checked before replacing this motor?

The complete model number, electrical characteristics, servo-drive compatibility, feedback configuration, mounting arrangement, shaft configuration, connector arrangement, brake configuration if applicable, and machine load should be verified.

Can another BCH servo motor replace the BCH1802N12A1C?

Not automatically. Similar-looking motors may have different electrical, mechanical, feedback, or performance characteristics.

What applications are suitable for the BCH1802N12A1C?

Potential applications include packaging machinery, automated assembly equipment, indexing systems, material-handling equipment, positioning systems, production machinery, and other industrial motion-control applications where the complete system configuration is appropriate.

---

Conclusion

The Schneider BCH1802N12A1C Servo Motor is an industrial AC servo motor intended for integration into closed-loop motion-control systems. Combined with a compatible servo drive, feedback system, motion controller, and mechanical load, it can provide controlled and repeatable rotary movement for automated machinery.

The supplied physical specifications are a length of 202.1 mm and a weight of 18.5 kg. These specifications are useful for machine layout, mechanical installation, equipment handling, transportation, replacement planning, and spare-parts management.

Reliable performance depends on correct motor-drive matching, secure mechanical installation, proper wiring, feedback integrity, appropriate control parameters, controlled commissioning, and preventive maintenance.

Before purchasing, installing, or replacing the motor, engineers should verify the complete BCH1802N12A1C model designation and confirm the required electrical, mechanical, feedback, and performance characteristics for the intended application.
