Product Overview

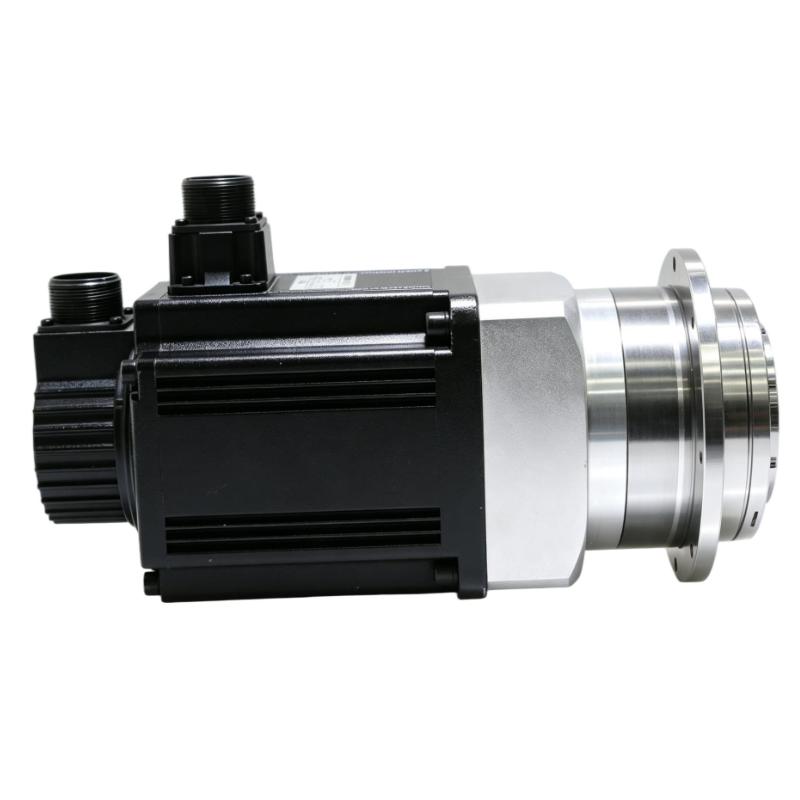

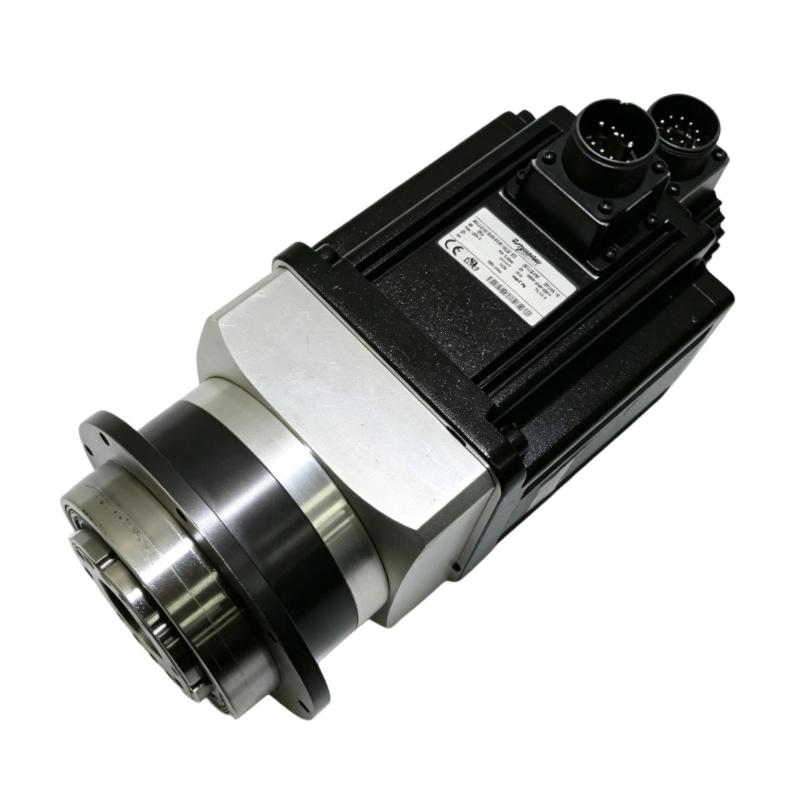

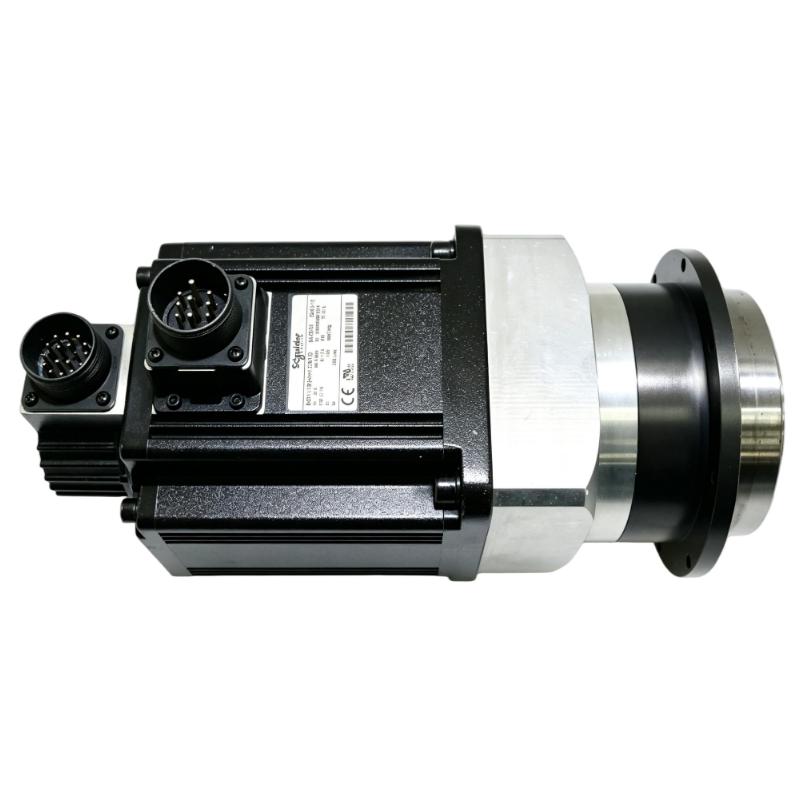

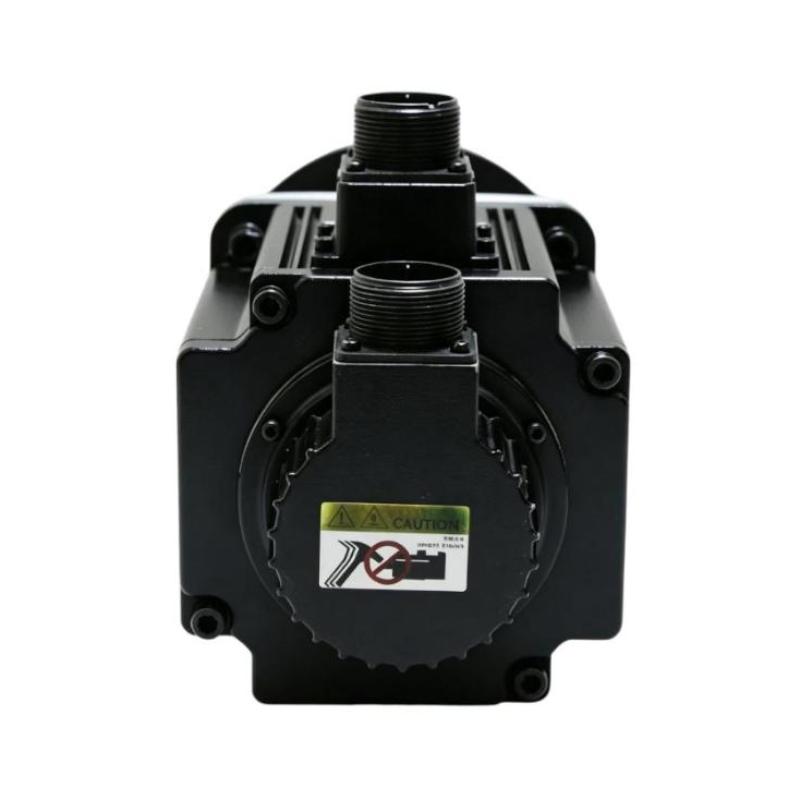

The Schneider BCH1304N12A1C Servo Motor is an industrial AC servo motor designed for automated machinery requiring controlled, repeatable, and responsive rotary motion. As part of Schneider Electric’s BCH servo motor family, the BCH1304N12A1C can be integrated into a closed-loop motion-control system together with a compatible servo drive, controller, feedback system, and mechanical load.

Servo motors are commonly used in industrial automation where conventional motor control is not sufficient for the required positioning or synchronization performance. A servo system continuously monitors motor operation through feedback and allows the control system to adjust motor behavior according to the commanded motion.

The BCH1304N12A1C can therefore serve as a motion-producing component in automated equipment such as packaging machines, assembly systems, indexing mechanisms, material-handling equipment, production machinery, and other applications requiring controlled movement.

The supplied physical specifications for this model are a length of 187.5 mm and a weight of 7.8 kg. These values are important for machine layout, mechanical installation, replacement planning, transportation, and spare-parts management.

Exact electrical and performance parameters such as rated power, rated torque, maximum speed, voltage, encoder type, brake configuration, shaft dimensions, mounting pattern, and connector arrangement should be confirmed against the applicable Schneider Electric documentation and motor nameplate before installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	BCH1304N12A1C
Product Type	AC Servo Motor
Product Family	Schneider Electric BCH Servo Motor
Motor Technology	Industrial Servo Motor
Control Architecture	Closed-Loop Servo Control
Primary Function	Precision Rotary Motion
Application	Industrial Automation and Motion Control
Motor Length	187.5 mm
Weight	7.8 kg
Installation	Machine-Mounted
Typical System	Servo Motor + Servo Drive + Motion Controller
Typical Applications	Positioning, Indexing, Packaging, Assembly, Material Handling and Automated Machinery

The dimensions and weight above are based on the supplied product information. Other mechanical and electrical specifications should be verified for the exact BCH1304N12A1C configuration before engineering, installation, or replacement.

---

What Is the Schneider BCH1304N12A1C?

The Schneider BCH1304N12A1C is a servo motor designed to generate controlled rotary motion within an industrial automation system.

A servo motor normally operates as part of a closed-loop system rather than as an independent motor. The complete system uses a controller, servo drive, motor, and feedback mechanism to achieve the required movement.

A simplified architecture is:

Motion Controller → Servo Drive → BCH1304N12A1C → Mechanical Load → Feedback → Servo Drive

The motion controller generates a command according to the machine sequence. The servo drive processes the command and controls the electrical output delivered to the motor.

The motor converts this electrical energy into mechanical rotation. Feedback information is then returned to the servo system, allowing actual motor behavior to be compared with the commanded movement.

This continuous feedback process enables the system to correct motion errors and maintain controlled operation.

---

Servo Motor Working Principle

The BCH1304N12A1C operates according to the general principles of closed-loop servo control.

Motion Command

A PLC, motion controller, CNC controller, or other control device generates a target motion command.

Depending on the machine, this command can represent position, speed, direction, acceleration, or a coordinated movement profile.

Drive Control

The compatible servo drive receives the command and determines the required motor output.

The drive continuously adjusts motor operation according to the command and feedback information.

Mechanical Movement

The BCH1304N12A1C converts electrical energy into controlled mechanical rotation.

The motor shaft may be connected to a coupling, gearbox, belt, pulley, screw mechanism, rotary table, or another mechanical transmission system.

Feedback Monitoring

Feedback information provides the control system with information about actual motor movement.

The servo drive can compare actual behavior with the commanded motion.

Closed-Loop Correction

If the motor does not follow the commanded movement as expected, the control system can modify the motor output to reduce the difference.

This closed-loop process is fundamental to servo positioning and motion control.

---

Role in Industrial Automation

The BCH1304N12A1C can serve as a motion actuator within an automated machine.

Its role may include:

• Precision positioning
• Controlled rotary movement
• Indexing
• Speed regulation
• Acceleration and deceleration
• Repetitive movement
• Synchronization with other axes
• Coordinated machine motion
• Automated production sequences

A complete automation system may include Schneider Electric PLCs, motion controllers, servo drives, HMIs, sensors, industrial networks, and mechanical transmission components.

The controller determines the required machine movement, while the servo drive and BCH1304N12A1C execute the commanded motion.

---

Industrial Applications

Packaging Machinery

Packaging equipment frequently requires accurate and repeatable movement of feeders, conveyors, cutters, sealing mechanisms, and positioning assemblies.

Servo control allows these movements to be coordinated with the overall production cycle.

Automated Assembly

Assembly machines often require components and tools to move to precise positions.

Servo motors can provide controlled movement for indexing mechanisms, positioning tables, rotary stations, and automated assembly equipment.

Material Handling

Automated handling systems can use servo motors to control transfer mechanisms, positioning units, lifting equipment, and other moving assemblies.

Conveyor Systems

Servo-controlled conveyors can provide controlled speed and coordinated positioning when products must be synchronized with other machine functions.

Indexing Machines

Indexing equipment requires repeatable movement between predefined positions.

A closed-loop servo system can provide the feedback-based control needed for such applications.

Printing and Converting

Printing and converting machines often contain multiple axes that must operate in coordination.

Servo systems can be used to maintain controlled movement between different machine sections.

Textile Equipment

Textile production machinery may require coordinated movement between rollers, feeders, winding mechanisms, and other components.

Servo motors provide a practical solution for applications requiring controlled movement and synchronization.

---

Servo Motion-Control System Architecture

The BCH1304N12A1C can be incorporated into a multi-component automation architecture.

Component	Typical Function
PLC / Motion Controller	Generates machine and motion commands
Servo Drive	Controls motor operation
BCH1304N12A1C	Produces controlled rotary motion
Feedback System	Provides motor operating information
Mechanical Transmission	Transfers motor movement to the machine
Sensors	Detect machine conditions and positions
HMI	Provides operator control and monitoring
Industrial Network	Transfers control and diagnostic information

The exact system configuration depends on the machine application.

In multi-axis machinery, multiple servo motors may operate simultaneously under a coordinated motion controller. Such architectures are useful when machine axes must maintain specific relationships during operation.

---

Mechanical Installation

Correct mechanical installation is essential for reliable servo operation.

Before installing the BCH1304N12A1C, verify the mechanical interface between the motor and the driven equipment.

Important factors include:

• Mounting arrangement
• Motor orientation
• Shaft compatibility
• Coupling selection
• Mechanical alignment
• Load inertia
• Radial loading
• Axial loading
• Mounting rigidity
• Available installation space
• Cable routing

The supplied motor length is 187.5 mm, and the supplied weight is 7.8 kg.

The machine mounting structure should be capable of securely supporting the motor and handling the mechanical forces produced during operation.

Proper alignment is especially important because excessive misalignment can increase vibration and mechanical loading.

---

Servo Drive Integration

The BCH1304N12A1C should be paired with a compatible servo drive selected for the complete motor configuration.

Before startup, verify:

• Complete motor model
• Servo drive compatibility
• Motor feedback compatibility
• Motor power connections
• Feedback connections
• Connector configuration
• Grounding
• Motor cable configuration
• Controller settings
• Drive parameters
• Brake configuration, if applicable

The motor and servo drive should be treated as a matched control system.

A drive with an incorrect motor configuration can result in alarms, abnormal current, poor positioning performance, vibration, or failure to operate correctly.

---

Wiring and Feedback Considerations

Servo systems normally contain several important electrical connection groups.

Motor Power Wiring

The motor power connection transfers controlled electrical power from the servo drive to the motor.

Correct conductor connections and secure connectors are essential for reliable operation.

Feedback Wiring

Feedback wiring is responsible for transferring motor feedback information to the servo drive.

A damaged or incorrectly connected feedback cable can cause:

• Servo alarms
• Position errors
• Startup failure
• Unstable operation
• Loss of feedback

Grounding

Protective grounding should be implemented according to applicable electrical standards and Schneider Electric installation requirements.

Cable Management

Motor power and feedback cables should be routed appropriately.

Where necessary, feedback cables should be separated from high-power switching conductors to reduce electromagnetic interference.

---

Commissioning Procedure

A structured commissioning procedure can reduce the risk of startup problems.

1. Verify Model Identification

Confirm that the motor is the correct Schneider BCH1304N12A1C model.

Inspect the motor for physical damage before installation.

2. Confirm Physical Installation

Check the motor mounting and ensure that the mechanical coupling is correctly installed.

Verify alignment between the motor shaft and driven equipment.

3. Check Electrical Connections

Inspect motor power, feedback, grounding, and control connections.

Make sure all connectors are properly secured.

4. Configure the Servo Drive

Enter or select the correct motor configuration in the compatible servo drive.

The exact configuration procedure depends on the drive and controller being used.

5. Perform a Controlled Test

Perform initial movement under controlled conditions.

Monitor:

• Motor rotation
• Direction
• Vibration
• Noise
• Temperature
• Feedback status
• Drive status
• Position response

6. Test the Machine

After successful initial motor testing, gradually test the complete machine sequence.

Verify positioning, acceleration, deceleration, synchronization, and repeatability according to the machine requirements.

---

Troubleshooting the BCH1304N12A1C

When troubleshooting the BCH1304N12A1C, the motor, servo drive, controller, feedback system, wiring, and mechanical load should all be considered.

Motor Does Not Rotate

Possible causes include:

• Drive not enabled
• Incorrect motor configuration
• Feedback problem
• Incorrect wiring
• Controller command problem
• Drive protection state
• Mechanical obstruction
• Incorrect system configuration

Check the servo drive diagnostic information before assuming that the motor itself has failed.

Servo Alarm During Startup

Startup alarms can be associated with:

• Incorrect motor parameters
• Feedback connection problems
• Wiring faults
• Drive configuration mismatch
• Mechanical restrictions
• Protective functions

The exact alarm code should be identified and investigated.

Abnormal Vibration

Possible causes include:

• Mechanical misalignment
• Loose mounting
• Coupling problems
• Incorrect servo tuning
• Excessive load inertia
• Mechanical resonance
• Motor-related mechanical problems

Both mechanical and control-system factors should be evaluated.

Positioning Accuracy Problems

Positioning errors can result from:

• Feedback problems
• Incorrect motion parameters
• Mechanical backlash
• Excessive mechanical load
• Incorrect tuning
• Coupling problems
• Controller configuration

The complete motion chain should be checked rather than focusing only on the motor.

Motor Overheating

Potential causes include:

• Excessive mechanical load
• Poor ventilation
• Mechanical resistance
• Incorrect drive configuration
• Excessive acceleration or deceleration demands
• Operating conditions outside the intended application

The motor operating environment and machine load should be investigated before continued operation.

---

Preventive Maintenance

Regular inspection can help maintain servo-system reliability.

Mechanical Inspection

Check mounting hardware, couplings, mechanical alignment, and machine components for looseness or wear.

Cable Inspection

Inspect motor and feedback cables for:

• Abrasion
• Cuts
• Heat damage
• Excessive bending
• Loose connectors
• Moisture exposure

Vibration Monitoring

Unexpected increases in vibration can indicate mechanical misalignment, bearing problems, coupling issues, or control-system problems.

Temperature Monitoring

Changes in motor temperature can provide useful information about load conditions and mechanical resistance.

Drive Diagnostic Monitoring

Servo drive alarms and diagnostic records should be reviewed regularly.

Repeated alarm resets without identifying the underlying cause should be avoided.

---

Replacement Considerations

When replacing a Schneider BCH1304N12A1C Servo Motor, the complete model number should be verified.

Important factors include:

• Complete model designation
• Motor family
• Servo drive compatibility
• Feedback configuration
• Electrical characteristics
• Mechanical mounting
• Shaft configuration
• Connector arrangement
• Brake configuration, if applicable
• Machine load requirements
• Controller configuration

The supplied physical specifications are:

Length: 187.5 mm

Weight: 7.8 kg

Physical similarity alone does not guarantee compatibility. A motor with a similar size or appearance may have different electrical, feedback, or mechanical characteristics.

---

Physical Dimensions and Weight

The supplied physical data for the BCH1304N12A1C are summarized below.

Physical Parameter	Value
Length	187.5 mm
Weight	7.8 kg

These values are useful for:

• Machine layout
• Mechanical installation planning
• Spare-parts management
• Replacement preparation
• Equipment handling
• Transportation planning
• Maintenance logistics

Other mechanical dimensions, including shaft dimensions, flange dimensions, mounting-hole patterns, and connector locations, should be confirmed from the applicable technical documentation before mechanical fabrication or installation.

---

Engineering Best Practices

Use a Compatible Servo System

The BCH1304N12A1C should be integrated with a compatible servo drive and feedback system.

Maintain Mechanical Alignment

Correct alignment reduces unnecessary mechanical stress and helps minimize vibration.

Protect Feedback Connections

Feedback wiring should be protected from mechanical damage and excessive electromagnetic interference.

Verify Drive Parameters

Incorrect motor parameters can result in poor performance or drive alarms.

Perform Controlled Commissioning

Initial testing should be performed at controlled speeds and under safe machine conditions.

Monitor Long-Term Performance

Changes in motor temperature, vibration, noise, positioning accuracy, or drive diagnostics can help identify developing problems.

---

Compatible Automation Components

Depending on the machine architecture, the BCH1304N12A1C may be integrated with:

• Schneider Electric servo drives
• Lexium motion-control systems
• Modicon PLCs
• Motion controllers
• Harmony HMI systems
• Industrial Ethernet networks
• Machine sensors
• Safety controllers
• Servo feedback systems
• Motor cables
• Mechanical transmission components

Exact compatibility should be confirmed against the complete BCH1304N12A1C motor configuration and the selected automation architecture.

---

Recommended Related Schneider Product Categories

Product Category	Typical Function
Schneider BCH Servo Motors	Industrial servo motion
Schneider Lexium Servo Drives	Servo motor control
Schneider Motion Controllers	Coordinated motion management
Modicon PLCs	Machine sequencing and automation
Harmony HMIs	Operator interface
Industrial Network Components	System communication
Servo Feedback Components	Closed-loop feedback
Machine Safety Components	Motion-related safety functions

These are related automation categories and should not automatically be considered direct replacement components for the BCH1304N12A1C.

---

Key Advantages

Closed-Loop Motion Control

Servo technology enables feedback-based control of motor movement.

Precision Machine Movement

The BCH1304N12A1C can be incorporated into systems requiring controlled position, speed, and coordinated movement.

Industrial Automation Compatibility

The motor can form part of PLC-, motion-controller-, and servo-drive-based automation architectures.

Practical Mechanical Size

With a supplied length of 187.5 mm, the motor can be incorporated into machine designs where physical installation space must be considered.

Industrial Construction

The supplied 7.8 kg weight represents a substantial industrial servo motor assembly intended for machine integration.

Broad Application Potential

Servo motors can be used in packaging, assembly, indexing, conveying, material handling, printing, textile, and other automated machinery applications when the complete system configuration is suitable.

---

Technical FAQs

What is the Schneider BCH1304N12A1C?

The Schneider BCH1304N12A1C is an industrial AC servo motor intended for integration into closed-loop motion-control systems.

What is the length of the BCH1304N12A1C?

The supplied motor length is 187.5 mm.

What is the weight of the BCH1304N12A1C?

The supplied motor weight is 7.8 kg.

What is the purpose of a servo motor?

A servo motor converts electrical energy into controlled mechanical motion and is normally used with a servo drive and feedback system for positioning, speed control, and coordinated movement.

Does the BCH1304N12A1C require a servo drive?

The BCH1304N12A1C should be used as part of a compatible servo-control architecture. The appropriate servo drive and feedback configuration must be confirmed before installation.

What can cause abnormal servo motor vibration?

Possible causes include mechanical misalignment, loose mounting, coupling problems, excessive load, incorrect tuning, mechanical resonance, or motor-related mechanical problems.

What should be checked when replacing the BCH1304N12A1C?

The complete model number, electrical characteristics, servo-drive compatibility, feedback configuration, mounting arrangement, shaft configuration, connectors, brake configuration if applicable, and machine requirements should be verified.

Can another BCH servo motor automatically replace the BCH1304N12A1C?

No. Similar physical dimensions do not necessarily indicate electrical or functional compatibility. The complete motor and drive configuration should be verified before replacement.

Where can the BCH1304N12A1C be used?

Potential applications include packaging machinery, automated assembly equipment, indexing systems, material-handling equipment, conveyors, positioning mechanisms, and other industrial machines requiring controlled rotary motion.

---

Conclusion

The Schneider BCH1304N12A1C Servo Motor is an industrial servo motor designed to operate within a closed-loop motion-control architecture. When paired with a compatible servo drive, feedback system, controller, and mechanical load, it can provide controlled and repeatable rotary motion for a wide range of automated machinery.

The supplied physical specifications are a length of 187.5 mm and a weight of 7.8 kg. These values are particularly useful for machine layout, mechanical installation, replacement planning, transportation, and spare-parts management.

Reliable operation depends on correct motor-drive matching, mechanical alignment, proper wiring, feedback integrity, appropriate commissioning, and regular maintenance. Before installation or replacement, engineers should verify the complete BCH1304N12A1C model and confirm the required electrical, mechanical, feedback, and performance specifications for the intended application.
