Product Overview

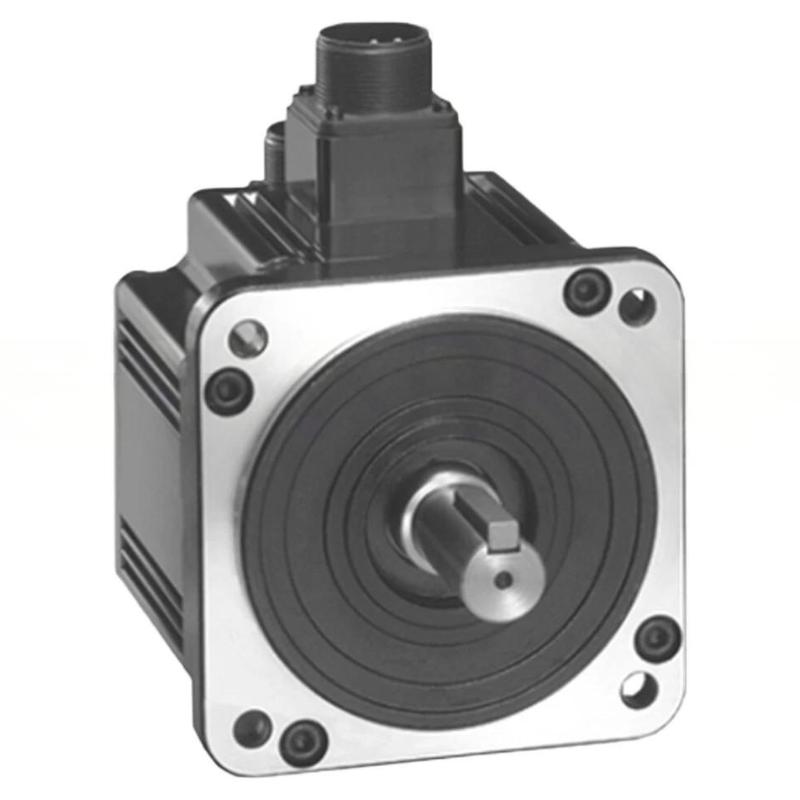

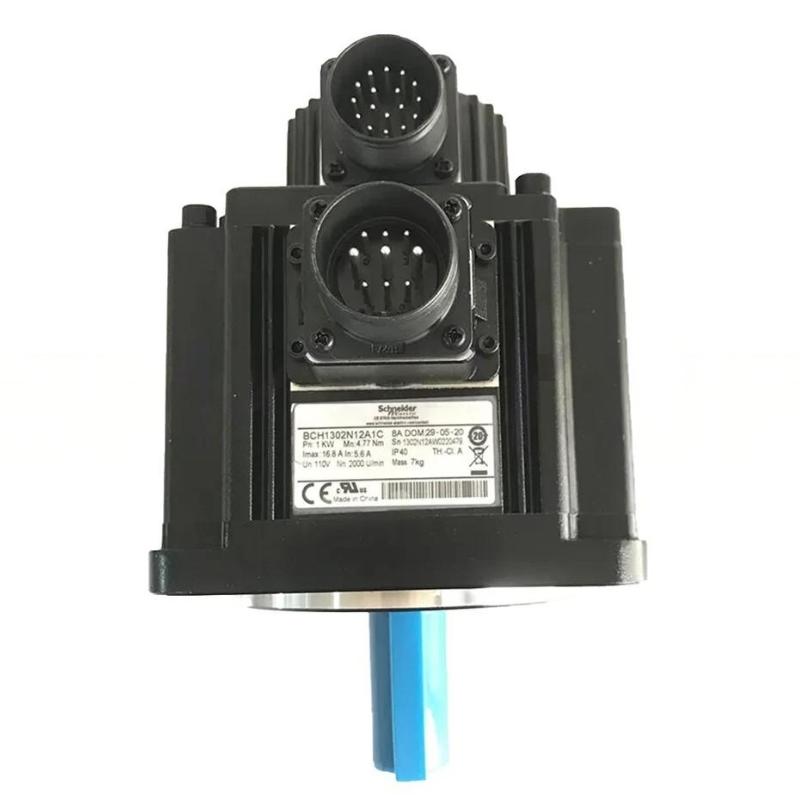

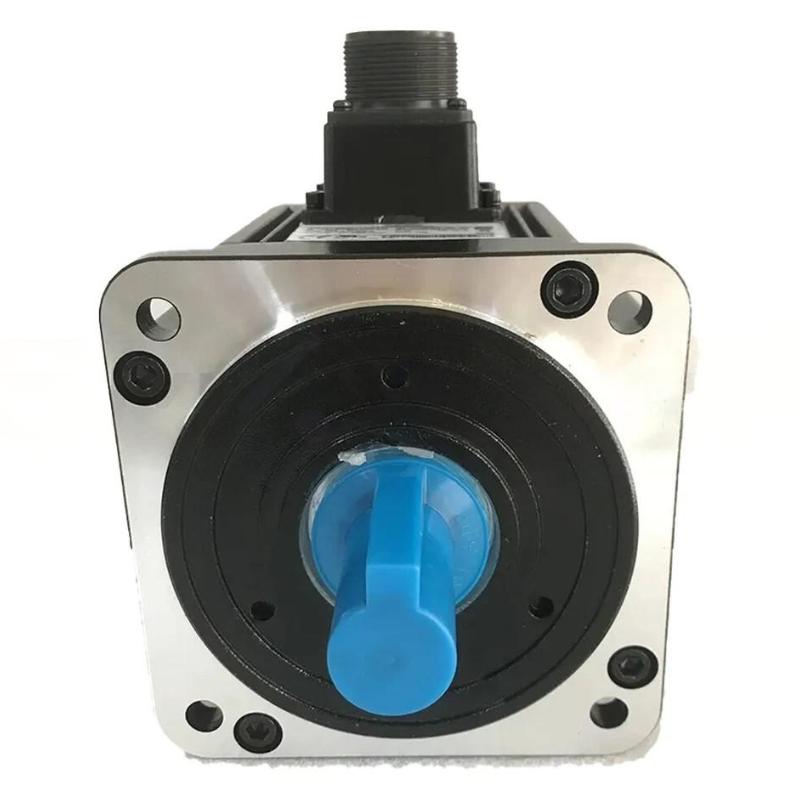

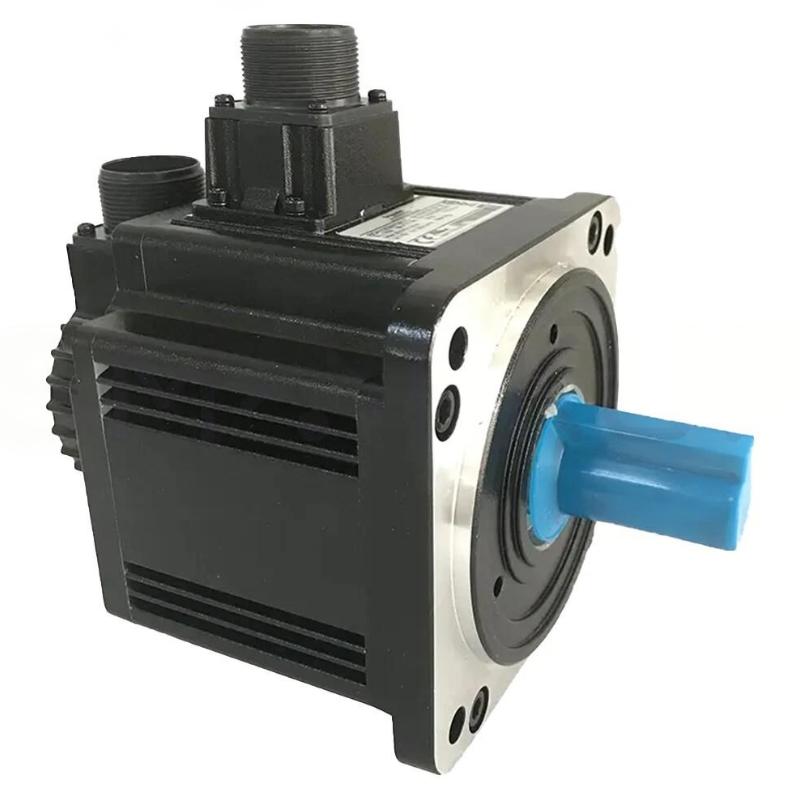

The Schneider Electric BCH1302N12A1C Servo Motor is an industrial servo motor designed for automated motion-control systems requiring controlled rotation, repeatable positioning, and coordinated machine movement. As part of the Schneider Electric BCH servo motor family, the motor can be integrated with a compatible servo drive, motion controller, feedback system, and mechanical transmission to create a complete closed-loop motion-control solution.
Servo motors are widely used in industrial automation when a machine requires more controlled movement than a conventional motor arrangement can provide. The controller establishes the desired motion, the servo drive manages the electrical output to the motor, and the feedback system provides information about actual motor behavior. This allows the control system to continuously regulate the motor during operation.
The BCH1302N12A1C has a supplied length of 147.5 mm and a weight of 7 kg. These physical values are useful for machine layout, mounting-space planning, equipment handling, transportation, spare-parts inventory, and replacement work.
Exact electrical and performance characteristics should be confirmed against the applicable Schneider Electric documentation and motor nameplate. Parameters such as rated power, rated torque, rated speed, maximum speed, feedback type, brake configuration, shaft dimensions, mounting arrangement, and connector specifications should not be assumed solely from the model number.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BCH1302N12A1C |
| Product Type | Servo Motor |
| Product Family | BCH Servo Motor Series |
| Application | Industrial Motion Control |
| Control Architecture | Closed-Loop Servo System |
| Feedback | Compatible Servo Feedback System |
| Length | 147.5 mm |
| Weight | 7 kg |
| Installation | Machine-Mounted |
| Typical Applications | Industrial Automation, Positioning, Packaging, Assembly, Material Handling, Machine Tools |
Specification note: The length and weight above are the values supplied for the BCH1302N12A1C. Exact electrical, mechanical, feedback, and performance characteristics should be confirmed from the documentation applicable to the specific motor.
What Is the Schneider BCH1302N12A1C?
The Schneider BCH1302N12A1C is a servo motor designed to provide controlled mechanical rotation within an industrial automation system.
A servo motor normally works as one component of a larger motion-control architecture rather than as an independent motor. A controller generates a motion command, the servo drive regulates the motor, and feedback information is used to monitor actual movement.
A simplified system can be represented as:
Motion Controller → Servo Drive → BCH1302N12A1C Servo Motor → Mechanical Load
The feedback loop can be represented as:
Servo Motor → Feedback System → Servo Drive / Controller
This arrangement allows the control system to continuously compare commanded motion with actual motor behavior.
Servo Motor Working Principle
The BCH1302N12A1C operates within a closed-loop servo-control system.
The controller first establishes the required movement based on the machine program. The command may define a target position, speed, acceleration, or coordinated movement.
The servo drive processes this command and provides controlled electrical power to the motor.
As the motor operates, the feedback system provides information representing actual motor movement. The servo drive compares the actual condition with the command and adjusts motor operation accordingly.
The general process is:
- Motion controller generates a command.
- Servo drive receives the command.
- Controlled electrical power is supplied to the motor.
- Motor produces mechanical rotation.
- Feedback system reports actual motor behavior.
- Servo drive compares actual and commanded conditions.
- Control output is adjusted.
- Machine movement follows the programmed motion profile.
This feedback-controlled process allows servo systems to provide repeatable and coordinated machine movement.
Role in Industrial Automation
The BCH1302N12A1C can function as the motor element of a complete industrial motion-control system.
A typical system may include:
- PLC or motion controller
- Servo drive
- BCH1302N12A1C servo motor
- Feedback system
- Motor power cable
- Feedback cable
- Mechanical coupling
- Gearbox
- Linear actuator
- Machine mechanism
- HMI
- Safety controller
- Industrial communication network
The motor converts electrical energy into mechanical movement, while the servo drive and controller determine how the movement is performed.
Proper compatibility between the motor, drive, feedback system, controller, and mechanical load is essential.
Industrial Applications
Packaging Machinery
Servo motors are commonly used in packaging equipment for indexing, feeding, cutting, sealing, and coordinated machine movement.
The BCH1302N12A1C can be incorporated into suitable packaging applications where controlled rotary motion is required.
Material Handling
Servo-controlled systems can provide precise movement for conveyors, transfer mechanisms, automated positioning equipment, and material-handling machinery.
Assembly Automation
Servo motors can be used to position tools, fixtures, components, feeders, and automated mechanisms.
Machine Tools
Servo systems are widely used for controlled machine-axis movement and coordinated positioning.
Robotics
Robotic mechanisms often use servo motors to generate controlled rotary movement.
Printing and Converting
Servo systems can coordinate rollers, feeding mechanisms, cutting equipment, and other moving machine elements.
Textile Machinery
Servo motors can provide controlled material movement and synchronization between machine sections.
General Industrial Automation
The BCH1302N12A1C can be considered for automated equipment requiring controlled rotary movement and repeatable machine operation.
Servo Motion-Control Architecture
A typical BCH1302N12A1C installation can include several functional layers.
| Component | Typical Function |
|---|---|
| PLC / Motion Controller | Generates motion commands |
| Servo Drive | Controls motor power and feedback loop |
| BCH1302N12A1C | Produces controlled mechanical rotation |
| Feedback System | Provides actual motor movement information |
| Mechanical Transmission | Transfers motor output to the machine |
| HMI | Operator control and monitoring |
| Safety System | Provides machine safety functions |
| Industrial Network | Transfers control and status information |
The exact architecture depends on the machine design and selected automation equipment.
Installation Guidelines
Correct installation is important for achieving reliable servo operation.
Before installing the BCH1302N12A1C, verify:
- Complete motor model
- Nameplate information
- Compatible servo drive
- Feedback configuration
- Motor mounting arrangement
- Shaft and coupling requirements
- Cable compatibility
- Connector arrangement
- Mechanical load
- Environmental conditions
- Available service clearance
The supplied motor length is 147.5 mm, while the supplied weight is 7 kg.
These values should be considered when designing the mounting structure and planning installation handling.
The complete installation envelope may be greater than the stated length because shaft projection, connectors, cables, mounting hardware, and maintenance clearance can require additional space.
Mechanical Installation
The BCH1302N12A1C should be mounted securely to a suitable machine structure.
Alignment
The motor shaft should be correctly aligned with the driven mechanism. Poor alignment can increase bearing and coupling loads.
Coupling
Where a coupling is used, it should be appropriate for the machine’s actual requirements and installed correctly.
Mechanical Load
The connected load should remain within the applicable mechanical limitations of the motor and machine.
Vibration
Excessive vibration can affect the motor, bearings, feedback system, connectors, and mechanical transmission.
Clearance
Adequate clearance should be maintained for cable routing, inspection, maintenance, and heat dissipation.
Exact mounting-hole dimensions, shaft dimensions, flange characteristics, and other mechanical details should be confirmed from the applicable documentation.
Servo Drive Integration
The BCH1302N12A1C should be connected to a compatible servo drive.
The servo drive controls the electrical power supplied to the motor and processes the feedback information required for closed-loop operation.
Before startup, engineers should verify:
- Motor-drive compatibility
- Motor identification
- Feedback compatibility
- Power cable compatibility
- Feedback cable compatibility
- Control interface
- Communication configuration
- Rotation direction
- Motion parameters
- Safety circuit status
An incorrect motor-drive combination may result in drive faults, unstable operation, excessive temperature, or feedback errors.
Commissioning Procedure
A controlled commissioning procedure helps reduce startup risks.
1. Verify Motor Identification
Confirm that the installed motor is the correct BCH1302N12A1C model.
2. Inspect Mechanical Installation
Check mounting hardware, alignment, coupling condition, and available clearance.
3. Check Motor Connections
Inspect power and feedback cables for damage, loose connections, excessive bending, or incorrect routing.
4. Configure the Servo Drive
Configure the drive according to the applicable motor and feedback information.
5. Verify Feedback
Confirm that the servo drive receives valid feedback information.
6. Perform Controlled Movement
Begin initial movement under controlled operating conditions.
7. Verify Direction
Confirm that motor rotation matches the intended machine direction.
8. Test Motion Profiles
Gradually test acceleration, deceleration, speed, and positioning functions.
9. Monitor Drive Status
Observe diagnostic messages and fault information throughout the commissioning process.
10. Verify Machine Operation
Confirm that the motor operates smoothly under the intended machine conditions.
Troubleshooting the BCH1302N12A1C
Servo motor problems should be investigated across the entire motion-control system.
Motor Does Not Rotate
Possible causes include:
- Servo drive not enabled
- Active safety circuit
- Incorrect motor configuration
- Missing motor power
- Feedback fault
- Cable problem
- Loose connector
- Incorrect motion command
- Mechanical obstruction
Check the servo drive diagnostics before concluding that the motor is defective.
Servo Fault During Acceleration
Potential causes include:
- Excessive acceleration
- Excessive mechanical load
- Incorrect motor parameters
- Feedback problems
- Cable problems
- Servo tuning issues
- Mechanical resistance
A controlled low-speed test can help identify the source.
Positioning Error
Potential causes include:
- Incorrect servo tuning
- Mechanical backlash
- Coupling problems
- Mechanical slippage
- Excessive load
- Feedback abnormalities
- Incorrect motion parameters
Both the servo configuration and mechanical transmission should be inspected.
Motor Overheating
Possible causes include:
- Excessive mechanical load
- High operating duty
- Insufficient heat dissipation
- Mechanical friction
- Incorrect configuration
- Unsuitable operating conditions
The actual operating condition should be compared with the applicable motor specifications.
Excessive Noise or Vibration
Inspect:
- Motor mounting
- Shaft alignment
- Coupling
- Mechanical transmission
- Load condition
- Bearings
- Servo tuning
Mechanical issues should be eliminated before making unnecessary control adjustments.
Preventive Maintenance
Regular inspection can help maintain stable servo operation.
Inspect Power and Feedback Connections
Check connectors and cables for looseness, contamination, damage, and mechanical stress.
Check Mechanical Couplings
Verify coupling alignment and mounting condition during scheduled maintenance.
Monitor Temperature
Unexpected temperature increases can indicate excessive loading, mechanical resistance, or cooling problems.
Monitor Vibration
Changes in vibration may indicate mechanical wear, imbalance, misalignment, or bearing problems.
Review Drive Diagnostics
Servo drive alarms and historical diagnostic information can help identify developing problems.
Maintain a Suitable Environment
The motor and associated equipment should be operated within the environmental conditions specified for the installation.
Replacement Considerations
When replacing a Schneider BCH1302N12A1C Servo Motor, technicians should verify the complete model designation.
Important identification information includes:
- Full motor model
- Nameplate data
- Motor family
- Feedback configuration
- Brake configuration, where applicable
- Shaft arrangement
- Mounting configuration
- Connector arrangement
- Compatible servo drive
- Machine load requirements
The supplied 147.5 mm length and 7 kg weight are useful for mechanical planning but cannot by themselves establish compatibility.
A motor with similar dimensions may have different electrical ratings, feedback characteristics, mechanical interfaces, or performance specifications.
Physical Dimensions and Weight
The supplied physical specifications for the BCH1302N12A1C are:
Length: 147.5 mm
Weight: 7 kg
These values are useful for:
- Machine layout
- Mounting-space planning
- Installation handling
- Transportation
- Spare-parts inventory
- Replacement planning
- Equipment design
The stated length represents the supplied product dimension but should not automatically be treated as the complete installation envelope. Shaft projection, connectors, cables, mounting hardware, and service access should also be considered.
Engineering Best Practices
Verify Complete Motor-Drive Compatibility
The exact motor and servo drive combination should be confirmed before installation.
Protect Feedback Wiring
Feedback is essential to closed-loop control. Proper cable routing and secure connectors can reduce intermittent feedback faults.
Maintain Shaft Alignment
Correct mechanical alignment helps reduce vibration, bearing loading, coupling stress, and positioning problems.
Consider Load and Motion Profile
Acceleration, deceleration, load inertia, operating cycle, and mechanical transmission all affect servo performance.
Document System Parameters
Record motor identification, drive configuration, motion parameters, commissioning results, and maintenance activities.
Use Controlled Startup
Initial testing should be conducted under controlled conditions before full production operation.
Compatible Automation Components
Depending on the machine architecture, the BCH1302N12A1C may be integrated with:
- Compatible Schneider Electric servo drives
- Modicon PLC systems
- Motion controllers
- Industrial HMIs
- Industrial communication networks
- Machine safety systems
- Motor feedback interfaces
- Servo motor power cables
- Feedback cables
- Mechanical couplings
- Gearboxes
- Linear motion mechanisms
Exact compatibility should be confirmed according to the complete system configuration.
Recommended Related Schneider Product Categories
| Product Category | General Function |
|---|---|
| Schneider BCH Servo Motors | Industrial servo motion |
| Schneider Servo Drives | Closed-loop motor control |
| Schneider Motion Controllers | Coordinated machine movement |
| Schneider Modicon PLCs | Machine and process control |
| Schneider HMIs | Operator interface and monitoring |
| Schneider Safety Controllers | Machine safety functions |
These are related automation product categories and should not be interpreted as direct replacement recommendations for the BCH1302N12A1C.
Key Advantages
- Designed for industrial servo motion applications
- Suitable for closed-loop motion-control architectures
- Supports controlled and repeatable rotary movement
- Can be integrated with compatible Schneider servo drives
- Supplied length of 147.5 mm
- Supplied weight of 7 kg
- Suitable for automated positioning applications
- Applicable to packaging, assembly, handling, and manufacturing machinery
- Supports coordinated machine movement
- Suitable for industrial automation environments
Technical FAQs
What is the Schneider BCH1302N12A1C?
The Schneider BCH1302N12A1C is a Schneider Electric servo motor intended for industrial motion-control applications.
What is the length of the BCH1302N12A1C?
The supplied length is 147.5 mm.
How much does the BCH1302N12A1C weigh?
The supplied weight is 7 kg.
What is the BCH1302N12A1C used for?
The motor is intended for applications requiring controlled rotary movement, positioning, speed regulation, and coordinated machine operation.
Does the BCH1302N12A1C work with a servo drive?
A servo motor normally operates with a compatible servo drive that manages motor power and closed-loop feedback control.
What should be checked when replacing the motor?
The complete model number, feedback configuration, brake configuration where applicable, shaft arrangement, mounting configuration, connector arrangement, cables, and servo-drive compatibility should be verified.
Are the 147.5 mm length and 7 kg weight enough to select a replacement?
No. Physical dimensions and weight are useful for mechanical planning, but electrical, feedback, mechanical-interface, and performance compatibility must also be confirmed.
What can cause positioning errors?
Positioning errors can result from incorrect tuning, feedback problems, mechanical backlash, coupling issues, excessive load, mechanical slippage, or incorrect motion parameters.
What can cause the servo motor to overheat?
Possible causes include excessive mechanical load, high duty cycle, mechanical friction, insufficient heat dissipation, incorrect configuration, or operating conditions outside the applicable specifications.
Conclusion
The Schneider Electric BCH1302N12A1C Servo Motor is an industrial motion-control component designed to operate as part of a compatible closed-loop servo system. When integrated correctly with a servo drive, feedback system, motion controller, and mechanical load, it can provide controlled and repeatable rotary movement for automated machinery.
The supplied physical specifications are 147.5 mm in length and 7 kg in weight. These values are useful for machine layout, mounting-space planning, equipment handling, transportation, spare-parts management, and replacement preparation.
Reliable operation depends on the complete servo architecture rather than the motor alone. Correct motor-drive matching, proper mechanical alignment, secure feedback connections, controlled commissioning, appropriate operating conditions, and preventive maintenance are important for stable machine performance.
When sourcing or replacing the BCH1302N12A1C, the complete model designation should be verified carefully. Exact electrical ratings, feedback characteristics, shaft dimensions, mounting details, brake configuration, and other performance parameters should be confirmed against the applicable documentation for the specific motor before installation.
