Overview

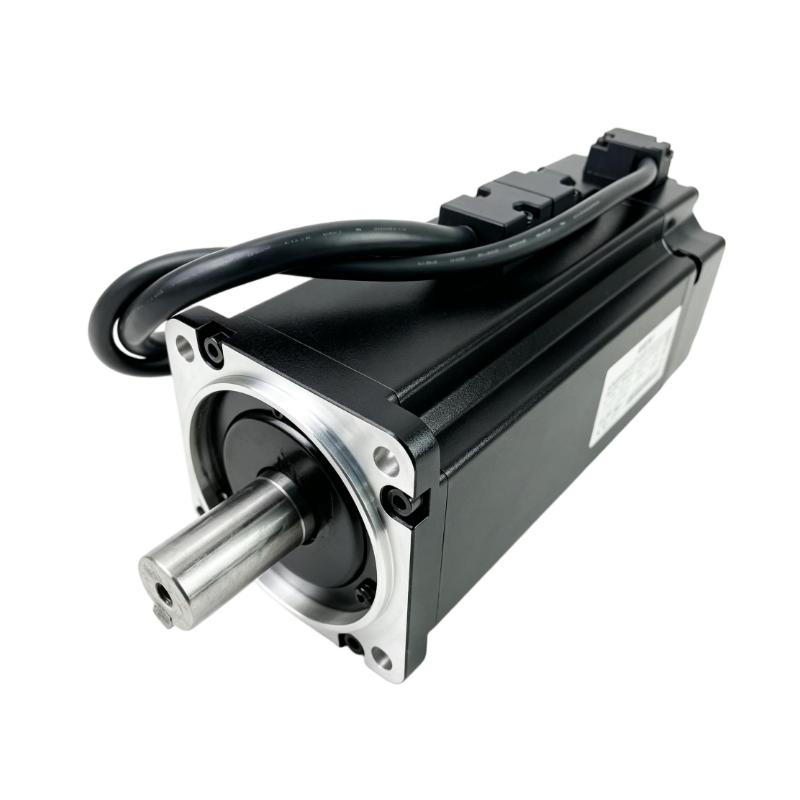

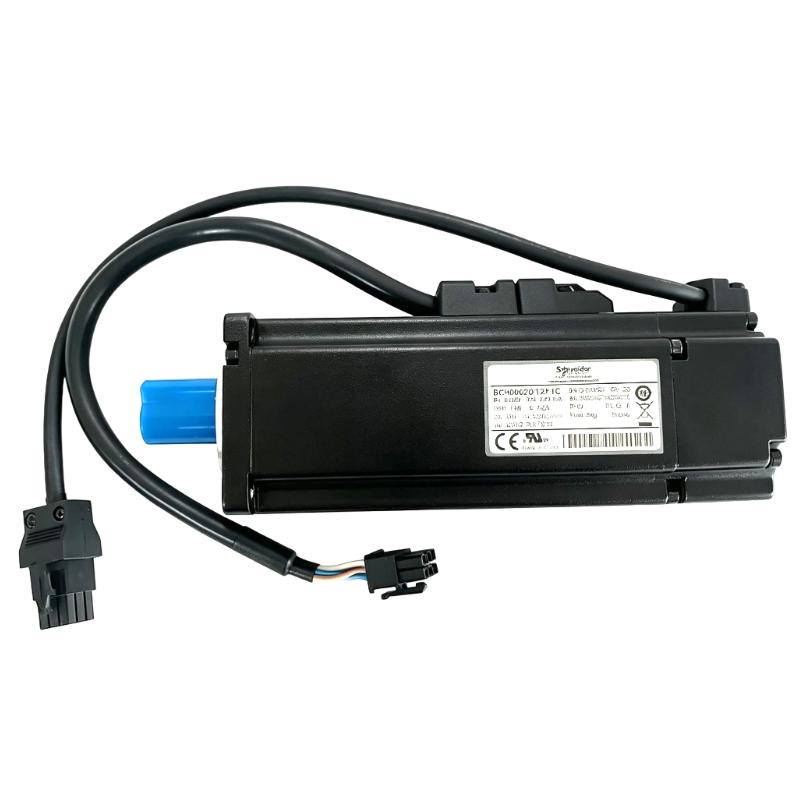

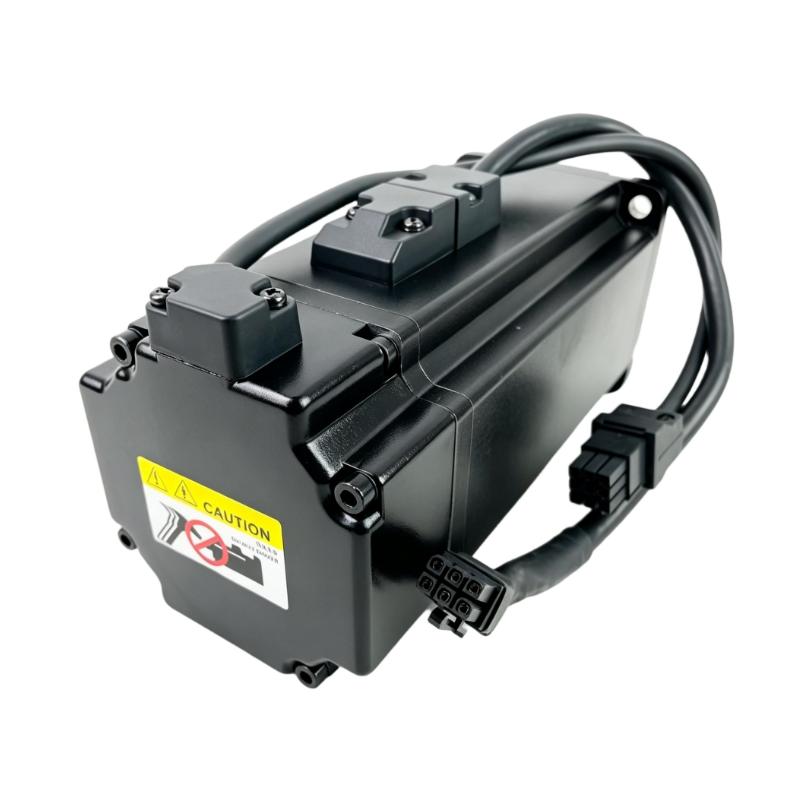

The Schneider BCH0802O12F1C is a servo motor designed for high-precision motion control applications within Schneider Electric automation systems.
This motor provides accurate speed, torque, and position control through advanced feedback technology, making it suitable for automated machinery that requires fast response and stable operation. It is commonly used with Schneider Lexium motion control systems in applications such as robotics, packaging equipment, machine tools, and industrial automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model | BCH0802O12F1C |
| Product Type | Servo Motor |
| Series | Lexium BCH |
| Rated Power | 0.75 kW |
| Rated Voltage | 220 V AC |
| Continuous Stall Current | 5.1 A |
| Maximum Speed | 5000 rpm |
| Feedback Type | 20-bit Incremental Encoder |
| Holding Brake | With Brake |
| Holding Torque | 2.5 N·m |
| Shaft Type | Keyed Shaft |
| Shaft Diameter | 19 mm |
| Motor Flange Size | 80 mm |
| Length | 178 mm |
| Weight | 3.8 kg |
| Cooling Method | Natural Convection |
| Application | Precision Motion Control Systems |
Applications
CNC and Machine Tools
The BCH0802O12F1C provides accurate position and speed control for CNC equipment requiring stable and precise mechanical movement.
Packaging Machinery
It is used in automated packaging systems where fast response, repeatability, and accurate positioning are required.
Robotics and Automation Equipment
The servo motor supports robotic mechanisms and automated machines that require controlled movement and high dynamic performance.
Material Handling Systems
It can drive positioning systems, feeders, and handling equipment requiring precise motion control.
Industrial Production Lines
The motor is suitable for automated manufacturing equipment that depends on reliable servo operation.
How It Works
The Schneider BCH0802O12F1C converts electrical energy into controlled mechanical motion through servo feedback control.
The motor receives commands from a compatible servo drive, while the built-in encoder provides real-time position and speed feedback. The controller continuously adjusts motor operation according to the feedback signal, allowing precise movement and torque control.
The typical working process is:
Motion Controller → Servo Drive → BCH0802O12F1C Motor → Mechanical Movement → Encoder Feedback
This closed-loop control system allows the motor to maintain high accuracy during acceleration, positioning, and continuous operation.
Key Advantages
| Feature | Benefit |
|---|---|
| High-Resolution Encoder Feedback | Provides accurate position and speed monitoring. |
| Integrated Holding Brake | Helps maintain position during machine stops. |
| Compact Servo Design | Suitable for space-limited automation equipment. |
| High Dynamic Response | Supports fast acceleration and precise movement. |
| Stable Torque Performance | Maintains reliable operation under changing loads. |
| Industrial Motion Compatibility | Works with Schneider motion control systems. |
Related Components
| Component | Function |
|---|---|
| BCH0802O12F1C Servo Motor | Provides controlled mechanical motion output. |
| Schneider Lexium Servo Drive | Controls motor speed, torque, and position. |
| Motion Controller | Generates movement commands for the servo system. |
| Encoder Feedback System | Provides real-time motor position information. |
| Servo Motor Cable | Connects motor power and feedback signals. |
| Mechanical Coupling | Transfers motor motion to machine components. |
Installation
The Schneider BCH0802O12F1C should be installed with a compatible servo drive and properly matched motion control system.
Before installation, check:
- Servo drive compatibility
- Motor voltage requirements
- Encoder connection
- Mechanical mounting condition
- Cable connection quality
The motor should be mounted securely to avoid vibration and alignment problems. After installation, configure motor parameters in the servo drive and verify rotation direction, feedback operation, and positioning accuracy before normal operation.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Motor Does Not Rotate | Power or control connection issue | Check motor wiring and servo drive status. |
| Position Error Occurs | Encoder feedback problem | Inspect encoder connection and feedback signals. |
| Excessive Vibration | Incorrect tuning or mechanical issue | Check servo parameters and mechanical alignment. |
| Motor Overheating | Excessive load or poor cooling | Verify load conditions and installation environment. |
| Brake Not Releasing | Brake power issue | Check brake wiring and servo drive settings. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| BCH0802O12F1C | Servo Motor | Compact precision motion applications |
| BCH1002O12F1C | Servo Motor | Medium-size automation equipment |
| BCH1302O12F1C | Servo Motor | Higher torque motion systems |
| BCH0601O12A1C | Servo Motor | Small automation machines |
| BMH0702P16A2A | Servo Motor | High-performance industrial motion |
| Lexium Servo Drive Series | Servo Drive | Motor control and positioning |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| Schneider Lexium BCH Series | Servo Motors | Industrial motion control |
| Schneider Lexium Servo Drives | Motor Controllers | Servo operation management |
| Schneider Motion Controllers | Automation Controllers | Position and motion coordination |
| Schneider PLC Systems | Control Platforms | Machine automation |
| Schneider Servo Accessories | Cables and Components | Motor system connection |
| Schneider Industrial Automation Products | Control Equipment | Complete automation solutions |
Technical FAQs
1. What is the main function of the Schneider BCH0802O12F1C?
The BCH0802O12F1C is a servo motor used for precise speed, torque, and position control in industrial motion systems.
2. Which servo drive is typically used with this motor?
It is designed to work with compatible Schneider Lexium servo drive systems for closed-loop motion control.
3. What type of feedback does the BCH0802O12F1C use?
The motor uses a 20-bit incremental encoder for accurate position and speed feedback.
4. Does this servo motor include a holding brake?
Yes, the motor includes an integrated holding brake for maintaining position when required.
5. What should be checked if the motor has positioning errors?
Check encoder feedback signals, servo parameters, mechanical alignment, motor wiring, and load conditions.
