- Schneider
- ATV930D55N4
- Variable Speed Drive
- France
- 922 × 290 × 325.5 mm
- 57.5 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 9
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

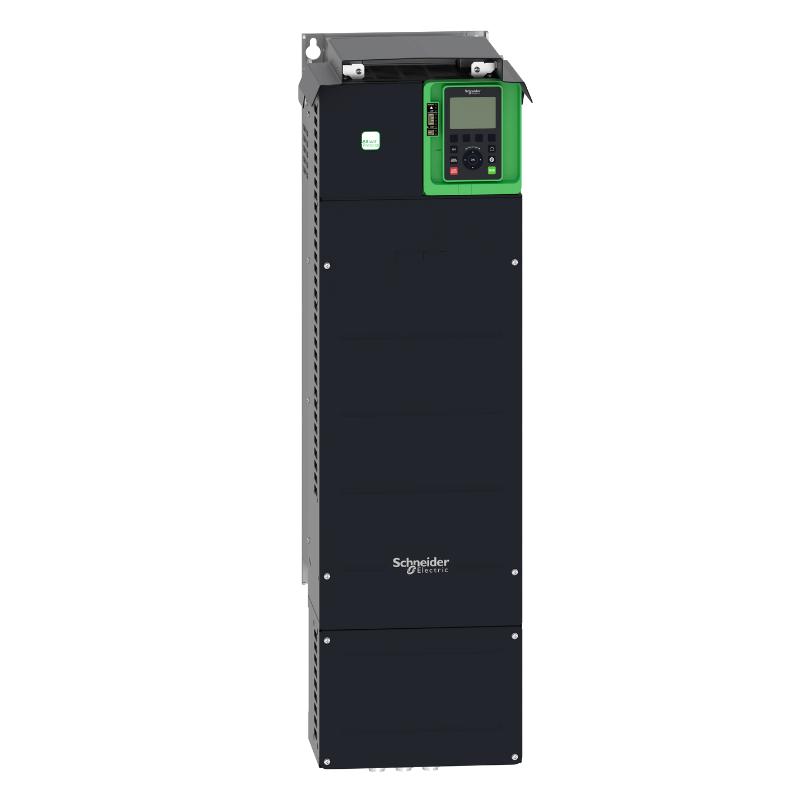

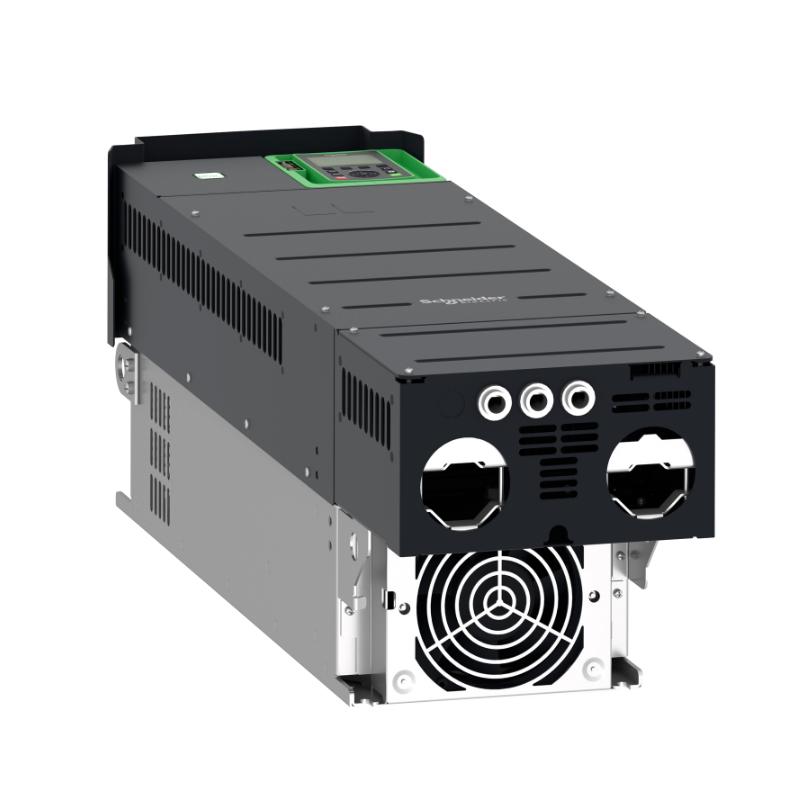

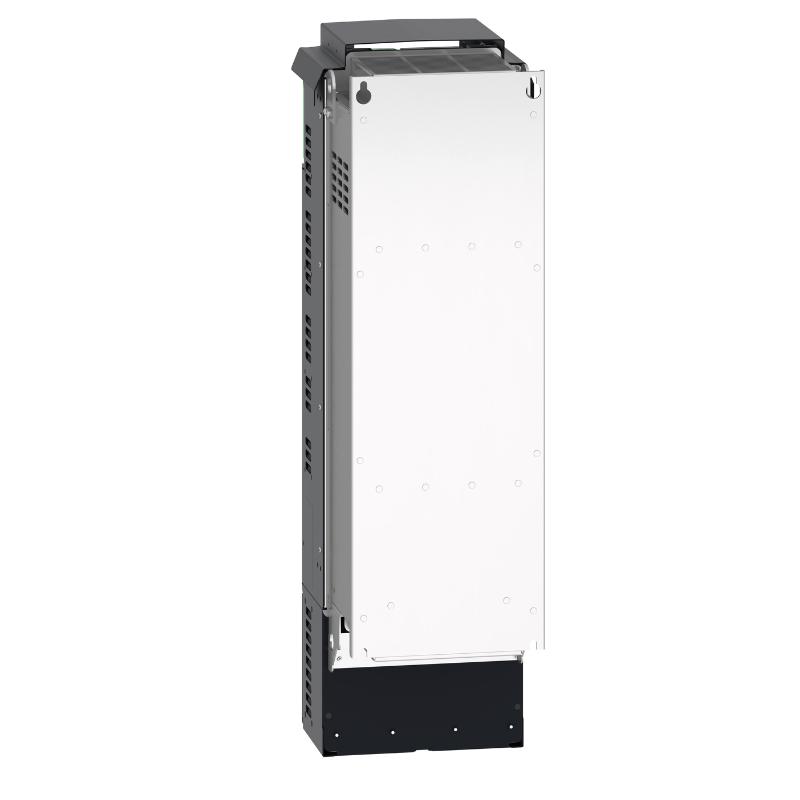

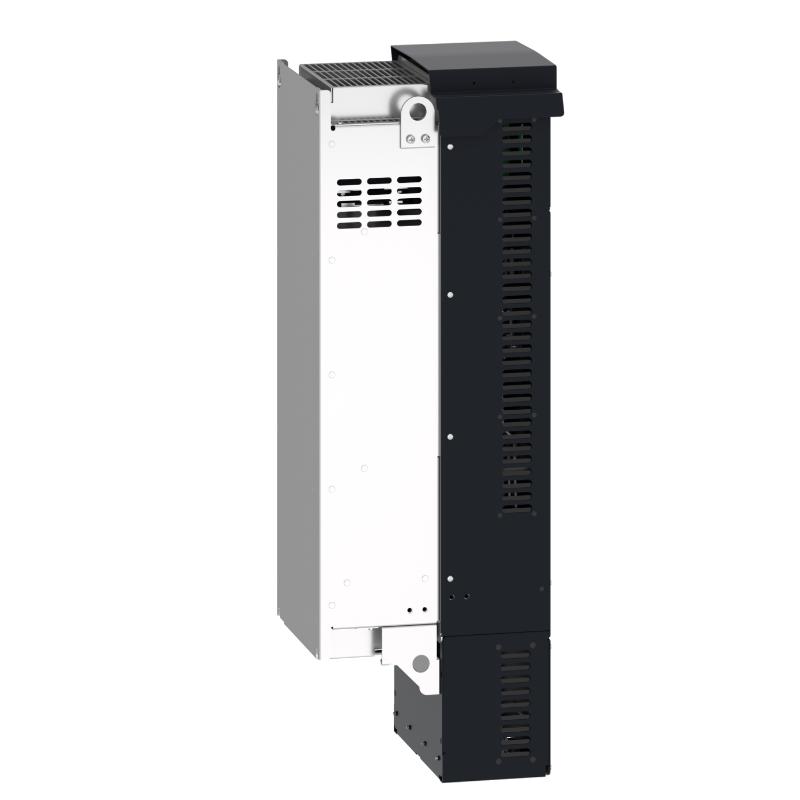

The Schneider ATV930D55N4 Altivar Process ATV930 Variable Speed Drive is an industrial AC variable speed drive designed for controlling the speed, torque, and operating performance of three-phase motors used in demanding process and automation applications.
As part of the Altivar Process ATV930 series, the ATV930D55N4 provides advanced motor control functions for systems that require stable operation, flexible speed adjustment, and integration with industrial control networks. It regulates motor performance by adjusting output frequency and voltage, allowing motor-driven equipment to operate according to actual process requirements.
The drive is commonly used in large industrial applications involving pumps, fans, compressors, conveyors, and process machinery. Through integration with PLC systems, HMI platforms, and industrial communication networks, it supports centralized monitoring, parameter management, and automated equipment control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV930D55N4 |
| Product Family | Altivar Process ATV930 |
| Product Type | Variable Speed Drive |
| Main Function | AC Motor Speed and Torque Control |
| Application | Industrial Motor Control |
| Control Method | Variable Frequency Motor Regulation |
| System Integration | PLC / Industrial Automation Systems |
| Installation | Industrial Cabinet or Panel Mounting |
| Dimensions | 922 × 290 × 325.5 mm |
| Weight | 57.5 kg |
Product Features
The Schneider ATV930D55N4 Altivar Process ATV930 Variable Speed Drive provides high-performance motor management functions for industrial equipment.
Key characteristics include:
- Schneider Altivar Process ATV930 variable speed drive
- Model ATV930D55N4
- Designed for industrial AC motor control applications
- Provides adjustable speed and torque regulation
- Supports stable operation under changing load conditions
- Integrates with PLC-based automation systems
- Supports industrial communication architectures
- Suitable for large motor-driven equipment
- Provides controlled acceleration and deceleration functions
- Designed for continuous process applications
The drive should be configured according to motor specifications, mechanical load conditions, control requirements, and automation system architecture.
Working Principle
The ATV930D55N4 controls motor operation by converting fixed-frequency AC input power into an adjustable output suitable for variable-speed motor operation.
A simplified operating path is:
AC Power Supply → ATV930 Variable Speed Drive → AC Motor → Mechanical Equipment
The drive receives speed or torque commands from a control system, local operation panel, or communication network. It processes these commands and adjusts the output frequency and voltage supplied to the motor.
By continuously regulating motor operation, the drive allows equipment to maintain the required process performance while reducing unnecessary mechanical stress caused by direct fixed-speed operation.
The internal monitoring and protection functions help maintain stable operation during different operating conditions.
Role in Industrial Motor Control Architecture
The ATV930D55N4 operates as the motor control layer between automation equipment and mechanical systems.
A typical architecture can be represented as:
PLC / Automation Controller → Communication Network → ATV930 Drive → Motor → Process Equipment
| System Layer | Typical Function |
|---|---|
| PLC Controller | Executes application control logic |
| Communication Network | Transfers commands and operating data |
| ATV930 Drive | Controls motor speed and torque |
| AC Motor | Provides mechanical power output |
| Sensors | Monitor process conditions |
| HMI / SCADA | Provides operation and visualization |
The drive converts digital control commands into precise motor operation for industrial processes.
Industrial Applications
The Schneider ATV930D55N4 is suitable for industrial systems requiring powerful and reliable variable-speed motor control.
| Application | Typical Use |
|---|---|
| Large Pump Systems | Flow and pressure management |
| Industrial Fans | Airflow regulation |
| Compressor Systems | Maintaining stable operation |
| Conveyor Equipment | Controlling material movement |
| Water Treatment Plants | Process equipment regulation |
| Manufacturing Facilities | Coordinated motor control |
| Process Industries | Continuous production applications |
| Heavy Industrial Equipment | Large motor management |
The final application depends on motor characteristics, load requirements, and process control objectives.
Installation and Maintenance
Proper installation and commissioning are important for ensuring stable drive performance.
Recommended maintenance checks include:
- Confirm the correct ATV930D55N4 model.
- Verify motor compatibility.
- Check input power connections.
- Confirm motor parameter settings.
- Inspect control and communication wiring.
- Verify cabinet ventilation conditions.
- Check cooling system operation.
- Inspect terminals and connectors.
- Review drive alarm records.
- Monitor motor operating status.
- Verify protection settings.
- Test system operation after maintenance.
If drive faults occur, troubleshooting should include power supply conditions, motor wiring, mechanical load, parameter configuration, and communication status.
Related Components
The ATV930D55N4 works together with various industrial automation components.
| Component | Function |
|---|---|
| Schneider PLC Controllers | Provide automation commands |
| Altivar Process ATV930 Drives | Manage motor operation |
| AC Motors | Convert electrical energy into mechanical movement |
| Communication Modules | Enable industrial networking |
| HMI Systems | Provide operator control |
| Sensors | Supply process feedback |
| Circuit Protection Devices | Protect electrical systems |
| Control Cabinets | Provide installation environment |
These components form a complete industrial motor control solution.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider ATV930D55N4 | Altivar Process ATV930 Drive | Large industrial motor control |
| Schneider ATV930D45N4 | Altivar Process ATV930 Drive | Process equipment speed regulation |
| Schneider ATV930D37N4 | Altivar Process ATV930 Drive | Industrial variable-speed applications |
| Schneider ATV930D30N4 | Altivar Process ATV930 Drive | Motor control systems |
| Schneider ATV930 Series | Variable Speed Drive Family | Process automation |
| Schneider ATV630 Series | Process Drive Family | Pump and fan applications |
Selection should consider motor power, operating environment, communication requirements, and existing automation system design.
Key Advantages
- Schneider Altivar Process ATV930 series drive
- Provides precise AC motor speed control
- Supports industrial automation integration
- Enables flexible process adjustment
- Improves motor operating stability
- Supports network-based monitoring and control
- Suitable for large motor applications
- Provides advanced motor management functions
- Supports continuous industrial operation
- Suitable for demanding process environments
Technical FAQs
What type of equipment is typically controlled by the ATV930D55N4?
The drive is commonly applied to larger motor-driven systems such as industrial pumps, fans, compressors, conveyors, and process machinery requiring adjustable speed operation.
How does the ATV930D55N4 support energy management in motor applications?
By adjusting motor speed according to actual process demand, the drive can help reduce unnecessary motor operation and improve overall system efficiency.
What installation factors should be considered for this ATV930 model?
Cabinet space, ventilation, power wiring, motor cable arrangement, grounding, and communication connections should be evaluated before installation.
How can communication faults affect ATV930D55N4 operation?
Communication problems may interrupt control commands, monitoring data exchange, or parameter access between the drive and automation system.
