Product Overview

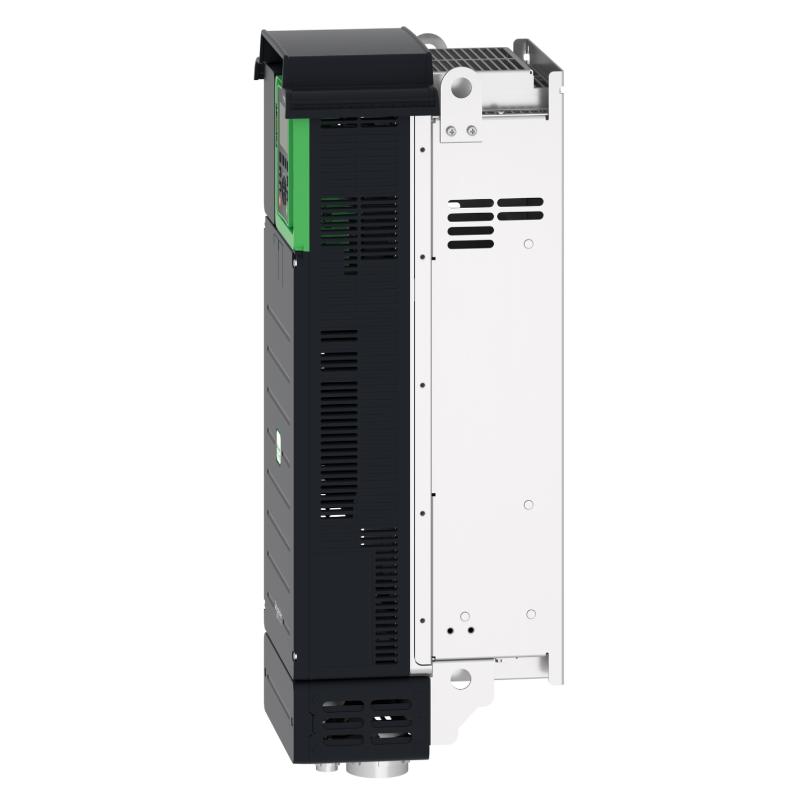

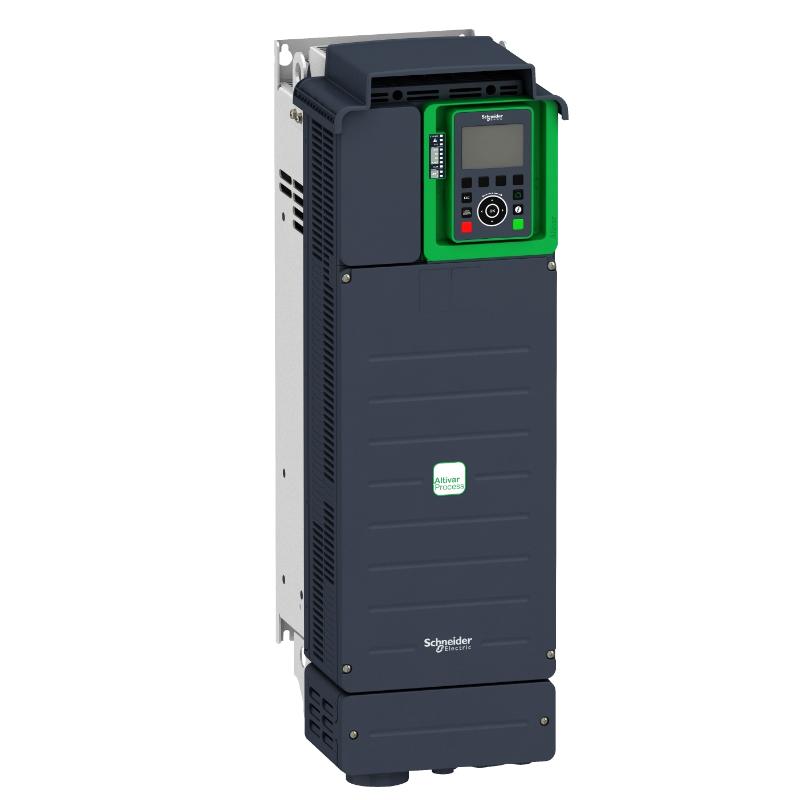

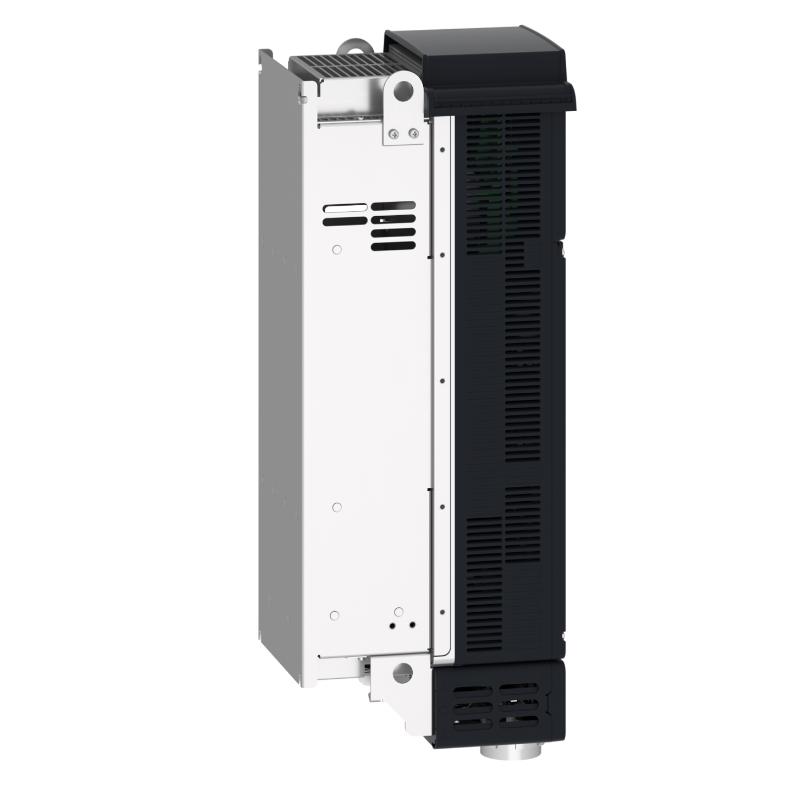

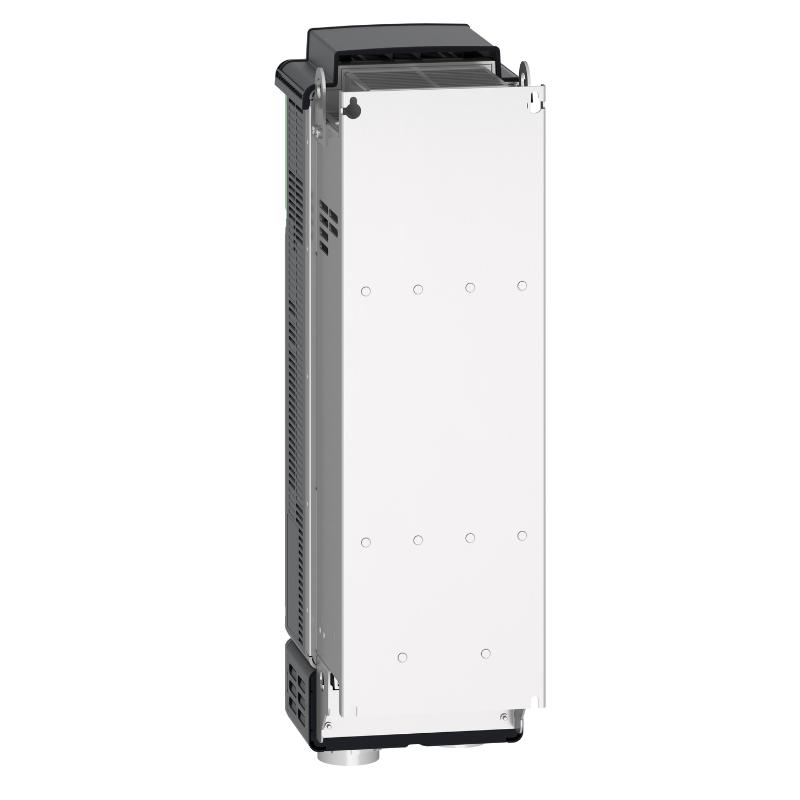

The Schneider ATV930D45N4 Altivar Process ATV930 Variable Speed Drive is an industrial AC motor drive used for precise speed, torque, and process control in demanding automation environments. It belongs to the Altivar Process ATV930 series and is designed for applications where motor operation needs to be adjusted according to real-time process requirements.
The drive controls motor performance by regulating output frequency and voltage, allowing connected equipment to operate efficiently under different load conditions. Compared with fixed-speed motor operation, variable speed control provides better flexibility for systems requiring frequent adjustment, controlled acceleration, or stable process performance.
The ATV930D45N4 is commonly applied in industrial equipment such as pumps, fans, compressors, conveyors, and production machinery. It can be integrated with PLC controllers, communication networks, HMI systems, and industrial monitoring platforms to support centralized automation management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV930D45N4 |
| Product Family | Altivar Process ATV930 |
| Product Type | Variable Speed Drive |
| Main Function | AC Motor Speed and Torque Control |
| Application | Industrial Motor Control |
| Control Method | Variable Frequency Drive Regulation |
| System Integration | PLC / Industrial Automation Systems |
| Installation | Industrial Cabinet or Panel Mounting |
| Dimensions | 673 × 226 × 274 mm |
| Weight | 28.7 kg |
Product Features
The Schneider ATV930D45N4 Altivar Process ATV930 Variable Speed Drive provides advanced control functions for industrial motor-driven equipment.
Key characteristics include:
- Schneider Altivar Process ATV930 variable speed drive
- Model ATV930D45N4
- Provides variable frequency motor control
- Supports precise speed and torque adjustment
- Suitable for high-demand industrial applications
- Integrates with PLC and automation systems
- Supports industrial communication environments
- Provides controlled motor starting and stopping
- Suitable for pumps, fans, compressors, and conveyors
- Supports process equipment optimization
The drive configuration should be matched with motor data, load characteristics, application requirements, and automation system parameters.
Working Principle
The ATV930D45N4 regulates AC motor operation by converting incoming electrical power into a controlled output with adjustable frequency and voltage.
A simplified operating path is:
AC Power Supply → ATV930 Drive → AC Motor → Mechanical Equipment
The drive receives commands from the control system and processes operating parameters before generating the appropriate motor output. By changing the frequency supplied to the motor, it controls rotational speed while maintaining suitable torque performance.
During operation, the drive monitors internal operating conditions and responds to process requirements through configured control functions. This allows motor-driven equipment to maintain stable operation even when system loads change.
Role in Industrial Motor Control Architecture
The ATV930D45N4 works as the motor management component between the automation control layer and field equipment.
A typical architecture can be represented as:
PLC / Automation Controller → Communication Network → ATV930 Drive → Motor → Process Equipment
| System Layer | Typical Function |
|---|---|
| PLC Controller | Executes control logic |
| Communication Network | Transfers commands and status information |
| ATV930 Drive | Controls motor speed and torque |
| AC Motor | Drives mechanical equipment |
| Sensors | Provide operating feedback |
| HMI / SCADA | Provides monitoring interface |
The drive converts automation commands into controlled motor operation for industrial processes.
Industrial Applications
The Schneider ATV930D45N4 is suitable for applications requiring stable and adjustable motor control.
| Application | Typical Use |
|---|---|
| Pump Systems | Flow and pressure regulation |
| Fan Systems | Air volume control |
| Compressor Equipment | Stable motor operation |
| Conveyor Systems | Adjustable material handling |
| Water Treatment | Process equipment control |
| Manufacturing Equipment | Motor speed coordination |
| Process Industries | Continuous production operation |
| Industrial Machinery | Variable-speed applications |
The actual application depends on the motor type, mechanical load, and system control requirements.
Installation and Maintenance
Proper installation and commissioning are important for maintaining reliable drive operation.
Recommended maintenance checks include:
- Confirm the correct ATV930D45N4 model.
- Verify motor and drive compatibility.
- Check power supply wiring.
- Confirm motor parameter settings.
- Inspect control wiring.
- Verify communication configuration.
- Check cooling and ventilation conditions.
- Inspect terminals and connectors.
- Review fault records.
- Monitor motor operating status.
- Confirm protection parameters.
- Test system operation after maintenance.
If operating problems occur, troubleshooting should include drive parameters, motor condition, mechanical load, power supply, and communication connections.
Related Components
The ATV930D45N4 works together with other industrial automation components.
| Component | Function |
|---|---|
| Schneider PLC Controllers | Provide automation commands |
| Altivar Process ATV930 Drives | Manage motor operation |
| AC Motors | Provide mechanical movement |
| Communication Modules | Enable network integration |
| HMI Systems | Display operating information |
| Sensors | Provide process feedback |
| Circuit Protection Devices | Protect electrical circuits |
| Control Cabinets | Provide equipment installation environment |
Together, these components form a complete industrial motor control solution.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider ATV930D45N4 | Altivar Process ATV930 Drive | High-performance motor control |
| Schneider ATV930D37N4 | Altivar Process ATV930 Drive | Industrial process applications |
| Schneider ATV930D30N4 | Altivar Process ATV930 Drive | Variable-speed equipment control |
| Schneider ATV930D22N4 | Altivar Process ATV930 Drive | Motor regulation applications |
| Schneider ATV930 Series | Variable Speed Drive Family | Industrial automation systems |
| Schneider ATV630 Series | Process Drive Family | Pump and fan control |
Selection should consider motor specifications, load conditions, control requirements, and existing automation architecture.
Key Advantages
- Schneider Altivar Process ATV930 series drive
- Provides accurate motor speed regulation
- Supports industrial automation integration
- Enables flexible process control
- Improves motor operating stability
- Supports controlled acceleration and deceleration
- Suitable for continuous industrial operation
- Integrates with PLC and communication systems
- Provides comprehensive motor management functions
- Suitable for demanding automation environments
Technical FAQs
What applications are commonly suitable for the ATV930D45N4?
The drive is commonly used in industrial systems requiring adjustable motor operation, including pumps, fans, compressors, conveyors, and process machinery.
How does the ATV930D45N4 help improve process control?
By adjusting motor speed and torque according to system requirements, the drive allows equipment performance to better match changing process conditions.
What should be checked when replacing an existing ATV930 drive?
The replacement process should include verification of model compatibility, motor parameters, wiring connections, communication settings, and stored configuration data.
Why is proper cooling important for this type of variable speed drive?
Variable speed drives generate heat during operation. Correct installation airflow and cabinet conditions help maintain stable performance and extend service life.
