- Schneider
- ATV930D37N4
- Variable Speed Drive
- France
- 673 × 226 × 271 mm
- 28.2 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

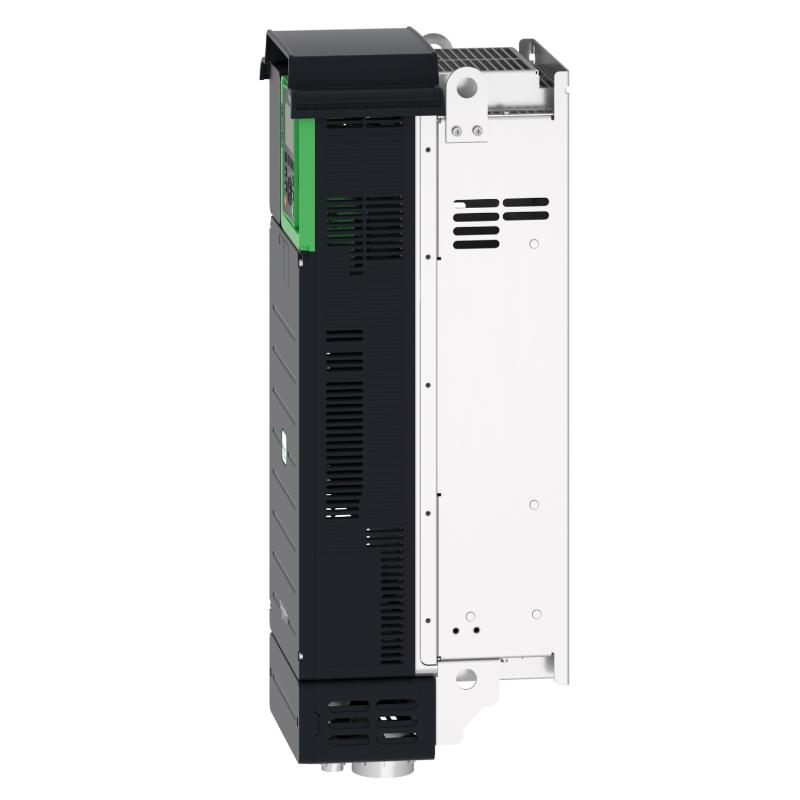

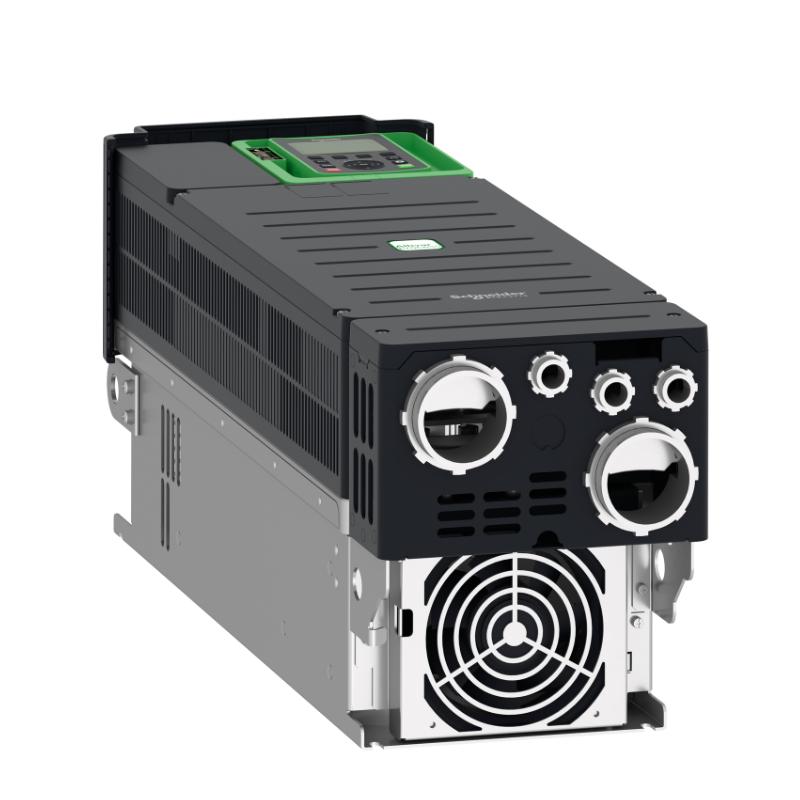

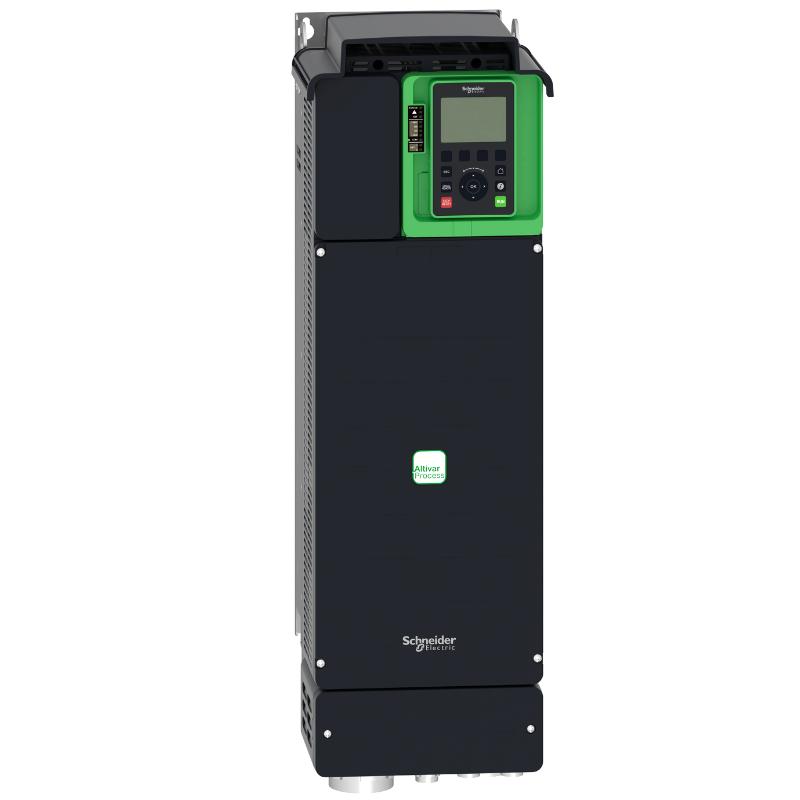

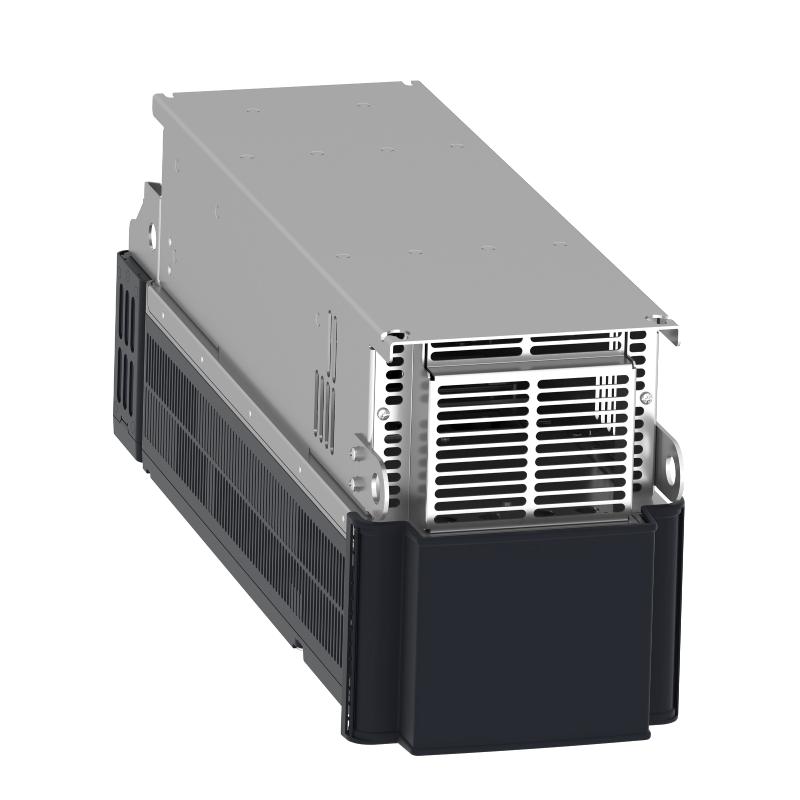

The Schneider ATV930D37N4 Altivar Process ATV930 Variable Speed Drive is an industrial AC drive used for controlling motor speed, torque, and operating performance in process automation and machine control applications. As part of the Altivar Process ATV930 family, it provides advanced variable-speed motor management for systems requiring accurate regulation and stable operation.
The ATV930D37N4 controls motor operation by adjusting output frequency and voltage, allowing motors to match actual process requirements instead of operating at fixed speed. This control method helps improve equipment response, reduce unnecessary mechanical stress, and optimize motor-driven processes.
The drive is commonly integrated into industrial applications involving pumps, fans, compressors, conveyors, and other continuous-duty equipment. It can communicate with PLC systems and industrial control networks, allowing centralized monitoring, parameter management, and automation integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV930D37N4 |
| Product Family | Altivar Process ATV930 |
| Product Type | Variable Speed Drive |
| Main Function | AC Motor Speed and Torque Control |
| Application | Industrial Motor Control |
| Control Method | Variable Frequency Motor Regulation |
| System Integration | PLC / Industrial Automation Systems |
| Installation | Industrial Cabinet or Panel Mounting |
| Dimensions | 673 × 226 × 271 mm |
| Weight | 28.2 kg |
Product Features
The Schneider ATV930D37N4 Altivar Process ATV930 Variable Speed Drive provides advanced motor control capability for demanding industrial environments.
Key characteristics include:
- Schneider Altivar Process ATV930 variable speed drive
- Model ATV930D37N4
- Designed for three-phase AC motor applications
- Provides adjustable speed and torque control
- Supports process equipment optimization
- Integrates with PLC and industrial automation systems
- Suitable for continuous operation applications
- Supports network-based monitoring and control
- Provides motor protection and operating management functions
- Suitable for pumps, fans, compressors, and production equipment
The drive should be configured according to motor parameters, application load characteristics, control requirements, and system communication architecture.
Working Principle
The ATV930D37N4 operates by converting fixed-frequency AC power into a controlled variable-frequency output for driving AC motors.
A simplified operating path is:
AC Power Input → ATV930 Variable Speed Drive → Motor → Mechanical System
The drive receives operating commands from a control system, local interface, or communication network. Based on these commands, it regulates output frequency and voltage to adjust motor speed and torque.
During operation, the drive continuously manages motor performance according to the configured parameters and application requirements. This allows industrial equipment to maintain stable operation during load variations.
The drive acts as the control bridge between automation software and the physical motor-driven equipment.
Role in Industrial Motor Control Architecture
The ATV930D37N4 is positioned in the motor control layer of an industrial automation system.
A typical architecture can be represented as:
PLC / Control System → Communication Network → ATV930 Drive → AC Motor → Mechanical Equipment
| System Layer | Typical Function |
|---|---|
| PLC Controller | Executes automation programs |
| Communication Network | Transfers control commands and data |
| Variable Speed Drive | Regulates motor operation |
| AC Motor | Produces mechanical movement |
| Sensors | Provide process feedback |
| HMI / SCADA | Enables monitoring and operation |
The drive receives commands from the automation layer and converts them into controlled motor operation.
Industrial Applications
The Schneider ATV930D37N4 is suitable for industrial applications requiring reliable variable-speed motor control.
| Application | Typical Use |
|---|---|
| Pumping Systems | Maintaining flow and pressure control |
| Ventilation Systems | Regulating fan speed |
| Compressor Equipment | Managing motor operating conditions |
| Conveyor Systems | Controlling material movement |
| Water Treatment | Supporting process equipment operation |
| Manufacturing Lines | Coordinating motor-driven machinery |
| Process Industries | Maintaining continuous operation |
| Industrial Facilities | Managing large motor applications |
The final application depends on motor specifications, operating conditions, and automation requirements.
Installation and Maintenance
Proper installation, parameter configuration, and system inspection are essential for maintaining drive performance.
Recommended maintenance checks include:
- Confirm the correct ATV930D37N4 model.
- Verify motor compatibility.
- Check incoming power connections.
- Confirm motor parameter configuration.
- Inspect control and communication wiring.
- Verify network communication settings.
- Check cooling and ventilation conditions.
- Inspect terminals and connectors.
- Review drive alarms and fault history.
- Monitor motor operating conditions.
- Confirm protective settings.
- Test system operation after maintenance.
If abnormal operation occurs, troubleshooting should include the drive settings, power supply, motor condition, mechanical load, and communication network.
Related Components
The ATV930D37N4 operates together with other industrial automation components.
| Component | Function |
|---|---|
| Schneider PLC Controllers | Provide automation commands |
| Altivar Process ATV930 Drives | Control motor operation |
| AC Motors | Convert electrical energy into mechanical output |
| Communication Modules | Enable system data exchange |
| HMI Systems | Provide operator monitoring |
| Sensors | Supply process feedback |
| Circuit Protection Devices | Protect electrical equipment |
| Control Cabinets | Provide installation and protection |
These components together create an integrated motor control system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider ATV930D37N4 | Altivar Process ATV930 Drive | High-power industrial motor control |
| Schneider ATV930D30N4 | Altivar Process ATV930 Drive | Process equipment speed regulation |
| Schneider ATV930D22N4 | Altivar Process ATV930 Drive | Industrial variable-speed applications |
| Schneider ATV930D18N4 | Altivar Process ATV930 Drive | Medium motor control applications |
| Schneider ATV930 Series | Variable Speed Drive Family | Process automation systems |
| Schneider ATV630 Series | AC Drive Family | Pump and fan applications |
Selection should be based on motor power, application load, communication requirements, and installation environment.
Key Advantages
- Schneider Altivar Process ATV930 series drive
- Provides accurate motor speed and torque control
- Supports industrial automation integration
- Suitable for continuous-duty motor applications
- Enables flexible process adjustment
- Supports PLC communication systems
- Provides advanced motor management functions
- Helps improve equipment operating stability
- Suitable for demanding industrial environments
- Supports long-term automation maintenance
Technical FAQs
What makes the ATV930D37N4 suitable for larger industrial motor applications?
The model provides variable-speed control capability for applications requiring stable torque output and accurate motor regulation under changing operating conditions.
How does the ATV930D37N4 communicate with a PLC control system?
The drive exchanges control commands, operating information, and diagnostic data through supported industrial communication methods configured within the automation system.
What factors should be considered when installing this drive in a control cabinet?
Engineers should consider power wiring, motor cable requirements, ventilation conditions, installation space, grounding, and communication connections.
Why should motor parameters be configured before commissioning the drive?
Correct motor parameters allow the drive control algorithms to accurately manage speed, torque, protection functions, and overall operating performance.
