Product Overview

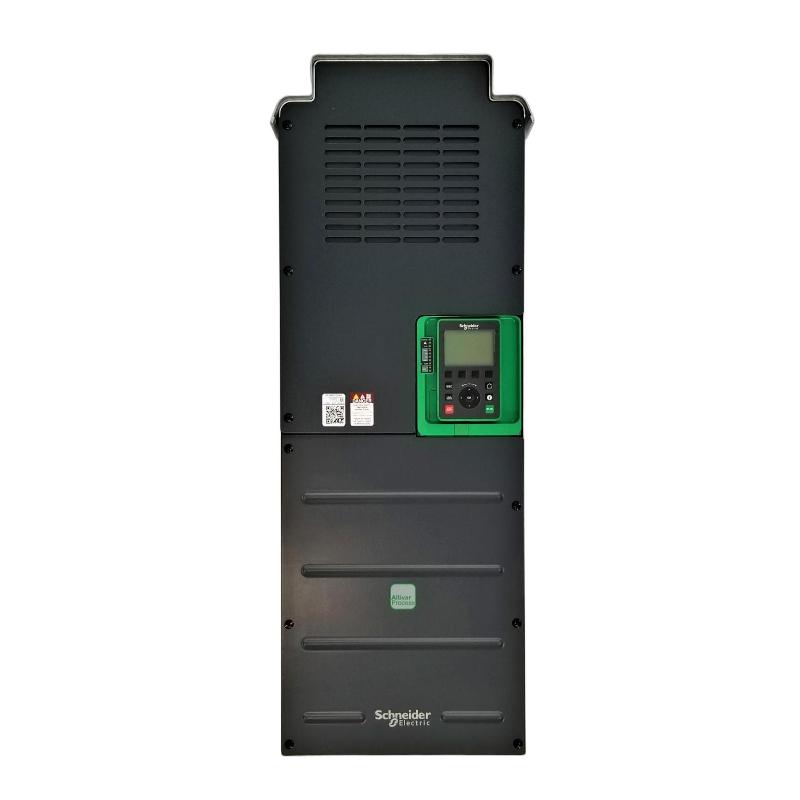

The Schneider ATV930C13N4 Altivar Process ATV930 Variable Speed Drive is a high-power industrial frequency inverter designed for controlling large three-phase AC motors in demanding process automation environments. It belongs to the Altivar Process ATV930 series and provides advanced speed regulation, torque control, motor protection, and system integration capabilities.
The drive adjusts motor operating speed by controlling output frequency and voltage, allowing motor-driven equipment to operate according to process requirements. This approach improves energy efficiency, reduces mechanical impact during operation, and helps maintain stable production performance.
The ATV930C13N4 is commonly used in large-scale industrial applications such as pumps, compressors, fans, conveyors, and process machinery. It supports connection with PLC, DCS, and industrial communication systems, enabling centralized control, diagnostics, and equipment monitoring.
With a cabinet-mounted structure and industrial-grade design, this variable speed drive is suitable for continuous operation in factories, process plants, and infrastructure systems requiring reliable motor control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV930C13N4 |
| Product Series | Altivar Process ATV930 |
| Product Type | Variable Speed Drive / Frequency Converter |
| Application | Three-Phase AC Motor Control |
| Control Function | Variable Frequency Speed Regulation |
| Installation Type | Cabinet Installation |
| Dimensions | 320 × 1205 × 393 mm |
| Weight | 104 kg |
Product Features
The Schneider ATV930C13N4 provides advanced drive control functions for large industrial motor applications.
Key features include:
- Schneider Altivar Process ATV930 series inverter
- Designed for high-performance AC motor control
- Provides accurate speed and torque adjustment
- Supports energy-efficient motor operation
- Includes motor protection and monitoring functions
- Suitable for continuous industrial duty
- Supports industrial communication integration
- Provides operating diagnostics and status monitoring
- Designed for large process equipment
- Supports automation system integration
The drive combines motor control capability with intelligent monitoring functions to improve equipment operation and maintenance efficiency.
Working Principle
The ATV930C13N4 regulates motor operation through power conversion and frequency control technology.
Typical operating process:
AC Power Input → Rectifier → DC Bus → Inverter → Variable Frequency AC Output → Motor
During operation:
- The drive receives fixed-frequency AC power from the electrical supply.
- The rectifier converts AC voltage into DC power.
- The DC bus stabilizes the converted energy.
- The inverter generates adjustable-frequency AC output.
- The motor speed and torque change according to control commands.
- Feedback and diagnostic functions monitor system operation.
By precisely controlling motor speed, the drive allows process equipment to match actual production requirements while reducing unnecessary energy consumption.
Motor Control and Automation Integration
The Schneider ATV930C13N4 is commonly installed as part of an industrial automation control architecture.
| Component | Function |
|---|---|
| PLC Controller | Sends speed and operation commands |
| DCS System | Provides process control |
| AC Motor | Converts electrical energy into mechanical power |
| Sensors | Provide feedback signals |
| HMI System | Displays operating parameters |
| Industrial Network | Enables communication and diagnostics |
The drive acts as the control interface between automation systems and high-power motor equipment.
Industrial Applications
The ATV930C13N4 is designed for industrial applications requiring reliable variable speed control.
| Application | Typical Use |
|---|---|
| Water Treatment Plants | Large pump control |
| Oil & Gas Facilities | Compressor and pump regulation |
| Chemical Industry | Process equipment control |
| Manufacturing Plants | Conveyor and production systems |
| HVAC Infrastructure | Large fan and blower control |
| Mining Industry | Heavy-duty motor applications |
| Power Generation | Auxiliary equipment control |
It is suitable for systems where motor efficiency, process stability, and equipment availability are critical.
Installation and Maintenance
Proper installation and maintenance help ensure stable operation of the variable speed drive.
Recommended practices include:
- Install in an appropriate electrical cabinet environment.
- Maintain sufficient cooling airflow around the drive.
- Verify incoming power and motor connections.
- Configure motor parameters accurately.
- Check communication settings with control systems.
- Monitor operating temperature and load conditions.
- Inspect cooling fans and ventilation paths.
- Review fault records during maintenance.
Regular maintenance helps prevent performance issues caused by overheating, incorrect configuration, or electrical connection problems.
Compatible System Components
The Schneider ATV930C13N4 is commonly used with:
| Component | Function |
|---|---|
| Schneider PLC Systems | Motor control commands |
| Schneider HMI Devices | Operator interface |
| AC Motors | Drive-controlled equipment |
| Industrial Sensors | Process feedback |
| Electrical Protection Devices | System safety |
| Communication Modules | Network connection |
These components work together to create a complete industrial motor control solution.
Recommended Related Models
| Model | Product Type | Application |
|---|---|---|
| Schneider ATV930C13N4 | Altivar Process ATV930 Variable Speed Drive | High-power motor control |
| Schneider ATV930C11N4 | Altivar Process 930 Drive | Industrial process applications |
| Schneider ATV930C11N4C | Altivar Process ATV930 Drive | Cabinet motor control |
| Schneider ATV630 Series | Process Variable Speed Drive | Pump and fan applications |
| Schneider ATV340 Series | Machine Drive | Dynamic motor control |
Model selection should consider motor power, voltage rating, load characteristics, installation space, and communication requirements.
Key Advantages
- Schneider Altivar Process ATV930 series drive
- Designed for large industrial AC motors
- Provides precise speed and torque control
- Supports energy optimization
- Includes advanced monitoring functions
- Protects connected motor systems
- Integrates with PLC and DCS platforms
- Suitable for continuous process operation
- Supports predictive maintenance strategies
- Designed for demanding industrial environments
Technical FAQs
What is the Schneider ATV930C13N4 mainly used for?
The ATV930C13N4 is used to control the speed and torque of large AC motors in industrial process applications such as pumps, compressors, and fans.
How does the ATV930C13N4 improve motor operation?
It adjusts motor frequency and voltage according to process demand, helping reduce energy consumption and mechanical stress.
What control systems can integrate with this variable speed drive?
The drive can be integrated with industrial automation systems including PLC, DCS, HMI, and industrial communication networks.
What maintenance points should be checked for this drive?
Maintenance should include checking cooling conditions, electrical connections, motor parameters, communication status, and drive fault records.
