Product Overview

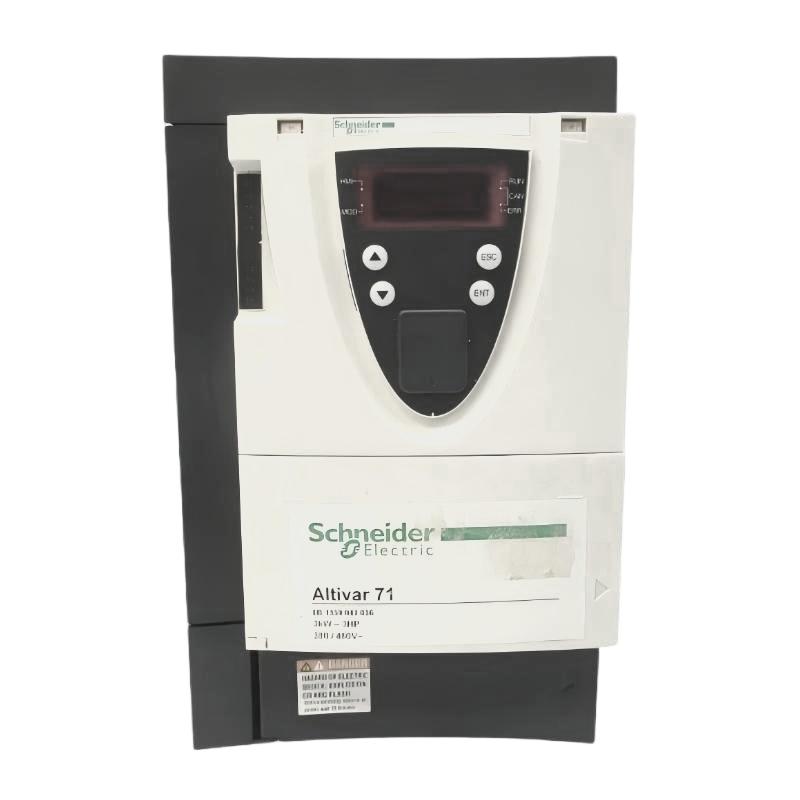

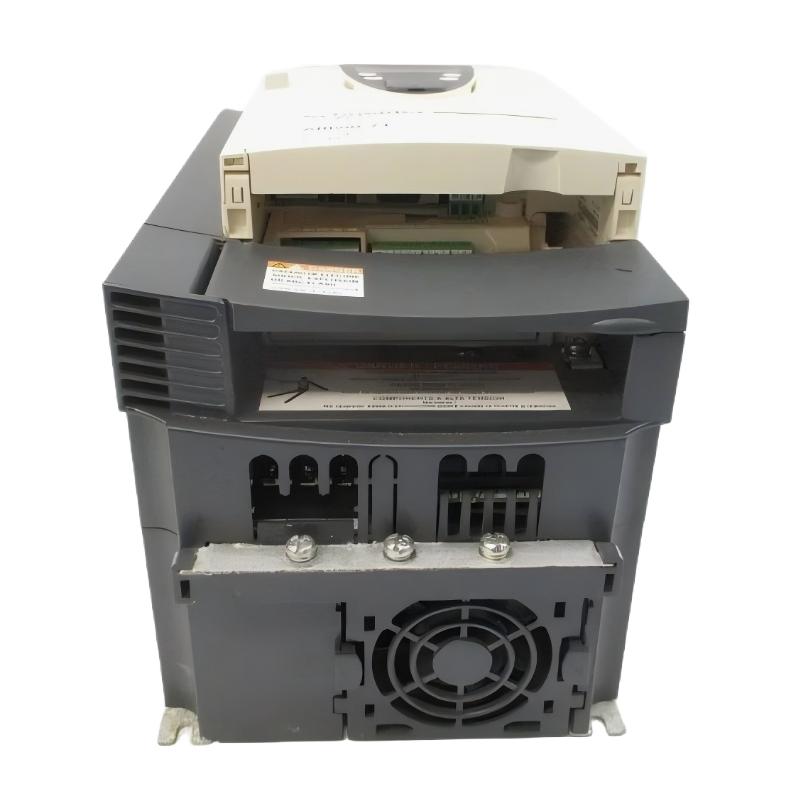

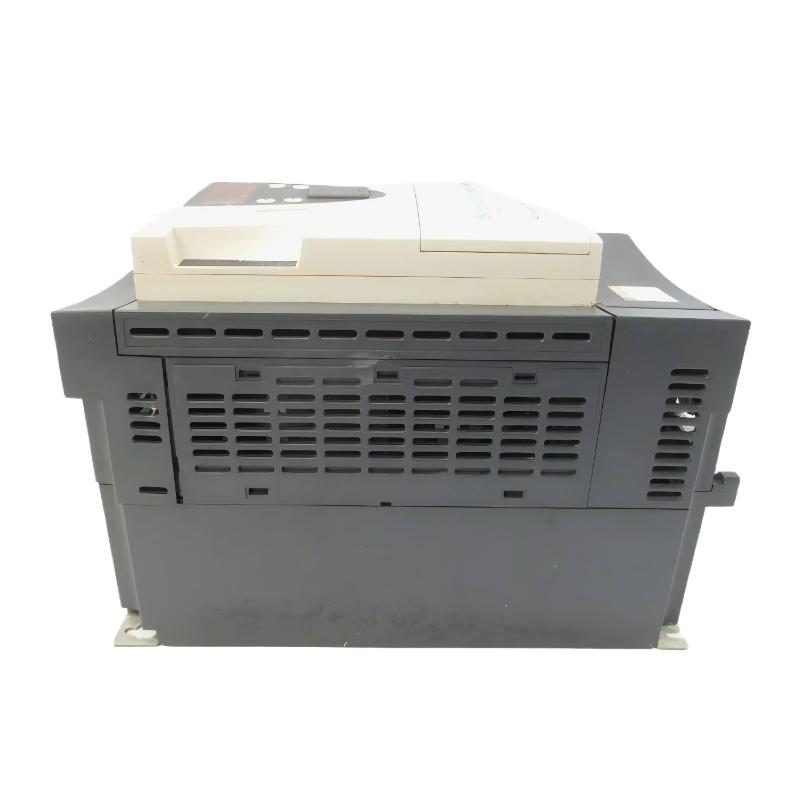

The Schneider ATV71HU40N4Z Variable Speed Drive is an industrial AC motor control solution designed to provide adjustable motor speed, controlled acceleration and deceleration, and flexible integration with automated machinery. It belongs to the Schneider Electric Altivar 71 series, a family of variable speed drives developed for industrial motor-control applications.

Variable speed drives allow motors to operate according to actual machine requirements instead of being limited to a single fixed operating condition. By regulating the electrical output delivered to the motor, a drive can help provide smoother starting and stopping, adjustable operating speed, and improved coordination between the motor and the machine-control system.

The ATV71HU40N4Z has user-provided dimensions of 260 × 187 × 155 mm and a listed weight of 4 kg. These physical specifications are useful for electrical cabinet planning, replacement work, equipment handling, and industrial installation design.

The drive can be integrated with PLC controllers, HMI panels, sensors, safety circuits, communication systems, and compatible AC motors to form a complete automated motor-control architecture.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV71HU40N4Z
Product Series	Altivar 71
Product Type	Variable Speed Drive
Primary Function	AC Motor Speed and Drive Control
Application	Industrial Automation and Motor Control
Dimensions	260 × 187 × 155 mm
Weight	4 kg
Installation	Industrial Electrical Control Cabinet
Motor Application	Compatible AC Motor Systems
Control Role	Motor Speed, Acceleration and Deceleration Management
Typical Integration	PLC, HMI, Sensors, Motor Panels and Automation Systems

Exact electrical ratings, motor current, overload characteristics, terminal functions, communication options, and accessory configurations should be confirmed against the exact product identification and applicable technical documentation before engineering or replacement.

---

What Is the Schneider ATV71HU40N4Z?

The Schneider ATV71HU40N4Z is a variable speed drive designed to control the operation of compatible AC motors in industrial machinery and automated systems.

The drive acts as an interface between the electrical power supply and the motor. Instead of operating the motor only through fixed-speed switching, the drive provides controlled motor operation according to configured parameters and external commands.

A simplified architecture is:

Electrical Supply → ATV71HU40N4Z → AC Motor → Mechanical Load

When integrated into an automated machine, the control structure can become:

PLC / HMI / Sensors → ATV71HU40N4Z → Motor → Machine

This arrangement allows motor operation to be coordinated with the wider production or process-control system.

---

Function and Working Principle

The ATV71HU40N4Z controls motor operation by regulating the electrical conditions supplied to the motor.

Its role can include several important functions.

Adjustable Motor Speed

The drive can provide variable motor speed according to the configured speed reference and control strategy.

This is useful when a machine must operate at different speeds during different production stages.

Controlled Acceleration

The drive can manage how quickly the motor reaches its commanded operating condition.

Controlled acceleration can reduce mechanical shock and provide smoother machine startup.

Controlled Deceleration

The drive can also manage motor stopping and deceleration according to the configured operating parameters.

This can be important for conveyors, production machinery, and other equipment where abrupt stopping may affect the mechanical system.

Motor Monitoring

The drive can monitor operating conditions and provide status or diagnostic information supported by the particular configuration.

This information can help maintenance personnel investigate abnormal motor behavior.

External Control

The drive can receive commands from an external control system depending on the installed control architecture.

Typical commands may include:

• Start
• Stop
• Speed reference
• Direction
• Reset
• Operating mode
• Process-related control commands

---

Role in Industrial Automation

A variable speed drive provides a link between machine-control logic and physical motor operation.

A typical industrial architecture may be represented as:

Sensors → PLC → ATV71HU40N4Z → Motor → Mechanical Equipment

The PLC determines the required machine behavior, while the drive manages motor operation according to the command.

An HMI can be used by operators to view machine status, operating values, alarms, and other information supported by the control system.

This arrangement is particularly useful for machines that require different motor speeds during production cycles.

---

Industrial Applications

The Schneider ATV71HU40N4Z can be integrated into industrial applications where its electrical characteristics and control functions match the requirements of the equipment.

Conveyor Systems

Conveyors often require controlled speed to coordinate product movement between different production stages.

A variable speed drive can provide adjustable speed and controlled acceleration and deceleration.

Material Handling Equipment

Automated material-handling systems may use variable speed motor control to coordinate movement while reducing abrupt changes in mechanical loading.

Pumps

Suitable pumping applications can use variable motor speed to respond to changing process requirements.

Fans and Blowers

Variable speed operation can allow air-moving equipment to respond to changing ventilation or process requirements.

Packaging Machinery

Packaging equipment may require controlled motor movement during feeding, conveying, positioning, and production sequences.

Manufacturing Machinery

Automated manufacturing equipment can use variable speed drives to coordinate rotating equipment with machine-control logic.

Industrial Process Equipment

The drive can be incorporated into suitable process machinery where controlled motor operation is required.

---

PLC, HMI and Automation Integration

The ATV71HU40N4Z can be incorporated into a larger industrial control system.

System Component	Typical Function
PLC	Executes machine and process control logic
HMI	Provides operator interface and monitoring
ATV71HU40N4Z	Controls compatible AC motor operation
AC Motor	Converts electrical energy into mechanical motion
Sensors	Provide process and machine feedback
Safety System	Provides required safety functions
Electrical Protection	Protects the power circuit
Communication System	Transfers applicable control and diagnostic information

The actual interface arrangement depends on the machine architecture, drive configuration, and installed accessories.

During system design, power wiring, control wiring, feedback signals, and communication connections should be treated as separate functional elements.

---

Installation Guidelines

The supplied physical dimensions of the ATV71HU40N4Z are:

260 × 187 × 155 mm

The listed weight is:

4 kg

These specifications should be considered when designing the control cabinet and mounting structure.

Cabinet Space

The enclosure should provide sufficient room for:

• Drive mounting
• Power connections
• Motor cables
• Control wiring
• Communication wiring
• Cooling airflow
• Maintenance access

Nearby components should not obstruct ventilation or create excessive heat around the drive.

Thermal Management

Variable speed drives generate heat during normal operation. The cabinet should therefore provide suitable thermal management.

Important factors include:

• Ambient temperature
• Cabinet ventilation
• Equipment density
• Heat generated by nearby components
• Airflow path
• Dust accumulation

Installation should follow the applicable requirements for the specific drive configuration.

---

Power and Motor Wiring

A simplified installation arrangement is:

Incoming Power → Electrical Protection / Isolation → ATV71HU40N4Z → AC Motor

The actual wiring must follow the applicable electrical design and drive requirements.

Before energizing the equipment, technicians should verify:

• Input power connections
• Motor connections
• Protective grounding
• Control wiring
• Interlock circuits
• Safety circuits
• Communication wiring
• Cable routing

Motor cables should be routed appropriately to reduce electromagnetic interference with sensitive control and communication circuits.

---

Commissioning Procedure

A systematic commissioning process can reduce startup problems and help identify incorrect wiring or configuration.

1. Verify Product Identification

Confirm that the installed unit is:

ATV71HU40N4Z

Check the product identification before applying power.

2. Inspect Mechanical Installation

Verify that the drive is securely mounted and that the enclosure provides adequate clearance and ventilation.

3. Check Electrical Connections

Inspect power, motor, grounding, control, and communication connections.

4. Enter Motor Parameters

Motor nameplate information should be entered into the drive configuration where required.

Only verified information from the actual motor should be used.

5. Configure the Control Strategy

Select the control and command arrangement appropriate for the machine.

6. Perform a Controlled Motor Test

Verify:

• Motor rotation
• Acceleration
• Deceleration
• Speed reference
• Stop command
• Fault response
• Abnormal vibration or noise

7. Verify PLC and HMI Operation

If the drive is controlled by a PLC or HMI, verify that commands, status signals, and applicable diagnostic information are working correctly.

8. Monitor Initial Operation

Observe the drive and motor during the first operating period before placing the equipment into continuous production.

---

Troubleshooting the ATV71HU40N4Z

Drive problems should be investigated as part of the complete motor-control system.

Drive Does Not Start

Possible causes include:

• Missing run command
• Incorrect control configuration
• Active machine interlock
• Emergency stop condition
• Incorrect wiring
• Drive fault
• Motor problem
• Incorrect parameter configuration

Check the drive status and external control signals before replacing the drive.

Motor Does Not Rotate

If the drive is powered but the motor does not rotate, inspect:

• Motor wiring
• Run command
• Speed reference
• Drive status
• Motor parameters
• External interlocks
• Mechanical load

A mechanical obstruction can produce symptoms similar to an electrical fault.

Incorrect Motor Speed

Incorrect speed may be caused by:

• Incorrect reference value
• PLC output
• HMI command
• Drive parameter settings
• Communication command
• Motor configuration

Compare the requested speed reference with the value being received by the drive.

Drive Overheating

Potential causes include:

• Insufficient cabinet ventilation
• High ambient temperature
• Excessive motor load
• Blocked cooling airflow
• High operating duty
• Poor cabinet thermal design

The complete thermal environment should be evaluated before replacing the drive.

Intermittent Operation

Intermittent operation may result from:

• Loose connections
• Damaged control wiring
• Communication problems
• External interlocks
• Motor faults
• Mechanical conditions
• Electrical interference

Fault history and operating trends can help identify recurring problems.

---

Preventive Maintenance

Regular maintenance can improve drive reliability and reduce unexpected downtime.

Inspect the Control Cabinet

Keep the cabinet in an appropriate condition and prevent excessive dust or contamination from affecting cooling.

Check Electrical Connections

Inspect power and control connections according to the applicable maintenance schedule.

Inspect Motor Cables

Check for:

• Mechanical damage
• Insulation deterioration
• Loose connections
• Signs of overheating
• Excessive bending

Monitor Operating Conditions

Changes in motor current, temperature, speed behavior, vibration, or fault frequency may indicate developing problems.

Review Fault History

Repeated faults should be investigated to identify the underlying cause rather than simply resetting the drive repeatedly.

---

Replacement Considerations

When replacing a Schneider ATV71HU40N4Z, the complete model number should be verified.

Important considerations include:

• Full model designation
• Electrical supply
• Motor power and current requirements
• Motor type
• Control configuration
• Communication requirements
• Installed accessories
• Wiring arrangement
• Cabinet dimensions
• Existing parameter settings

The supplied physical dimensions are:

260 × 187 × 155 mm

The listed weight is:

4 kg

A drive with similar physical dimensions should not automatically be considered a direct replacement. Electrical, functional, mechanical, and system compatibility must be confirmed.

---

Physical Dimensions and Handling

The physical size of the ATV71HU40N4Z is:

260 × 187 × 155 mm

The listed weight is:

4 kg

These values are useful for:

• Control cabinet layout
• Equipment replacement
• Spare-parts planning
• Installation preparation
• Transportation
• Maintenance access

During installation and handling, protect the drive from mechanical impact and avoid unnecessary stress on terminals, connectors, and electronic components.

---

Compatible Automation Components

Depending on the system architecture, the ATV71HU40N4Z may be integrated with:

• Schneider Electric PLCs
• Schneider Electric HMIs
• Industrial sensors
• AC motors
• Circuit breakers
• Motor protection equipment
• Contactors
• Safety circuits
• Industrial communication systems
• Machine control panels
• Supervisory monitoring systems

The exact compatibility depends on the drive configuration and requirements of the complete automation system.

---

Related Schneider Electric Drive Families

Product Family	Product Type	General Application
Altivar 71	Variable Speed Drive	Industrial machinery and motor control
Altivar 61	Variable Speed Drive	Variable speed applications
Altivar 630	Process Variable Speed Drive	Process and utility applications
Altivar 650	Process Variable Speed Drive	Industrial process equipment
Altivar 930	Advanced Process Drive	Industrial motor and process control

These families have different electrical and functional characteristics and should not be treated as direct replacements without checking the complete application requirements.

---

Engineering Best Practices

Match the Drive to the Motor

The drive should be correctly matched to the motor’s electrical and mechanical requirements.

Maintain Proper Cable Routing

Motor power cables and sensitive control or communication cables should be routed appropriately to reduce unwanted electrical interference.

Provide Adequate Cooling

Cabinet thermal design should account for heat generated by the drive and other installed equipment.

Maintain Accurate Parameters

Motor and drive parameters should be based on verified equipment information.

Monitor Operating Trends

Changes in motor behavior, temperature, vibration, or fault frequency can provide useful early warning of developing problems.

Investigate Repeated Faults

Repeated drive faults should be diagnosed systematically rather than treated only by repeated resets.

---

Key Advantages

Adjustable Motor Speed

The ATV71HU40N4Z provides variable speed control for compatible AC motor applications.

Controlled Acceleration and Deceleration

Drive-based ramp control can provide smoother motor starting and stopping.

Automation Integration

The drive can be incorporated into PLC, HMI, sensor, and machine-control architectures.

Flexible Industrial Use

Variable speed control makes the drive applicable to various industrial machines where adjustable motor operation is required.

Compact Installation Footprint

The listed 260 × 187 × 155 mm dimensions provide useful information for cabinet design and replacement planning.

Manageable Weight

With a listed weight of 4 kg, the drive can be incorporated into appropriately designed industrial control panels while allowing practical handling during maintenance.

---

Technical FAQs

What is the Schneider ATV71HU40N4Z?

The Schneider ATV71HU40N4Z is an Altivar 71 series Variable Speed Drive designed to control compatible AC motors in industrial automation and machine-control applications.

What is the main function of the ATV71HU40N4Z?

Its primary function is to regulate motor operation, including adjustable speed and controlled acceleration and deceleration.

What are the dimensions of the ATV71HU40N4Z?

The supplied dimensions are 260 × 187 × 155 mm.

How much does the ATV71HU40N4Z weigh?

The supplied weight is 4 kg.

Can the ATV71HU40N4Z be integrated with a PLC?

Yes. The drive can form part of a PLC-based automation architecture when the required control interfaces and configuration are available.

What applications can use the ATV71HU40N4Z?

Potential applications include conveyors, material-handling systems, pumps, fans, packaging machinery, manufacturing equipment, and other industrial machines requiring controlled motor speed.

What should be checked before commissioning?

Technicians should verify the drive model, electrical wiring, motor information, grounding, control configuration, interlocks, and external command signals before operating the motor.

What can cause a variable speed drive fault?

Possible causes include incorrect parameters, wiring problems, motor faults, excessive load, thermal conditions, control-command errors, communication problems, or external machine interlocks.

Can another Altivar drive directly replace the ATV71HU40N4Z?

Not automatically. A replacement must be checked for electrical, mechanical, control, communication, accessory, and application compatibility.

---

Conclusion

The Schneider ATV71HU40N4Z Variable Speed Drive is an industrial motor-control device designed to provide adjustable and controlled operation of compatible AC motors. As part of the Altivar 71 series, it can serve as the motor-control interface between an electrical power system and automated machinery.

The supplied physical specifications are 260 × 187 × 155 mm, with a listed weight of 4 kg. These dimensions and weight are important for control cabinet planning, equipment replacement, spare-parts management, and installation logistics.

For dependable operation, the ATV71HU40N4Z should be correctly matched with the motor and application, installed with suitable electrical protection and thermal management, and configured using accurate motor information. Proper commissioning, PLC/HMI integration, preventive maintenance, and systematic fault diagnosis can help maintain stable motor operation and reduce unplanned industrial downtime.
