Product Overview

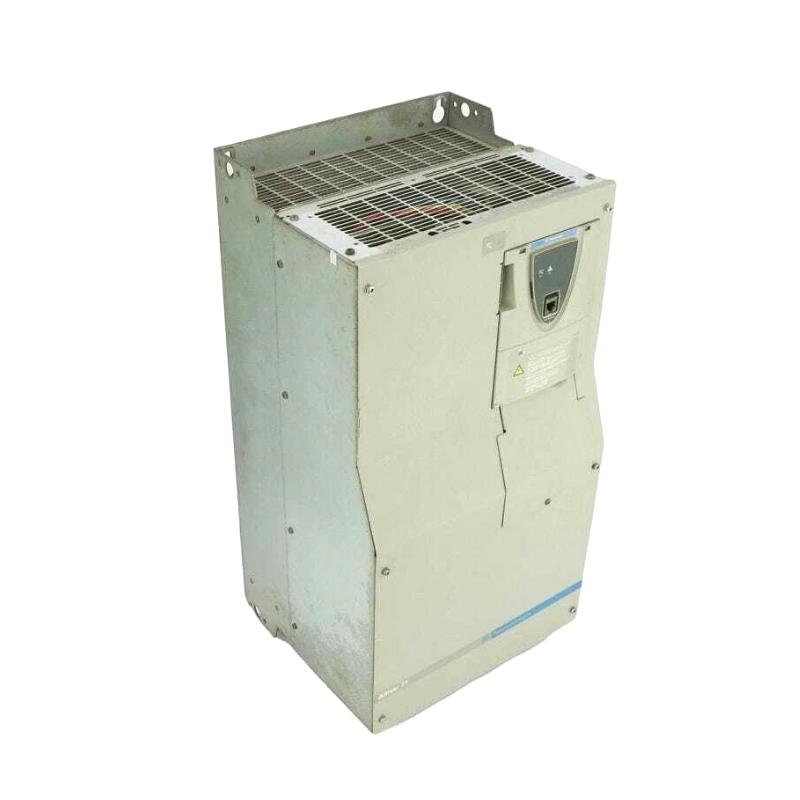

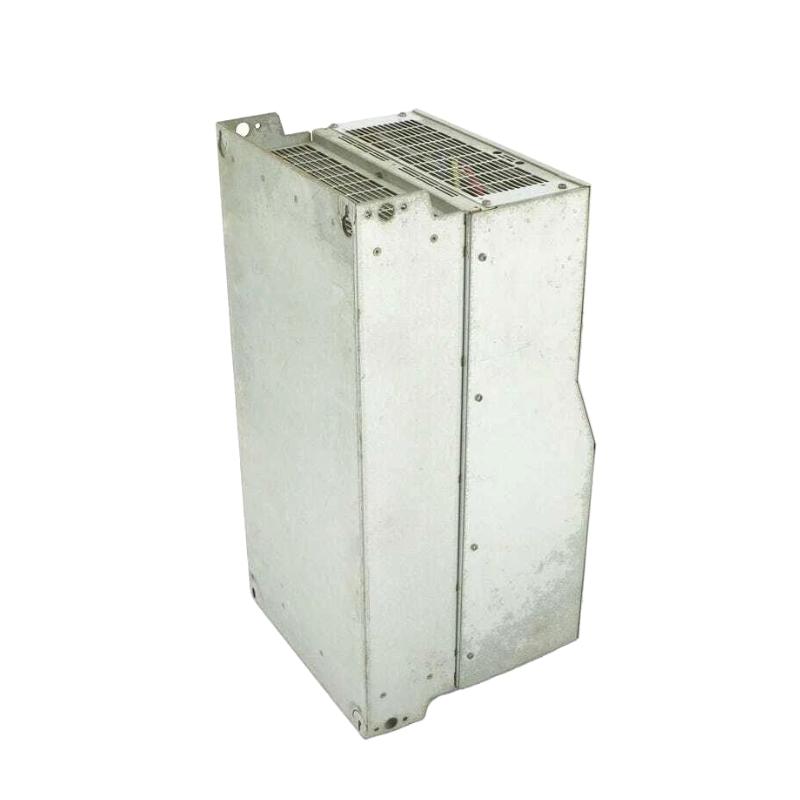

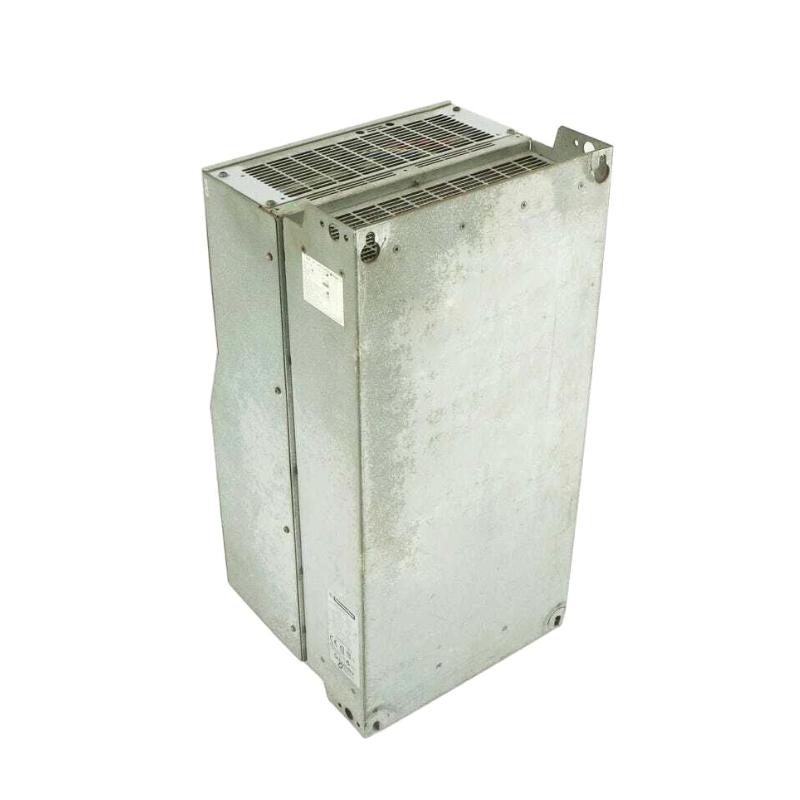

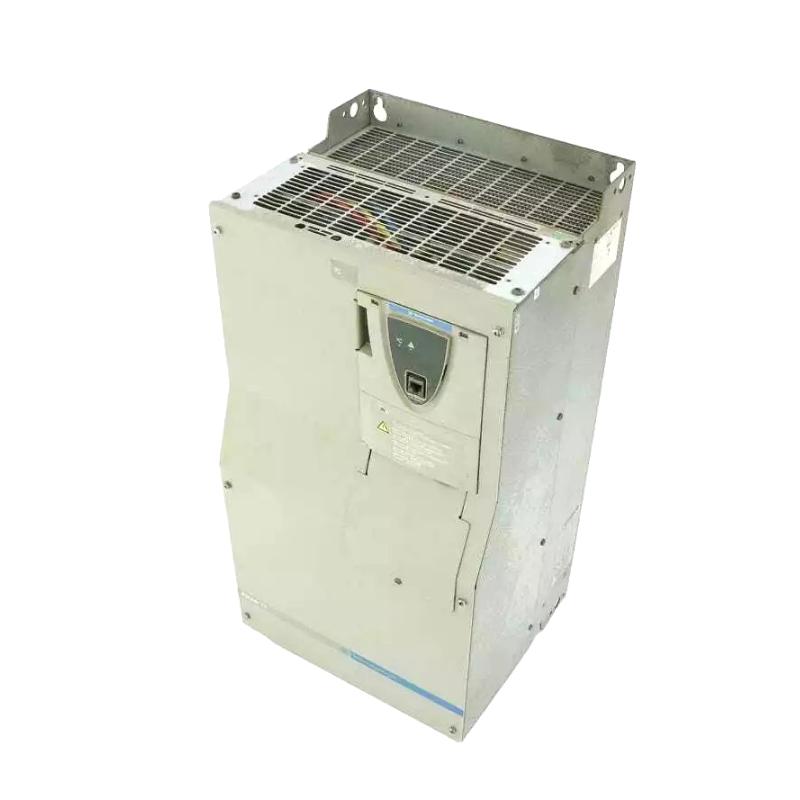

The Schneider ATV71HD55N4 Variable Speed Drive is an industrial motor control solution designed for applications requiring reliable variable-speed operation, controlled acceleration and deceleration, and integration with automated machinery or process-control systems. As part of the Schneider Electric Altivar 71 family, the ATV71HD55N4 is intended for demanding industrial environments where motor performance, process coordination, and controlled power transmission are important.

A variable speed drive allows an AC motor to operate according to the actual requirements of a machine or process rather than running continuously at a fixed operating speed. By controlling motor speed and providing configurable acceleration and deceleration profiles, the drive can help reduce mechanical shock, improve process control, and provide greater flexibility in industrial equipment.

The ATV71HD55N4 has listed dimensions of 630 × 290 × 320 mm and a weight of 44 kg. These physical characteristics make cabinet planning, mechanical support, cooling, cable routing, and maintenance accessibility important considerations during installation.

The exact electrical rating, motor compatibility, overload characteristics, control functions, communication options, and environmental specifications should be confirmed against the applicable drive documentation and the actual hardware nameplate before installation or replacement.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV71HD55N4
Product Family	Altivar 71
Product Type	Variable Speed Drive
Primary Function	Variable-speed AC motor control
Application	Industrial machinery and process automation
Drive Configuration	Industrial motor drive
Installation	Electrical cabinet / suitable industrial enclosure
Dimensions	630 × 290 × 320 mm
Weight	44 kg
Typical Applications	Pumps, fans, conveyors, compressors, material handling and industrial machinery
Control Role	Motor speed and torque management

The exact input voltage, motor power rating, output current, control modes, I/O configuration, braking functions, communication interfaces, and protection specifications should be verified from the specific ATV71HD55N4 configuration.

---

What Is the Schneider ATV71HD55N4?

The Schneider ATV71HD55N4 is a Variable Speed Drive designed to regulate the operation of compatible AC motors in industrial applications.

In a conventional fixed-speed motor installation, the motor operates primarily according to the frequency of the supplied electrical power. A variable speed drive introduces electronic control between the power supply and motor.

A simplified system can be represented as:

AC Power Supply → ATV71HD55N4 → Controlled Motor Output → AC Motor → Mechanical Load

The drive receives operating commands and a speed reference from the local control system, operator interface, or automation controller. It then regulates the motor according to configured parameters.

This allows a single motor-driven machine to operate at different speeds for starting, production, process adjustment, or controlled stopping.

---

How Variable Speed Motor Control Works

A variable speed drive uses power-electronic switching technology to generate a controlled electrical output for the motor.

The drive manages the relationship between output frequency, voltage, motor speed, and torque according to the selected motor-control strategy.

During operation, the drive can provide:

• Adjustable motor speed
• Controlled acceleration
• Controlled deceleration
• Motor operating limits
• Start and stop management
• Fault monitoring
• Process-oriented speed control
• Integration with automation systems

The exact control strategy and available functions depend on the drive configuration, motor type, application, and commissioning parameters.

---

Main Functions

Adjustable Motor Speed

The primary function of the ATV71HD55N4 is to control motor speed according to the requirements of the connected machine.

Adjustable speed is useful when a process does not require the motor to operate continuously at maximum speed.

Controlled Acceleration

The drive can use configured acceleration ramps to bring the motor from a stopped condition toward its operating speed.

Controlled acceleration can help reduce mechanical stress on:

• Motors
• Couplings
• Gearboxes
• Conveyor systems
• Pumps
• Fans
• Rotating machinery

Controlled Deceleration

A controlled deceleration profile can reduce sudden mechanical changes when equipment is stopped or its operating speed is reduced.

Applications with high inertia may require particular attention to braking and deceleration settings.

Motor Monitoring

The drive can monitor operating conditions and provide diagnostic information through its configured control interface.

This information can assist maintenance personnel when investigating abnormal motor behavior.

Process Control

Motor speed can be adjusted in response to process requirements, allowing the drive to become part of a broader closed-loop or sequence-control system.

---

Role in Industrial Automation

The ATV71HD55N4 can function as the motor-control layer within an industrial automation architecture.

A typical arrangement is:

Process Sensors → PLC / Controller → Speed Command → ATV71HD55N4 → Motor → Machine

Sensors provide information about process conditions. A PLC or controller processes this information and determines the required motor operating condition.

The ATV71HD55N4 then converts the command into controlled motor operation.

Depending on the system configuration, drive status and diagnostic information can also be communicated back to the controller or operator interface.

This allows the drive to participate in:

• Machine sequencing
• Process regulation
• Motor protection
• Equipment monitoring
• Speed control
• Alarm management
• Production optimization

---

Industrial Applications

Conveyor Systems

The ATV71HD55N4 can be used in conveyor applications requiring controlled starting, stopping, and variable operating speed.

Adjustable speed can help coordinate material movement between different sections of a production line.

Pumping Equipment

Variable speed operation can be useful for pumping systems where flow or pressure requirements change during operation.

The motor can be adjusted according to the process requirement rather than continuously operating at a fixed speed.

Industrial Fans

Fans and ventilation equipment frequently operate under changing process conditions. Variable speed control allows airflow to be adjusted as required.

Compressors

Compatible compressor systems can use variable speed control where the compressor and application are designed for this operating method.

Material Handling

Material-handling systems can require different motor speeds for loading, transport, positioning, or unloading operations.

Production Machinery

The drive can provide adjustable motor operation for various industrial machines requiring controlled speed and torque.

Process Equipment

Industrial process equipment can use variable speed drives to coordinate motor operation with pressure, flow, temperature, level, or other process variables.

---

System Integration Architecture

A complete industrial system using the ATV71HD55N4 can contain several functional layers.

Field Devices

Sensors and switches monitor physical process conditions.

PLC or Controller

The controller evaluates process information and generates the required motor-control commands.

Variable Speed Drive

The ATV71HD55N4 converts the control command into controlled motor operation.

Motor

The AC motor converts electrical energy into mechanical power.

Mechanical Equipment

The motor drives equipment such as pumps, conveyors, fans, compressors, or other machinery.

HMI or SCADA

The operator interface can display operating status, process information, alarms, and drive-related information when the appropriate system interfaces are configured.

---

Installation Guidelines

The physical size and weight of the ATV71HD55N4 should be considered before installation.

The listed dimensions are:

630 × 290 × 320 mm

The listed weight is:

44 kg

Mechanical Installation

The mounting structure should be capable of safely supporting the drive and associated wiring.

Because the drive weighs 44 kg, appropriate handling equipment or installation procedures may be required during cabinet assembly and maintenance.

Cabinet Clearance

Adequate clearance should be provided for:

• Cooling airflow
• Cable installation
• Connector access
• Maintenance
• Inspection
• Power wiring
• Control wiring

The complete enclosure requirement should be determined from the applicable installation documentation rather than relying only on the physical dimensions of the drive.

Ventilation

Variable speed drives generate heat during normal operation. Cabinet thermal design should therefore account for the drive and other heat-producing components installed nearby.

Potential thermal-management methods include:

• Natural ventilation
• Forced cabinet ventilation
• Heat exchangers
• Air-conditioning systems

The appropriate method depends on the complete cabinet design.

---

Electrical Installation

Before energizing the ATV71HD55N4, technicians should verify the complete electrical installation.

Important checks include:

• Incoming power wiring
• Protective earth
• Motor connections
• Control wiring
• Protective devices
• Disconnect arrangements
• Cable sizing
• Terminal tightness
• Motor compatibility

Electrical installation should follow the applicable Schneider Electric requirements and local industrial electrical regulations.

---

Motor Cable and EMC Considerations

The output of a variable speed drive contains high-frequency switching components. Motor cable installation should therefore be designed with electromagnetic compatibility in mind.

Recommended engineering practices include:

• Use suitable motor cables.
• Route power and sensitive control cables appropriately.
• Apply cable shielding according to the installation requirements.
• Maintain appropriate grounding.
• Avoid unnecessary parallel routing between motor and instrumentation cables.
• Keep cable runs organized.
• Minimize unnecessary cable loops.

EMC performance is determined by the complete electrical installation, including the drive, cables, motor, grounding, cabinet, and other equipment.

---

PLC and HMI Integration

The ATV71HD55N4 can be incorporated into a PLC-based control system using appropriate command and feedback interfaces.

Typical PLC commands may include:

• Start
• Stop
• Speed reference
• Direction
• Operating mode
• Fault reset

The control system may also monitor drive information such as:

• Running status
• Fault status
• Operating condition
• Speed information
• Diagnostic information

The precise communication architecture depends on the installed drive configuration and selected system interfaces.

---

Configuration and Commissioning

Proper commissioning is essential for stable motor operation.

1. Verify Motor Information

Motor nameplate information should be entered accurately into the drive configuration where required.

Incorrect motor data can affect control performance.

2. Configure Acceleration and Deceleration

Ramp parameters should be selected according to the mechanical characteristics of the application.

Large or high-inertia loads may require longer acceleration or deceleration periods.

3. Verify Motor Rotation

Initial motor operation should be performed under controlled conditions so that motor direction can be confirmed.

4. Configure Operating Limits

Appropriate speed and operating limits should be established according to the machine’s mechanical and process requirements.

5. Test Start and Stop

Verify that the drive responds correctly to start, stop, enable, and speed commands.

6. Monitor Motor Behavior

During commissioning, technicians should observe:

• Motor current
• Speed
• Acceleration
• Deceleration
• Drive status
• Fault indications
• Mechanical response

7. Verify Automation Sequence

If the drive is controlled by a PLC, the complete sequence should be tested before the equipment enters normal automatic production.

---

Troubleshooting the ATV71HD55N4

Drive Does Not Start

If the motor does not start, check:

• Drive operating status
• Start command
• Enable signal
• Control mode
• External interlocks
• Active faults
• Motor configuration
• Control wiring

A drive that appears inactive may be responding correctly to an external interlock or missing command.

Motor Does Not Reach the Commanded Speed

Possible causes include:

• Incorrect speed reference
• Speed limitation
• Incorrect configuration
• Excessive mechanical load
• Control-system problem
• Motor-related issue

Compare the commanded value with the actual drive status.

Drive Trips During Acceleration

Repeated acceleration trips can be associated with:

• Excessive mechanical load
• Incorrect acceleration time
• Motor configuration problems
• Motor or cable faults
• Power connection problems
• Drive configuration issues

The complete motor and mechanical system should be investigated.

Motor Overcurrent

High motor current may be caused by:

• Excessive load
• Mechanical obstruction
• Incorrect motor parameters
• Motor faults
• Rapid acceleration
• Incorrect application sizing

The drive should not simply be reset repeatedly without determining why the overcurrent condition occurs.

Drive Overheating

Possible causes include:

• Insufficient cabinet ventilation
• High ambient temperature
• Restricted airflow
• Dust accumulation
• Excessive operating load
• Cabinet thermal-management problems

The entire enclosure environment should be inspected.

---

Preventive Maintenance

Regular maintenance can improve the reliability of the ATV71HD55N4 and the equipment connected to it.

Cooling Inspection

Inspect ventilation paths and cooling surfaces for dust or other contamination.

Electrical Connection Inspection

Check power and control terminals for looseness, overheating, corrosion, or visible damage.

Cabinet Inspection

Verify that the enclosure remains clean and that cooling equipment operates correctly.

Fault History Review

Repeated faults should be recorded and investigated to identify recurring electrical, mechanical, or process problems.

Motor Inspection

The motor, coupling, gearbox, and driven equipment should also be inspected because mechanical problems can appear as drive faults.

Parameter Backup

Important commissioning parameters should be documented or backed up where the system supports this practice.

---

Replacement Considerations

When replacing the Schneider ATV71HD55N4 Variable Speed Drive, technicians should verify the complete product identification before ordering or installing a replacement.

Important information includes:

• Complete model number
• Hardware revision
• Nameplate information
• Motor characteristics
• Application load
• Input power arrangement
• Output requirements
• Control configuration
• Communication configuration
• Installed accessories

The listed physical dimensions are 630 × 290 × 320 mm, and the listed weight is 44 kg.

A drive with a similar appearance or physical size should not automatically be considered a suitable replacement. Electrical ratings and system configuration must also be checked.

---

Cabinet Space and Thermal Planning

The relatively large dimensions of the ATV71HD55N4 make enclosure planning particularly important.

The cabinet design should consider:

• 630 mm height
• 290 mm width
• 320 mm depth
• 44 kg drive weight
• Cooling airflow
• Power cable entry
• Motor cable routing
• Control wiring
• Maintenance access
• Adjacent equipment
• Electrical protection

The actual cabinet space required will normally be greater than the physical dimensions of the drive because additional clearance is required for installation and service.

---

Compatible System Components

A typical automation installation may include:

Component	Typical Function
ATV71HD55N4	Variable-speed motor control
Three-Phase AC Motor	Mechanical power generation
PLC	Process and machine control
HMI	Operator monitoring and control
Sensors	Process feedback
Circuit Breaker	Electrical protection
Disconnect Device	Safe equipment isolation
EMC Components	Electromagnetic compatibility
Line Reactor	Power-system conditioning where required
Braking Components	Braking or deceleration support where required
SCADA System	Supervisory monitoring

The exact combination should be selected according to the application and electrical design.

---

Related Schneider Electric Altivar Models

Model	Product Type	General Application
ATV71HD30N4Z	Variable Speed Drive	Industrial motor control
ATV71HD37N4	Variable Speed Drive	Industrial variable-speed applications
ATV71HD37N4Z	Variable Speed Drive	Industrial motor and machinery control
ATV71HD45N4	Variable Speed Drive	Larger industrial motor applications
ATV71HD45N4Z	Variable Speed Drive	Industrial motor control
ATV71HD55N4	Variable Speed Drive	Higher-power industrial motor applications
ATV71HD75N4	Variable Speed Drive	High-power industrial applications

Models within the Altivar 71 family may have similar installation concepts, but electrical ratings and system requirements vary. A related model should not be selected as a replacement solely because it belongs to the same product family.

---

Engineering Best Practices

Match the Drive to the Application

Before installation, verify that the drive is appropriate for the motor and mechanical load.

Maintain Parameter Documentation

Record important drive settings during commissioning. This can significantly simplify replacement and troubleshooting.

Investigate Repeated Faults

Repeated trips may indicate mechanical or electrical problems outside the drive itself.

Maintain Cabinet Cooling

Good thermal management is important for reliable operation of high-capacity motor drives.

Separate Power and Control Wiring

Appropriate cable routing can reduce electromagnetic interference and improve control-system stability.

Inspect the Mechanical Load

A drive may correctly report an overload when the actual problem is a seized bearing, blocked pump, overloaded conveyor, or other mechanical issue.

Plan Safe Maintenance

Before service work, the drive and connected equipment should be isolated according to the applicable industrial safety procedures.

---

Key Advantages

• Industrial variable-speed motor control
• Part of the Schneider Electric Altivar 71 family
• Suitable for demanding automation applications
• Controlled acceleration and deceleration
• Adjustable motor operating speed
• Supports integration with industrial control systems
• Suitable for pumps, fans, conveyors, compressors, and machinery
• Helps reduce mechanical shock during starting and stopping
• Supports drive diagnostics and monitoring
• Listed dimensions of 630 × 290 × 320 mm
• Listed weight of 44 kg
• Suitable for integration into appropriately designed industrial cabinets

---

Technical FAQs

What is the Schneider ATV71HD55N4?

The Schneider ATV71HD55N4 is a Variable Speed Drive designed to provide controlled operation of compatible industrial AC motors.

What is the main function of the ATV71HD55N4?

Its primary function is to regulate motor speed and provide controlled acceleration and deceleration for industrial machinery and process equipment.

What are the dimensions of the ATV71HD55N4?

The listed dimensions are 630 × 290 × 320 mm.

How much does the ATV71HD55N4 weigh?

The listed weight is 44 kg.

What applications can use this drive?

Typical applications include conveyors, pumps, fans, compressors, material-handling systems, and other industrial machinery requiring variable-speed motor control.

Can the ATV71HD55N4 be integrated with a PLC?

Yes. A suitable PLC-based control system can send motor commands and monitor drive status through the available control and communication interfaces.

Why is cabinet ventilation important?

The drive generates heat during operation. Proper thermal management helps maintain suitable operating conditions and supports reliable long-term operation.

What should be checked if the drive repeatedly trips?

Technicians should investigate drive diagnostics together with motor parameters, acceleration settings, mechanical load, motor condition, wiring, power supply, and cabinet thermal conditions.

Can another Altivar 71 model directly replace the ATV71HD55N4?

Not automatically. The replacement must be checked against motor requirements, electrical ratings, application load, control configuration, accessories, and system architecture.

What should be documented during commissioning?

Important records can include motor nameplate information, drive parameters, acceleration and deceleration settings, control mode, operating limits, communication settings, and application-specific configuration.

---

Conclusion

The Schneider ATV71HD55N4 Variable Speed Drive is an industrial motor-control solution designed for applications requiring adjustable speed, controlled acceleration, controlled deceleration, and integration with automated equipment. As part of the Altivar 71 family, it can serve as the drive layer between an industrial controller and a compatible AC motor.

With listed dimensions of 630 × 290 × 320 mm and a weight of 44 kg, the ATV71HD55N4 requires careful consideration during cabinet design, transportation, mechanical mounting, ventilation, electrical installation, and maintenance.

Its role can extend beyond basic speed adjustment. When integrated with PLCs, sensors, HMIs, and supervisory systems, the drive can participate in coordinated machine sequences, process regulation, motor monitoring, and equipment diagnostics.

For installation or replacement, the complete ATV71HD55N4 identification should be verified together with the motor characteristics, application requirements, electrical configuration, and installed accessories. Correct commissioning, suitable thermal management, reliable wiring, and systematic preventive maintenance are essential for achieving stable and dependable industrial motor control.
