Product Overview

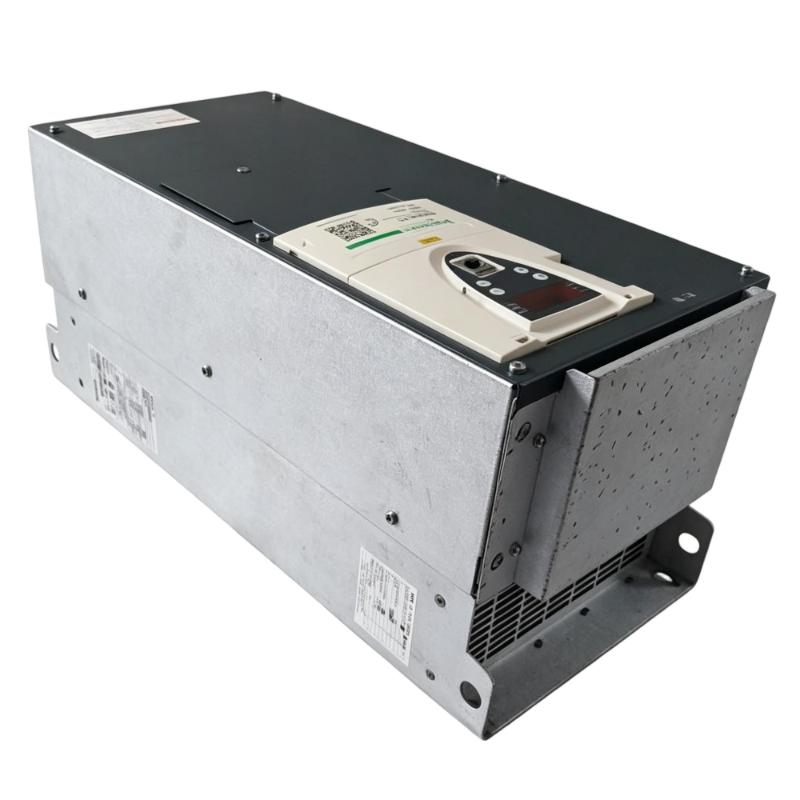

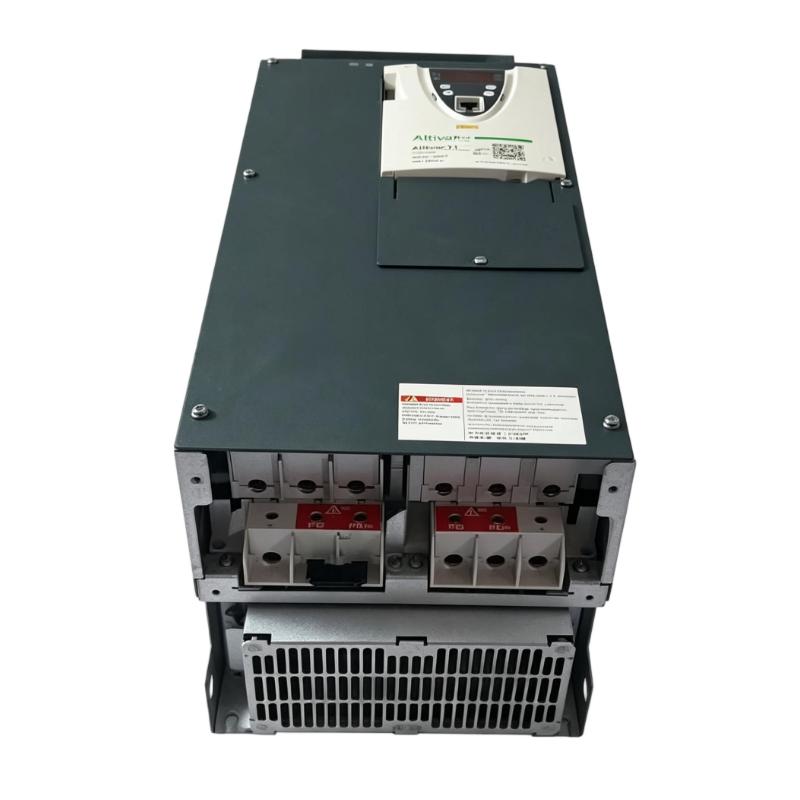

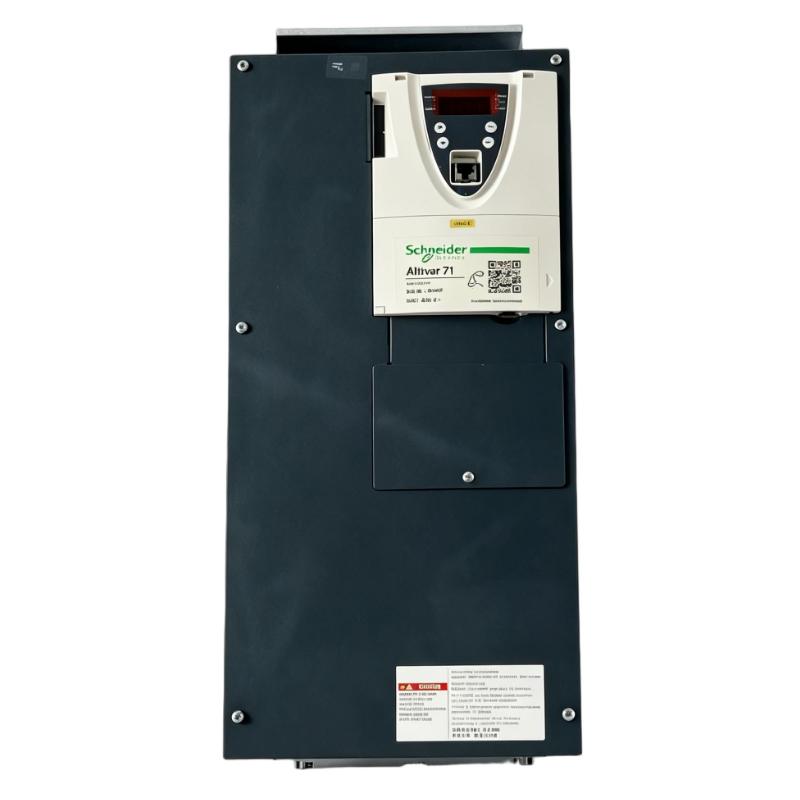

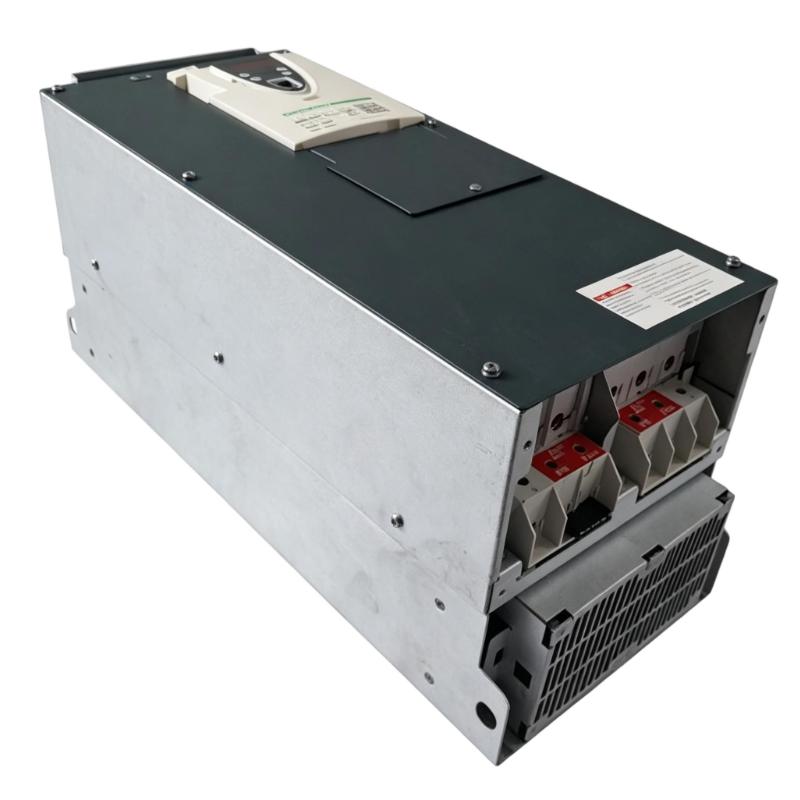

The Schneider Electric ATV71HD30N4Z Variable Speed Drive is an industrial AC motor-control solution from the Altivar 71 family, designed for demanding machinery and automation applications requiring adjustable motor speed, controlled acceleration and deceleration, and flexible integration with industrial control systems. The drive provides an electronic interface between the electrical power supply and a three-phase AC motor, enabling motor operation to be coordinated with machine processes and production requirements.

Unlike fixed-speed motor operation, a variable speed drive allows the motor to operate according to an adjustable speed reference. The drive regulates the electrical output supplied to the motor, allowing controlled changes in speed and operating conditions. This architecture can be applied to conveyors, pumps, fans, compressors, material-handling systems, production machinery, and other industrial equipment where controlled motor operation is required.

The ATV71HD30N4Z is suitable for system designs in which motor control forms part of a larger automation architecture. It can work alongside PLCs, HMIs, sensors, protective equipment, communication networks, and other industrial control components.

The supplied physical specifications for the Schneider ATV71HD30N4Z are 550 × 266 × 240 mm, with a weight of 37 kg. These physical characteristics should be considered during cabinet design, mechanical mounting, transportation, maintenance access, and replacement planning.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV71HD30N4Z
Product Family	Altivar 71
Product Type	Variable Speed Drive
Drive Category	Industrial AC Motor Drive
Motor Type	Three-Phase AC Motor
Primary Function	Variable-Speed Motor Control
Control Principle	Variable-Frequency Motor Control
Installation	Electrical Cabinet / Industrial Panel
Cooling	Forced-Air Cooling
Automation Integration	PLC, HMI and Industrial Control Systems
Communication	Application-dependent communication interface
Dimensions	550 × 266 × 240 mm
Weight	37 kg
Typical Applications	Conveyors, pumps, fans, compressors, material handling and process machinery

Exact electrical ratings, rated current, overload characteristics, terminal assignments, communication functions, braking requirements, and other application-specific parameters should be confirmed against the applicable ATV71HD30N4Z hardware revision and installation documentation.

---

What Is the Schneider ATV71HD30N4Z?

The ATV71HD30N4Z is a Schneider Electric Altivar 71 Variable Speed Drive designed to control the operating characteristics of industrial three-phase AC motors.

The drive is installed between the electrical supply and motor:

AC Power Supply → ATV71HD30N4Z → Controlled AC Output → Motor → Mechanical Load

The electronic power stage converts incoming electrical power into a controlled motor output. The drive’s control system determines the appropriate output according to the programmed operating parameters and external commands.

This enables the motor to operate at adjustable speeds instead of being limited to a single fixed-speed operating condition.

In automated machinery, the ATV71HD30N4Z can therefore serve as the motor-control layer between the machine controller and the mechanical equipment.

---

Variable Speed Drive Operating Principle

Frequency Control

AC motor speed is closely associated with electrical frequency. A variable speed drive can regulate motor speed by changing the frequency of the output supplied to the motor.

A simplified control chain is:

Speed Reference → Drive Controller → Output Frequency → Motor Speed

The speed reference may originate from a PLC, operator interface, analog signal, communication system, or another compatible control source.

The drive processes this command and adjusts motor operation accordingly.

Acceleration Management

Industrial motors connected to large mechanical loads can experience significant stress during starting.

The ATV71HD30N4Z can use configured acceleration characteristics to increase motor speed progressively.

Controlled acceleration can help reduce sudden mechanical loading on:

• Shafts
• Couplings
• Gearboxes
• Belts
• Bearings
• Conveyors
• Pumps
• Fans

The correct acceleration profile depends on the motor, mechanical load, inertia, and process requirements.

Deceleration Management

The drive can also regulate motor deceleration.

A controlled deceleration profile can provide smoother machine stopping and better synchronization with production sequences.

For applications involving high inertia or rapid stopping requirements, the braking strategy should be evaluated as part of the complete system design.

---

Role in Industrial Automation

The ATV71HD30N4Z can operate as a motor-control component within a PLC-based industrial automation system.

A typical architecture can be represented as:

Sensors → PLC → ATV71HD30N4Z → Motor → Machine

The PLC receives information from process sensors and determines the appropriate machine operating condition.

The drive then executes the required motor-control command.

Depending on the system architecture, control commands may include:

• Start
• Stop
• Forward
• Reverse
• Speed reference
• Operating-mode selection
• Fault reset

The automation system can also monitor available drive status and diagnostic information.

This allows the motor to be coordinated with other machine functions such as valves, sensors, actuators, conveyors, and production sequences.

---

Process Control and Motor Optimization

Variable speed operation allows motor performance to be adjusted to changing process demand.

For example, a conveyor may require different speeds at different production stages. A pump may need to respond to changing flow or pressure requirements. A fan may need to adjust its speed according to ventilation demand.

The general control relationship can be expressed as:

Process Demand → Controller → Speed Reference → ATV71HD30N4Z → Motor

The drive then converts the control command into an appropriate motor operating condition.

This provides greater flexibility than simple fixed-speed operation and can help coordinate motor performance with the actual machine process.

---

Industrial Applications

Conveyor Systems

Conveyors are common applications for variable-speed motor control.

The ATV71HD30N4Z can be incorporated into suitable conveyor systems requiring:

• Adjustable speed
• Controlled starting
• Controlled stopping
• Production-line synchronization
• Material-flow coordination

Applications can include assembly lines, packaging systems, material transfer equipment, and industrial handling systems.

Pumping Systems

Pumps may require different operating speeds as process demand changes.

A variable speed drive can regulate pump motor speed according to a suitable process-control strategy.

Potential applications include:

• Industrial water systems
• Process pumps
• Cooling systems
• Circulation equipment
• Fluid-transfer systems

Fans and Ventilation

Industrial fans often need adjustable airflow.

Motor speed can be controlled according to process requirements in applications such as:

• Industrial ventilation
• Cooling
• Extraction
• Air handling
• Process exhaust

Compressors

Suitable compressor applications can use variable-speed motor control to coordinate operation with changing process requirements.

The drive configuration must be matched to the compressor type and mechanical characteristics.

Material Handling

Material-handling equipment can require controlled acceleration and deceleration to protect mechanical components and improve process coordination.

Potential applications include:

• Conveyor systems
• Transfer machinery
• Industrial handling equipment
• Production logistics systems

Manufacturing Machinery

The ATV71HD30N4Z can be incorporated into suitable manufacturing equipment where adjustable AC motor speed is required.

Examples include:

• Processing machinery
• Packaging equipment
• Textile machinery
• Production lines
• Material-processing equipment
• Industrial machinery

---

System Integration

The ATV71HD30N4Z forms one layer of a complete industrial control system.

System Component	Typical Function
AC Power Supply	Provides electrical power
Circuit Protection	Protects the electrical system
ATV71HD30N4Z	Controls motor operation
AC Motor	Produces mechanical movement
PLC	Executes machine-control logic
HMI	Provides operator control and monitoring
Sensors	Measure process conditions
Communication System	Transfers commands and status information
Mechanical Load	Performs the required industrial task

The complete system should be designed so that the drive, motor, controller, protection, and mechanical equipment operate as a coordinated system.

---

Installation Guidelines

Cabinet Mounting

The supplied dimensions of the ATV71HD30N4Z are:

550 × 266 × 240 mm

The cabinet or mounting structure should provide sufficient space for the drive itself and for cable routing, ventilation, inspection, and maintenance.

The supplied weight is:

37 kg

The mounting structure must therefore be capable of safely supporting the drive under the expected operating conditions.

Consideration should also be given to vibration and mechanical movement where the drive is installed on industrial machinery.

Environmental Conditions

The drive should be installed in an environment suitable for industrial electronic equipment.

Protect the installation from excessive:

• Dust
• Moisture
• Condensation
• Heat
• Vibration
• Corrosive substances

Where the surrounding environment is demanding, appropriate cabinet protection should be provided.

---

Thermal Management

A variable speed drive produces heat during normal operation.

The cabinet designer should consider the heat generated by the ATV71HD30N4Z together with other installed equipment.

Potential heat sources include:

• Other drives
• Power supplies
• Transformers
• Contactors
• Braking equipment
• Control electronics

Adequate ventilation and thermal management are therefore important.

Blocked airflow, high ambient temperature, or an undersized cabinet cooling system can increase operating temperature and contribute to drive faults.

---

Power Wiring

Power connections should follow the applicable Schneider Electric installation requirements and the approved machine electrical design.

Before energizing the drive, verify:

• Incoming power
• Motor output connections
• Protective earth
• Cable sizing
• Terminal tightness
• Protective devices
• Motor compatibility
• Cable insulation

All electrical work should be performed using appropriate industrial electrical safety procedures.

---

EMC and Cable Routing

The switching operation of a variable speed drive can produce high-frequency electrical components.

Proper cable management can help reduce electromagnetic interference.

Depending on the installation, good practices may include:

• Separating motor and control cables
• Using suitable shielded cables where required
• Maintaining effective grounding
• Avoiding unnecessary cable loops
• Separating communication cables from high-power conductors
• Installing appropriate EMC accessories when required

The cable installation should be considered as part of the overall automation system rather than as an isolated drive requirement.

---

PLC and HMI Integration

The ATV71HD30N4Z can be incorporated into a PLC-controlled motor system.

A basic architecture is:

PLC → Speed / Run Command → ATV71HD30N4Z → AC Motor

The PLC can adjust the motor speed according to machine conditions.

An HMI can provide operators with selected operating information, such as:

• Drive status
• Motor operating condition
• Speed reference
• Alarm information
• Fault status
• Operating parameters
• Maintenance information

The exact control and communication functions depend on the configured hardware and system architecture.

---

Commissioning Procedure

Step 1: Verify the Product

Confirm the drive identification:

Schneider ATV71HD30N4Z

Verify the complete product reference and applicable hardware information before commissioning.

Step 2: Verify Motor Information

Obtain motor data from the motor nameplate or approved technical documentation.

Do not estimate motor electrical characteristics.

Step 3: Inspect Wiring

Check:

• Power wiring
• Motor wiring
• Grounding
• Control connections
• Communication wiring
• Protective devices

Correct any wiring issues before applying power.

Step 4: Configure the Drive

Configure the motor and application parameters required by the machine.

These may include:

• Motor characteristics
• Speed reference
• Acceleration
• Deceleration
• Operating mode
• Direction
• Speed limits
• Control commands

Step 5: Conduct a Low-Speed Test

Where the machine permits, begin testing at a low speed.

Check:

• Rotation direction
• Motor current
• Vibration
• Mechanical noise
• Acceleration behavior
• Drive status

Step 6: Test Under Representative Conditions

After successful initial operation, gradually test the machine under representative load conditions.

Verify that the drive responds correctly to commands from the PLC or operator interface.

---

Troubleshooting the ATV71HD30N4Z

Drive Does Not Power Up

Possible causes include:

• Missing incoming power
• Protective device operation
• Incorrect wiring
• Supply problem
• Internal drive fault

Check the complete power path before replacing the drive.

Drive Is Powered but Motor Does Not Start

Inspect:

• Start command
• Speed reference
• Active faults
• External interlocks
• Motor wiring
• Control configuration
• PLC output

A missing start condition can produce symptoms that appear to be a drive failure.

Motor Runs at Incorrect Speed

Possible causes include:

• Incorrect speed reference
• Signal-scaling problem
• PLC configuration
• Analog reference problem
• Communication issue
• Drive parameter configuration

The entire speed-reference chain should be tested.

Overcurrent During Acceleration

Potential causes include:

• Excessive mechanical load
• Mechanical blockage
• Acceleration time that is too short
• Incorrect motor configuration
• Motor wiring problem
• Short-circuit condition

Inspect both the electrical and mechanical systems.

Drive Overheating

Investigate:

• Cabinet temperature
• Ventilation
• Cooling airflow
• Cooling fan condition
• Drive loading
• Dust accumulation
• Cabinet thermal design

Repeated overheating should be investigated at the system level.

---

Preventive Maintenance

Cooling Inspection

Inspect ventilation paths and cooling components regularly.

Keep airflow paths clear and maintain the cabinet environment appropriately.

Electrical Inspection

During scheduled maintenance, inspect accessible connections for:

• Looseness
• Overheating
• Discoloration
• Mechanical damage

Use the appropriate electrical isolation and safety procedures.

Motor and Mechanical Inspection

A drive may report faults caused by an underlying motor or mechanical problem.

Inspect the connected equipment for:

• Excessive vibration
• Bearing wear
• Abnormal noise
• Motor overheating
• Mechanical obstruction
• Excessive load

Fault Trend Monitoring

Record recurring faults and operating conditions.

A repeated fault pattern can help identify problems with the motor, machine, power supply, cooling system, or configuration.

---

Replacement and Spare-Part Planning

When replacing the ATV71HD30N4Z, verify the complete product reference.

Important replacement information includes:

• Full model number
• Hardware revision
• Motor characteristics
• Supply configuration
• Control architecture
• Communication configuration
• Installed accessories
• Cabinet dimensions
• Existing parameter settings

The supplied physical specifications are:

Dimensions: 550 × 266 × 240 mm

Weight: 37 kg

Physical dimensions and appearance should not be used as the only basis for determining compatibility.

The replacement unit should be evaluated against the complete electrical, mechanical, and control-system requirements.

---

Engineering Considerations

Motor Matching

The drive should be correctly matched to the motor’s electrical characteristics and intended application.

Load Characteristics

Engineers should evaluate whether the connected load has:

• High starting torque
• High inertia
• Frequent acceleration
• Frequent stopping
• Continuous operation
• Variable process demand

These factors influence drive configuration.

Braking Requirements

Machines requiring rapid stopping or handling large amounts of stored mechanical energy may require a suitable braking strategy.

Cabinet Design

The supplied 550 × 266 × 240 mm dimensions and 37 kg weight should be incorporated into the mechanical and electrical cabinet design.

The cabinet should also account for thermal management, cable routing, service clearance, and mounting strength.

Parameter Documentation

After commissioning, important configuration parameters should be recorded.

Maintaining an accurate parameter record can simplify troubleshooting and future drive replacement.

---

Recommended Related Altivar 71 Models

Model	Product Type	General Application
ATV71HD18N4	Variable Speed Drive	Industrial motor control
ATV71HD22N4	Variable Speed Drive	High-power industrial machinery
ATV71HD30N4	Variable Speed Drive	Industrial variable-speed applications
ATV71HD30N4Z	Variable Speed Drive	Industrial motor-control applications
ATV71HC11N4	Variable Speed Drive	High-power industrial applications
ATV71HC13N4	Variable Speed Drive	Heavy industrial motor control
ATV71HC16N4	Variable Speed Drive	Large industrial equipment
ATV71HC25N4	Variable Speed Drive	High-power industrial machinery

These models belong to the broader Altivar 71 family. They should not be assumed to be direct substitutes without verifying motor requirements, electrical ratings, control configuration, accessories, dimensions, and application conditions.

---

Key Advantages

Flexible Variable-Speed Operation

The ATV71HD30N4Z allows motor speed to be adjusted according to machine and process requirements.

Controlled Acceleration and Deceleration

Configured speed ramps can provide smoother starting and stopping and help reduce mechanical shock.

Integration with Automation Systems

The drive can form part of PLC, HMI, sensor, and industrial communication architectures.

Wide Industrial Application Range

Variable-speed motor control can be applied to suitable conveyors, pumps, fans, compressors, material-handling equipment, and production machinery.

Defined Cabinet Installation Requirements

The supplied dimensions of 550 × 266 × 240 mm provide an important reference for cabinet and equipment design.

Suitable for Industrial Motor Control

The Altivar 71 platform provides configurable motor-control functions for demanding industrial applications.

Improved Machine Coordination

Adjustable motor speed enables machine operation to be coordinated with changing production requirements.

---

Technical FAQs

What is the Schneider ATV71HD30N4Z?

The Schneider ATV71HD30N4Z is an Altivar 71 Variable Speed Drive designed for controlling three-phase AC motors in industrial machinery and automation applications.

What is the main function of the ATV71HD30N4Z?

Its primary function is to provide controlled variable-frequency power to an AC motor, allowing motor speed and acceleration characteristics to be adjusted according to application requirements.

What are the dimensions of the ATV71HD30N4Z?

The supplied dimensions are 550 × 266 × 240 mm.

How much does the ATV71HD30N4Z weigh?

The supplied weight is 37 kg.

Can the ATV71HD30N4Z be connected to a PLC?

Yes. It can be integrated into a PLC-based motor-control architecture using the applicable control and communication configuration.

What applications can use the ATV71HD30N4Z?

Potential applications include conveyors, pumps, fans, compressors, material-handling equipment, production machinery, and industrial process systems requiring variable-speed AC motor control.

Why use a variable speed drive for an industrial motor?

A variable speed drive allows motor speed to be adjusted according to actual machine requirements while providing controlled acceleration and deceleration.

What should be checked before replacing an ATV71HD30N4Z?

Verify the complete product reference, motor characteristics, electrical supply, control architecture, communication configuration, installed accessories, cabinet requirements, and application parameters.

What can cause the ATV71HD30N4Z to overheat?

Potential causes include inadequate ventilation, excessive ambient temperature, blocked airflow, cooling problems, high continuous loading, or unsuitable cabinet thermal design.

---

Conclusion

The Schneider Electric ATV71HD30N4Z Variable Speed Drive is an industrial AC motor-control solution from the Altivar 71 family, designed for applications requiring adjustable speed, controlled acceleration and deceleration, and integration with industrial automation systems.

With supplied dimensions of 550 × 266 × 240 mm and a weight of 37 kg, accurate physical planning is important when installing or replacing the drive. Cabinet designers should consider mounting strength, ventilation, cable routing, service access, and overall thermal loading.

The ATV71HD30N4Z can form part of motor-control systems used in conveyors, pumps, fans, compressors, material-handling equipment, production machinery, and other industrial applications. By regulating motor operation according to external commands and process requirements, it allows motor speed to become an integrated element of the machine-control strategy.

Reliable operation depends on correct motor matching, power wiring, grounding, thermal management, EMC practices, parameter configuration, commissioning, and preventive maintenance. During replacement, the complete ATV71HD30N4Z reference should be verified together with the motor, electrical system, control architecture, and installed accessories.

For industrial automation projects requiring flexible and controlled AC motor operation, the Schneider ATV71HD30N4Z Variable Speed Drive provides a configurable platform for integrating motor-speed management into a broader industrial control system.
