Product Overview

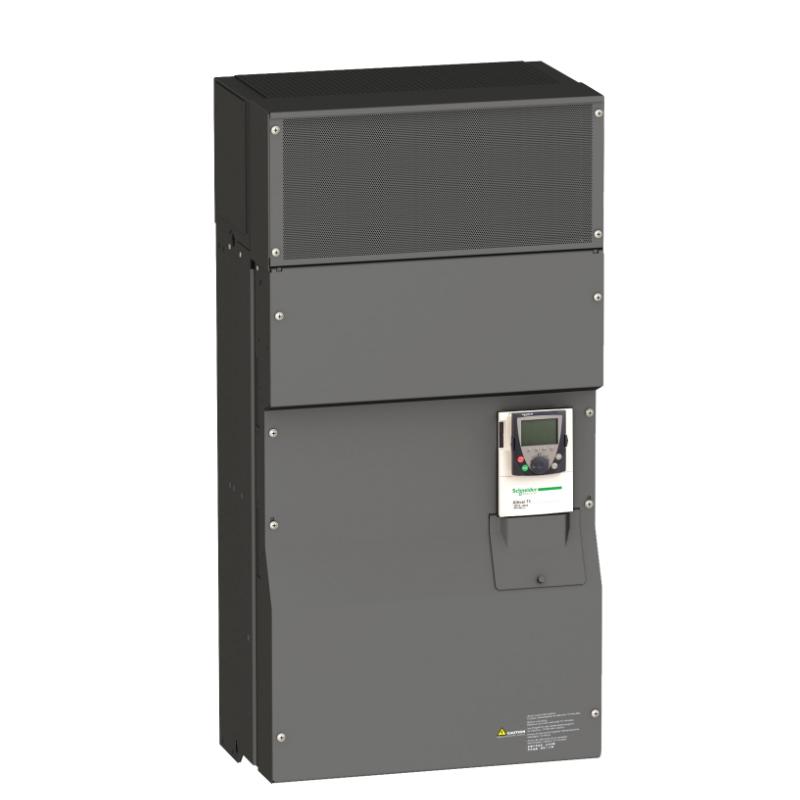

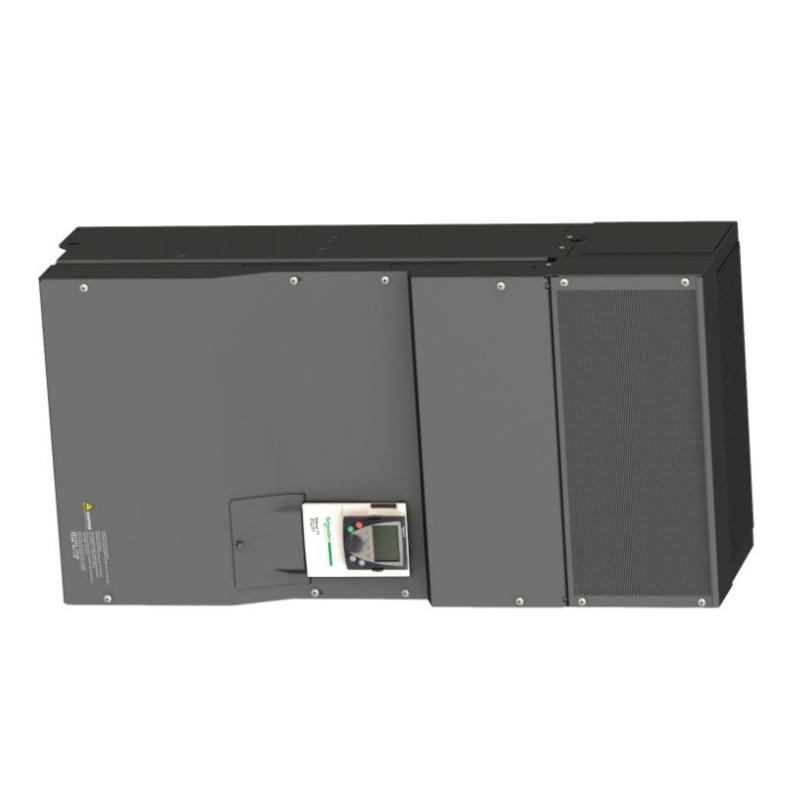

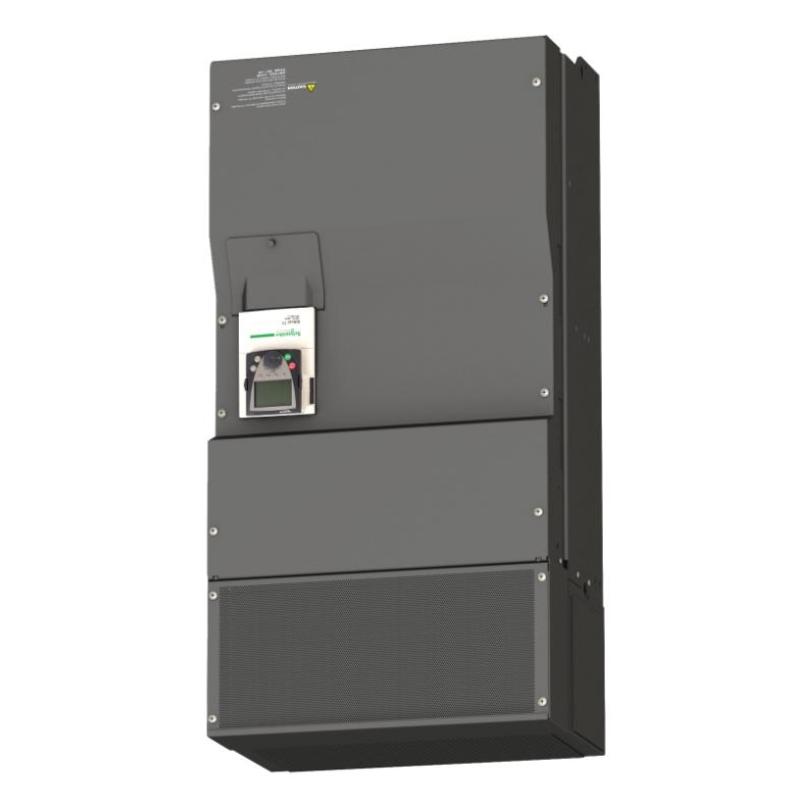

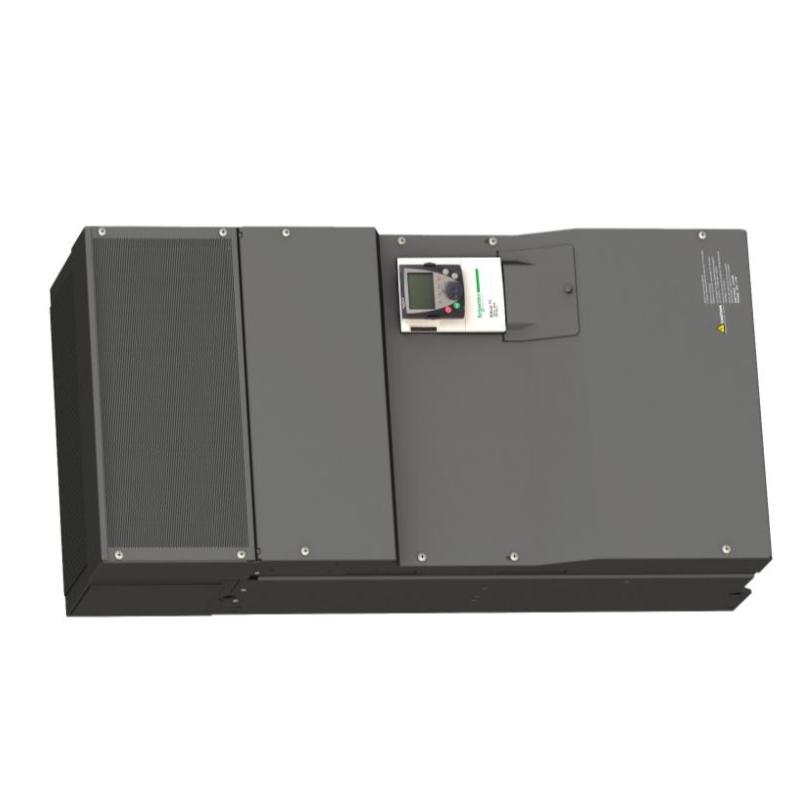

The Schneider ATV71HC25N4 Transmission Drive is a high-power industrial motor control solution from the Schneider Electric Altivar 71 series. Designed for demanding transmission and variable-speed applications, the drive provides controlled operation of three-phase AC motors used in large industrial machinery, heavy conveyors, pumps, fans, compressors, material-handling systems, and process equipment.

A transmission drive plays an important role in applications where motor speed and torque need to be coordinated with a mechanical load. Rather than operating a motor at a fixed speed, a variable speed drive allows the motor to accelerate, decelerate, and operate at different speeds according to process requirements. This can improve machine flexibility and reduce mechanical stress on the motor and transmission system.

The ATV71HC25N4 is intended for high-power industrial installations where the drive, motor, mechanical transmission, and automation system must operate as a coordinated unit. Its large enclosure reflects the requirements of high-power motor-control equipment. The listed dimensions are 1190 × 377 × 595 mm, and the listed weight is 207 kg.

Because of its substantial dimensions and weight, the ATV71HC25N4 requires careful planning for transportation, lifting, mounting, cabinet construction, thermal management, power wiring, and maintenance access. It is particularly appropriate for fixed industrial installations rather than small machine cabinets.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV71HC25N4
Product Series	Altivar 71
Product Type	Transmission Drive / Variable Speed Drive
Motor Control	Adjustable AC Motor Speed and Torque Control
Motor Type	Three-Phase AC Motors
Application Class	High-Power Industrial Motor Control
Dimensions	1190 × 377 × 595 mm
Weight	207 kg
Installation	Industrial Cabinet / Fixed Equipment Installation
Control Function	Motor Speed, Torque and Process Control
Typical Applications	Heavy Conveyors, Pumps, Fans, Compressors, Material Handling and Process Machinery

Detailed electrical ratings, current characteristics, overload capability, and configuration parameters should be verified against the exact product nameplate, hardware revision, motor characteristics, and application requirements.

---

What Is the Schneider ATV71HC25N4?

The Schneider ATV71HC25N4 is a high-power Transmission Drive / Variable Speed Drive designed for controlled operation of industrial AC motors.

The drive is installed between the electrical power system and the motor. It regulates the electrical output supplied to the motor, allowing the motor to operate at a controlled speed rather than simply following the fixed frequency of the incoming supply.

A typical system can be represented as:

Industrial Power Supply → Protection Equipment → ATV71HC25N4 → AC Motor → Transmission → Machine Load

The mechanical transmission can include gearboxes, couplings, belts, shafts, rollers, pulleys, or other power-transfer components.

The ATV71HC25N4 therefore acts as an important interface between electrical power and mechanical motion.

---

ATV71HC25N4 Working Principle

The drive uses a power-electronic conversion process to control the connected motor.

AC Power Input

Electrical power enters the drive from the industrial supply.

Power Conversion

The incoming AC power is processed by the drive’s power-conversion section.

DC Energy Stage

The converted electrical energy passes through an intermediate DC stage that supplies the inverter.

Inverter Operation

Controlled semiconductor switching generates an adjustable electrical output for the motor.

Motor Regulation

The drive controls the motor according to the configured operating parameters and external commands.

This allows motor speed and torque behavior to be adapted to the requirements of the connected machine.

Mechanical Transmission

The motor transfers mechanical power through the transmission system to the final load.

The resulting system provides coordinated control of electrical motor operation and mechanical machine movement.

---

Speed and Torque Management

Large industrial machinery can experience substantial changes in mechanical load.

A heavy conveyor, for example, may require significant torque during startup. A pump may need different operating speeds depending on process flow. A fan may need adjustable airflow, while a compressor can experience changing process demand.

A variable speed drive provides a controlled method of responding to these changing conditions.

The ATV71HC25N4 can contribute to:

• Adjustable motor speed
• Controlled acceleration
• Controlled deceleration
• Torque management
• Reduced mechanical shock
• Improved process flexibility
• More stable machine operation
• Better coordination between motor and transmission

The appropriate operating mode and parameters should be selected according to the actual motor and mechanical application.

---

Role in Industrial Automation

The ATV71HC25N4 can serve as the motor-control layer in a large industrial automation system.

A typical architecture is:

Sensors → PLC / Controller → ATV71HC25N4 → Motor → Transmission → Process Equipment

Sensors may monitor:

• Speed
• Pressure
• Flow
• Temperature
• Position
• Level
• Load
• Production conditions

The PLC or controller processes the information and determines the required motor command.

The ATV71HC25N4 then executes the motor-control function while providing relevant operating information to the automation system according to the configured architecture.

This allows process-control logic and high-power motor control to work together without requiring the PLC to directly control the motor power stage.

---

Industrial Applications

Heavy Conveyor Systems

Large conveyors often require controlled starting because of their mechanical inertia and transported load.

The ATV71HC25N4 can help provide smoother acceleration and deceleration while reducing sudden mechanical forces on:

• Conveyor belts
• Gearboxes
• Couplings
• Rollers
• Shafts
• Bearings

Adjustable speed can also help coordinate conveyor throughput with other production equipment.

Large Pumping Systems

Industrial pumps may require variable flow or pressure.

A variable speed drive can adjust motor speed according to actual process demand, making it suitable for industrial circulation, cooling, water processing, and other pumping applications.

Industrial Fans

Large ventilation systems frequently require different airflow levels.

Variable speed control can allow the motor to operate according to ventilation requirements rather than continuously running at a fixed speed.

Compressors

Industrial compressors can require controlled starting and stable motor operation under changing process conditions.

The drive can be integrated with sensors and automation controllers as part of the compressor control system.

Material Handling

Heavy material-handling machinery can contain large rotating masses.

Controlled motor acceleration and deceleration can reduce mechanical shock and improve operational stability.

Process Machinery

High-power processing equipment may require adjustable motor speed and torque as production conditions change.

The ATV71HC25N4 can form part of the motor-control system for such machinery.

---

PLC Integration

The ATV71HC25N4 can be integrated into PLC-controlled automation systems.

Depending on the selected system architecture, a PLC can provide commands such as:

• Start
• Stop
• Enable
• Speed reference
• Direction
• Operating mode
• Fault reset
• Process-specific control commands

The drive can also return operating and diagnostic information to the controller.

Possible information includes:

• Ready status
• Running status
• Fault status
• Warning status
• Operating state
• Speed information
• Diagnostic conditions

The actual communication method depends on the installed hardware and project configuration.

---

HMI and SCADA Integration

High-power transmission systems often require centralized operator monitoring.

An HMI can provide information about:

• Drive operating status
• Motor status
• Speed reference
• Actual operating condition
• Alarm status
• Fault information
• Maintenance information

In larger industrial facilities, SCADA systems can monitor multiple drives simultaneously.

Centralized monitoring can help operators identify abnormal conditions and give maintenance teams access to historical operating information.

This is particularly useful for high-power equipment where unexpected downtime can have a significant impact on production.

---

Installation Guidelines

The ATV71HC25N4 has listed dimensions of 1190 × 377 × 595 mm and a listed weight of 207 kg.

Its installation should therefore be treated as a major mechanical and electrical engineering project.

Before installation, engineers should verify:

• Cabinet dimensions
• Mounting structure
• Structural load capacity
• Floor or enclosure strength
• Lifting equipment
• Transportation route
• Cable entry arrangement
• Ventilation
• Electrical clearances
• Grounding
• Power distribution
• Motor cable routing
• Maintenance access

The supporting structure must safely accommodate the listed 207 kg weight.

Appropriate lifting and handling equipment should be used during transportation and installation.

---

Cabinet Design and Thermal Management

A high-power drive generates heat during operation, making thermal management an essential part of the installation design.

Airflow

The cabinet should provide sufficient airflow around the drive and associated components.

Heat Distribution

Transformers, reactors, contactors, braking components, and other power equipment may add additional heat to the enclosure.

Ventilation

The cooling system should be designed according to the complete cabinet heat load.

Dust Management

Industrial dust can accumulate around cooling surfaces and reduce thermal performance.

Environmental Protection

The drive installation should be protected from excessive:

• Dust
• Moisture
• Condensation
• Corrosive substances
• Vibration
• Ambient temperature

Good thermal and environmental management can contribute significantly to drive reliability.

---

Power and Motor Wiring

The general power architecture can be represented as:

Incoming AC Supply → Protection Equipment → ATV71HC25N4 → AC Motor → Transmission

Electrical protection and conductor sizing should be selected for the complete system.

Before energizing the drive, technicians should verify:

• Incoming power wiring
• Motor connections
• Ground connections
• Cable insulation
• Terminal tightness
• Protective devices
• Control circuits
• Interlocks
• Emergency stop circuits

Motor cables should be selected according to the motor characteristics, installation method, cable length, operating conditions, and applicable electrical standards.

---

EMC and Cable Routing

High-power variable speed drives use high-frequency switching techniques, making electromagnetic compatibility an important consideration.

Recommended practices include:

• Separate power and control wiring
• Route motor cables carefully
• Use appropriate shielded cables where required
• Maintain suitable grounding
• Avoid unnecessary cable loops
• Keep communication cables away from high-power conductors
• Minimize long parallel runs between motor cables and sensitive signals

A well-designed cabinet can reduce electrical interference and improve the stability of instrumentation and communication systems.

---

Motor and Application Configuration

Correct configuration is essential for reliable operation.

Engineers should obtain the actual motor nameplate information, including applicable:

• Motor power
• Rated voltage
• Rated current
• Rated frequency
• Rated speed
• Motor connection
• Load characteristics

The drive should then be configured according to the selected motor-control strategy.

For a large transmission application, engineers should also evaluate:

• Mechanical inertia
• Starting torque
• Continuous load
• Peak load
• Acceleration time
• Deceleration time
• Braking requirements
• Transmission characteristics

---

Commissioning Procedure

A systematic commissioning procedure helps reduce startup risks.

Step 1: Mechanical Inspection

Confirm that the drive is securely mounted and that the supporting structure can carry the listed 207 kg weight.

Step 2: Electrical Inspection

Verify incoming power, motor wiring, grounding, protection devices, and control circuits.

Step 3: Motor Verification

Compare the motor nameplate information with the intended drive configuration.

Step 4: Parameter Configuration

Configure the appropriate motor and application parameters.

Step 5: Control Configuration

Set the required source of start commands and speed references.

Step 6: Initial Rotation Test

Perform a controlled initial test and verify motor rotation direction.

Step 7: Transmission Test

Observe the mechanical transmission during acceleration and deceleration.

Step 8: Load Test

Gradually introduce the operating load while monitoring the drive, motor, and machine.

Step 9: Automation Verification

Test PLC commands, HMI controls, alarms, interlocks, communication, and emergency stopping functions.

---

Troubleshooting the ATV71HC25N4

Troubleshooting should consider the complete system, including the drive, motor, transmission, power supply, controller, and mechanical load.

Drive Does Not Start

Inspect:

• Incoming power
• Start command
• Enable condition
• Active fault
• External interlocks
• Speed reference
• Motor configuration
• PLC logic

The control command should be traced from the PLC or operator interface to the drive.

Motor Does Not Rotate

Possible causes include:

• Motor wiring problems
• Motor fault
• Mechanical obstruction
• Transmission problem
• Incorrect control command
• Incorrect parameter configuration
• Drive output problem

Both electrical and mechanical causes should be investigated.

Motor Runs at Incorrect Speed

Potential causes include:

• Incorrect speed reference
• Incorrect parameter settings
• PLC scaling
• Communication configuration
• Motor data
• Mechanical transmission problems

The entire speed-reference path should be checked.

Drive Trips During Acceleration

Possible causes include:

• Excessive mechanical inertia
• Heavy mechanical load
• Incorrect acceleration settings
• Motor problems
• Supply conditions
• Mechanical obstruction
• Application configuration problems

The transmission and final machine should be inspected along with the drive.

Drive or Motor Overheats

Check:

• Cabinet ventilation
• Cooling equipment
• Ambient temperature
• Motor loading
• Motor condition
• Drive installation
• Dust accumulation

Thermal problems should be corrected before continuous operation resumes.

---

Preventive Maintenance

Preventive maintenance is particularly important for high-power drive systems.

Cooling Inspection

Inspect ventilation paths and cooling equipment for blockage, contamination, or abnormal operation.

Cabinet Inspection

Check for:

• Dust
• Moisture
• Corrosion
• Loose hardware
• Discoloration
• Signs of overheating

Electrical Connection Inspection

Inspect terminals and cables for looseness, overheating, or deterioration.

Motor Cable Inspection

Check motor cables for insulation damage, mechanical wear, and poor connections.

Mechanical Transmission Inspection

Inspect:

• Gearboxes
• Couplings
• Shafts
• Belts
• Bearings
• Rollers
• Other transmission components

A mechanical defect can produce symptoms that appear to originate from the drive.

Diagnostic Review

Review available drive warnings and fault history.

Recurring faults should be analyzed to determine their underlying cause.

---

Replacement and Spare-Part Planning

Replacing the ATV71HC25N4 requires both electrical and mechanical planning.

Before sourcing a replacement, verify:

• Complete model number
• Product series
• Hardware revision
• Motor characteristics
• Electrical supply
• Control architecture
• Communication requirements
• Cabinet dimensions
• Mounting arrangement
• Cable configuration
• Environmental conditions

The listed dimensions are 1190 × 377 × 595 mm, while the listed weight is 207 kg.

These values are important for:

• Warehouse planning
• Transportation
• Lifting
• Cabinet construction
• Installation
• Maintenance access

Physical dimensions alone should not be used to determine electrical compatibility.

---

Compatible System Components

The ATV71HC25N4 can be integrated into a complete industrial automation and motor-control system.

Component	Typical Function
Three-Phase AC Motor	Converts electrical energy into mechanical power
Gearbox / Transmission	Transfers mechanical power to the machine
PLC Controller	Executes machine and process logic
HMI	Operator control and monitoring
SCADA System	Supervisory monitoring
Circuit Breaker	Provides electrical protection
Motor Protection Equipment	Supports motor protection
Sensors	Provides process feedback
Encoder / Feedback Device	Provides speed or position information where required
Industrial Network	Transfers control and diagnostic data
Braking Equipment	Supports controlled deceleration where required
Contactor / Disconnect	Provides switching and isolation
Cabinet Cooling System	Manages thermal conditions

The exact component configuration depends on the application.

---

Recommended Related Schneider Electric Models

Model	Product Family	General Application
ATV71H075N4Z	Altivar 71	Compact variable-speed motor control
ATV71HU15N4	Altivar 71	Industrial motor speed control
ATV71HU22N4	Altivar 71	Medium-power variable-speed applications
ATV71HC11N4	Altivar 71	High-power motor control
ATV71HC13N4	Altivar 71	High-power transmission applications
ATV71HC16N4	Altivar 71	High-power industrial transmission control
ATV71HC25N4	Altivar 71	High-power transmission and motor control
ATV650D90N4	Altivar Process ATV600	High-power process applications

These models belong to Schneider Electric variable speed drive families, but they should not be considered direct replacements without verifying electrical ratings, motor compatibility, mechanical dimensions, control functions, and application requirements.

---

Engineering Best Practices

Evaluate the Complete Load

Drive selection should consider both motor power and the actual mechanical load profile.

Analyze Mechanical Inertia

High-inertia machinery may require carefully selected acceleration and deceleration profiles.

Evaluate the Transmission

Gearboxes, shafts, belts, couplings, and other components influence motor torque and machine response.

Plan Braking

Applications requiring frequent stopping or rapid deceleration should be evaluated for braking requirements.

Design the Cabinet Around the Drive

The listed 1190 × 377 × 595 mm dimensions should be incorporated into the mechanical design before installation.

Consider the 207 kg Weight

The listed 207 kg weight affects lifting, transportation, structural support, and maintenance planning.

Provide Adequate Cooling

The thermal design should account for the drive and all neighboring heat-producing equipment.

Maintain Service Access

The installation should allow technicians sufficient space to inspect wiring, cooling equipment, connections, and other serviceable components.

---

Key Advantages

The Schneider ATV71HC25N4 Transmission Drive offers several important characteristics for high-power industrial applications:

• High-power Altivar 71 platform
• Adjustable AC motor speed control
• Controlled acceleration and deceleration
• Motor torque management
• Suitable for heavy transmission systems
• Suitable for large conveyor applications
• Applicable to pumps, fans and compressors
• Integration with PLC-based automation systems
• HMI and SCADA integration capability
• Suitable for demanding process machinery
• Listed dimensions of 1190 × 377 × 595 mm
• Listed weight of 207 kg
• Suitable for fixed industrial installations

---

Technical FAQs

What is the Schneider ATV71HC25N4?

The Schneider ATV71HC25N4 is a high-power Transmission Drive / Variable Speed Drive belonging to the Altivar 71 series.

What is the main function of the ATV71HC25N4?

Its main function is to provide controlled speed and torque operation for industrial AC motors and connected transmission systems.

What are the dimensions of the ATV71HC25N4?

The listed dimensions are 1190 × 377 × 595 mm.

How much does the ATV71HC25N4 weigh?

The listed weight is 207 kg.

What applications can use the ATV71HC25N4?

Typical applications include heavy conveyors, industrial pumps, large fans, compressors, material-handling systems, transmission machinery, and high-power process equipment.

Can the ATV71HC25N4 be integrated with a PLC?

Yes. It can form part of a PLC-based automation system for motor commands, speed control, status monitoring, alarms, and fault management.

Why is thermal management important for this drive?

High-power drive systems generate heat during operation. Proper cabinet ventilation and thermal management help maintain suitable operating conditions and support long-term reliability.

What should be checked before commissioning?

Engineers should verify motor nameplate data, electrical wiring, grounding, protective devices, control signals, drive parameters, mechanical transmission condition, and cabinet ventilation.

What can cause repeated drive faults?

Possible causes include excessive mechanical load, high inertia, incorrect configuration, motor problems, electrical supply issues, inadequate cooling, mechanical obstruction, or incorrect PLC/control-system settings.

Is the 207 kg weight important when installing the drive?

Yes. The listed 207 kg weight affects transportation, lifting, cabinet structure, mounting, and maintenance procedures. Appropriate mechanical handling equipment should be used.

Can another Altivar 71 model directly replace the ATV71HC25N4?

Not automatically. A replacement must be evaluated for motor compatibility, electrical ratings, control functions, communication requirements, physical dimensions, mounting, cooling, and application characteristics.

---

Conclusion

The Schneider ATV71HC25N4 Transmission Drive is a high-power industrial motor-control solution designed for demanding variable-speed, transmission, and process applications. As part of the Altivar 71 series, it provides a controlled interface between an industrial power system and a high-power AC motor, allowing motor speed and torque to be coordinated with the requirements of the connected mechanical equipment.

The listed dimensions of 1190 × 377 × 595 mm and weight of 207 kg make mechanical installation, structural support, lifting, transportation, cabinet design, and thermal management particularly important. The drive should be installed in an appropriately engineered industrial environment with sufficient ventilation and maintenance access.

The ATV71HC25N4 can operate as part of a broader automation architecture involving PLC controllers, HMIs, SCADA systems, sensors, communication networks, electrical protection, motors, and mechanical transmission components. This enables high-power motor operation to be coordinated with automated production and process-control requirements.

For installation, commissioning, troubleshooting, and replacement, engineers should evaluate the complete motor-drive system rather than relying only on the model number or physical dimensions. Motor characteristics, mechanical load, transmission inertia, control requirements, electrical connections, environmental conditions, and thermal performance should all be considered.

With suitable system engineering and preventive maintenance, the Schneider ATV71HC25N4 can provide controlled and flexible motor operation for demanding high-power industrial transmission systems.
