Product Overview

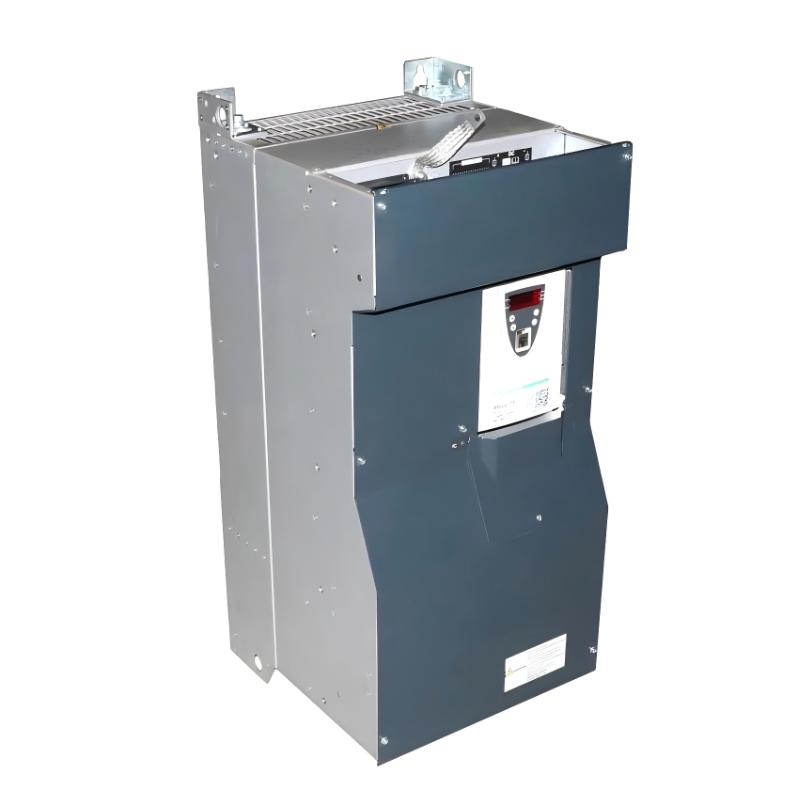

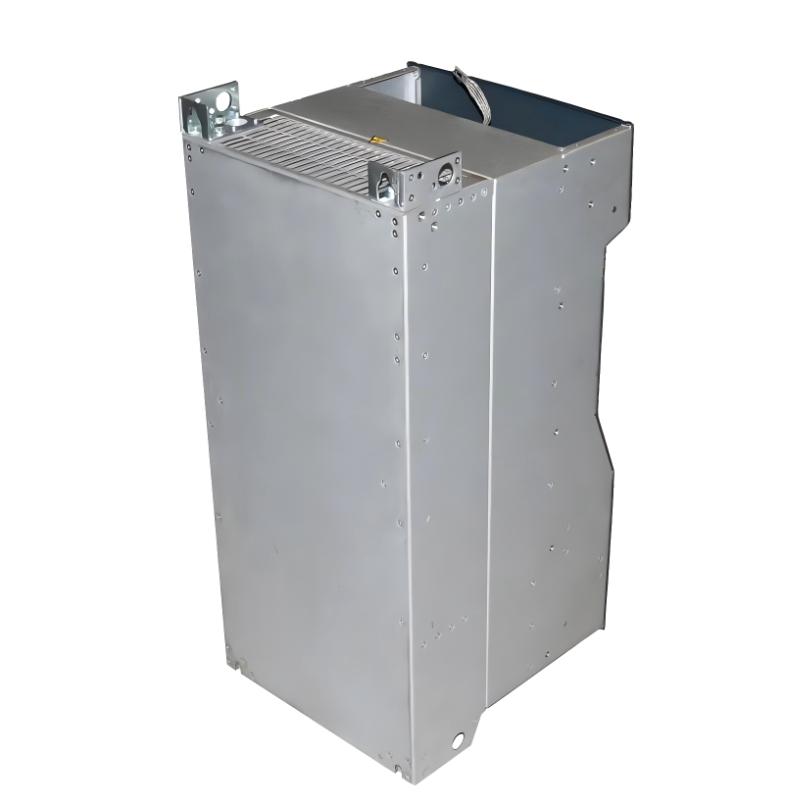

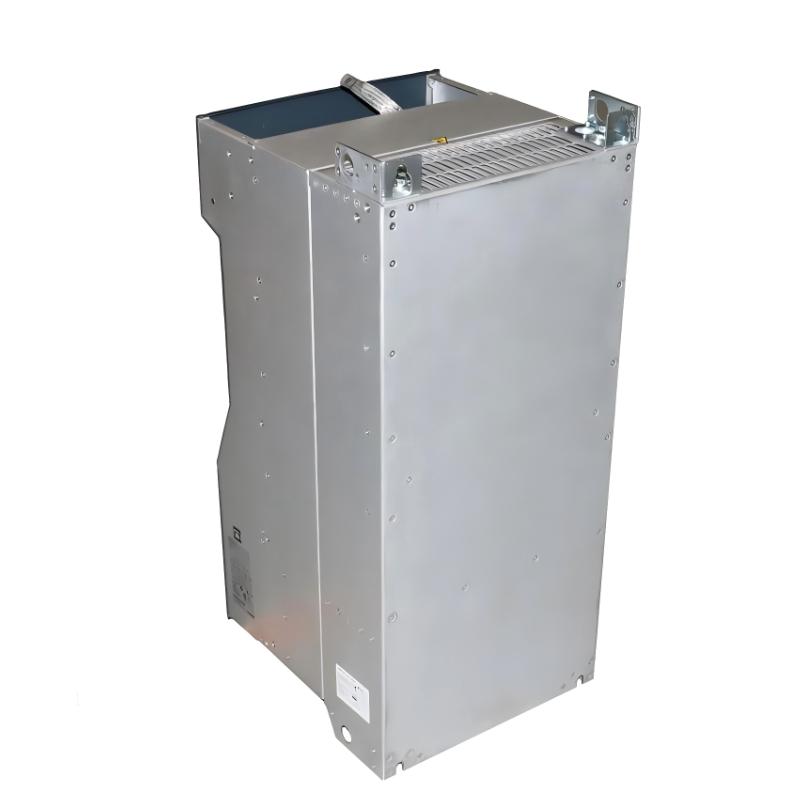

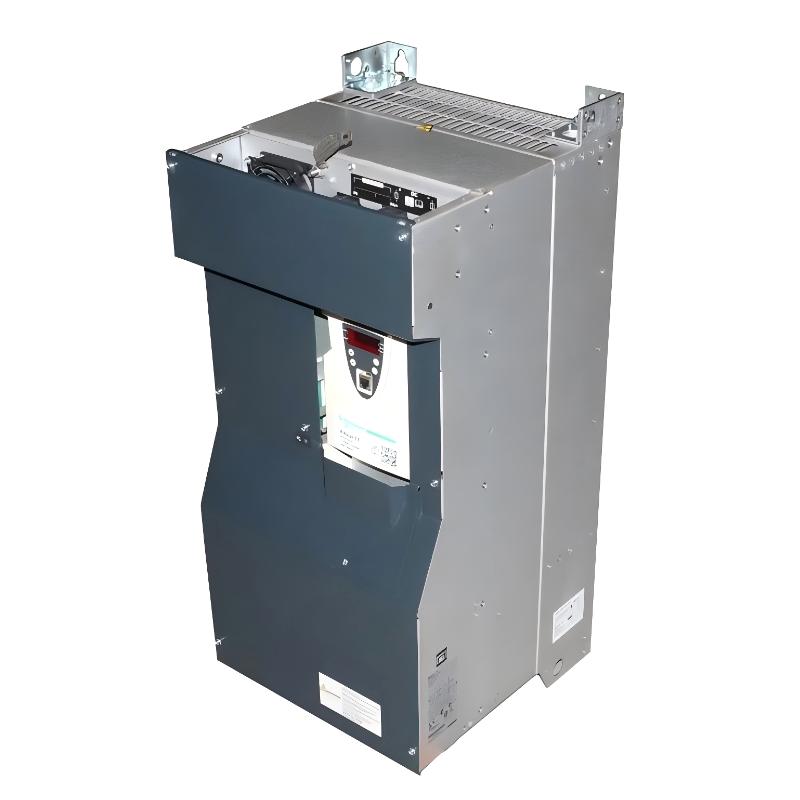

The Schneider ATV71HC11N4 Variable Speed Drive is a high-power industrial motor control solution from the Schneider Electric Altivar 71 series. Designed for demanding variable-speed applications, this drive provides controlled operation of three-phase AC motors used in industrial machinery, material handling systems, process equipment, pumps, fans, compressors, and other high-power applications.

Unlike a simple motor starter, a variable speed drive continuously manages the electrical conditions supplied to the motor, allowing the motor’s speed and torque to be controlled according to the requirements of the machine. This approach can improve process flexibility, reduce mechanical stress during starting and stopping, and help optimize motor operation.

The ATV71HC11N4 belongs to a high-power drive class and is suitable for installations where substantial motor power must be controlled reliably. Its large industrial enclosure reflects the power-handling requirements of the application. The listed dimensions are 1022 × 360 × 377 mm, with a weight of 106 kg.

Because of its size and weight, installation of the ATV71HC11N4 requires careful mechanical planning, appropriate cabinet construction, adequate ventilation, and suitable lifting and handling procedures. It is particularly appropriate for fixed industrial installations rather than compact machine-control cabinets.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV71HC11N4
Product Series	Altivar 71
Product Type	Variable Speed Drive / Variable Frequency Drive
Motor Control	Adjustable AC Motor Speed and Torque Control
Motor Type	Three-Phase AC Motors
Application Class	High-Power Industrial Motor Control
Dimensions	1022 × 360 × 377 mm
Weight	106 kg
Installation	Industrial Cabinet / Fixed Equipment Installation
Typical Applications	Pumps, Fans, Conveyors, Compressors, Material Handling and Process Machinery

Electrical ratings and detailed configuration parameters should be verified against the exact drive nameplate, hardware revision, and application requirements.

---

What Is the Schneider ATV71HC11N4?

The Schneider ATV71HC11N4 is a high-power Altivar 71 Variable Speed Drive designed to control the speed and torque of an industrial AC motor.

The drive is positioned between the electrical power supply and the motor. It converts and regulates the supplied electrical energy so that the motor can operate at a controlled speed rather than being limited to the fixed frequency of the incoming supply.

A typical installation can be represented as:

Industrial Power Supply → Protection Equipment → ATV71HC11N4 → AC Motor → Mechanical Load

The drive can receive commands from a local control interface or from an external automation system.

In an automated plant, a PLC may determine the required operating speed based on sensor information. The ATV71HC11N4 then executes the motor-control command while monitoring the motor-drive operating condition.

This arrangement allows the drive to become an important interface between industrial automation logic and high-power mechanical equipment.

---

High-Power Motor Control

The ATV71HC11N4 is designed for applications where motor power and mechanical load are significantly higher than those found in small machine-control systems.

High-power motors are commonly used for:

• Large conveyors
• Industrial pumps
• Ventilation systems
• Compressors
• Material handling equipment
• Processing machinery
• Production lines
• Heavy industrial equipment

In these applications, direct-on-line motor starting can produce substantial starting current and mechanical shock.

A properly configured variable speed drive can instead provide a controlled acceleration profile.

This can help reduce sudden mechanical forces on:

• Shafts
• Couplings
• Gearboxes
• Belts
• Bearings
• Pump assemblies
• Conveyor mechanisms

Controlled deceleration can provide similar benefits when machinery needs to stop smoothly.

---

Working Principle

The ATV71HC11N4 operates through a power-electronic conversion process.

Input Power Conversion

The incoming AC power is converted into an intermediate DC electrical supply through the drive’s power-conversion section.

DC-Link Processing

The DC link provides the energy source required by the inverter stage. Internal control and protection functions supervise the electrical conditions during operation.

Inverter Operation

The inverter uses controlled semiconductor switching to generate an adjustable electrical output for the motor.

By modifying output frequency and voltage, the drive can influence motor speed and torque.

Motor Regulation

The drive’s control system continuously manages the motor according to configured parameters and commands.

Depending on the selected application and control strategy, this allows the motor to accelerate, maintain a selected speed, change operating speed, and decelerate under controlled conditions.

---

Speed and Torque Regulation

Industrial machinery rarely operates under exactly the same load conditions throughout an entire production cycle.

For example, a conveyor may be empty during one operating period and heavily loaded during another. A pump may require different flow rates depending on process demand.

A variable speed drive provides a way to adapt motor operation to these changing requirements.

The ATV71HC11N4 can therefore contribute to:

• Adjustable operating speed
• Controlled acceleration
• Controlled deceleration
• Improved process flexibility
• Controlled motor torque
• Reduced mechanical shock
• More stable machine operation

The exact control mode should be selected according to the motor characteristics and mechanical load.

---

Role in Industrial Automation

The ATV71HC11N4 can serve as the motor-control layer of a larger industrial automation architecture.

A typical control structure is:

Sensors → PLC / Controller → ATV71HC11N4 → Motor → Mechanical Process

Sensors monitor variables such as:

• Pressure
• Flow
• Temperature
• Level
• Position
• Speed
• Production rate

The controller evaluates these signals and determines the required motor operating point.

The ATV71HC11N4 then converts the control command into the appropriate motor behavior.

This architecture allows process control and power control to work together without requiring the PLC to directly manage the high-power motor switching process.

---

Industrial Applications

Large Pumping Systems

Industrial pumping systems often need variable flow or pressure.

A variable speed drive can regulate pump motor speed according to the required process condition.

Applications may include:

• Water processing
• Industrial utilities
• Cooling systems
• Process circulation
• Chemical processing
• Manufacturing facilities

Large Conveyor Systems

Conveyor systems can require controlled acceleration and adjustable operating speeds.

The ATV71HC11N4 can help coordinate motor speed with production requirements while reducing mechanical stress during startup.

Industrial Fans

Large ventilation and air-handling systems can use variable speed control to adjust airflow.

The drive can therefore help match fan operation to changing ventilation requirements.

Compressors

Industrial compressors can require controlled motor operation during starting, running, and stopping.

Drive-based control can be integrated with process instrumentation and supervisory control systems.

Material Handling

Heavy material-handling machinery often requires smooth acceleration and deceleration because of high mechanical inertia.

Controlled motor operation can reduce sudden load changes throughout the mechanical system.

Manufacturing Equipment

High-power production equipment can use the drive as part of a coordinated automation system involving PLCs, sensors, HMIs, and supervisory software.

---

PLC Integration

A PLC can control the ATV71HC11N4 as part of an automated machine or process.

Depending on the system architecture, the PLC may issue:

• Start commands
• Stop commands
• Speed references
• Direction commands
• Enable commands
• Fault reset commands
• Operating mode selections

The drive can also provide status information to the PLC.

Typical drive information used by a controller may include:

• Ready status
• Running status
• Fault status
• Warning condition
• Operating state
• Speed information
• Diagnostic information

The exact communication method depends on the installed hardware and configured system architecture.

---

HMI and SCADA Integration

In a modern industrial plant, operators may need to monitor several high-power drives from a central interface.

The ATV71HC11N4 can be incorporated into a supervisory control architecture in which an HMI or SCADA system provides information about drive operation.

An operator interface may display:

• Drive running status
• Motor operating condition
• Speed reference
• Actual operating information
• Alarm states
• Fault information
• Maintenance-related information

Centralized monitoring can make it easier for maintenance personnel to identify abnormal operating conditions before they develop into major equipment problems.

---

Installation Guidelines

Because the ATV71HC11N4 weighs 106 kg and has listed dimensions of 1022 × 360 × 377 mm, installation requires substantially more planning than a small variable speed drive.

Before installation, engineers should verify:

• Cabinet dimensions
• Mounting structure
• Drive orientation
• Lifting method
• Cable entry arrangement
• Ventilation
• Electrical clearances
• Power distribution equipment
• Motor cable routing
• Grounding
• Environmental conditions

The supporting structure must be capable of safely carrying the drive’s weight.

Personnel should use suitable mechanical handling equipment when positioning the unit.

---

Cabinet Design and Thermal Management

High-power variable speed drives generate significant heat during operation.

Cabinet design should therefore provide adequate heat dissipation and airflow.

Important considerations include:

Ventilation

The cabinet should provide sufficient airflow to prevent excessive internal temperature.

Heat Distribution

Other heat-producing components should be positioned so that their thermal output does not unnecessarily increase the drive’s operating temperature.

Clearance

Adequate space should be maintained around the drive according to the applicable installation requirements.

Dust and Contamination

Industrial dust can accumulate on cooling surfaces and reduce thermal performance.

Environmental Protection

The installation should be protected from excessive moisture, corrosive substances, conductive dust, and other environmental contaminants.

---

Power and Motor Wiring

The general electrical architecture is:

Incoming AC Supply → Protection → ATV71HC11N4 → Motor

The exact protection equipment must be selected according to the complete installation.

Before energizing the system, technicians should inspect:

• Incoming power connections
• Motor connections
• Ground connections
• Cable insulation
• Terminal tightness
• Protective devices
• Control wiring
• Interlock circuits

Motor cables should be appropriately sized for the application, installation method, motor characteristics, cable length, and applicable electrical requirements.

---

EMC and Cable Management

High-power variable speed drives use fast switching of power semiconductor devices. As a result, electrical noise and electromagnetic interference must be considered during system design.

Good installation practices include:

• Separating control and power cables
• Routing motor cables carefully
• Using suitable shielded cables where required
• Providing effective grounding
• Avoiding unnecessary cable loops
• Keeping sensitive signal wiring away from high-power conductors
• Following the applicable EMC installation practices

Communication cables should also be protected from excessive electromagnetic interference.

A carefully designed cabinet layout can improve both drive reliability and communication stability.

---

Commissioning Procedure

Commissioning the ATV71HC11N4 should be performed systematically.

Step 1: Mechanical Inspection

Confirm that the drive is securely mounted and that the cabinet structure can support its 106 kg weight.

Step 2: Electrical Inspection

Check incoming power wiring, motor wiring, grounding, protection equipment, and control circuits.

Step 3: Motor Verification

Compare the motor nameplate information with the intended drive configuration.

Step 4: Parameter Configuration

Enter the applicable motor and application parameters.

Step 5: Control Configuration

Configure the source of the start command and speed reference.

Step 6: Initial Test

Perform a controlled initial motor test.

Verify motor rotation direction before applying full operating conditions.

Step 7: Load Test

Gradually introduce the mechanical load and monitor drive and motor behavior.

Step 8: Automation Test

Verify PLC, HMI, communication, interlocks, alarms, and emergency stop functions.

Step 9: Final Verification

Confirm that the complete system operates correctly under normal production conditions.

---

Troubleshooting the ATV71HC11N4

Troubleshooting should begin with the complete system rather than assuming that every abnormal condition is caused by the drive.

Drive Does Not Start

Check:

• Incoming power
• Control command
• Enable condition
• Active faults
• External interlocks
• Speed reference
• Motor configuration

The controller should first be checked to determine whether a valid start command is reaching the drive.

Motor Does Not Run

If the drive indicates an operating command but the motor does not rotate, inspect:

• Motor cable
• Motor terminals
• Motor condition
• Mechanical coupling
• Drive output
• Operating command
• Mechanical load

Motor Speed Is Incorrect

Potential causes include:

• Incorrect speed reference
• Parameter configuration
• PLC scaling
• Communication configuration
• Motor data
• Application settings

The complete control signal chain should be checked.

Drive Trips Under Load

A trip occurring when the machine reaches its operating load may indicate:

• Excessive mechanical load
• Acceleration configuration
• Motor problems
• Power supply conditions
• Mechanical obstruction
• Application configuration problems

Repeatedly resetting the drive without identifying the root cause should be avoided.

Drive or Motor Overheating

Check:

• Cabinet ventilation
• Cooling airflow
• Ambient temperature
• Motor load
• Motor condition
• Drive installation
• Dust accumulation

Thermal problems should be investigated before returning the system to continuous operation.

---

Preventive Maintenance

Regular maintenance is particularly important for high-power drives.

Recommended maintenance activities include:

Cooling Inspection

Check cooling paths and ventilation equipment for blockage or abnormal operation.

Cabinet Cleaning

Remove accumulated dust and contamination using appropriate maintenance procedures.

Terminal Inspection

Inspect electrical connections for looseness, discoloration, or signs of overheating.

Cable Inspection

Check power, motor, control, and communication cables for physical damage.

Fault History Review

Review recorded faults and warnings where available.

Recurring faults can reveal developing electrical, mechanical, or environmental problems.

Motor Inspection

The motor and mechanical load should be inspected together with the drive.

A drive cannot compensate for mechanical problems such as seized bearings, excessive friction, or damaged couplings.

---

Replacement and Spare-Part Planning

The ATV71HC11N4 is a large industrial drive, so replacement planning should include both electrical and mechanical considerations.

The replacement process should verify:

• Complete model number
• Product family
• Hardware revision
• Motor rating
• Supply requirements
• Control architecture
• Communication requirements
• Cabinet dimensions
• Mounting arrangement
• Cable configuration
• Environmental conditions

The listed physical dimensions are 1022 × 360 × 377 mm, and the listed weight is 106 kg.

These values should be considered when planning transportation, warehouse storage, cabinet installation, and replacement operations.

Physical dimensions alone should never be used to determine electrical compatibility.

---

Compatible System Components

The ATV71HC11N4 can be incorporated into a larger industrial control system containing components such as:

Component	Typical Function
Three-Phase AC Motor	Provides mechanical power
PLC Controller	Executes process and machine logic
HMI	Operator control and monitoring
SCADA System	Supervisory monitoring
Circuit Protection	Protects electrical circuits
Motor Protection Equipment	Supports motor protection
Sensors	Measures process variables
Encoder / Feedback Device	Provides speed or position feedback where required
Industrial Network	Transfers control and diagnostic information
Braking Equipment	Supports controlled deceleration where required
Contactors / Disconnects	Provides switching and isolation functions
Cooling System	Removes cabinet and drive heat

The exact combination should be determined by the machine or process design.

---

Recommended Related Schneider Electric Models

Model	Product Family	General Application
ATV71H075N4Z	Altivar 71	Compact variable-speed motor control
ATV71HU15N4	Altivar 71	Medium-power industrial motor control
ATV71HU22N4	Altivar 71	Industrial variable-speed applications
ATV71HC11N4	Altivar 71	High-power motor control
ATV630D90N4	Altivar Process ATV600	Process-oriented motor control
ATV650D90N4	Altivar Process ATV600	High-power process applications
ATV650D110N4	Altivar Process ATV600	Large industrial process equipment

These models belong to Schneider Electric variable-speed drive families, but they should not be considered direct replacements without checking the complete electrical, mechanical, control, and application requirements.

---

Engineering Best Practices

For a large variable speed drive such as the ATV71HC11N4, system-level engineering is essential.

Match the Drive to the Motor

The motor’s electrical characteristics, operating range, load profile, and starting requirements should be evaluated before commissioning.

Evaluate the Mechanical Load

Motor sizing should consider acceleration torque, continuous load, peak load, inertia, and braking requirements.

Plan the Cabinet Before Installation

The 1022 × 360 × 377 mm dimensions should be included in the mechanical cabinet design from the beginning.

Plan Handling Procedures

Because the listed weight is 106 kg, appropriate lifting and positioning procedures should be established before installation.

Consider Thermal Performance

The cabinet’s cooling design should account for heat produced by the drive and all neighboring equipment.

Protect the Drive Environment

Dust, moisture, corrosive chemicals, and excessive heat can reduce equipment reliability.

Document Parameters

Motor and application settings should be documented so that maintenance personnel can reproduce the configuration if replacement becomes necessary.

---

Key Advantages

The Schneider ATV71HC11N4 Variable Speed Drive offers several important characteristics for demanding industrial applications:

• High-power industrial motor-control capability
• Altivar 71 platform
• Adjustable AC motor speed control
• Controlled acceleration and deceleration
• Torque management for demanding mechanical loads
• Suitable for PLC-based automation
• Integration potential with HMI and SCADA systems
• Appropriate for large industrial machinery
• Robust cabinet-based installation format
• Listed dimensions of 1022 × 360 × 377 mm
• Listed weight of 106 kg
• Suitable for centralized industrial motor-control architectures

---

Technical FAQs

What is the Schneider ATV71HC11N4?

The Schneider ATV71HC11N4 is a high-power Variable Speed Drive from the Altivar 71 series, designed to control industrial AC motors.

What is the primary purpose of the ATV71HC11N4?

Its primary purpose is to regulate motor speed and torque according to the requirements of an industrial machine or process.

What are the dimensions of the ATV71HC11N4?

The listed dimensions are 1022 × 360 × 377 mm.

How much does the ATV71HC11N4 weigh?

The listed weight is 106 kg.

Where can the ATV71HC11N4 be used?

It can be used in high-power industrial applications such as large pumps, fans, conveyors, compressors, material-handling systems, and process machinery.

Can the ATV71HC11N4 be controlled by a PLC?

Yes. The drive can be incorporated into a PLC-based automation architecture. The exact control and communication configuration depends on the installed system.

Why is thermal management important?

High-power drives generate heat during operation. Insufficient ventilation or excessive cabinet temperature can negatively affect reliability and service life.

What should be checked before replacing an ATV71HC11N4?

The complete model designation, motor characteristics, electrical supply, control architecture, cabinet arrangement, communication requirements, and installation conditions should be verified.

Can a smaller Altivar drive directly replace the ATV71HC11N4?

Not automatically. A smaller drive may have different electrical ratings, control capabilities, mechanical dimensions, and application characteristics. Replacement compatibility must be confirmed for the complete system.

Is the 106 kg weight important for installation planning?

Yes. A listed weight of 106 kg requires appropriate cabinet support, transportation, lifting, and installation procedures.

---

Conclusion

The Schneider ATV71HC11N4 Variable Speed Drive is a high-power industrial motor-control solution from the Altivar 71 family. It is designed for applications where reliable variable-speed operation, controlled acceleration and deceleration, and integration with industrial automation systems are important.

With listed dimensions of 1022 × 360 × 377 mm and a weight of 106 kg, the ATV71HC11N4 requires careful mechanical, electrical, and thermal planning. Its large physical format is appropriate for fixed industrial installations involving substantial motor and mechanical loads.

The drive can operate as part of a complete automation architecture involving PLC controllers, HMIs, SCADA systems, sensors, motor protection equipment, communication networks, and mechanical process equipment.

For reliable operation, engineers should pay particular attention to motor compatibility, cabinet ventilation, power and motor wiring, EMC practices, parameter configuration, commissioning, and preventive maintenance. During replacement, the complete ATV71HC11N4 model designation and system requirements should be verified rather than relying only on physical dimensions.

For demanding industrial motor-control applications, the Schneider ATV71HC11N4 provides a scalable variable-speed control platform capable of connecting high-power motor operation with modern industrial automation and process-control requirements.
