Product Overview

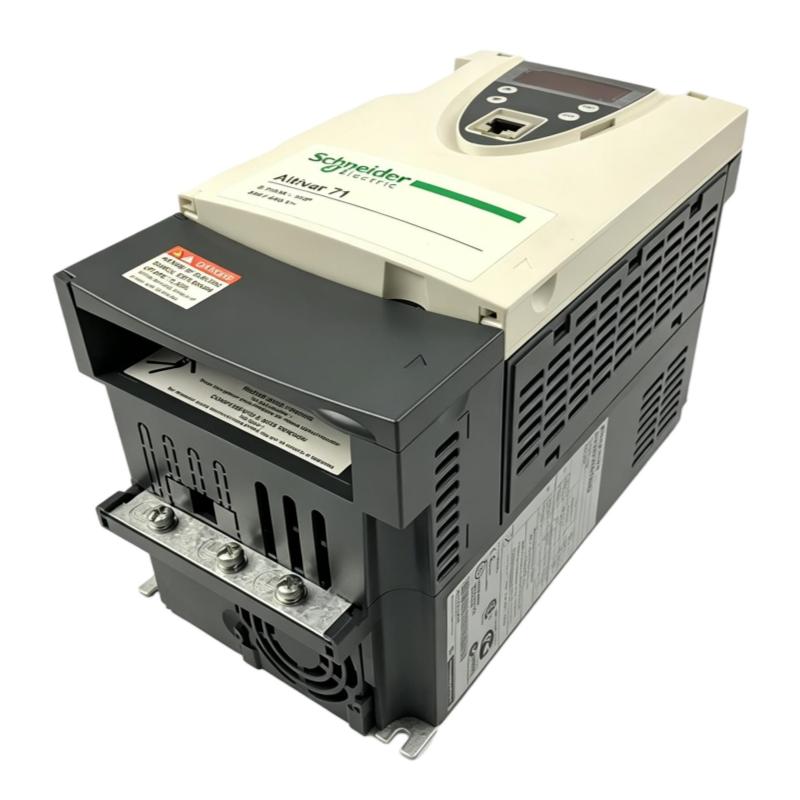

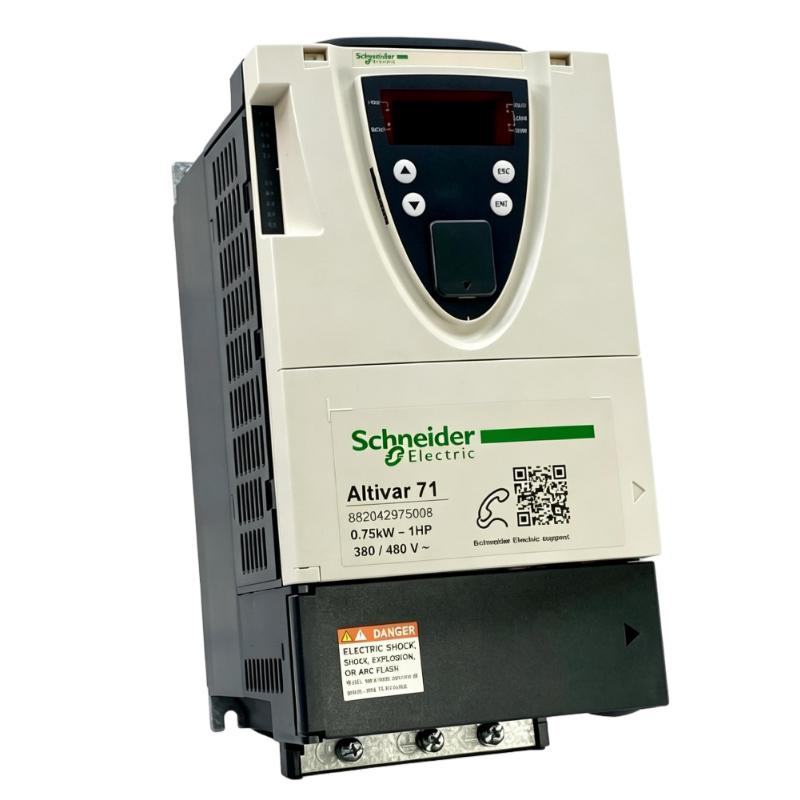

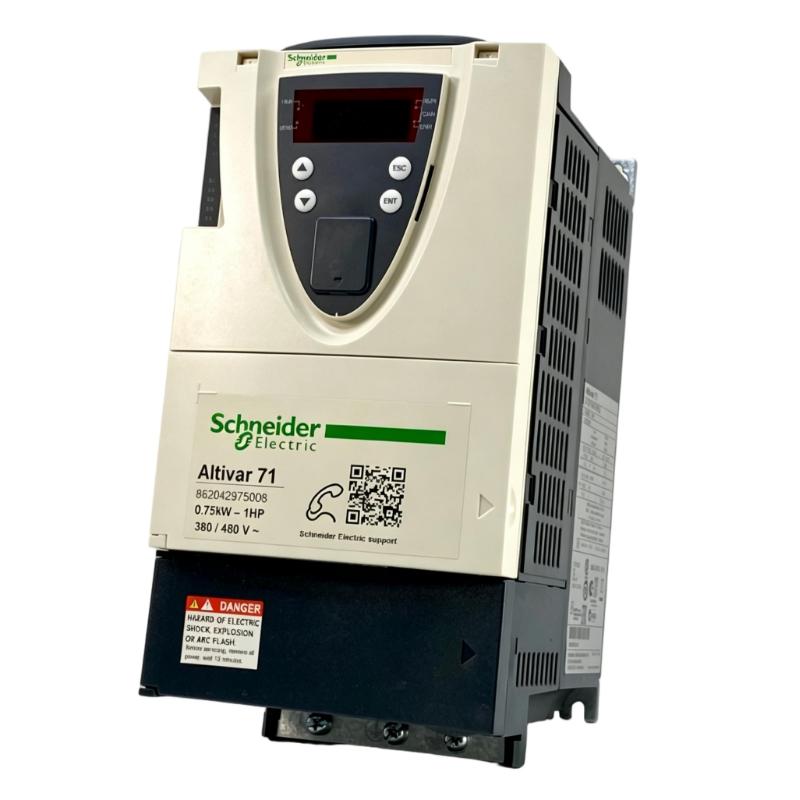

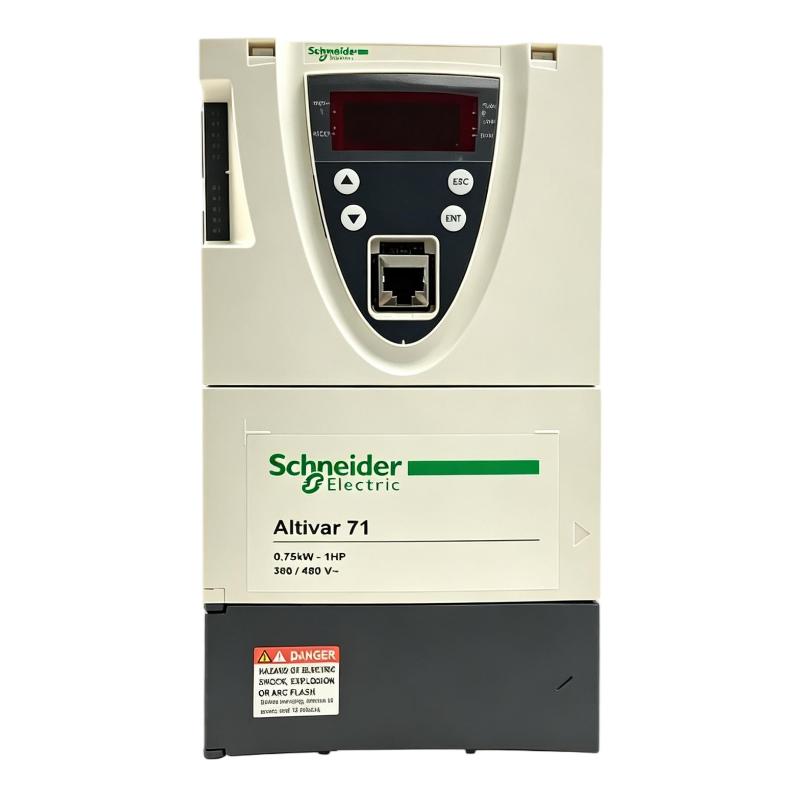

The Schneider ATV71H075N4Z Variable Speed Drive is an industrial motor control device designed to provide adjustable speed and torque control for three-phase AC motors. As part of the Schneider Electric Altivar 71 family, the ATV71H075N4Z is intended for demanding variable-speed applications where accurate motor regulation, controlled acceleration and deceleration, and reliable process operation are required.

The ATV71 series is designed for applications that require more than basic frequency conversion. A variable speed drive can regulate motor speed according to process requirements, allowing machinery to operate at an appropriate operating point rather than continuously running at a fixed speed. This can improve process control, reduce mechanical stress, and contribute to more efficient equipment operation.

The ATV71H075N4Z belongs to the 0.75 kW motor power class and is associated with a three-phase industrial power architecture. Its compact physical dimensions of 230 × 175 × 130 mm and weight of 3 kg make it suitable for control cabinets and machine installations where available space must be carefully managed.

The drive can be incorporated into industrial automation systems together with PLC controllers, HMIs, sensors, contactors, circuit protection devices, motor protection equipment, and industrial communication networks. The exact configuration should always be matched to the motor nameplate, application requirements, installation environment, and specific drive revision.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV71H075N4Z
Product Series	Altivar 71
Product Type	Variable Speed Drive / Variable Frequency Drive
Motor Power Class	0.75 kW
Application	Industrial AC Motor Speed Control
Motor Type	Three-Phase AC Motors
Control Function	Variable Speed and Torque Regulation
Dimensions	230 × 175 × 130 mm
Weight	3 kg
Installation	Electrical Control Cabinet / Machine Installation
Typical Applications	Pumps, Fans, Conveyors, Machine Tools, Material Handling and Industrial Machinery

---

What Is the Schneider ATV71H075N4Z?

The Schneider ATV71H075N4Z is a compact variable speed drive used to control the operating speed and torque of an AC motor.

Instead of supplying a motor directly from a fixed-frequency electrical source, the drive processes the incoming electrical power and produces an adjustable motor output. By controlling the electrical frequency and voltage delivered to the motor, the drive can regulate motor speed according to the requirements of the machine or process.

This makes a VSD particularly useful when the motor does not need to operate continuously at its maximum speed.

A simplified system can be represented as:

AC Power Supply → ATV71H075N4Z → AC Motor → Mechanical Load

The drive can receive commands from local control interfaces or an external automation system. Depending on the installation, a PLC can provide start/stop commands, speed references, operating modes, and process-related control instructions.

---

Working Principle of the ATV71H075N4Z

A variable speed drive fundamentally controls motor operation by regulating the electrical conditions supplied to the motor.

The general operating sequence consists of several stages.

AC Power Conversion

The drive receives electrical power from the industrial supply and converts it into a controlled electrical output suitable for motor operation.

DC-Link Energy Processing

Inside the drive, the incoming electrical energy passes through a power-conversion stage that establishes the intermediate DC energy required by the inverter section.

Inverter Switching

Power semiconductor switching devices then reconstruct the motor supply with controlled frequency and voltage characteristics.

By adjusting the output frequency, the drive can control the rotational speed of the connected motor.

Motor Speed Regulation

The control system continuously evaluates the selected operating parameters and adjusts the output accordingly. This allows the motor to accelerate smoothly, maintain the requested operating speed, and decelerate according to the configured control strategy.

Torque Management

For applications involving changing mechanical loads, torque control is also important. The Altivar 71 platform is designed for applications where controlled motor torque and dynamic response are required.

The actual control mode and available functions depend on the configured application parameters and motor characteristics.

---

Motor Speed Control and Process Optimization

One of the main advantages of the ATV71H075N4Z is the ability to match motor speed to actual process demand.

A motor operating continuously at full speed may consume more energy than necessary when the mechanical load varies. A variable speed drive allows the motor to operate closer to the required process point.

For example, a ventilation system may require different airflow levels during different production stages. Instead of switching a motor fully on or off, the drive can regulate its speed.

Similarly, conveyors may require different speeds depending on material flow, while pumps may need adjustable flow according to process conditions.

Variable-speed control can therefore provide:

• Adjustable motor speed
• Controlled acceleration
• Controlled deceleration
• Reduced mechanical shock
• Improved process stability
• Better matching between motor output and process demand
• More flexible machine operation

---

Role in Industrial Automation

The ATV71H075N4Z can function as an important motor-control layer within a larger automation architecture.

A typical system may include:

PLC → Control Command → ATV71H075N4Z → Motor → Mechanical Equipment

Sensors provide process feedback to the PLC or control system. The controller evaluates this information and determines the appropriate motor operating command.

The drive then converts the command into motor speed or torque behavior.

This architecture separates process logic from motor power control. The PLC can concentrate on sequencing and process decisions while the VSD performs the detailed motor-control functions.

This arrangement is commonly used in:

• Automated production machinery
• Conveyors
• Pumping systems
• Fans
• Material handling systems
• Packaging equipment
• Machine tools
• Process machinery

---

PLC Integration

The ATV71H075N4Z can be integrated into automation systems where a PLC supervises motor operation.

The PLC may provide commands such as:

• Start
• Stop
• Forward
• Reverse
• Speed reference
• Operating mode selection
• Fault reset
• Enable or inhibit commands

The drive can also provide operating information back to the control system depending on the selected interface and system architecture.

Typical information exchanged between a drive and PLC can include:

• Drive running status
• Operating speed
• Fault condition
• Drive readiness
• Motor operating information
• Alarm or warning status
• Control-state information

The actual communication method should be selected according to the installed communication hardware and project requirements.

---

HMI and SCADA Integration

The ATV71H075N4Z can also form part of an HMI or SCADA-based motor management system.

An operator interface may be used to display:

• Motor running status
• Drive status
• Speed reference
• Actual operating information
• Fault conditions
• Alarm states
• Maintenance information

For larger industrial installations, multiple drives may be monitored from a centralized SCADA platform.

This provides operators with a more complete view of machine and process performance.

When the drive is connected to an industrial communication network, engineers should configure communication parameters carefully and verify that the PLC, HMI, drive, and network architecture use compatible settings.

---

Industrial Applications

Conveyor Systems

The ATV71H075N4Z can be used in conveyor applications where controlled starting and adjustable running speed are required.

Gradual acceleration can help reduce mechanical shock to belts, couplings, gearboxes, and transported products.

Pumps

Variable speed control can be useful for pump systems where flow requirements change over time.

The drive can allow pump speed to be adjusted rather than relying exclusively on mechanical throttling.

Industrial Fans

Fans frequently operate under changing airflow requirements. Speed control can help match fan operation to the actual ventilation requirement.

Material Handling

Material-handling equipment may require different operating speeds depending on product type, production stage, or line configuration.

Packaging Machinery

Packaging systems often require controlled motor movement and repeatable speed profiles. A VSD can contribute to stable motor operation within the machine sequence.

Machine Tools

Industrial machine tools can require controlled motor speed during different operating stages. The drive can provide adjustable motor operation appropriate to the machine’s control architecture.

General Manufacturing

The ATV71H075N4Z can be incorporated into a variety of industrial machines where adjustable AC motor control is required.

---

Installation Guidelines

Correct installation is essential for reliable VSD operation.

Before installation, engineers should verify:

• Drive model
• Motor rating
• Motor nameplate information
• Supply characteristics
• Environmental conditions
• Cabinet dimensions
• Cable requirements
• Grounding arrangement
• Required control interfaces
• Protection equipment

The drive should be mounted according to the applicable installation requirements for the Altivar 71 platform.

The supplied dimensions of the ATV71H075N4Z are 230 × 175 × 130 mm, while the listed weight is 3 kg. These values should be considered during cabinet layout and mechanical installation planning.

---

Cabinet Installation and Thermal Management

Variable speed drives generate heat during operation. Proper cabinet ventilation is therefore important.

The control cabinet should provide adequate airflow around the drive and should prevent excessive heat accumulation.

Installation planning should consider:

• Cabinet ventilation
• Ambient temperature
• Heat generated by neighboring equipment
• Clearance around ventilation areas
• Dust accumulation
• Humidity
• Vibration
• Electrical interference

High-power switching devices, contactors, transformers, and other heat-producing components should be positioned carefully to avoid unnecessary thermal loading of the VSD.

The drive should also be protected from excessive dust, moisture, conductive contamination, and corrosive environments.

---

Power and Motor Wiring

Power wiring should be designed according to the drive installation requirements and applicable electrical regulations.

The general power architecture is:

Incoming Supply → Protection Equipment → ATV71H075N4Z → Motor

Appropriate protective equipment should be selected according to the complete installation rather than based only on the drive model.

Motor cables should be correctly sized for the motor current, cable length, installation environment, and applicable electrical standards.

Before energizing the system, technicians should verify:

• Power connections
• Motor connections
• Ground connections
• Terminal tightness
• Cable insulation
• Correct phase connections
• Protective-device configuration

Never assume that a drive can be safely commissioned simply because the physical wiring appears correct.

---

EMC and Cable Routing

Variable speed drives use high-frequency switching techniques that can produce electrical interference.

Good EMC practices include:

• Separating power and control cables
• Using appropriate shielded motor cables where required
• Maintaining proper cable routing
• Avoiding unnecessary parallel runs between sensitive signal cables and motor cables
• Providing suitable grounding
• Minimizing cable loops
• Ensuring cable shields are terminated correctly for the installation

Communication cables should also be routed away from high-power switching conductors whenever practical.

A well-designed cabinet layout can significantly improve communication reliability and reduce nuisance interference.

---

Motor Configuration and Commissioning

Before starting the motor, the drive should be configured using the actual motor nameplate information.

Important motor information may include:

• Rated motor power
• Rated voltage
• Rated current
• Rated frequency
• Rated speed
• Motor connection arrangement
• Application load characteristics

The drive’s control parameters should then be configured according to the application.

A typical commissioning procedure includes:

Step 1: Visual Inspection

Check the drive, wiring, connectors, cabinet, and motor for visible installation problems.

Step 2: Verify Power Wiring

Confirm that the incoming supply and protective devices are correctly connected.

Step 3: Verify Motor Wiring

Check the motor cable and motor terminal configuration.

Step 4: Enter Motor Data

Enter the appropriate motor nameplate information into the drive.

Step 5: Configure Control Mode

Select the control strategy appropriate to the motor and application.

Step 6: Configure Speed Reference

Determine whether the speed reference will come from the local interface, analog signal, communication network, or another control source.

Step 7: Test at Low Speed

Perform an initial controlled motor test and verify the direction of rotation.

Step 8: Check Operating Response

Gradually increase the operating command and verify motor response.

Step 9: Verify Fault Handling

Confirm that stop commands, alarms, interlocks, and fault-reset functions operate correctly.

---

Troubleshooting the ATV71H075N4Z

A variable speed drive fault should be investigated as part of the complete electrical and mechanical system.

Drive Does Not Start

Possible causes include:

• Missing control command
• Incorrect control mode
• Motor configuration error
• Active fault
• External interlock
• Incorrect wiring
• Missing enable signal
• Incorrect speed reference

The first step should be to determine whether the drive is receiving the intended start command.

Motor Does Not Rotate

If the drive indicates a running condition but the motor does not rotate, inspect:

• Motor wiring
• Motor condition
• Mechanical coupling
• Speed reference
• Motor configuration
• Drive output condition
• External machine interlocks

Motor Runs at Incorrect Speed

An incorrect speed can be caused by:

• Incorrect speed reference
• Incorrect scaling
• Configuration errors
• Communication settings
• Incorrect motor parameters
• External control-system programming

The control signal should be checked from its source through to the drive.

Drive Trips During Acceleration

Acceleration-related faults may be associated with:

• Excessive mechanical load
• Acceleration settings
• Motor configuration
• Supply conditions
• Mechanical problems
• Inappropriate application settings

The machine should be inspected rather than repeatedly resetting the drive without determining the cause.

Excessive Motor Heating

Possible causes include:

• Excessive load
• Poor ventilation
• Incorrect motor parameters
• Low-speed operation for extended periods
• Motor mechanical problems
• Inappropriate operating conditions

Both the motor and VSD should be evaluated.

---

Preventive Maintenance

Preventive maintenance can improve system availability and reduce unexpected failures.

Recommended maintenance activities include:

Visual Inspection

Inspect the drive and cabinet for dust, contamination, loose components, discoloration, and signs of overheating.

Cooling System Inspection

Verify that airflow paths remain clear and that cooling components are operating correctly.

Terminal Inspection

Check electrical terminals for looseness, overheating, or signs of corrosion.

Cable Inspection

Inspect motor and control cables for physical damage and deterioration.

Environmental Inspection

Verify that the cabinet environment remains within the required operating conditions.

Fault History Review

Where diagnostic information is available, review previous alarms and faults to identify recurring problems.

Repeated faults should be investigated rather than simply cleared.

---

Replacement and Spare-Part Planning

When replacing an ATV71H075N4Z, the complete model number should be checked carefully.

Important identification information includes:

• Full model designation
• Product series
• Power rating
• Hardware revision
• Installation configuration
• Communication requirements
• Existing control architecture
• Motor specifications

The physical dimensions of 230 × 175 × 130 mm and weight of 3 kg are useful for inventory and cabinet planning, but physical size alone is not sufficient to establish electrical compatibility.

A replacement drive should be evaluated against the motor, supply, control method, application requirements, and existing automation system.

---

Compatible System Components

The ATV71H075N4Z may be integrated into a complete automation system containing:

Component	Typical Function
Three-Phase AC Motor	Converts electrical energy into mechanical motion
PLC Controller	Executes machine and process control logic
HMI	Provides operator control and status display
SCADA System	Centralized monitoring and supervisory control
Circuit Breaker	Provides electrical protection
Motor Protection Equipment	Supports motor and circuit protection
Contactor	Provides switching or isolation where required
Sensors	Provide process and machine feedback
Encoder / Feedback Device	Provides motion or speed feedback where required
Communication Network	Transfers control and diagnostic information
Braking Components	Support controlled deceleration where required
Control Transformer / Power Supply	Supplies auxiliary control circuits

The exact combination depends on the application and system design.

---

Recommended Related Schneider Electric Models

Model	Product Family	General Application
ATV71H037N4	Altivar 71	Lower-power AC motor control
ATV71H075N4Z	Altivar 71	0.75 kW variable speed applications
ATV71HU15N4	Altivar 71	Higher-power motor speed control
ATV71HU22N4	Altivar 71	Industrial variable-speed applications
ATV630U07N4	Altivar Process ATV600	Process-oriented motor control
ATV630U15N4	Altivar Process ATV600	Pump and process applications
ATV650U07N4	Altivar Process ATV600	Compact process motor control
ATV650U15N4	Altivar Process ATV600	Process automation and variable-speed control

These models belong to related Schneider Electric drive families, but they should not be treated as direct replacements without checking the complete electrical and application requirements.

---

Engineering Considerations

Selecting and installing a variable speed drive requires consideration of the complete motor system rather than only the drive power rating.

Engineers should evaluate:

Motor Compatibility

The drive must be suitable for the connected motor and its operating characteristics.

Load Characteristics

A conveyor, pump, fan, compressor, and machine tool can have very different torque requirements. The control strategy should therefore match the mechanical load.

Starting Requirements

Some machines require rapid acceleration, while others benefit from a long controlled acceleration period.

Braking Requirements

Applications with high inertia or frequent deceleration may require additional braking considerations.

Communication Requirements

If the drive is part of a networked automation system, the communication architecture should be planned before installation.

Environmental Conditions

Temperature, humidity, dust, vibration, and electrical contamination can all influence drive reliability.

---

Key Advantages

The Schneider ATV71H075N4Z Variable Speed Drive provides several important benefits for industrial motor-control applications:

• Compact 230 × 175 × 130 mm construction
• Listed weight of 3 kg
• Designed for the 0.75 kW motor power class
• Adjustable AC motor speed control
• Controlled acceleration and deceleration
• Support for industrial automation architectures
• Suitable for PLC-based motor control
• Applicable to a wide range of industrial machinery
• Flexible integration into machine-control systems
• Useful for process optimization and motor management
• Compact design for cabinet-based installations

---

Technical FAQs

What is the Schneider ATV71H075N4Z?

The Schneider ATV71H075N4Z is a Variable Speed Drive from the Altivar 71 family, designed for adjustable control of industrial AC motors.

What motor power is associated with the ATV71H075N4Z?

The model is associated with the 0.75 kW motor power class.

What are the dimensions of the ATV71H075N4Z?

The listed dimensions are 230 × 175 × 130 mm.

How much does the ATV71H075N4Z weigh?

The listed weight is 3 kg.

What is the purpose of a variable speed drive?

A variable speed drive regulates motor speed and, depending on the configured control mode and application, motor torque. This allows machinery to operate according to process requirements instead of always running at a fixed speed.

Can the ATV71H075N4Z be connected to a PLC?

Yes, an Altivar 71 drive can form part of a PLC-controlled automation architecture. The exact control and communication method depends on the installed configuration and application design.

Where can the ATV71H075N4Z be used?

Typical applications include conveyors, pumps, fans, material-handling equipment, packaging machinery, machine tools, and general industrial equipment requiring adjustable AC motor control.

What should be checked before replacing the drive?

The complete model number, motor specifications, supply requirements, control architecture, communication requirements, installation conditions, and application characteristics should be checked before replacement.

Why is correct motor parameter configuration important?

Motor parameters directly influence how the drive controls the connected motor. Incorrect configuration can result in poor performance, excessive current, unstable operation, or fault conditions.

Can the physical dimensions alone confirm compatibility?

No. Although the 230 × 175 × 130 mm dimensions and 3 kg weight are useful for mechanical planning, electrical and functional compatibility must also be verified.

---

Conclusion

The Schneider ATV71H075N4Z Variable Speed Drive is a compact industrial motor-control solution designed for applications requiring adjustable AC motor speed and controlled operating performance. Associated with the 0.75 kW power class, the drive can be incorporated into machinery and automation systems where controlled acceleration, deceleration, speed regulation, and process flexibility are important.

With listed dimensions of 230 × 175 × 130 mm and a weight of 3 kg, the ATV71H075N4Z offers a compact form factor suitable for cabinet-based industrial installations. Its role can extend from standalone motor control to integration with PLC, HMI, SCADA, sensor, and industrial communication architectures.

For installation, commissioning, troubleshooting, or replacement, engineers should evaluate the complete motor-control system rather than relying only on the product designation. Correct motor parameters, suitable wiring, appropriate protection, proper thermal management, and carefully configured control signals are essential for reliable operation.

The ATV71H075N4Z is therefore a practical choice for compact variable-speed applications where reliable motor regulation and integration into an industrial automation environment are required.
