Product Overview

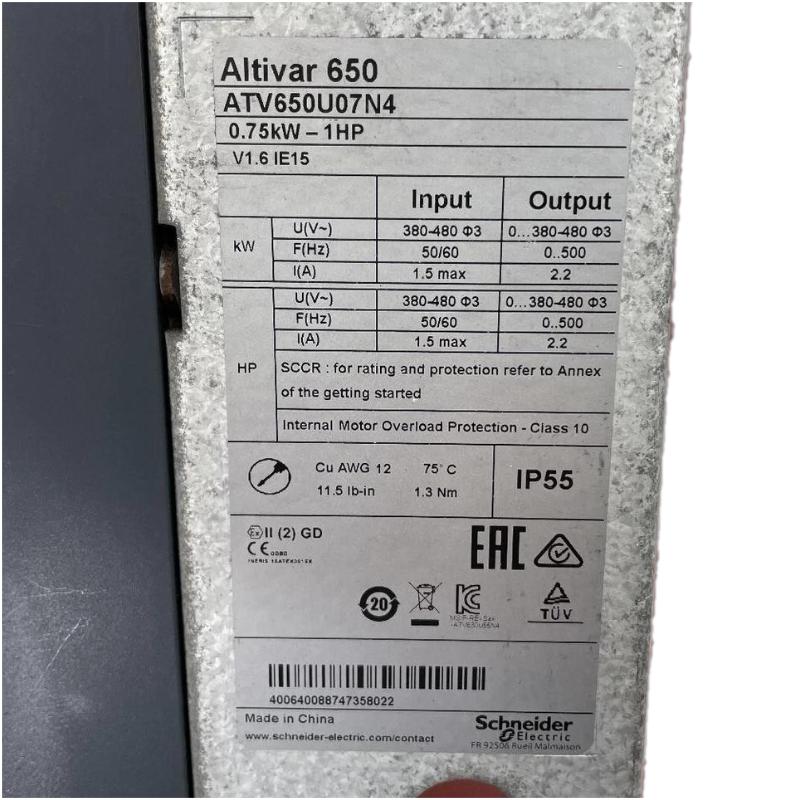

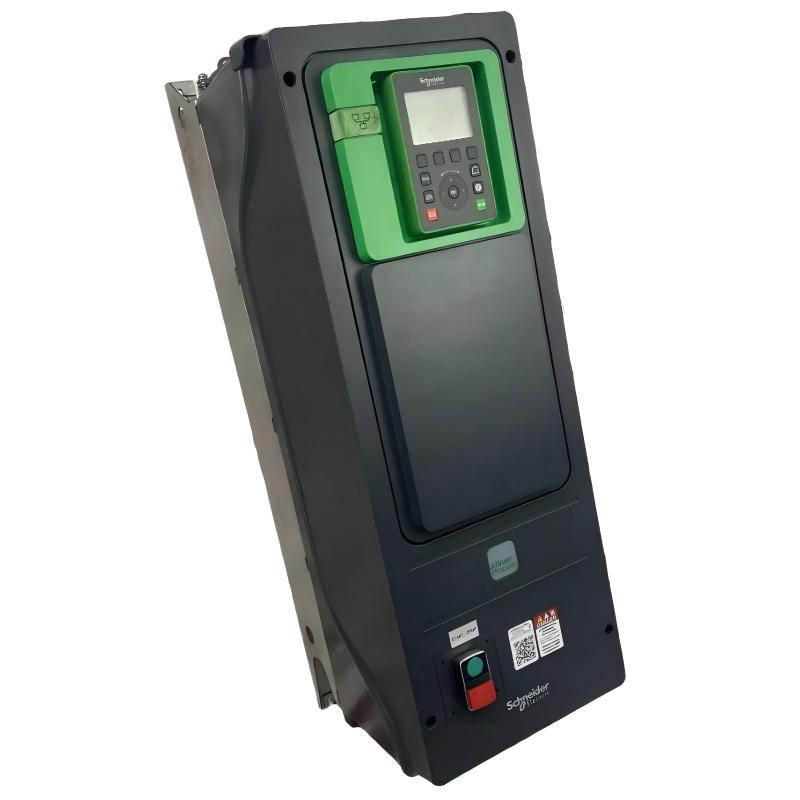

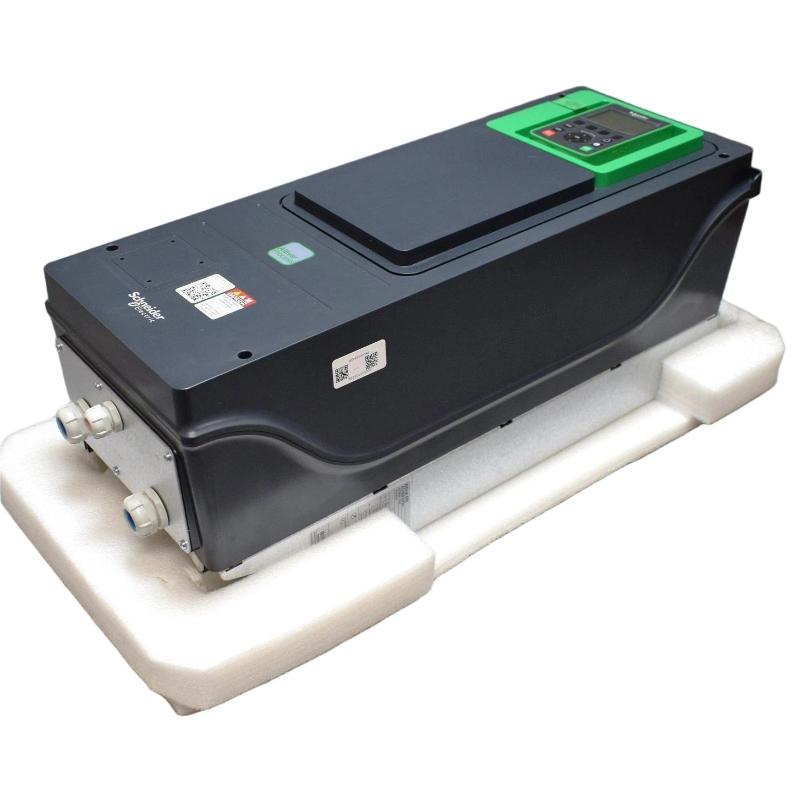

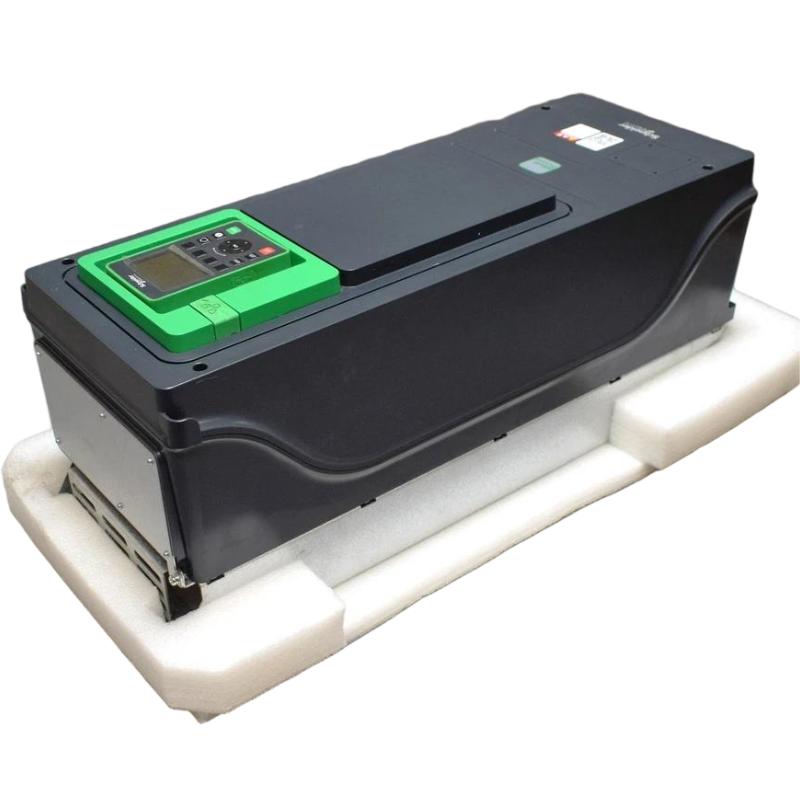

The Schneider Electric ATV650U07N4 Variable Speed Drive is an industrial motor control solution designed for applications that require reliable variable-speed operation, efficient energy management, and flexible integration with modern automation systems. As part of the Altivar Process ATV650 series, the drive is intended for demanding industrial environments where controlled motor operation is important for process stability, equipment protection, and energy optimization.
The ATV650U07N4 is designed for the 0.75 kW motor power class and is suitable for industrial applications involving pumps, fans, ventilation equipment, HVAC systems, water treatment equipment, and other process-driven machinery. By controlling motor speed according to actual process requirements, a variable speed drive can reduce unnecessary energy consumption while providing smoother starting, stopping, and speed regulation.
The user-provided physical specifications for the Schneider ATV650U07N4 are 264 × 678 × 272 mm, with a weight of 10.5 kg. These dimensions and weight are important when planning cabinet installation, transportation, replacement, and maintenance activities.
The ATV650 platform is designed with an emphasis on process automation. Depending on the system configuration and installed options, the drive can communicate with PLC, DCS, HMI, and SCADA systems, allowing operators and control engineers to monitor motor operation and integrate drive functions into a larger industrial control strategy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV650U07N4 |
| Product Family | Altivar Process ATV650 |
| Product Type | Variable Speed Drive / Variable Frequency Drive |
| Motor Power Class | 0.75 kW |
| Application | Industrial motor speed control |
| Drive Technology | AC variable frequency motor control |
| Supply Type | Three-phase industrial power system |
| Control Functions | Speed control, acceleration, deceleration, motor protection |
| Communication | Industrial automation communication depending on configuration |
| Automation Integration | PLC, DCS, HMI, SCADA |
| Typical Loads | Pumps, fans, HVAC and process equipment |
| Cooling | Forced-air cooling architecture |
| Installation | Industrial cabinet or suitable enclosure |
| Dimensions | 264 × 678 × 272 mm |
| Weight | 10.5 kg |
| Product Series | Altivar Process ATV650 |
Exact electrical ratings, terminals, overload characteristics, communication options, environmental limits, and accessory compatibility should be verified against the drive nameplate and applicable configuration documentation before installation.
What Is the Schneider ATV650U07N4?
The ATV650U07N4 is a Schneider Electric Altivar Process variable speed drive intended to regulate the operating speed of an AC motor.
Traditional fixed-speed motor systems normally operate at a relatively constant speed regardless of changing process requirements. A variable speed drive introduces electronic control between the power source and motor, allowing motor speed to be adjusted according to the process.
A simplified system can be represented as:
AC Power → ATV650U07N4 → Controlled AC Output → Motor → Mechanical Load
The drive controls the frequency and voltage supplied to the motor. By changing the output frequency, the operating speed of the motor can be adjusted.
This is particularly useful for applications where the required flow, pressure, ventilation rate, or mechanical output changes during normal operation.
Working Principle of the ATV650U07N4
The basic operating process of a variable speed drive involves several stages.
AC Input
The drive receives electrical power from the industrial AC supply. The incoming power is processed by the drive’s internal power electronics.
Rectification
The input AC is converted into DC through the drive’s rectifier stage. This creates the electrical energy required for the internal DC-link section.
DC-Link Processing
The DC-link circuit provides an intermediate energy-storage and filtering stage. It supplies a relatively stable DC source to the inverter section.
Inverter Operation
The inverter converts the DC energy back into a controlled AC waveform. The drive electronically controls output frequency and voltage according to the configured motor-control strategy.
Motor Speed Regulation
The motor responds to the controlled output from the drive. Changing the output frequency changes the motor’s operating speed, allowing the motor to follow the requirements of the process.
This method provides substantially more control than simply connecting an AC motor directly to a fixed-frequency power supply.
Motor Control and Process Optimization
The primary purpose of the Schneider ATV650U07N4 is not simply to start and stop a motor. Its value comes from controlling motor operation according to the requirements of the connected process.
For example, a pump does not always need to operate at full speed. During periods of reduced demand, operating the motor at a lower speed can reduce energy consumption and improve process control.
Similarly, a ventilation system may require different airflow levels during different production conditions. Variable-speed operation allows the fan to adjust accordingly.
Typical control functions include:
- Motor starting and stopping
- Adjustable acceleration
- Adjustable deceleration
- Variable motor speed
- Process-oriented speed regulation
- Motor protection
- Operating-status monitoring
- Fault detection
- Alarm management
- Remote control through automation systems
The actual available functions depend on the drive configuration, software settings, connected equipment, and application requirements.
Role in Industrial Automation Systems
The ATV650U07N4 can function as an important field-level component within an industrial automation architecture.
A typical system may include:
PLC / DCS → Industrial Network → ATV650U07N4 → AC Motor → Process Equipment
The controller can provide operating commands and reference values to the drive, while the drive can return operating information and diagnostic conditions.
This creates a bidirectional information path between the motor and the automation system.
Typical information exchanged can include:
- Run status
- Stop status
- Speed reference
- Actual operating speed
- Motor operating condition
- Alarm status
- Fault information
- Process-related feedback
- Drive operating state
This type of integration allows the motor drive to become part of the overall control strategy rather than functioning as an isolated motor starter.
Energy Efficiency Benefits
Variable speed control is particularly valuable for applications where motor load requirements change frequently.
A motor running continuously at full speed may consume more energy than necessary when the process only requires partial output. A VSD can reduce motor speed and therefore reduce energy use in suitable variable-torque applications.
The ATV650U07N4 can contribute to energy optimization through:
- Adjustable motor speed
- Reduced unnecessary full-speed operation
- Controlled acceleration
- Controlled deceleration
- Process-based speed adjustment
- Motor operating-status monitoring
- Integration with automatic process control
Energy savings depend strongly on the load characteristics, operating schedule, motor efficiency, control strategy, and process requirements. Therefore, actual savings should be evaluated using application-specific operating data.
Typical Industrial Applications
Pumping Systems
Pumping applications are one of the most common uses for variable speed drives. The ATV650U07N4 can be incorporated into suitable pump-control systems where flow or pressure requirements change over time.
Applications may include:
- Water circulation
- Process-water systems
- Utility pumping
- Industrial fluid transfer
- Cooling systems
- Water-treatment equipment
Variable speed control can help reduce mechanical stress and avoid unnecessary full-speed operation.
HVAC Equipment
The drive can also be used in appropriate heating, ventilation, and air-conditioning systems.
Fan and pump speed can be adjusted according to building or process requirements, allowing the system to respond dynamically to changing demand.
Industrial Fans
Ventilation and air-handling equipment often require variable airflow. Using a VSD allows the fan motor to operate at different speeds rather than relying exclusively on fixed-speed operation.
Water and Wastewater
Water-treatment and wastewater systems frequently use pumps, mixers, fans, and other motor-driven equipment. Variable-speed control can improve process flexibility and allow equipment operation to follow changing conditions.
General Process Equipment
The drive can also be integrated into industrial machinery where controlled AC motor speed is required.
The exact suitability should always be evaluated based on motor rating, load characteristics, environmental conditions, and the required control method.
PLC and DCS Integration
The ATV650U07N4 can be incorporated into automation architectures using suitable communication and control interfaces.
A PLC or DCS may be responsible for determining the required motor operating condition. The drive then executes the motor-control command.
A typical sequence may be:
- The PLC determines the required process output.
- A speed or process reference is sent to the drive.
- The ATV650U07N4 processes the command.
- The drive adjusts motor output.
- The motor changes speed.
- Process feedback is returned to the controller.
- The controller adjusts the command when required.
This closed-loop approach can improve process stability and reduce manual intervention.
When designing a communication network, engineers should confirm the exact communication interface, protocol, option modules, network topology, addressing requirements, and software configuration applicable to the specific ATV650U07N4 installation.
HMI and SCADA Integration
In larger industrial facilities, the ATV650U07N4 can be monitored through an HMI or SCADA platform.
Operators may use an HMI to view:
- Motor operating status
- Drive status
- Speed reference
- Actual operating condition
- Alarm information
- Fault status
- Maintenance-related information
SCADA systems can collect drive information from multiple machines and present it through a centralized interface.
This makes the variable speed drive part of a larger plant-wide monitoring architecture.
Installation Guidelines
Correct installation is essential for reliable operation of the ATV650U07N4.
Before installation, engineers should verify:
- Drive model
- Motor rating
- Incoming power requirements
- Cabinet dimensions
- Cable requirements
- Grounding arrangements
- Cooling requirements
- Environmental conditions
- Communication requirements
- Protective devices
- Required accessories
The drive should be installed in an appropriate enclosure or cabinet according to the applicable installation requirements.
Cabinet Mounting and Thermal Management
The user-provided dimensions of the ATV650U07N4 are:
264 × 678 × 272 mm
The stated weight is:
10.5 kg
These physical characteristics should be considered when designing the control cabinet.
The cabinet design should provide sufficient space for:
- Drive installation
- Power cables
- Motor cables
- Control wiring
- Communication cables
- Ventilation
- Maintenance access
- Associated protective equipment
Heat generated by power electronics must also be considered. Adequate airflow helps prevent excessive internal temperature and supports reliable operation.
The drive should not be installed in a location where airflow is blocked by other equipment.
Power and Motor Wiring
The power wiring should be performed by qualified personnel using the applicable electrical installation procedures.
Before wiring, confirm:
- Incoming supply characteristics
- Motor nameplate information
- Drive terminals
- Protective devices
- Grounding
- Cable sizes
- Cable routing
- EMC requirements
Motor cables should be routed separately from sensitive communication and analog signal cables where practical.
After wiring, all connections should be inspected carefully before energizing the equipment.
EMC and Electrical Noise Considerations
Industrial variable speed drives generate high-frequency switching signals as part of normal inverter operation. Proper cable management and grounding can therefore be important for maintaining electromagnetic compatibility.
Recommended engineering practices include:
- Use appropriate motor cable construction.
- Keep motor cables away from sensitive instrumentation wiring.
- Use suitable shielding where required.
- Maintain proper grounding connections.
- Avoid unnecessary parallel routing with low-level signal cables.
- Follow the applicable EMC installation requirements.
Good EMC practices can reduce communication errors, measurement disturbances, and unexpected behavior in sensitive automation equipment.
Commissioning Procedure
A structured commissioning procedure helps reduce startup problems.
Step 1: Verify the Drive
Confirm that the installed unit is the correct ATV650U07N4 model and inspect it for shipping or installation damage.
Step 2: Verify the Motor
Check the motor nameplate and confirm that the motor is suitable for the selected drive application.
Step 3: Inspect Wiring
Verify power connections, motor connections, grounding, control wiring, and communication wiring.
Step 4: Configure Motor Parameters
Enter the motor information required by the drive configuration.
Step 5: Configure Control Mode
Select the appropriate command and reference structure according to the application.
Step 6: Test at Low Speed
Perform an initial controlled test at a safe operating speed.
Step 7: Check Rotation
Confirm that the motor rotates in the intended direction.
Step 8: Test the Process
Gradually increase the operating range while monitoring motor current, drive status, mechanical behavior, and process feedback.
Step 9: Verify Alarms and Faults
Confirm that the control system can recognize relevant drive alarms and fault conditions.
Troubleshooting the ATV650U07N4
Drive Does Not Start
Possible causes include:
- Missing power
- Incorrect command configuration
- Active fault
- Incorrect control source
- Motor configuration problem
- External interlock
- Safety-related condition
Check the drive display or diagnostic information before replacing hardware.
Motor Does Not Rotate
If the drive appears operational but the motor does not rotate, inspect:
- Motor wiring
- Run command
- Speed reference
- Motor configuration
- External control signals
- Drive status
- Mechanical load
Unexpected Motor Speed
Unexpected speed can be associated with an incorrect reference source, incorrect scaling, control configuration, or communication settings.
Check the complete command path from the PLC or HMI through the drive to the motor.
Drive Overheating
Potential causes include:
- Insufficient cabinet ventilation
- Excessive ambient temperature
- Blocked airflow
- High continuous load
- Contaminated cooling path
- Incorrect cabinet design
Thermal conditions should be evaluated before returning the equipment to continuous operation.
Communication Problems
For network-related problems, inspect:
- Communication cables
- Connectors
- Network configuration
- Device addressing
- PLC or DCS configuration
- Drive communication settings
- Network status information
The exact diagnostic procedure depends on the communication architecture.
Preventive Maintenance
Regular inspection can improve equipment reliability and reduce unexpected downtime.
Maintenance activities may include:
Visual Inspection
Check the drive for signs of overheating, contamination, physical damage, or loose components.
Cabinet Inspection
Inspect cabinet ventilation and verify that air passages are not blocked.
Cable Inspection
Check power, motor, control, and communication cables for damage or loose connections.
Environmental Monitoring
Monitor temperature, humidity, dust, vibration, and other environmental factors that may affect electronic equipment.
Diagnostic Trend Monitoring
Drive operating data and fault history can be useful for identifying developing problems.
A preventive-maintenance strategy should consider both the drive and the motor/load system rather than treating the VSD as an isolated component.
Replacement and Spare-Part Planning
When replacing an ATV650U07N4, technicians should verify the complete model designation rather than relying only on physical appearance.
Important information includes:
- Complete drive reference
- Motor power
- Supply requirements
- Drive configuration
- Communication requirements
- Installed options
- Cabinet arrangement
- Control wiring
- Application settings
The replacement unit should be checked against the original installation before commissioning.
The specified physical size of 264 × 678 × 272 mm and weight of 10.5 kg should also be considered when planning transportation and cabinet access.
Compatible Automation Equipment
The ATV650U07N4 can form part of an automation system containing:
| System Component | Typical Function |
|---|---|
| PLC | Machine and process control |
| DCS | Distributed process control |
| HMI | Local operator interface |
| SCADA | Centralized monitoring |
| AC Motor | Mechanical power generation |
| Pressure Sensor | Process feedback |
| Flow Sensor | Flow measurement |
| Temperature Sensor | Thermal monitoring |
| Industrial Network | Drive/controller communication |
| Circuit Protection | Electrical protection |
| Motor Disconnect | Maintenance isolation |
The exact components required depend on the application.
Recommended Related Schneider Electric Models
| Model | Product Type | General Application |
|---|---|---|
| ATV650U07N4 | Variable Speed Drive | Small industrial motor applications |
| ATV650U15N4 | Variable Speed Drive | Small pumps and fans |
| ATV650U22N4 | Variable Speed Drive | Process and HVAC equipment |
| ATV650U30N4 | Variable Speed Drive | Medium-duty motor applications |
| ATV650U40N4 | Variable Speed Drive | Industrial pumps and fans |
| ATV650U55N4 | Variable Speed Drive | Larger process equipment |
| ATV650U75N4 | Variable Speed Drive | Higher-power industrial applications |
These models belong to the same general Altivar Process product family, but they are not automatically interchangeable. Electrical ratings, physical dimensions, installation requirements, and application settings must be checked before selecting an alternative.
Engineering Considerations
When specifying the Schneider ATV650U07N4, engineers should consider more than motor power alone.
The following factors are important:
Motor Compatibility
The drive must be correctly matched to the motor’s electrical characteristics and application.
Load Profile
Engineers should determine whether the application involves variable torque, constant torque, frequent acceleration, continuous operation, or other load characteristics.
Starting Requirements
Applications with frequent starts and stops may require careful evaluation of acceleration, deceleration, thermal loading, and braking requirements.
Environment
Temperature, dust, moisture, vibration, and cabinet conditions should be considered during equipment selection.
Communication
If the drive is connected to a PLC, DCS, HMI, or SCADA system, communication requirements should be defined before installation.
Maintenance Access
The cabinet should allow technicians sufficient access for inspection, wiring verification, diagnostics, and replacement.
Key Advantages of the ATV650U07N4
- Designed for industrial variable-speed motor control
- Suitable for the 0.75 kW motor power class
- Supports controlled motor acceleration and deceleration
- Helps optimize motor operation according to process demand
- Suitable for pump, fan, HVAC, and process applications
- Can be integrated into PLC and DCS architectures
- Supports centralized monitoring through automation systems
- Provides drive diagnostic and operating-status capabilities
- Compact industrial installation format
- User-specified dimensions of 264 × 678 × 272 mm
- User-specified weight of 10.5 kg
- Part of the Schneider Electric Altivar Process ATV650 family
Technical FAQs
What is the Schneider ATV650U07N4?
The Schneider ATV650U07N4 is an Altivar Process variable speed drive designed to control the speed and operating characteristics of a suitable AC motor in industrial applications.
What motor power class is the ATV650U07N4 designed for?
The model designation is associated with the 0.75 kW motor power class.
What are the dimensions of the ATV650U07N4?
The specified dimensions are 264 × 678 × 272 mm.
How much does the ATV650U07N4 weigh?
The specified weight is 10.5 kg.
What applications can use the ATV650U07N4?
Typical applications include pumps, fans, HVAC equipment, ventilation systems, water-treatment equipment, and other industrial process machinery requiring variable-speed motor control.
Can the ATV650U07N4 communicate with a PLC?
The ATV650 platform is designed for industrial automation integration. The exact communication method and available interfaces should be confirmed for the specific drive configuration and installed options.
Can the ATV650U07N4 be integrated with SCADA?
Yes. A properly configured ATV650 installation can form part of a larger PLC, DCS, HMI, or SCADA architecture when the appropriate communication infrastructure is provided.
Why use a variable speed drive instead of direct motor starting?
A VSD allows the motor to operate at controlled speeds instead of simply running at a fixed supply frequency. This can improve process control, reduce mechanical stress, and potentially reduce energy consumption in suitable applications.
What should be checked before replacing an ATV650U07N4?
The complete model designation, motor rating, supply requirements, control configuration, communication requirements, installed options, wiring, and physical installation conditions should all be checked before replacement.
Is the ATV650U07N4 suitable for every 0.75 kW motor?
Not necessarily. Motor power alone does not determine compatibility. Motor electrical characteristics, load type, operating duty, environmental conditions, control requirements, and drive configuration must also be evaluated.
Conclusion
The Schneider Electric ATV650U07N4 Variable Speed Drive is an industrial motor-control solution designed for applications where controlled AC motor speed, process flexibility, and energy optimization are important. As part of the Altivar Process ATV650 family, it can be incorporated into pumping, ventilation, HVAC, water-treatment, and general process automation systems.
The ATV650U07N4 is associated with the 0.75 kW motor power class, while the specified physical dimensions are 264 × 678 × 272 mm and the specified weight is 10.5 kg. These physical parameters should be considered during cabinet design, transportation, installation, and replacement planning.
Its role extends beyond basic motor starting. By controlling motor speed and integrating with PLC, DCS, HMI, and SCADA architectures, the ATV650U07N4 can become an important component of an automated process-control system. Correct motor selection, wiring, cabinet ventilation, EMC practices, commissioning, and preventive maintenance are essential for dependable long-term operation.
For replacement or system integration, engineers should always verify the complete ATV650U07N4 identification and configuration against the actual installation requirements before commissioning.
