Product Overview

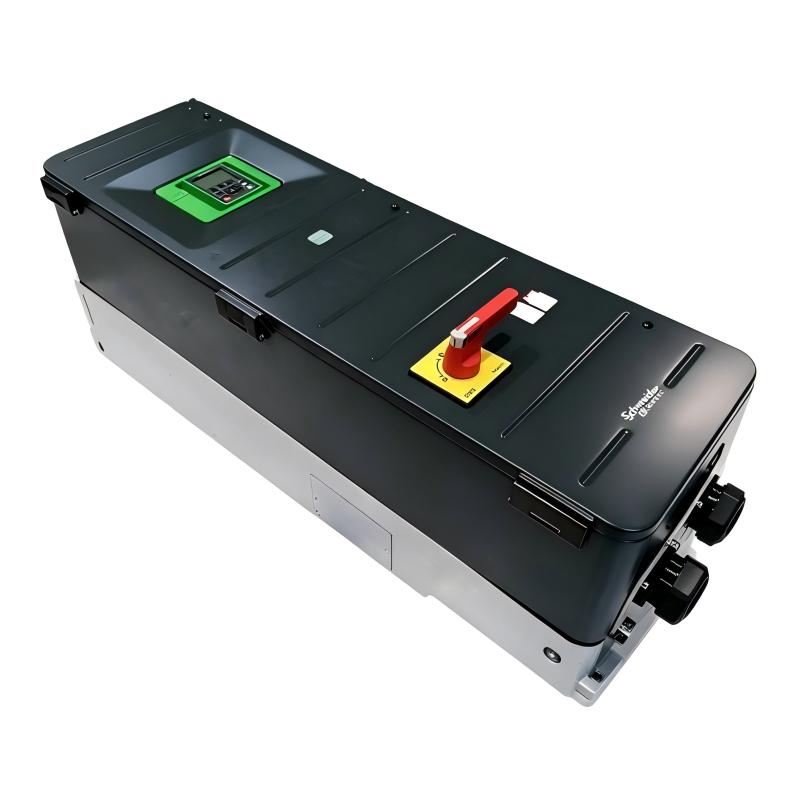

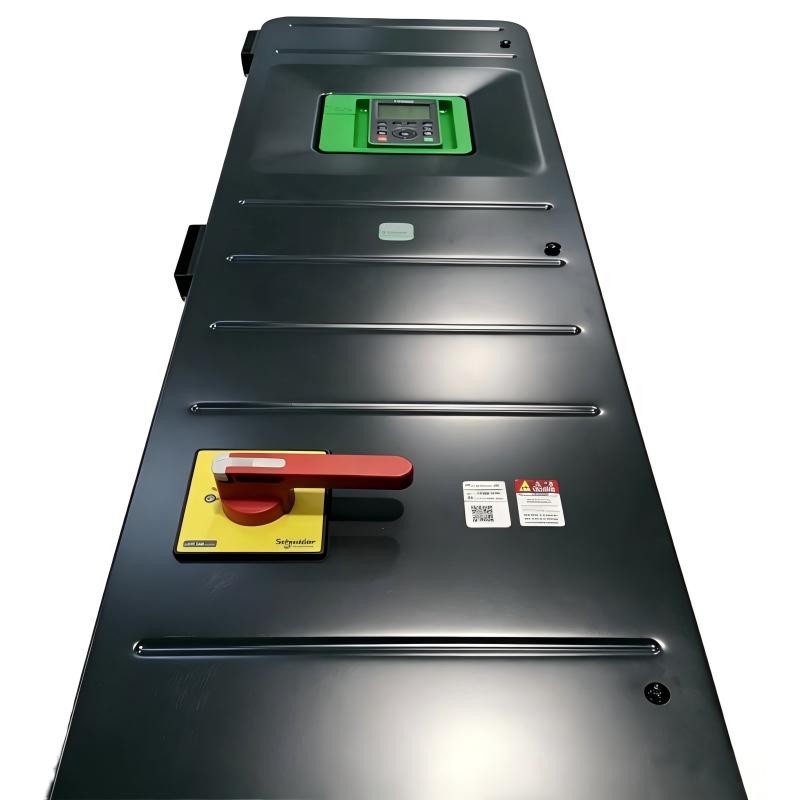

The Schneider Electric ATV650D90N4E Variable Speed Drive is a high-power industrial motor-control solution from the Altivar Process ATV650 family. It is designed for process-oriented applications where reliable variable-speed operation, motor control, process optimization, and integration with industrial automation systems are required.

The ATV650D90N4E is suitable for large three-phase AC motor applications including industrial pumps, fans, ventilation equipment, compressors, water and wastewater systems, and other process machinery. By allowing motor speed to be adjusted according to changing process demand, the drive can improve operating flexibility while helping reduce unnecessary mechanical stress and energy consumption in suitable applications.

The ATV650D90N4E is associated with the 90 kW motor-power class. For installation, cabinet design, transportation, and replacement planning, the listed physical dimensions are 345 × 1250 × 436 mm, with a listed weight of 50 kg.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV650D90N4E
Product Family	Altivar Process ATV650
Product Type	Variable Speed Drive / Variable Frequency Drive
Motor Power Class	90 kW
Motor Type	Three-Phase AC Motor
Application	Industrial Process Motor Control
Primary Function	Variable-Speed Motor Control
Control Purpose	Motor speed and process regulation
Typical Loads	Pumps, Fans, Compressors, Process Machinery
Cooling	Forced-Air Cooling Architecture
Installation	Industrial Cabinet / Electrical Installation
Dimensions	345 × 1250 × 436 mm
Weight	50 kg

Specification verification note: Exact electrical specifications, including supply voltage, rated output current, overload characteristics, terminal arrangement, communication options, braking functions, protection ratings, and environmental limits, should be confirmed against the actual ATV650D90N4E nameplate and applicable technical documentation before installation or replacement.

---

What Is the Schneider ATV650D90N4E?

The ATV650D90N4E is a high-power variable speed drive used to regulate three-phase AC motor operation.

The drive is installed between the electrical supply and the motor. Instead of operating the motor only at a fixed electrical frequency, the drive generates a controlled output that allows motor speed and torque to be adjusted according to application requirements.

A simplified system arrangement is:

Three-Phase AC Supply → ATV650D90N4E → AC Motor → Driven Equipment → Industrial Process

The drive can operate as part of a larger automation architecture. A PLC, DCS, HMI, or SCADA system can provide operating commands and process references, while the drive handles the electrical control of the motor.

This makes the ATV650D90N4E suitable for industrial applications where motor speed needs to respond dynamically to process conditions.

---

Working Principle

The basic operating principle of the ATV650D90N4E follows the architecture used by modern variable speed drives.

The incoming AC power is converted into an intermediate DC supply and then electronically switched to generate a controlled AC output for the motor.

The simplified conversion sequence is:

AC Input → Rectifier → DC Bus → Inverter → Controlled AC Output → Motor

The drive’s control system regulates the output according to the configured motor parameters and operating commands.

Variable-speed operation provides functions such as:

• Controlled motor starting
• Smooth acceleration
• Controlled deceleration
• Adjustable speed
• Torque management
• Process-speed regulation
• Motor monitoring
• Fault detection
• Diagnostic information

The exact control behavior depends on the motor, load, configured parameters, and application requirements.

---

Role in Industrial Automation

The ATV650D90N4E can function as the motor-control layer in a modern industrial automation system.

A typical architecture may be represented as:

SCADA / HMI

↓

PLC / DCS

↓

Industrial Communication Network

↓

ATV650D90N4E

↓

90 kW-Class AC Motor

↓

Pump / Fan / Compressor / Process Machine

The PLC or DCS executes the process logic and determines the required motor command.

The ATV650D90N4E converts this command into controlled motor operation.

At the same time, drive status and diagnostic information can be made available to the automation system when the appropriate communication arrangement is installed.

This enables centralized monitoring and coordinated operation of motor-driven equipment.

---

Energy Efficiency and Process Optimization

Large motors can consume substantial amounts of electrical energy, particularly when operating for extended periods.

In applications where process demand changes, fixed-speed operation may cause the motor to deliver more mechanical output than the process actually requires.

Variable-speed control allows motor operation to be adjusted according to demand.

Potential benefits include:

• Reduced unnecessary full-speed operation
• Better process regulation
• Improved operating flexibility
• Reduced mechanical stress
• Potential energy savings
• Lower operating costs
• Improved equipment coordination

The actual energy benefit depends on the type of load and the complete process design.

Variable-speed control is particularly useful for suitable centrifugal pump and fan applications because their power requirements can change significantly with operating speed.

---

Industrial Applications

Industrial Pumping

The ATV650D90N4E can be used for large pumping systems where flow and pressure requirements vary.

Typical applications include:

• Process-water pumps
• Cooling-water systems
• Water distribution
• Wastewater pumping
• Industrial circulation
• Utility systems

The drive can adjust motor speed according to the process requirement.

Water and Wastewater Treatment

Water and wastewater facilities use many large motor-driven machines.

The ATV650D90N4E can be incorporated into suitable:

• Pumping systems
• Blower systems
• Ventilation systems
• Circulation equipment
• Process machinery

Integration with a PLC or DCS allows these machines to operate as part of a coordinated process.

Industrial Fans and Ventilation

Large industrial fans often need different airflow levels depending on production conditions.

Variable-speed operation allows the fan motor to operate closer to the actual airflow requirement.

HVAC Systems

The drive can be applied to suitable large-scale HVAC motor applications where adjustable fan or pump operation is required.

Compressors

Where the compressor manufacturer permits variable-speed operation, the ATV650D90N4E can provide controlled motor starting and adjustable operating speed.

The drive must be matched correctly to the compressor motor and mechanical characteristics.

Manufacturing Equipment

High-power manufacturing machinery can also benefit from variable-speed motor control where adjustable operation is required.

---

PLC and DCS Integration

The ATV650D90N4E can be integrated into PLC- or DCS-based control systems.

A typical arrangement is:

Process Sensors → PLC / DCS → ATV650D90N4E → Motor → Process

The controller receives information from process sensors and calculates the appropriate motor command.

The drive then regulates the motor according to the received command.

This architecture supports:

• Automatic speed regulation
• Remote start and stop
• Process control
• Drive-status monitoring
• Fault reporting
• Warning management
• Diagnostic monitoring
• Coordinated equipment operation

The actual communication interface and network architecture should be confirmed according to the specific installation.

---

HMI and SCADA Integration

An HMI can provide operators with local access to the drive and process.

Depending on the system configuration, operators may monitor:

• Drive running status
• Speed reference
• Operating condition
• Warning status
• Fault information
• Process variables
• Maintenance information

SCADA systems can provide centralized supervision of multiple drives and motor-driven machines.

For example, a large water-treatment plant may use SCADA to supervise multiple pumping systems while the ATV650D90N4E performs local motor control.

This arrangement can improve plant visibility and make abnormal operating conditions easier to identify.

---

Installation Guidelines

Verify the Product

Before installation, confirm:

• Full model number

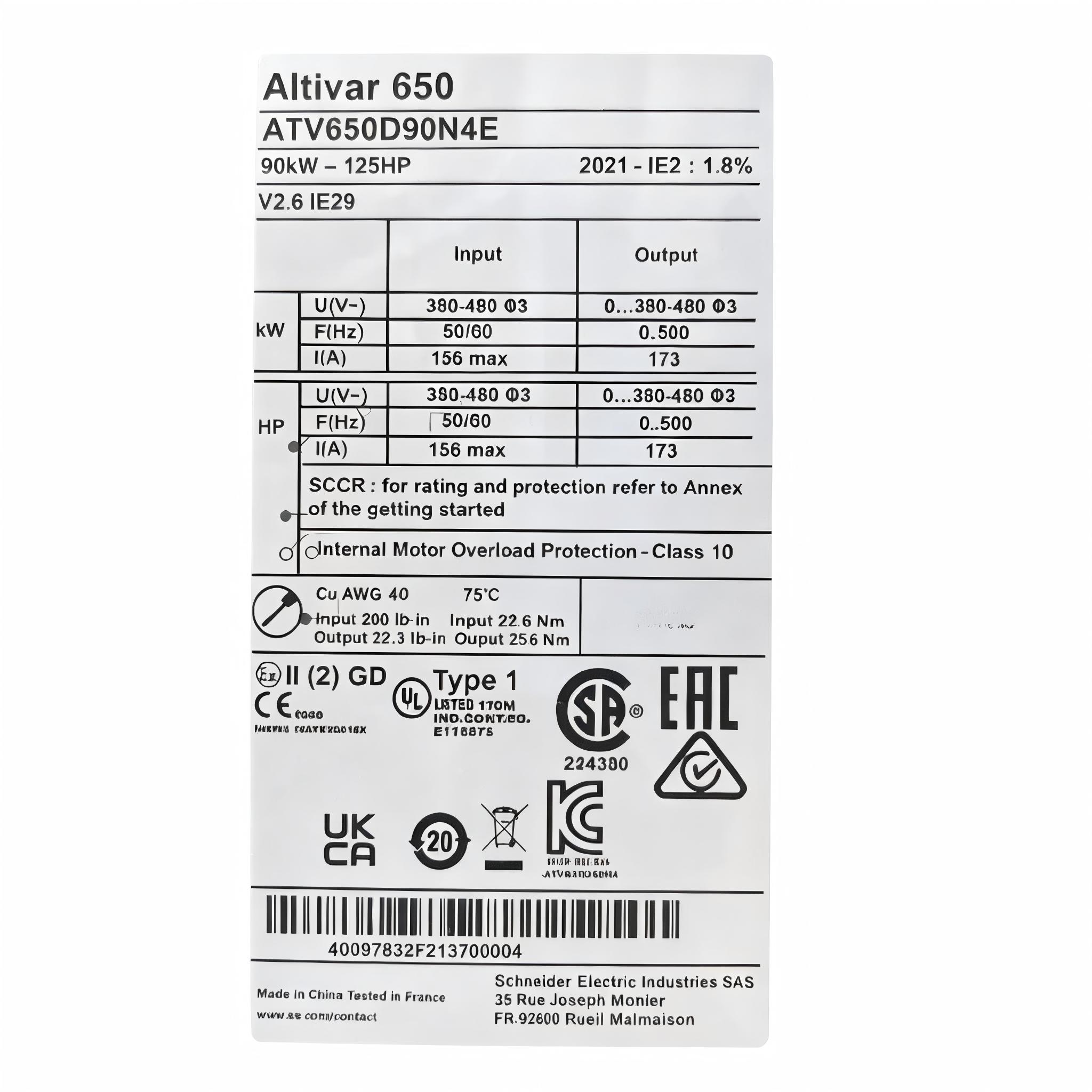

• Nameplate information
• Hardware revision
• Motor rating
• Electrical supply requirements
• Cabinet arrangement
• Communication configuration
• Installed accessories

The intended unit should be verified as ATV650D90N4E.

Cabinet Space

The listed dimensions are:

345 × 1250 × 436 mm

The cabinet should provide enough space for the drive and the associated electrical installation.

Additional space should be considered for:

• Power wiring
• Motor cables
• Control cables
• Communication cables
• Cooling airflow
• Protective equipment
• Maintenance access

The drive’s physical dimensions should therefore not be treated as the complete cabinet-space requirement.

---

Mounting and Handling

The supplied weight for the ATV650D90N4E is 50 kg.

The cabinet structure and mounting system must be designed to safely support the installed unit.

Although 50 kg is lower than some larger industrial drive assemblies, it is still substantial enough that installation and replacement should be planned carefully.

During handling:

• Use appropriate lifting procedures
• Protect connectors and terminals
• Avoid impact or excessive vibration
• Confirm mounting support before releasing lifting equipment
• Maintain adequate access for future maintenance

---

Thermal Management

Power electronic equipment generates heat during operation.

The cabinet should therefore be designed with suitable thermal-management provisions.

Important factors include:

• Ambient temperature
• Cabinet ventilation
• Cooling airflow
• Heat from neighboring equipment
• Cooling components
• Dust accumulation
• Airflow restrictions
• Maintenance access

Poor thermal management can increase electronic component temperature and reduce equipment reliability.

Regular inspection of the cooling system is recommended.

---

Power and Motor Wiring

The general electrical arrangement is:

Three-Phase Supply → ATV650D90N4E → Three-Phase AC Motor

Power wiring should be selected according to the actual drive rating, motor characteristics, cable installation conditions, protection requirements, and applicable electrical standards.

Before energization, verify:

• Input power connections
• Motor output connections
• Grounding
• Protective devices
• Control wiring
• Motor nameplate information
• Cable terminations

The motor configuration should correspond to the actual motor installed in the system.

---

EMC and Cable Routing

Variable speed drives use high-speed switching electronics and can introduce electromagnetic interference if cabling and grounding are poorly designed.

Good engineering practices include:

• Separate power and control wiring
• Keep motor cables away from sensitive instrumentation
• Avoid unnecessary parallel cable runs
• Use suitable shielding where required
• Maintain appropriate grounding
• Keep communication cables away from high-current conductors
• Follow appropriate EMC installation practices

These measures are particularly important in systems containing PLCs, analog sensors, industrial communication networks, and other sensitive electronic equipment.

---

Commissioning Procedure

A structured commissioning process helps reduce startup problems.

Step 1: Mechanical Check

Confirm that the drive is securely mounted and mechanically supported.

Step 2: Electrical Check

Verify incoming power, motor connections, grounding, control wiring, and communication connections.

Step 3: Motor Configuration

Enter the required motor information according to the actual motor nameplate.

Step 4: Control Configuration

Select the required control source and operating mode.

Step 5: Speed Reference

Configure the appropriate speed command source and operating limits.

Step 6: Interlock Verification

Verify safety circuits, external interlocks, and process permissives before starting the motor.

Step 7: Initial Motor Test

Perform a controlled test run.

Check:

• Rotation direction
• Acceleration
• Deceleration
• Motor vibration
• Abnormal noise
• Operating stability
• Process response

Step 8: Automation Testing

Verify commands and feedback through the PLC, DCS, HMI, or SCADA system.

---

Troubleshooting the ATV650D90N4E

Drive troubleshooting should consider the entire motor-control system.

Drive Does Not Start

Possible causes include:

• Missing start command
• Incorrect command source
• Active fault
• External interlock
• Incorrect configuration
• Communication failure
• Safety condition

Check the drive status and control logic before replacing the hardware.

Motor Does Not Reach the Required Speed

Potential causes include:

• Incorrect speed reference
• Incorrect motor parameters
• Excessive mechanical load
• Process restrictions
• Motor problems
• Control configuration issues

Both the electrical and mechanical systems should be inspected.

Repeated Faults

Repeated faults may be associated with:

• Power-supply conditions
• Motor cable faults
• Motor insulation problems
• Excessive load
• High temperature
• Incorrect parameters
• Electrical interference

Record the fault information and operating conditions before repeatedly resetting the drive.

Drive Overtemperature

If excessive temperature occurs, inspect:

• Cabinet ventilation
• Cooling airflow
• Cooling components
• Dust accumulation
• Ambient temperature
• Cabinet layout
• Nearby heat sources

The underlying thermal condition should be corrected rather than relying on repeated resets.

---

Preventive Maintenance

Regular preventive maintenance helps reduce unexpected downtime.

Inspect the Drive

Look for:

• Dust
• Moisture
• Loose connections
• Physical damage
• Discoloration
• Signs of overheating

Check Cooling

Inspect ventilation paths and cooling components regularly.

Restricted airflow can increase operating temperature.

Inspect Electrical Connections

Check accessible connections for signs of looseness, abnormal heating, or discoloration.

Inspect the Motor and Load

Motor-drive problems can sometimes originate from the driven machine.

Check for:

• Excessive vibration
• Mechanical friction
• Bearing problems
• Abnormal loading
• Process-related restrictions

Maintain Diagnostic Records

Keep records of drive faults, warnings, maintenance actions, and operating conditions.

Repeated fault patterns can help identify developing problems.

---

Physical Dimensions and Weight

The supplied physical specifications for the Schneider ATV650D90N4E are:

Dimensions: 345 × 1250 × 436 mm

Weight: 50 kg

These values are useful for:

• Cabinet design
• Mounting calculations
• Transportation planning
• Warehouse management
• Replacement preparation
• Lifting arrangements
• Maintenance access

The 50 kg weight should be considered during installation and removal planning.

---

Replacement and Spare-Part Planning

When sourcing a replacement ATV650D90N4E, the complete model designation should be verified.

Important information includes:

• Full model number
• Nameplate information
• Hardware revision
• Motor rating
• Application
• Communication configuration
• Installed accessories
• Existing drive parameters
• Cabinet arrangement

If the existing drive is still operational, recording its configuration before removal can simplify commissioning of the replacement unit.

A similar-looking ATV650 model should not automatically be considered a direct substitute. Electrical characteristics, application requirements, and accessories must be checked before replacement.

---

Compatible System Components

The ATV650D90N4E can be integrated into a complete industrial motor-control system.

Component	Typical Function
PLC	Process logic and drive control
DCS	Distributed process management
HMI	Operator interface
SCADA	Supervisory monitoring
Pressure Sensor	Pressure feedback
Flow Sensor	Flow measurement
Level Sensor	Process feedback
AC Motor	Mechanical power generation
Pump	Fluid transportation
Fan	Air movement
Compressor	Gas compression
Circuit Protection	Electrical protection
EMC Equipment	Electromagnetic compatibility
Industrial Network	Drive communication

The exact combination depends on the application and automation architecture.

---

Recommended Related Schneider Electric Models

Model	Product Type	Typical Application
ATV650D55N4	Altivar Process Variable Speed Drive	Process motor control
ATV650D55N4E	Altivar Process Variable Speed Drive	Industrial process applications
ATV650D75N4	Altivar Process Variable Speed Drive	High-power motor control
ATV650D75N4E	Altivar Process Variable Speed Drive	High-power process applications
ATV650D90N4	Altivar Process Variable Speed Drive	90 kW-class industrial motor control
ATV650D90N4E	Altivar Process Variable Speed Drive	90 kW-class process applications

These models belong to the same general ATV650 family, but they should not be treated as automatically interchangeable. Electrical ratings, motor requirements, accessories, enclosure characteristics, and application conditions must be verified.

---

Engineering Best Practices

Use Actual Motor Data

The drive should be configured according to the actual motor nameplate rather than relying only on nominal power.

Understand the Process Load

The mechanical characteristics of pumps, fans, compressors, and other machines can differ significantly.

Drive parameters should therefore reflect the actual load.

Maintain Cabinet Conditions

Keep the installation environment within the applicable requirements.

Avoid excessive:

• Heat
• Dust
• Moisture
• Vibration

Maintain Parameter Backups

Keeping a record of important drive parameters can simplify future maintenance and replacement.

Plan Safe Maintenance

The supplied drive weight is 50 kg. Installation and removal should therefore be planned with appropriate mechanical support and safe handling procedures.

---

Key Advantages

The Schneider ATV650D90N4E provides a high-power platform for industrial process motor control.

Its key advantages include:

• 90 kW-class variable-speed motor control
• Altivar Process ATV650 platform
• Adjustable motor speed
• Controlled acceleration and deceleration
• Potential energy savings in suitable applications
• Improved process flexibility
• PLC and DCS integration
• HMI and SCADA monitoring
• Industrial diagnostic capabilities
• Suitable for pumps, fans and compressors
• Designed for process-oriented applications
• 345 × 1250 × 436 mm listed dimensions
• 50 kg listed weight

---

Technical FAQs

What is the Schneider ATV650D90N4E?

The Schneider ATV650D90N4E is an Altivar Process ATV650 Variable Speed Drive intended for high-power three-phase AC motor control in industrial process applications.

What motor power class does the ATV650D90N4E belong to?

The model is associated with the 90 kW motor-power class. Exact electrical ratings should be verified against the actual drive nameplate.

What are the dimensions of the ATV650D90N4E?

The listed dimensions are 345 × 1250 × 436 mm.

How much does the ATV650D90N4E weigh?

The supplied weight is approximately 50 kg.

What applications are suitable for the ATV650D90N4E?

Typical applications include industrial pumps, fans, ventilation equipment, compressors, water and wastewater systems, and other suitable high-power motor-driven process equipment.

Can the ATV650D90N4E be connected to a PLC?

Yes. The drive can be integrated into PLC-based control systems using an appropriate control and communication architecture.

Is the ATV650D90N4E suitable for pump applications?

Yes. Variable-speed drives are widely used for suitable pumping applications where flow and pressure requirements change.

Why is cabinet ventilation important?

Power electronic components generate heat during operation. Appropriate ventilation and cooling help maintain suitable operating conditions and support long-term drive reliability.

What should be checked before replacement?

The complete model number, nameplate information, motor characteristics, electrical requirements, hardware configuration, communication arrangement, installed accessories, and existing parameters should be verified.

Is the ATV650D90N4E interchangeable with ATV650D90N4?

The two models should not be assumed to be directly interchangeable. The exact electrical configuration, application requirements, accessories, and installation conditions should be checked before substitution.

Why should the 50 kg weight be considered?

The 50 kg weight affects mounting, transportation, lifting, cabinet design, and replacement procedures. Appropriate mechanical support should be provided during installation.

---

Conclusion

The Schneider Electric ATV650D90N4E Variable Speed Drive is a high-power industrial motor-control solution designed for process applications requiring adjustable speed, reliable operation, process optimization, and integration with industrial automation systems.

As part of the Altivar Process ATV650 family, the ATV650D90N4E is suitable for appropriate pump, fan, ventilation, compressor, water-treatment, wastewater, manufacturing, and other high-power motor-driven applications. By regulating motor speed according to process demand, the drive can improve operational flexibility and provide energy-saving opportunities where the load characteristics are suitable.

For installation and engineering planning, the supplied physical specifications are 345 × 1250 × 436 mm and 50 kg. These values should be considered when designing electrical cabinets, mounting structures, transportation arrangements, lifting procedures, and maintenance access.

Reliable operation depends on proper motor selection, accurate parameter configuration, correct electrical wiring, effective thermal management, appropriate EMC practices, and suitable integration with PLC, DCS, HMI, and SCADA systems.

For replacement projects, the complete ATV650D90N4E model designation should be verified together with the existing installation configuration. Proper commissioning and preventive maintenance can help ensure stable and dependable variable-speed control for demanding industrial process equipment.
