Product Overview

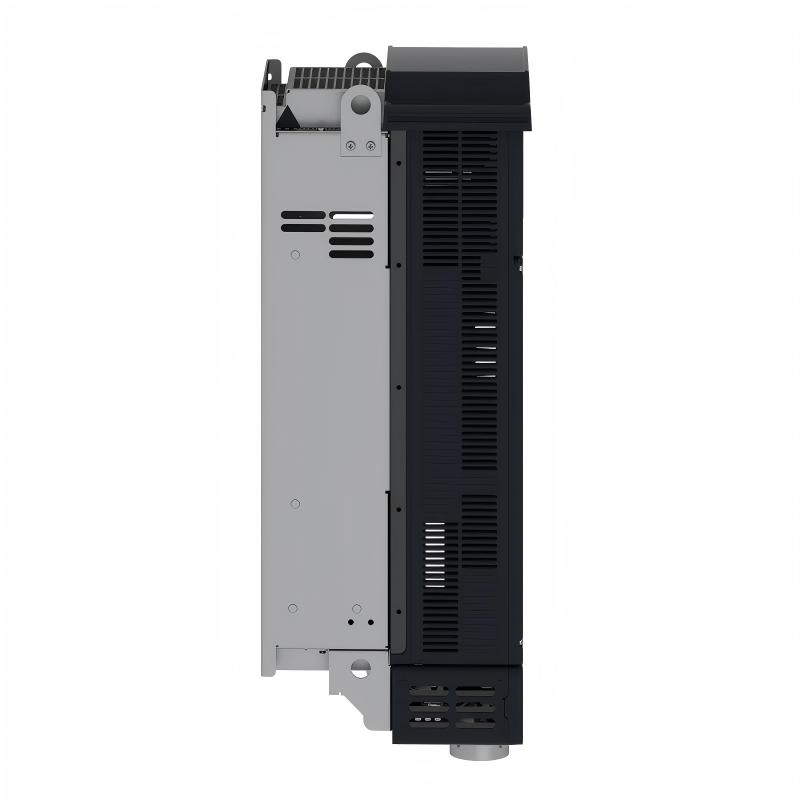

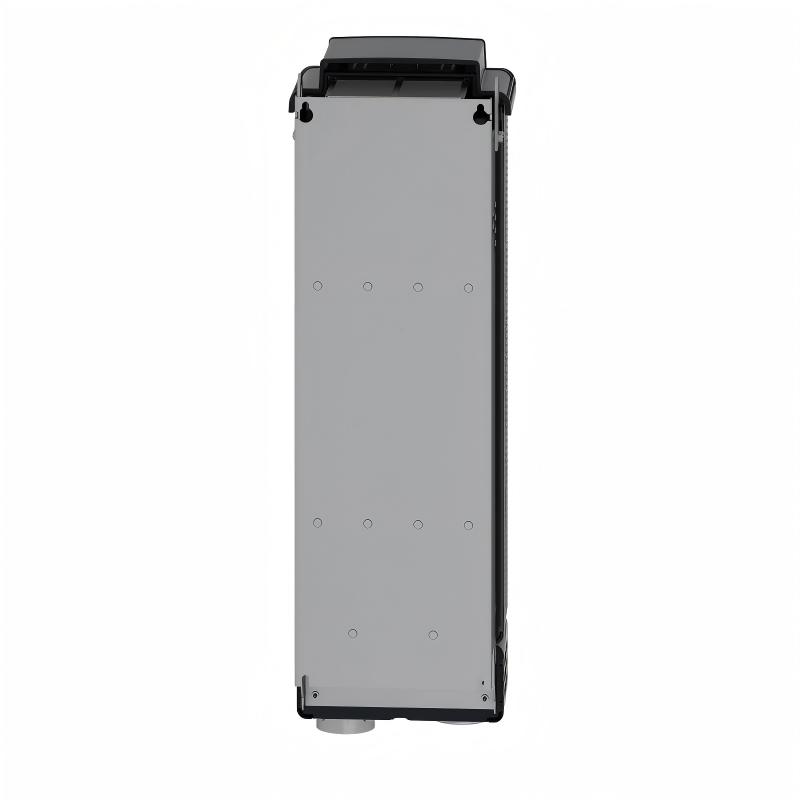

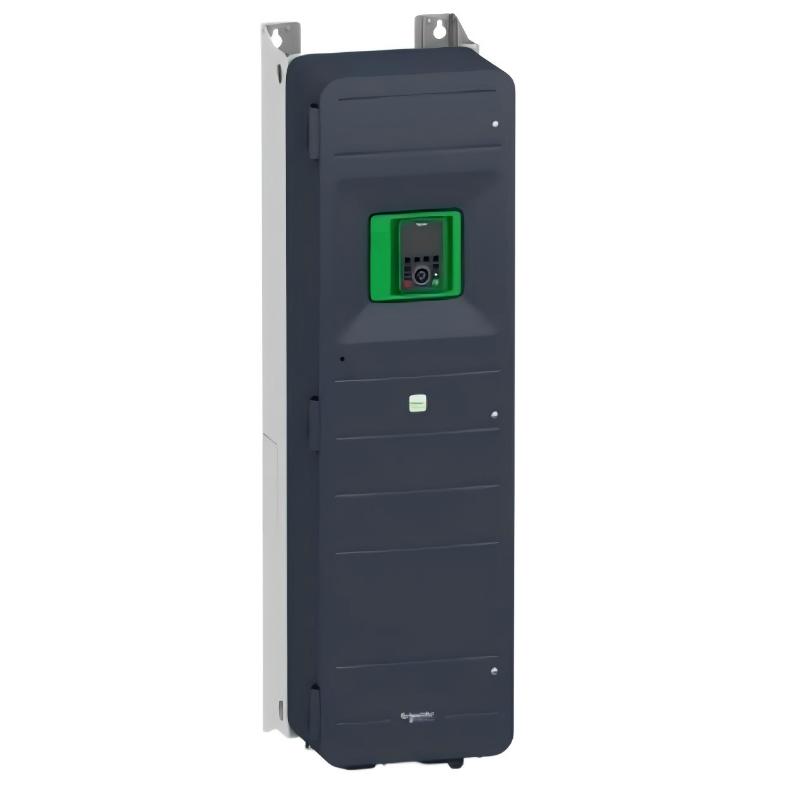

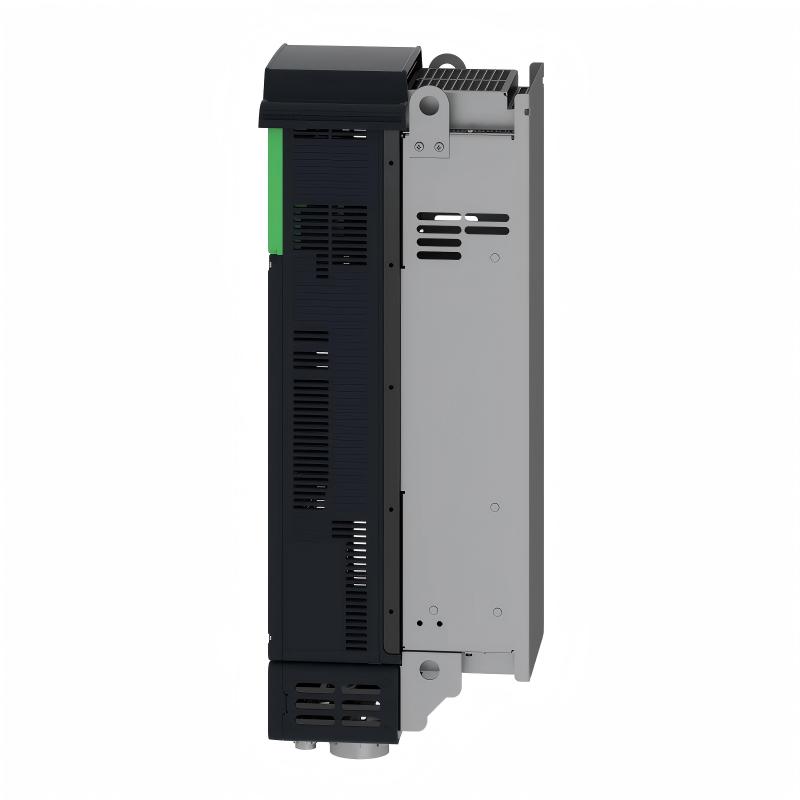

The Schneider Electric ATV650D55N4 Variable Speed Drive is an industrial motor control solution designed for demanding process and automation applications. As part of the Altivar Process ATV650 family, the drive is intended to provide controlled operation of compatible three-phase AC motors used in equipment such as pumps, fans, compressors, water systems, ventilation equipment, and other industrial machinery.

Variable Speed Drives are essential components in modern industrial automation because many motor-driven systems do not need to operate continuously at maximum speed. By adjusting motor speed according to actual process requirements, a drive can improve process control, reduce unnecessary energy consumption, and help minimize mechanical stress associated with direct-on-line starting and fixed-speed operation.

The ATV650D55N4 is a large-format industrial drive intended for applications requiring substantial motor-control capability. The supplied physical dimensions are 345 × 1250 × 375 mm, while the supplied weight is 87 kg. These mechanical specifications are particularly important for cabinet engineering, transportation, lifting, mounting, thermal management, and maintenance planning.

The ATV650D55N4 can be incorporated into industrial automation systems containing PLCs, DCS controllers, HMIs, SCADA platforms, sensors, protection equipment, and industrial communication networks. The exact electrical ratings and supported functions should always be verified against the applicable drive configuration and installation requirements.

---

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATV650D55N4
Product Family	Altivar Process ATV650
Product Type	Variable Speed Drive
Drive Category	Industrial Process VSD
Primary Function	AC motor speed and process control
Application	Industrial automation and process control
Motor Type	Compatible three-phase AC motors
Dimensions (H × W × D)	345 × 1250 × 375 mm
Weight	87 kg
Installation	Industrial electrical cabinet / equipment installation
Control Role	Motor speed regulation and process optimization
System Integration	PLC, DCS, HMI, SCADA and industrial automation systems

Specification Verification Note

The dimensions of 345 × 1250 × 375 mm and weight of 87 kg are based on the supplied product information. Exact electrical specifications, including input voltage, rated current, motor power compatibility, overload characteristics, control terminals, communication options, protection functions, braking requirements, environmental limits, and accessory compatibility, should be confirmed for the actual ATV650D55N4 configuration before installation.

---

What Is the Schneider ATV650D55N4?

The Schneider Electric ATV650D55N4 is an industrial Variable Speed Drive (VSD) used to regulate the operating speed and behavior of compatible AC motors.

The drive is positioned between the electrical power supply and the motor. It processes the incoming electrical power and generates a controlled output for the motor.

A simplified arrangement is:

Industrial Power Supply → ATV650D55N4 → AC Motor → Mechanical Equipment → Process

This arrangement allows the automation system to control motor operation according to production or process requirements.

For example, a water-treatment pump may need different flow rates throughout the day. A ventilation fan may need to respond to changing air-pressure requirements. A process circulation pump may need to follow a changing temperature or flow setpoint.

Instead of keeping the motor at a constant speed, the VSD can adjust its operating point as required.

---

Variable Speed Drive Working Principle

The ATV650D55N4 uses power-electronic conversion to provide controlled electrical output to the connected motor.

AC Input

The drive receives electrical energy from the industrial power supply.

Power Conversion

Internal power electronics convert and process the incoming electrical energy.

DC Intermediate Stage

An intermediate DC-link stage provides the energy path required for controlled output generation.

Variable Output

Power semiconductor switching generates an output waveform suitable for controlling the connected motor.

Motor Control

The drive regulates the motor according to configured control parameters and external commands.

Process Regulation

The motor drives the connected mechanical equipment, allowing the process to respond to changing operating requirements.

This architecture provides considerably more flexibility than a fixed-speed motor arrangement.

---

Role in Industrial Automation Systems

The ATV650D55N4 can function as an important control element between the automation controller and the physical motor.

A typical industrial architecture may be organized as:

PLC / DCS → Communication Network → ATV650D55N4 → Motor → Process Equipment

Process sensors can provide feedback to the controller.

For example:

Pressure Sensor → PLC / DCS → ATV650D55N4 → Pump

The controller can compare the measured pressure with the desired setpoint and adjust the motor speed accordingly.

This allows the drive to participate in closed-loop process-control strategies.

The drive may also provide operating and diagnostic information to supervisory systems, depending on the installed communication architecture.

---

Energy Efficiency and Process Optimization

Energy efficiency is one of the major reasons industrial facilities adopt variable speed technology.

A fixed-speed motor can continue operating at full speed even when process demand has decreased. In many applications, this results in unnecessary energy consumption.

Variable speed control allows the motor to operate closer to the actual process requirement.

This is particularly valuable for centrifugal equipment such as:

• Pumps
• Fans
• Blowers
• Ventilation systems
• Cooling systems

For example, reducing pump speed can reduce flow and pressure when the process does not require maximum capacity.

The actual energy savings depend on the application, load characteristics, operating schedule, system resistance, motor efficiency, and control strategy. Therefore, an engineering evaluation should be performed before assigning a specific energy-saving percentage to an installation.

---

Industrial Applications

Water Treatment

Water-treatment plants use many motor-driven systems, including pumps, blowers, mixers, and circulation equipment.

The ATV650D55N4 can be incorporated into suitable motor-control systems where variable-speed operation is required.

Wastewater Treatment

Wastewater facilities often operate under changing flow conditions.

Variable speed control can help adjust pumps and other rotating equipment to current process requirements.

Industrial Pumping

Process industries commonly use variable speed pumps for:

• Water circulation
• Cooling systems
• Chemical circulation
• Utility systems
• Process transfer
• Pressure regulation

HVAC and Ventilation

Large industrial facilities often require variable airflow according to building conditions and production requirements.

A variable speed drive can control suitable fan and ventilation motors.

Industrial Fans and Blowers

Fans and blowers may require different operating speeds throughout the production cycle.

Variable speed control can help provide more precise airflow regulation.

Compressors

Compatible compressor applications can use variable speed technology to respond to changing demand.

The suitability of the ATV650D55N4 for a specific compressor must be confirmed based on motor characteristics and compressor-control requirements.

Manufacturing

Manufacturing systems can use variable speed drives for pumps, conveyors, fans, mixers, material-handling equipment, and auxiliary machinery.

---

PLC, DCS and SCADA Integration

The ATV650D55N4 can form part of a centralized or distributed industrial automation system.

PLC Integration

A PLC may provide:

• Start command
• Stop command
• Speed reference
• Direction command
• Operating mode
• Process setpoint

The drive can return status and diagnostic information to the controller.

DCS Integration

In process industries, the drive can be incorporated into a DCS architecture where motor operation is coordinated with other process equipment.

SCADA Integration

A SCADA system can provide centralized monitoring of connected drive equipment.

Depending on the system configuration, operators may monitor:

• Drive status
• Operating condition
• Speed
• Alarms
• Faults
• Process-related information
• Maintenance information

The exact available parameters depend on the drive configuration and communication architecture.

---

HMI and Operator Control

An HMI can provide a convenient interface for operators and maintenance technicians.

Typical functions may include:

• Motor start/stop
• Speed reference
• Drive status
• Alarm display
• Fault identification
• Operating trend monitoring
• Maintenance information

For large industrial installations, clear HMI design can help operators distinguish between process faults, motor faults, drive faults, and communication problems.

---

Installation Guidelines

The ATV650D55N4 is a large industrial drive with supplied dimensions of 345 × 1250 × 375 mm and a weight of 87 kg.

Mechanical installation therefore requires careful planning.

Cabinet Design

The electrical cabinet should accommodate:

• Drive body
• Power connections
• Motor connections
• Control wiring
• Communication wiring
• Cooling airflow
• Protective equipment
• Maintenance access

The nominal drive dimensions should not be treated as the only required cabinet space.

Additional space may be required for cables, terminals, ventilation, and servicing.

Mechanical Support

At 87 kg, the drive requires a suitable mounting structure.

The cabinet or support frame must be capable of carrying the drive securely under operating conditions.

Handling and Lifting

Appropriate lifting and handling equipment should be used during installation.

Technicians should avoid manually lifting the complete drive when its weight exceeds safe manual-handling limits.

Installation Orientation

The drive should be installed in the orientation specified for the applicable equipment configuration.

Correct orientation is important for thermal performance and reliable operation.

---

Thermal Management

Large variable speed drives generate heat during normal operation.

The cabinet design should therefore consider:

• Heat generation
• Ambient temperature
• Air circulation
• Ventilation
• Cooling equipment
• Internal cabinet layout
• Dust accumulation

The cooling path should remain unobstructed.

Installing heat-generating equipment too close to the drive can increase the internal cabinet temperature and affect system reliability.

---

Power and Motor Wiring

Electrical connections should be completed according to the applicable Schneider Electric installation requirements.

The installation should clearly identify:

• Incoming power
• Motor output
• Protective earth
• Control wiring
• Communication wiring
• External protection
• Optional accessories

Power wiring should be routed separately from sensitive control and communication wiring where appropriate.

Exact terminal designations should always be verified from the relevant documentation for the actual ATV650D55N4 configuration.

---

EMC and Cable Routing

Variable speed drives use high-frequency switching as part of their normal operation.

Good EMC practices can therefore improve system reliability.

Recommended practices include:

• Use appropriate motor cables.
• Maintain suitable separation between power and signal wiring.
• Ground equipment correctly.
• Use cable shielding where required.
• Avoid unnecessary long parallel runs between motor and communication cables.
• Install applicable EMC components when required.

The final EMC design should follow the applicable site and equipment requirements.

---

Commissioning Procedure

A controlled commissioning procedure can help identify installation problems before the equipment reaches normal production operation.

Step 1: Mechanical Inspection

Confirm that the drive is securely mounted and that cabinet clearances are appropriate.

Step 2: Electrical Inspection

Check incoming power, motor wiring, protective earth, control connections, and communication connections.

Step 3: Motor Parameter Configuration

Enter the motor information required by the drive.

Incorrect motor data can result in poor control performance or unnecessary protection trips.

Step 4: Control Configuration

Select the appropriate command source and speed-reference method.

Step 5: Direction Test

Perform a controlled motor test to verify the rotation direction.

Step 6: Acceleration Test

Verify that the motor accelerates smoothly and that the connected mechanical equipment responds correctly.

Step 7: Process Test

Operate the system under representative process conditions.

Step 8: Fault and Alarm Verification

Review available diagnostics and verify that relevant protection and alarm functions operate correctly.

---

Troubleshooting the ATV650D55N4

Drive Will Not Start

Possible causes include:

• Missing start command
• Incorrect command source
• Active drive fault
• Interlock condition
• Safety circuit condition
• Power supply issue
• Incorrect configuration

The drive’s diagnostic information should be checked before replacing hardware.

Motor Does Not Accelerate

Possible causes include:

• Incorrect motor parameters
• Excessive mechanical load
• Incorrect acceleration settings
• Speed reference problem
• Motor wiring issue
• Control configuration problem

The mechanical load should be inspected together with the drive configuration.

Drive Overtemperature Condition

Possible causes include:

• Insufficient cabinet ventilation
• Excessive ambient temperature
• Blocked airflow
• Excessive load
• Cooling-system problems
• Contamination

The actual installation environment should be measured rather than relying only on assumptions.

Repeated Drive Faults

Repeated faults may indicate:

• Power-quality problems
• Motor insulation issues
• Mechanical overload
• Incorrect parameters
• Cooling problems
• Communication problems
• External control-system conditions

Fault history should be recorded before repeatedly resetting the drive.

Communication Failure

If communication between the ATV650D55N4 and PLC, DCS, or SCADA system is lost, inspect:

• Communication cable
• Network connection
• Device configuration
• Network addressing
• Controller configuration
• Communication interface
• Industrial network equipment

The drive power stage should not be replaced solely because communication has been lost.

---

Preventive Maintenance

Regular inspection can extend the useful operating life of a large industrial variable speed drive.

Cabinet Cleaning

Remove accumulated dust and maintain adequate airflow around the drive.

Cooling Inspection

Check fans, ventilation paths, and other cooling components where applicable.

Electrical Connection Inspection

Inspect accessible electrical connections for signs of:

• Looseness
• Overheating
• Discoloration
• Mechanical damage

Environmental Monitoring

Monitor:

• Cabinet temperature
• Humidity
• Dust
• Vibration
• Airflow

Fault Trend Analysis

Recurring drive faults can provide valuable information about developing system problems.

A maintenance team should record fault codes and operating conditions rather than simply resetting faults.

Motor Maintenance

The motor and mechanical load should also be inspected regularly.

A drive can report abnormal behavior caused by a mechanical problem, bearing issue, overload, or motor condition.

---

Physical Dimensions and Weight

The supplied physical specifications for the Schneider ATV650D55N4 are:

Parameter	Value
Height	345 mm
Width	1250 mm
Depth	375 mm
Overall Dimensions	345 × 1250 × 375 mm
Weight	87 kg

The large 1250 mm dimension should be considered carefully during cabinet layout and equipment-room planning.

The 87 kg weight is also significant for transportation, lifting, mounting, replacement, and maintenance operations.

---

Replacement and Spare-Part Planning

Replacing a large industrial VSD requires both electrical and mechanical verification.

Before purchasing a replacement for the ATV650D55N4, technicians should check:

• Complete model number
• Hardware configuration
• Motor requirements
• Electrical supply
• Control architecture
• Communication arrangement
• Accessories
• Mounting arrangement
• Cabinet dimensions
• Cooling requirements

The supplied 345 × 1250 × 375 mm dimensions should be compared with the available cabinet space.

The 87 kg weight should also be considered when preparing lifting and installation procedures.

A drive with a similar nominal motor rating should not automatically be considered a direct replacement.

---

Compatible System Components

A complete ATV650D55N4 installation may contain:

Component	General Function
PLC	Executes machine or process control logic
DCS	Provides distributed process control
HMI	Operator interface
SCADA	Supervisory monitoring
AC Motor	Converts electrical power into mechanical motion
Pressure Sensors	Measure process pressure
Flow Sensors	Measure process flow
Temperature Sensors	Monitor process temperature
Circuit Protection	Protects electrical circuits
EMC Components	Supports electromagnetic compatibility
Line Reactor	Supports drive power-system requirements where applicable
Braking Components	Supports controlled stopping where applicable
Industrial Network	Provides communication and diagnostics

The exact component arrangement depends on the application and engineering design.

---

Recommended Related Schneider Electric Models

Model	Product Type	General Application
ATV650D30N4	Variable Speed Drive	Industrial process motor control
ATV650D30N4E	Variable Speed Drive	Process automation applications
ATV650D37N4	Variable Speed Drive	Industrial motor control
ATV650D37N4E	Variable Speed Drive	Process motor applications
ATV650D45N4	Variable Speed Drive	Larger industrial motor control
ATV650D45N4E	Variable Speed Drive	Industrial process applications
ATV650D55N4	Variable Speed Drive	High-capacity process motor control

These models are related Schneider Electric drive products, but they should not be treated as direct substitutes without checking the motor requirements, electrical ratings, mechanical dimensions, accessories, control architecture, and application conditions.

---

Engineering Best Practices

Match the Drive to the Motor

The drive should be selected according to the actual motor and application requirements.

Analyze the Load

Different loads require different control strategies. Pump, fan, compressor, conveyor, mixer, and high-inertia applications should not automatically use identical settings.

Design the Cabinet for Heat

Thermal management should be considered before installation.

Provide Adequate Mechanical Support

The 87 kg drive requires a robust mounting structure and suitable handling procedure.

Maintain Cable Separation

Power and control cables should be routed appropriately to minimize electrical interference.

Record Configuration

Drive parameters should be recorded as part of maintenance documentation.

Monitor Fault Trends

Recurring alarms or faults should be investigated rather than repeatedly reset.

---

Key Advantages

• Industrial variable speed control for compatible AC motors
• Designed for demanding process automation environments
• Supports adjustable motor speed according to process demand
• Can contribute to improved energy efficiency
• Suitable for pump and fan applications
• Suitable for water and wastewater systems
• Supports industrial PLC and DCS architectures
• Can be integrated with HMI and SCADA systems
• Supports controlled acceleration and deceleration
• Large-format industrial construction
• Supplied dimensions of 345 × 1250 × 375 mm
• Supplied weight of 87 kg

---

Technical FAQs

What is the Schneider ATV650D55N4?

The Schneider Electric ATV650D55N4 is an Altivar Process Variable Speed Drive designed for controlling compatible AC motors in industrial and process automation applications.

What is the primary function of the ATV650D55N4?

Its primary function is to regulate motor operation according to process requirements, allowing connected machinery to operate at controlled speeds rather than only at fixed speed.

What are the dimensions of the ATV650D55N4?

The supplied dimensions are 345 × 1250 × 375 mm.

How much does the ATV650D55N4 weigh?

The supplied weight is 87 kg.

Where can the ATV650D55N4 be used?

Typical applications include industrial pumps, fans, ventilation systems, water and wastewater equipment, process machinery, compatible compressors, and other motor-driven industrial equipment.

Can the ATV650D55N4 be integrated with a PLC?

Yes. A compatible configuration can be integrated into a PLC-based control architecture. The specific control and communication method should be verified for the actual system.

Can it be monitored through SCADA?

The drive can form part of a SCADA monitoring architecture where the appropriate communication infrastructure is installed and configured.

Why is variable speed control useful?

Variable speed control allows the motor to respond to actual process demand. This can improve process regulation and may reduce energy consumption compared with unnecessary fixed-speed operation.

What should be checked before installing the drive?

The motor, electrical supply, control architecture, cabinet space, cooling arrangement, wiring, protection equipment, communication configuration, and applicable installation requirements should all be reviewed.

Why is the 87 kg weight important during installation?

An 87 kg drive requires appropriate mechanical support and safe lifting and handling procedures. The weight should be considered during cabinet design, transportation, and maintenance planning.

---

Conclusion

The Schneider Electric ATV650D55N4 Variable Speed Drive is a large-format industrial motor-control solution designed for demanding process automation and motor-driven equipment. By providing controlled motor operation, the drive can help industrial systems adapt motor speed to changing process requirements while supporting improved process control and potential energy optimization.

The supplied physical specifications are 345 × 1250 × 375 mm with a weight of 87 kg. These dimensions make cabinet design, mounting structure, ventilation, cable routing, maintenance clearance, transportation, and lifting important parts of the engineering process.

The ATV650D55N4 can be incorporated into automation architectures involving PLCs, DCS controllers, HMIs, SCADA platforms, sensors, motors, protection equipment, and industrial communication networks. Its effectiveness depends on correct motor matching, appropriate configuration, proper installation, adequate thermal management, and systematic commissioning.

For maintenance and replacement applications, the complete ATV650D55N4 identification should be verified before purchasing or installing a replacement. Physical dimensions and nominal drive capacity alone are not sufficient to establish compatibility. The actual motor requirements, electrical configuration, control system, accessories, cabinet arrangement, and application conditions should all be considered.

When correctly engineered and maintained, the Schneider ATV650D55N4 can provide a robust foundation for high-capacity variable speed motor control in water treatment, pumping, ventilation, manufacturing, process industries, and other demanding industrial automation environments.
