Product Overview

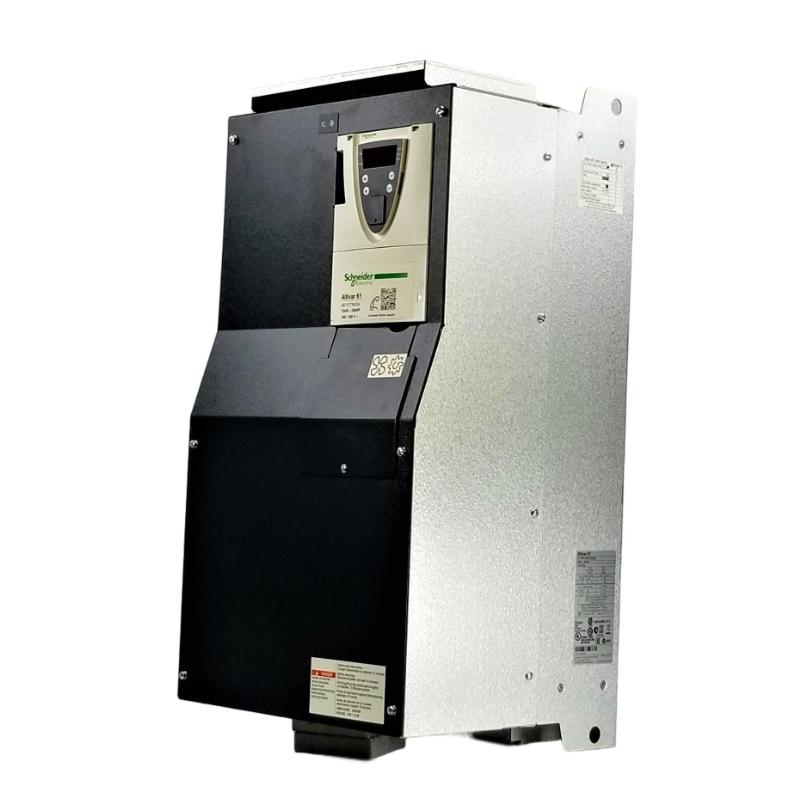

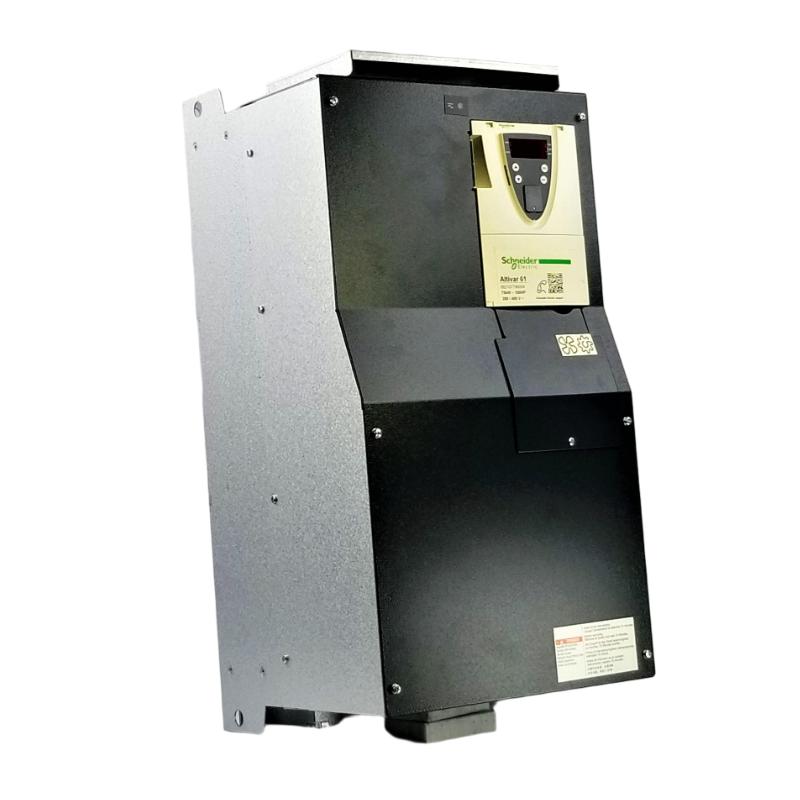

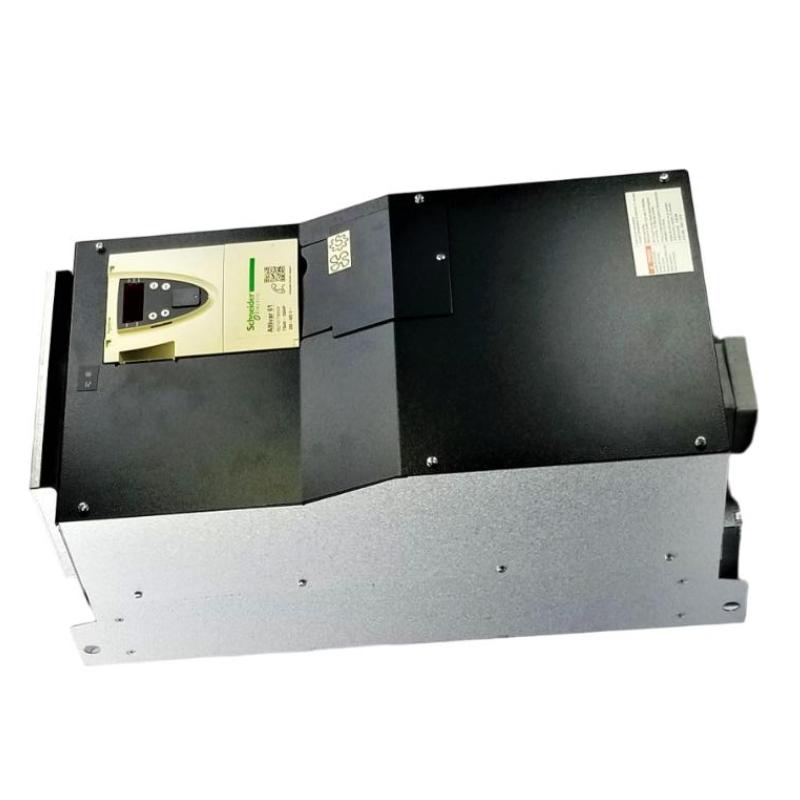

The Schneider Electric ATV61HD75N4 is a variable speed drive from the Altivar 61 series.
It is designed for controlling large three-phase AC motors in industrial applications.
It is mainly used in pump, fan, ventilation, and process systems requiring stable motor control.

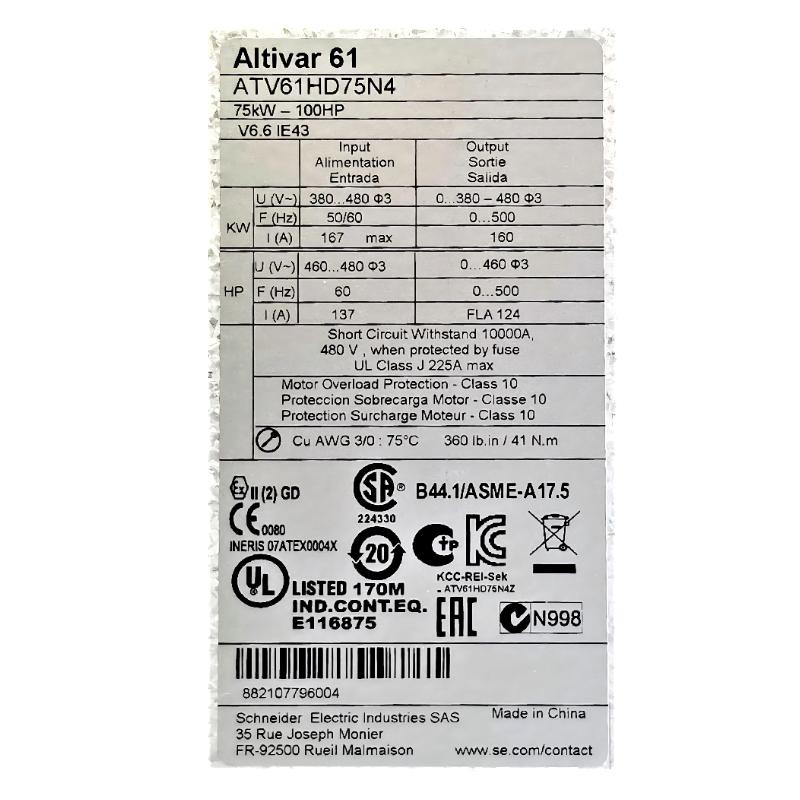

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar 61 |
| Model | ATV61HD75N4 |
| Product Type | Variable Speed Drive |
| Rated Power | 75 kW |
| Supply Voltage | 380–480 V AC, 3-phase |
| Output | Controlled motor supply |
| Rated Current | ~137–167 A |
| Protection Class | IP20 |
| Cooling | Forced air cooling |
| Mounting Type | Panel / cabinet mounted |
| Dimensions | 630 × 290 × 320 mm |
| Weight | ~44 kg |
Function and Working Principle
The device is used to control the operation of an AC motor by regulating the electrical power supplied to it.
- Electrical power is supplied to the drive
- Internal control system adjusts output
- Motor receives controlled electrical supply
- Speed is regulated according to demand
- Stable operation is maintained under load variation
Key Functions
- Motor speed control
- Smooth start and stop operation
- Stable operation under industrial load
- Energy-efficient operation
- Motor protection functions
- Integration into automation systems
Industrial Applications
- Industrial pumps
- Ventilation systems
- HVAC systems
- Water treatment plants
- Compressors
- Process equipment
Installation Notes
- Installed inside industrial electrical cabinets
- Requires proper ventilation
- Proper grounding required
- Shielded motor cables recommended
- Commissioning required during setup
Compatible Systems
- Three-phase AC motors
- Industrial automation systems
- Process control systems
- Motor protection devices
Alternative Models
- ATV61HD55N4
- ATV61HD45N4
- ATV61HD37N4
- ATV630 series (new generation replacement)
- ATV340 series (smaller applications)
Key Advantages
- High power industrial capability
- Stable motor control under load changes
- Suitable for continuous operation
- Reliable design for harsh environments
- Designed for process applications
FAQ
Q: What is ATV61HD75N4 used for?
It is used to control large AC motors in industrial systems.
Q: Is it a soft starter?
No, it is a variable speed drive.
Q: What type of motor does it support?
Three-phase AC motors.
Conclusion
The Schneider ATV61HD75N4 Variable Speed Drive is a high-power industrial drive designed for stable and efficient motor control in demanding process and utility applications.
