- Schneider
- ATV61HD37N4
- Variable Speed Drive
- France
- 550 × 266 × 240 mm
- 37 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

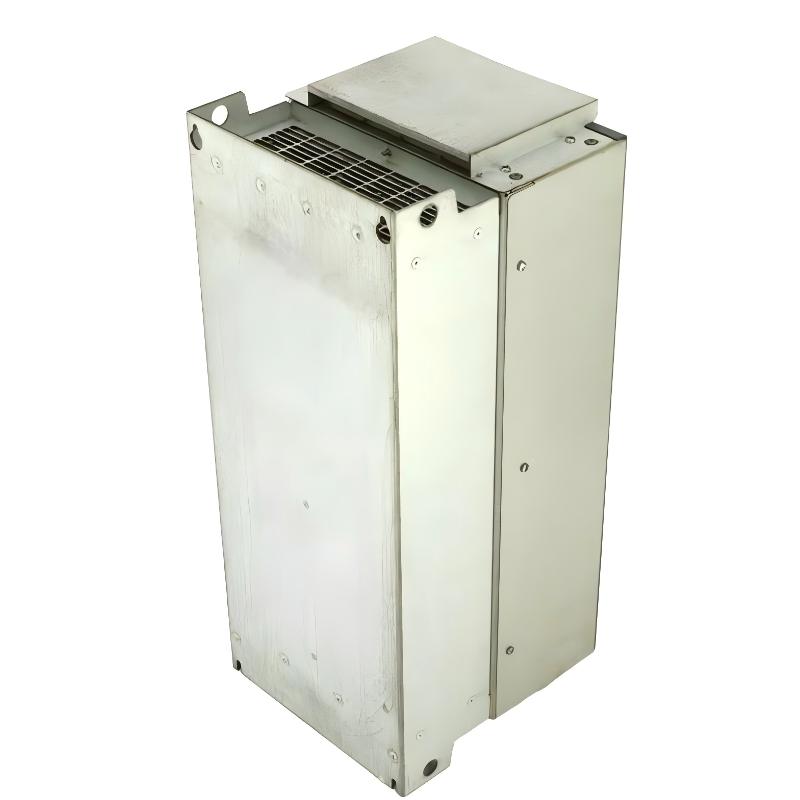

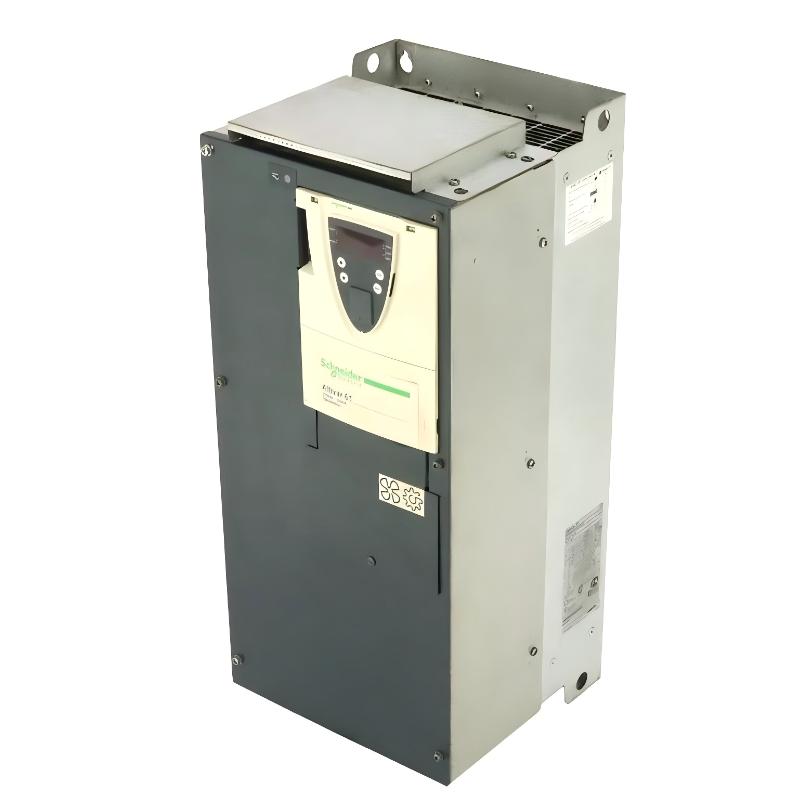

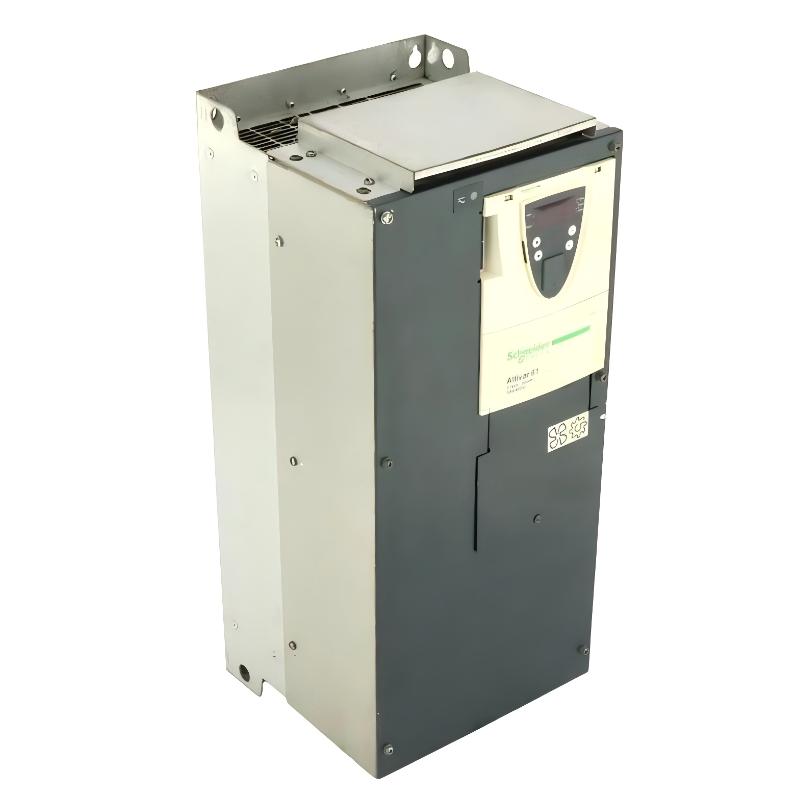

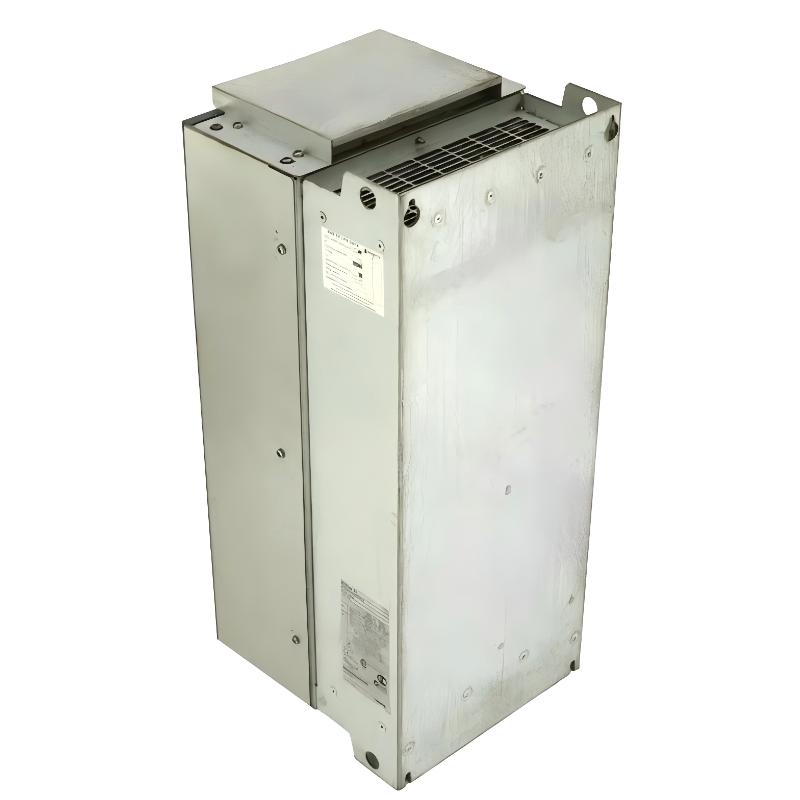

The Schneider Electric ATV61HD37N4 is a variable speed drive from the Altivar 61 series.
It is designed for controlling large three-phase AC motors in industrial applications.
It is mainly used in pump, fan, ventilation, and process systems requiring stable motor control.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar 61 |
| Model | ATV61HD37N4 |
| Product Type | Variable Speed Drive |
| Rated Power | 37 kW |
| Supply Voltage | 380–480 V AC, 3-phase |
| Output | Controlled motor supply |
| Rated Current | ~65–84 A |
| Protection Class | IP20 |
| Cooling | Forced air cooling |
| Mounting Type | Panel / cabinet mounted |
| Dimensions | 550 × 266 × 240 mm |
| Weight | 37 kg |
Function and Working Principle
The device is used to control the operation of an AC motor by regulating the electrical power supplied to it.
- Electrical power is supplied to the drive
- Internal control circuits regulate output
- Motor receives adjusted electrical supply
- Speed changes according to system demand
- Stable operation is maintained during load variation
Key Functions
- Motor speed control
- Smooth start and stop operation
- Stable operation under industrial load
- Energy-efficient operation
- Motor protection functions
- Integration into automation systems
Industrial Applications
- Industrial pumps
- Ventilation systems
- HVAC systems
- Water treatment plants
- Compressors
- Process equipment
Installation Notes
- Installed inside industrial electrical cabinets
- Requires proper ventilation
- Proper grounding required
- Shielded motor cables recommended
- Commissioning required during setup
Compatible Systems
- Three-phase AC motors
- Industrial automation systems
- Process control systems
- Motor protection devices
Alternative Models
- ATV61HD30N4
- ATV61HD25N4
- ATV61HD22N4
- ATV630 series (new generation replacement)
- ATV340 series (smaller applications)
Key Advantages
- Stable motor control performance
- Suitable for continuous industrial operation
- Reliable design for harsh environments
- Efficient operation under variable load
- Proven industrial use in process systems
FAQ
Q: What is ATV61HD37N4 used for?
It is used to control AC motor speed in industrial systems.
Q: Is it a soft starter?
No, it is a variable speed drive.
Q: What type of motor does it support?
Three-phase AC motors.
Conclusion
The Schneider ATV61HD37N4 Variable Speed Drive is an industrial drive designed for stable and efficient motor control in pumping, ventilation, and process applications.
