Product Overview

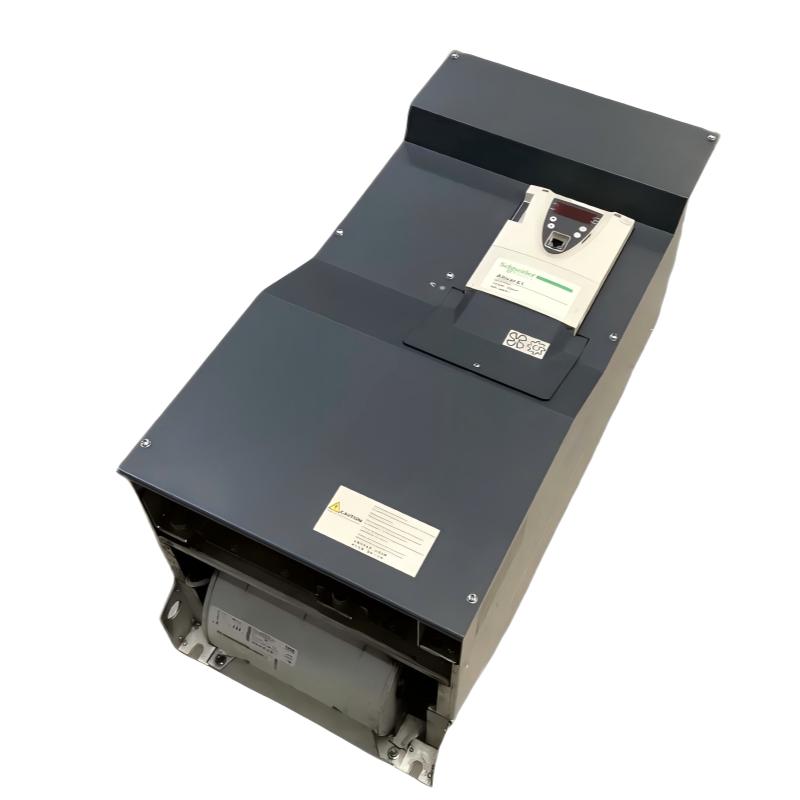

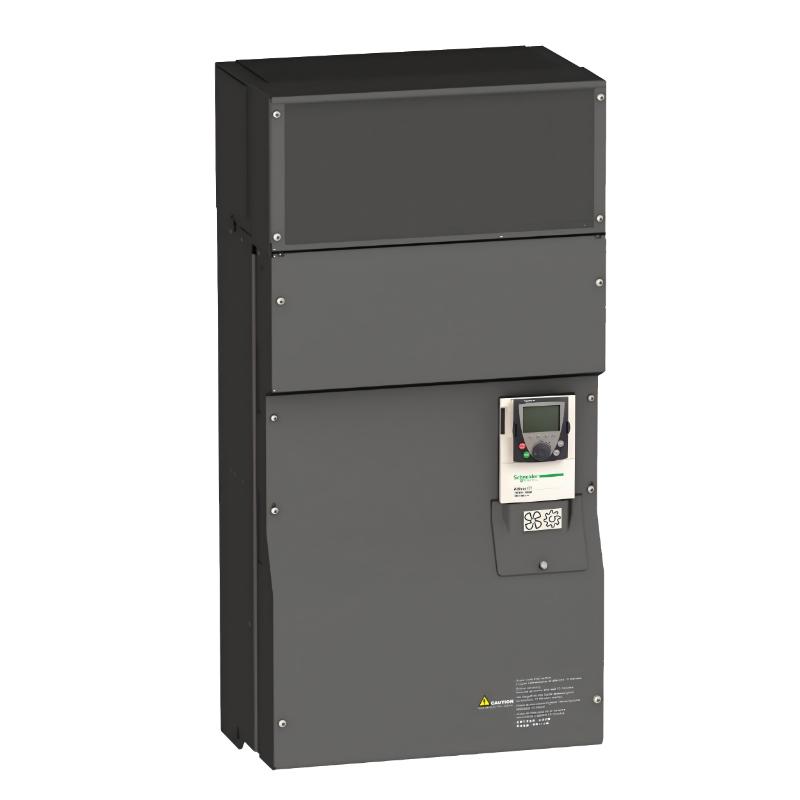

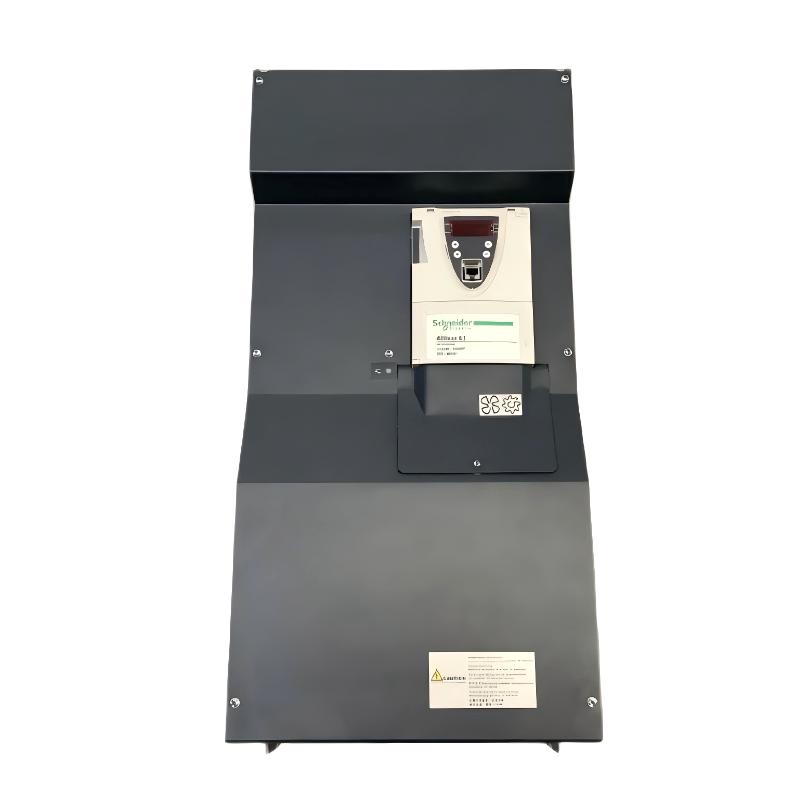

The Schneider Electric ATV61HC13N4 is a high-power variable speed drive from the Altivar 61 series.
It is designed for controlling large three-phase AC motors in industrial applications.
It is mainly used in heavy-duty pumping, ventilation, and industrial process systems.

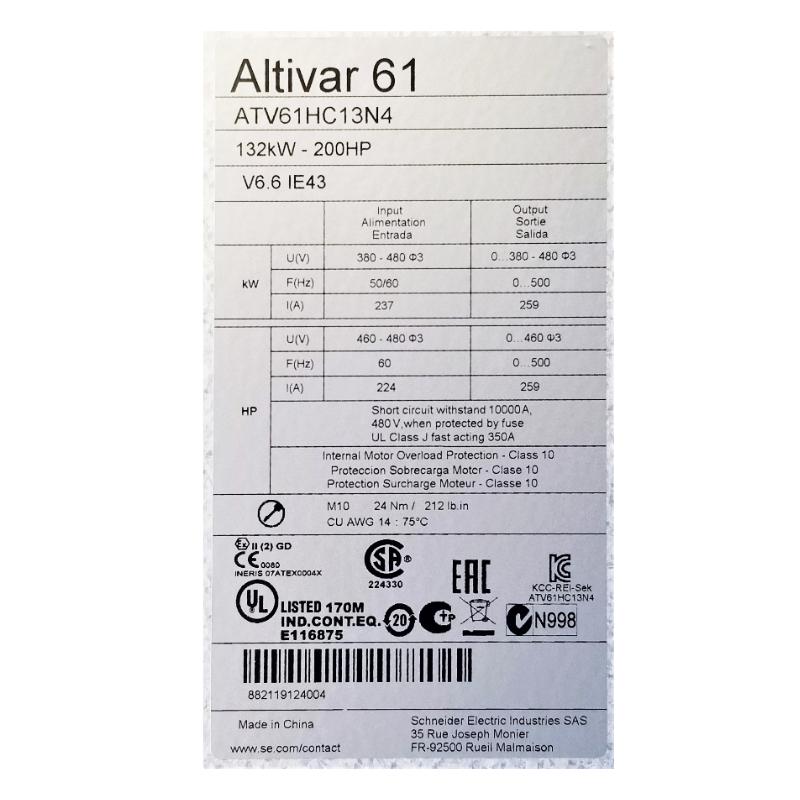

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar 61 |
| Model | ATV61HC13N4 |
| Product Type | Variable Speed Drive |
| Rated Power | 132 kW |
| Supply Voltage | 380–480 V AC, 3-phase |
| Output | Controlled motor supply |
| Rated Current | ~224 A |
| Protection Class | IP00 / cabinet mounted |
| Cooling | Forced air cooling |
| Mounting Type | Panel / cabinet installation |
| Dimensions | 1022 × 360 × 377 mm |
| Weight | 106 kg |
Function and Working Principle
The device is used to control the operation of an AC motor by adjusting the electrical supply delivered to it.
Operation Description
- Electrical power is supplied to the drive
- Internal circuits regulate and manage energy flow
- Output is adjusted based on operating requirements
- Motor runs at required speed and load condition
- System maintains stable operation during load changes
Key Functions
- Motor speed control
- Controlled start and stop
- Stable operation under heavy load
- Energy-efficient operation
- Motor protection functions
- Integration into industrial systems
Industrial Applications
- Large industrial pumps
- Ventilation and HVAC systems
- Water treatment systems
- Compressors
- Process automation systems
- Heavy industrial machinery
Installation Notes
- Installed inside industrial electrical cabinets
- Requires strong ventilation
- Proper grounding required
- Shielded motor cables recommended
- Commissioning required during setup
Compatible Systems
- Three-phase AC motors
- Industrial automation systems
- Process control systems
- Motor protection devices
Alternative Models
- ATV61HC11N4
- ATV630 series (new generation replacement)
- ATV600 series variants
- ATV340 series (smaller power range)
Key Advantages
- High power industrial capability
- Stable motor control under load variation
- Suitable for continuous operation
- Reliable performance in harsh environments
- Designed for heavy-duty applications
FAQ
Q: What is ATV61HC13N4 used for?
It is used to control large AC motors in industrial systems.
Q: Is it a soft starter?
No, it is a variable speed drive.
Q: What type of motor does it support?
Three-phase industrial AC motors.
Conclusion
The Schneider ATV61HC13N4 Variable Speed Drive is a high-power industrial drive designed for demanding applications requiring stable and reliable motor control.
