Product Overview

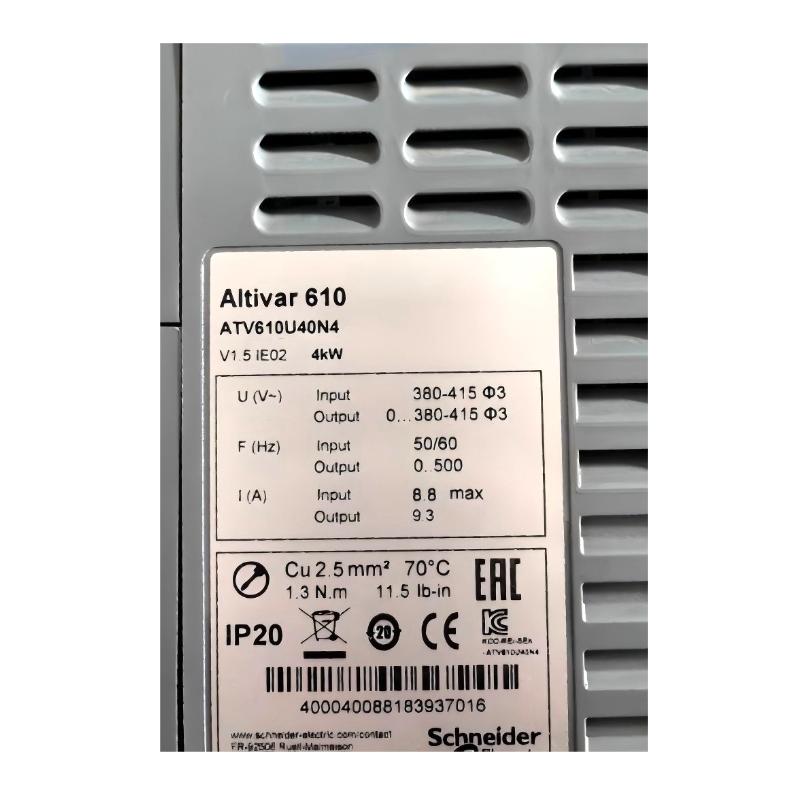

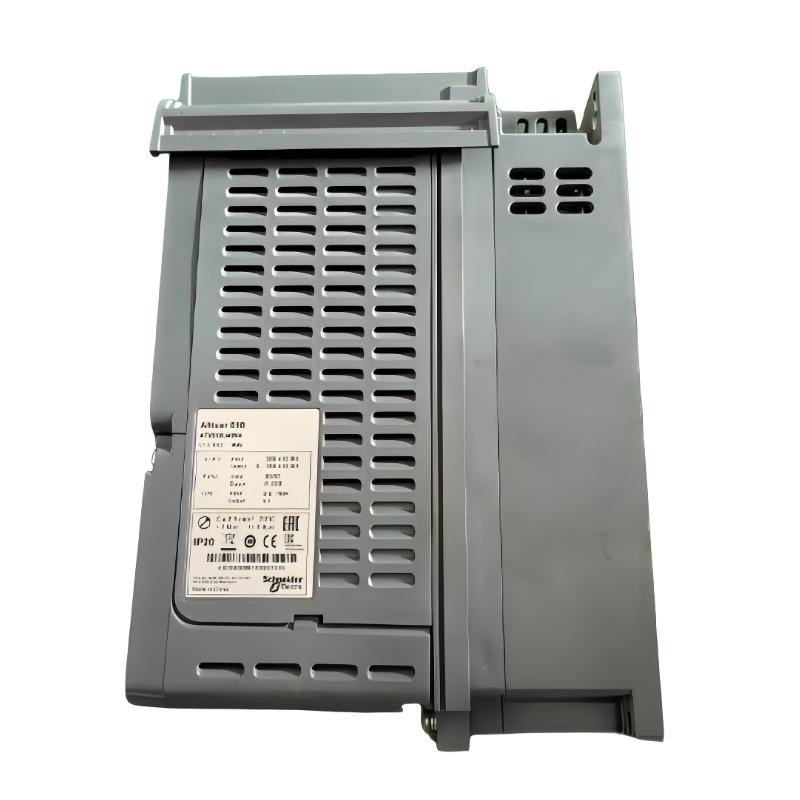

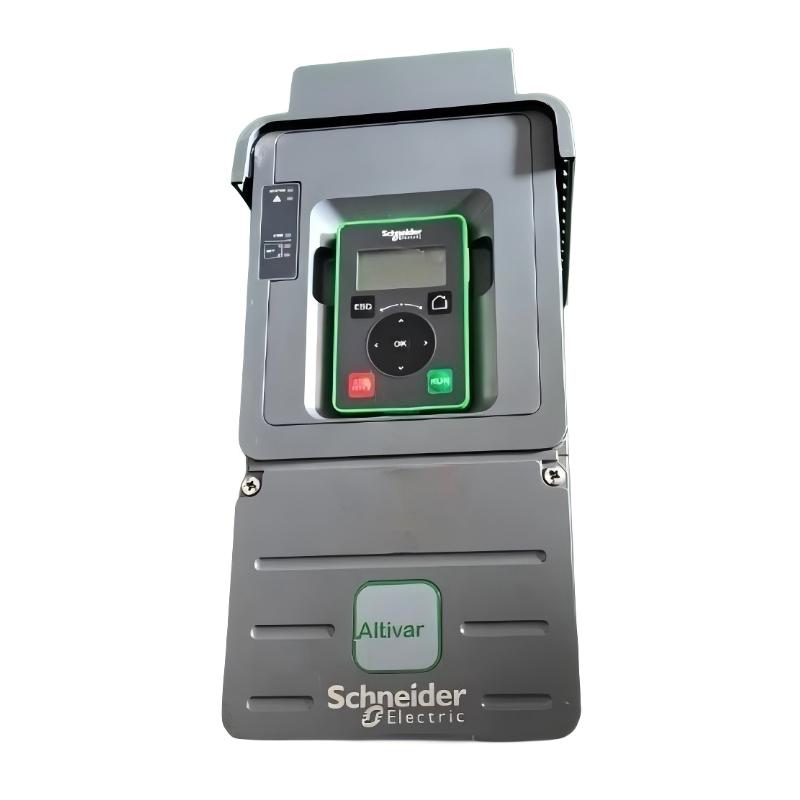

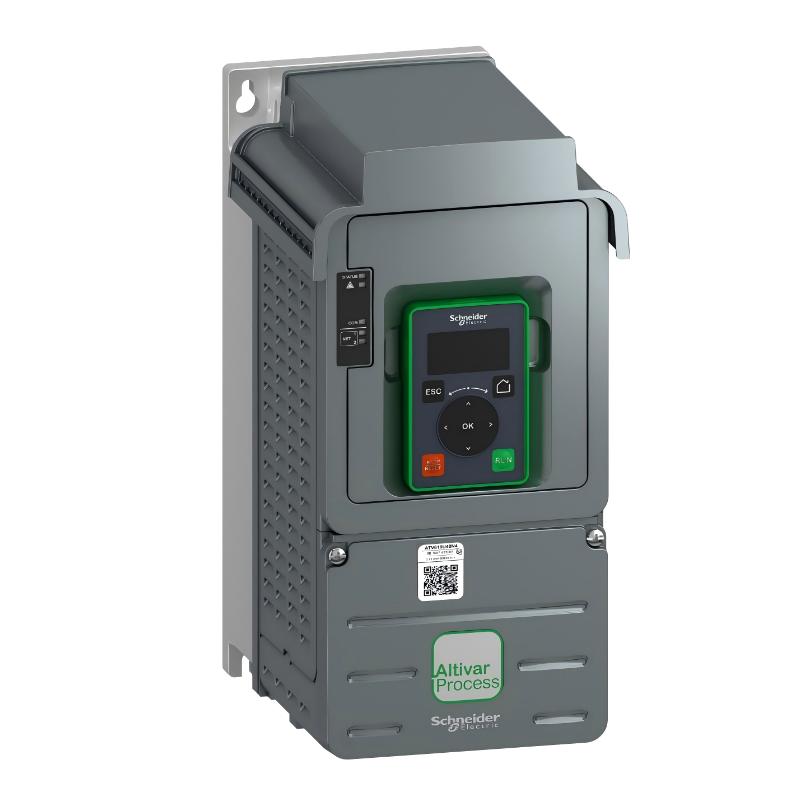

The Schneider Electric ATV610U40N4 is a variable speed drive from the Altivar Process ATV610 series.
It is designed for controlling three-phase AC motors in industrial systems.
It is mainly used in pump, fan, compressor, and general utility applications where stable operation and energy-efficient motor control are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar Process ATV610 |
| Model | ATV610U40N4 |
| Product Type | Variable Speed Drive |
| Rated Power | 4 kW |
| Supply Voltage | 380–460 V AC, 3-phase |
| Output | Controlled motor supply |
| Rated Current | ~8.8 A |
| Protection Class | IP20 |
| Cooling | Forced air cooling |
| Mounting Type | Panel mounted |
| Dimensions | 297 × 145 × 203 mm |
| Weight | 4.045 kg |
Function and Working Principle
The device is used to control how an AC motor operates by adjusting the electrical energy supplied to it.
Operation Description
- Electrical power is supplied to the drive
- Internal circuits manage and regulate energy flow
- Output is adjusted based on operating requirements
- Motor runs at required speed and load condition
- System maintains stable and efficient operation
Key Functions
- Motor speed control
- Smooth start and stop operation
- Energy-efficient operation for utilities
- Stable performance under variable load
- Motor protection functions
- Integration into automation systems
Industrial Applications
- Water pumps
- HVAC systems
- Ventilation fans
- Compressors
- Building automation systems
- General industrial utility systems
Installation Notes
- Installed inside electrical control cabinets
- Requires proper ventilation
- Shielded motor cables recommended
- Proper grounding required
- Configuration required during commissioning
Compatible Systems
- Three-phase AC induction motors
- Building management systems
- Industrial automation systems
- Motor protection devices
Alternative Models
- ATV610U30N4
- ATV610U22N4
- ATV610D18N4
- ATV320 series (machine control drives)
- ATV600 series variants
Key Advantages
- Optimized for pump and fan applications
- Energy-efficient operation
- Stable performance under load variation
- Simple configuration
- Reliable industrial design
- Suitable for continuous operation
FAQ
Q: What is ATV610U40N4 used for?
It is used to control AC motor speed in industrial utility systems.
Q: Is it a soft starter?
No, it is a variable speed drive.
Q: What type of motor does it support?
Three-phase AC induction motors.
Conclusion
The Schneider ATV610U40N4 Variable Speed Drive is an industrial drive designed for energy-efficient motor control in pumps, fans, and HVAC systems, providing stable and reliable operation.
