Product Overview

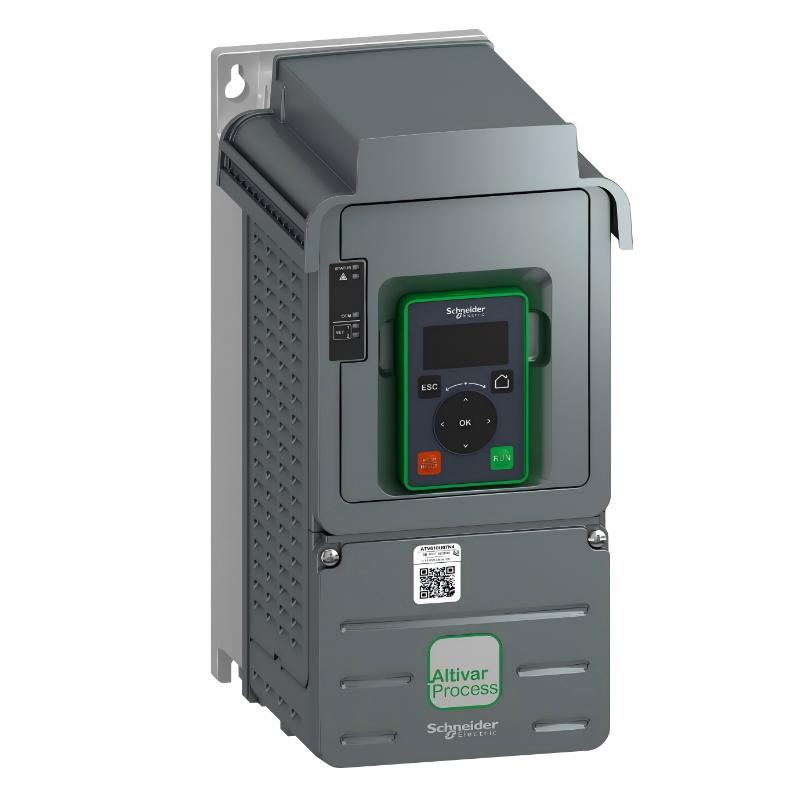

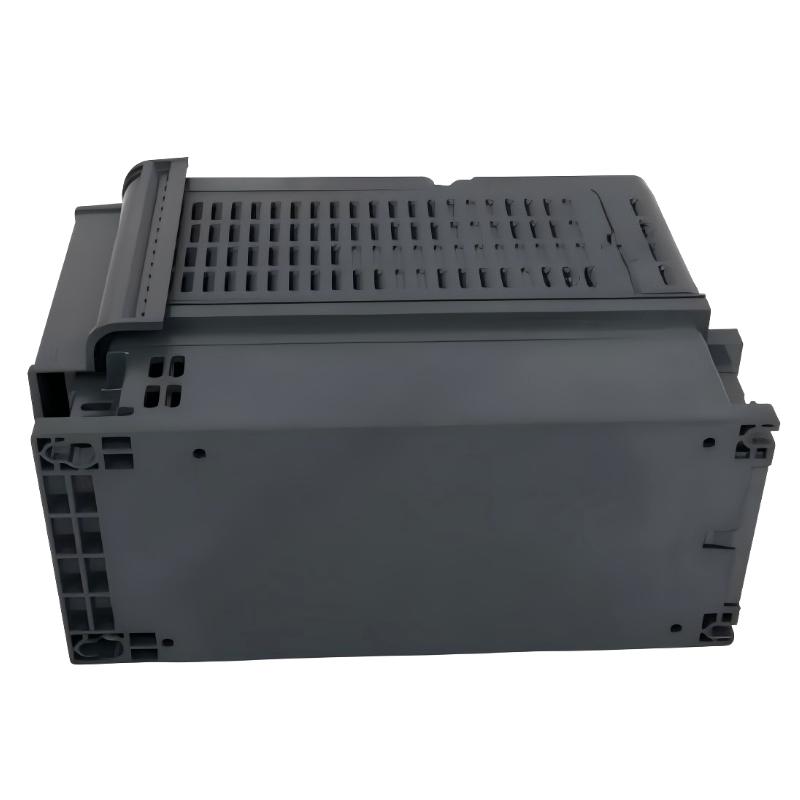

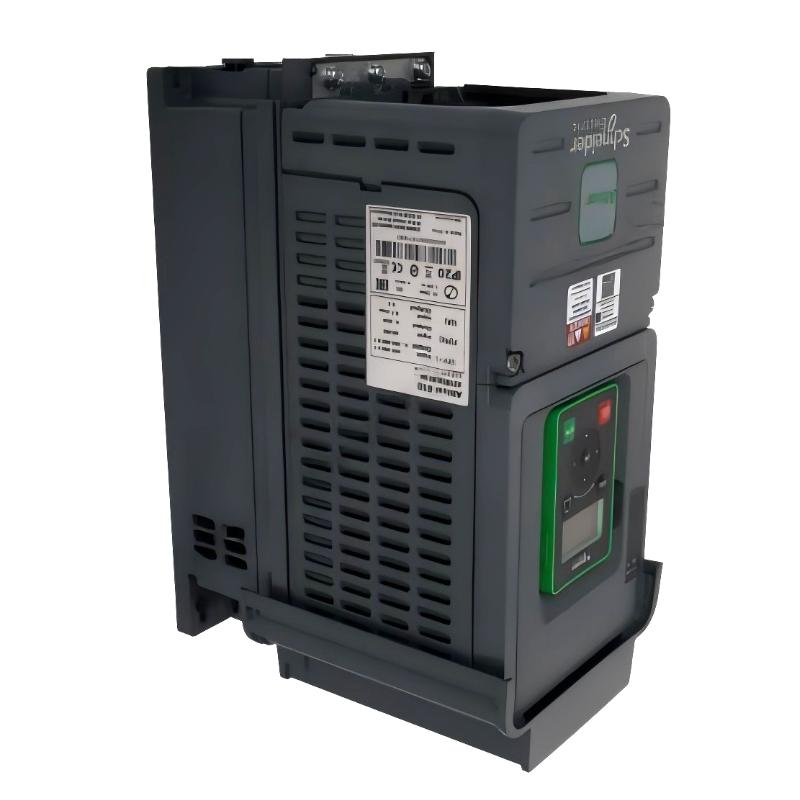

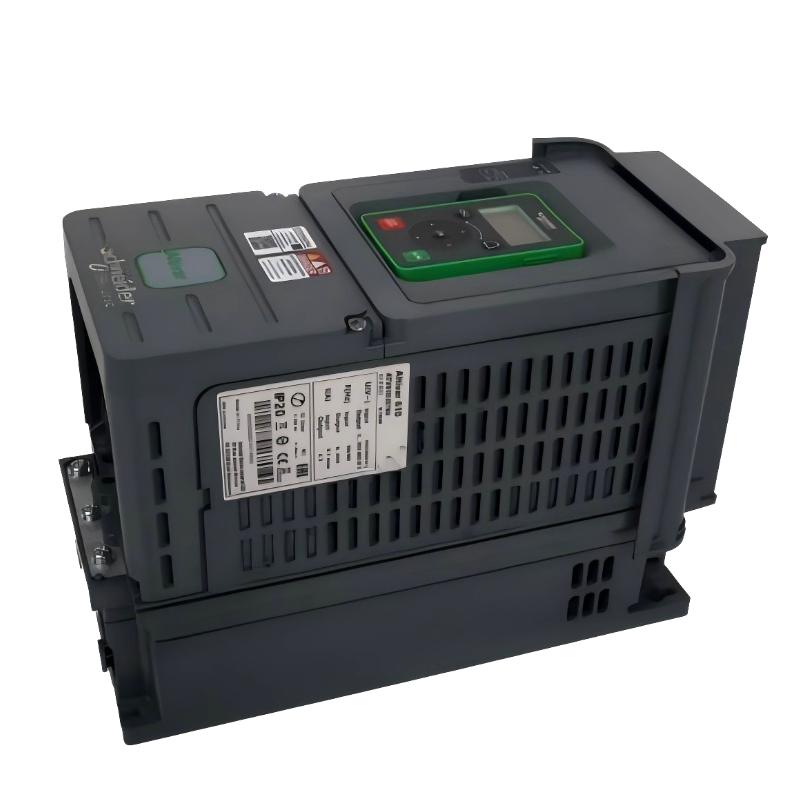

The Schneider Electric ATV610U07N4 is a variable speed drive from the Altivar Process ATV610 series.
It is designed for controlling the speed of three-phase AC motors in industrial applications.
It is mainly used in pumps, fans, compressors, and light industrial systems where energy efficiency and stable operation are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar Process ATV610 |
| Model | ATV610U07N4 |
| Product Type | Variable Speed Drive |
| Rated Power | 0.75 kW |
| Supply Voltage | 380–460 V AC, 3-phase |
| Output | Controlled AC motor supply |
| Rated Current | ~2.2 A |
| Protection Class | IP20 |
| Cooling | Forced air cooling |
| Mounting Type | Panel mounted |
| Dimensions | 297 × 145 × 203 mm |
| Weight | 3.135 kg |
Function and Working Principle
The device controls the operation of an AC motor by regulating the electrical energy supplied to it based on operating needs.
Operation Description
- Electrical power is supplied to the drive
- Internal circuits manage and regulate energy flow
- Output is adjusted according to system demand
- Motor runs at the required speed and load condition
- System maintains stable and efficient operation
Key Functions
- Motor speed control
- Energy-efficient operation for pumps and fans
- Smooth start and stop
- Stable performance under varying load
- Motor protection functions
- Integration into industrial systems
Industrial Applications
- Water and wastewater pumps
- HVAC systems
- Ventilation fans
- Light industrial process equipment
- Compressor systems
- Building automation systems
Installation Notes
- Installed inside electrical control cabinets
- Requires proper ventilation
- Shielded motor cables recommended
- Proper grounding required
- Configuration required during commissioning
Compatible Systems
- Three-phase AC induction motors
- Building automation systems
- Industrial control systems
- Motor protection devices
Alternative Models
- ATV610D11N4
- ATV610D18N4
- ATV610D30N4
- ATV320 series (machine control drives)
- ATV600 series variants
Key Advantages
- Optimized for pump and fan applications
- Energy-efficient operation
- Stable performance under load variation
- Simple configuration
- Reliable industrial design
- Suitable for continuous operation
FAQ
Q: What is ATV610U07N4 used for?
It is used to control AC motor speed in industrial and building systems.
Q: Is it a soft starter?
No, it is a variable speed drive.
Q: What type of motor does it support?
Three-phase AC induction motors.
Conclusion
The Schneider ATV610U07N4 Variable Speed Drive is a compact industrial drive designed for energy-efficient motor control in pumps, fans, and HVAC systems, providing stable and reliable operation.
