Product Overview

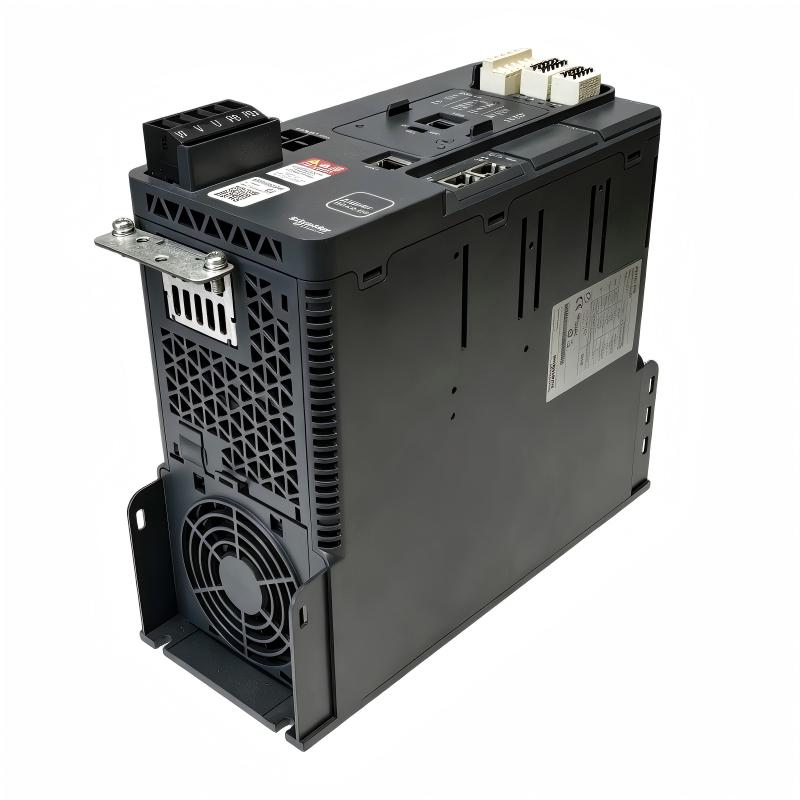

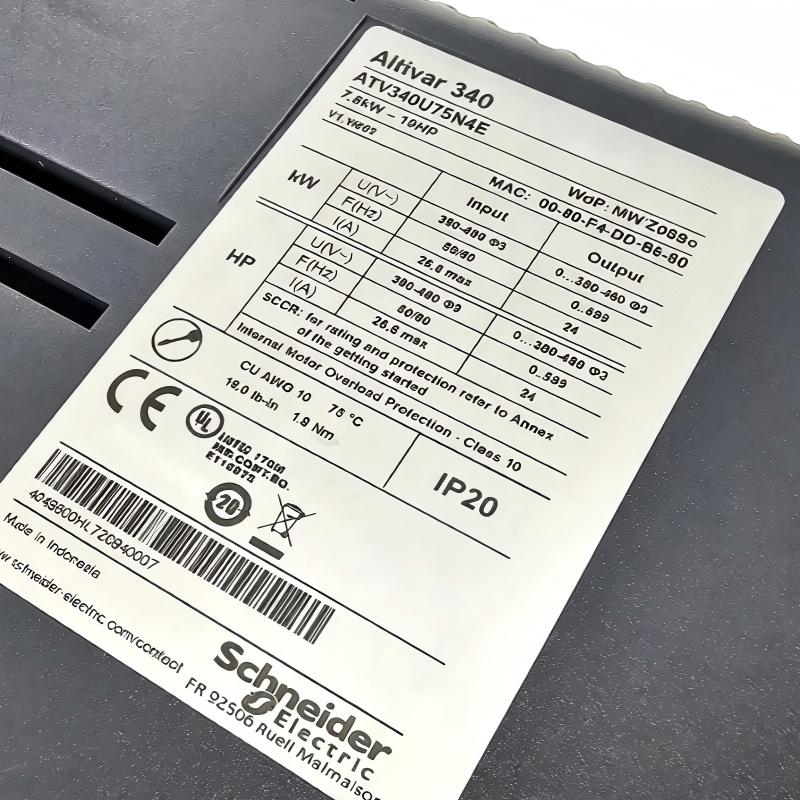

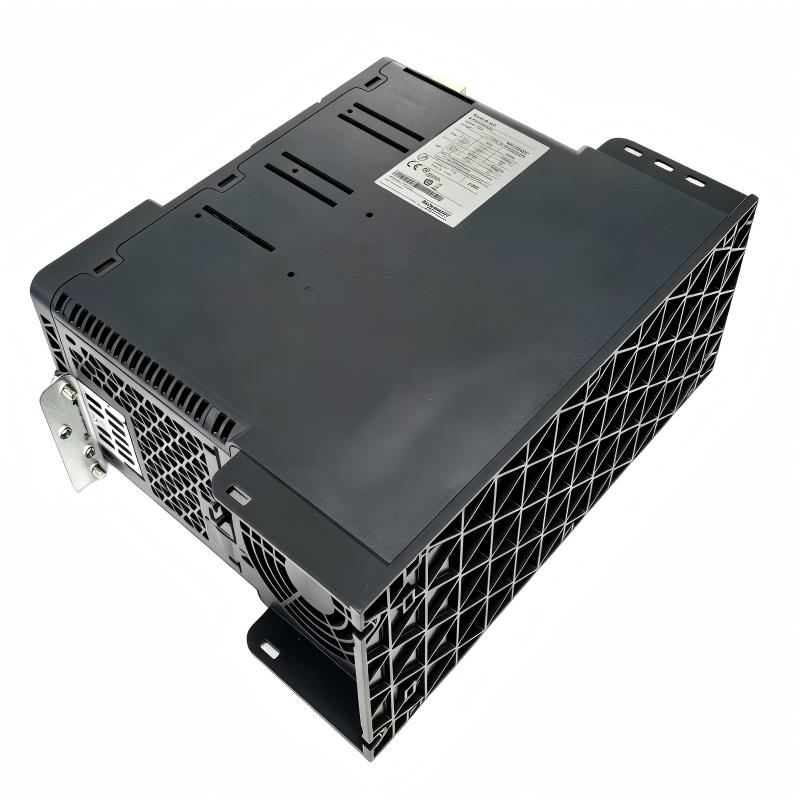

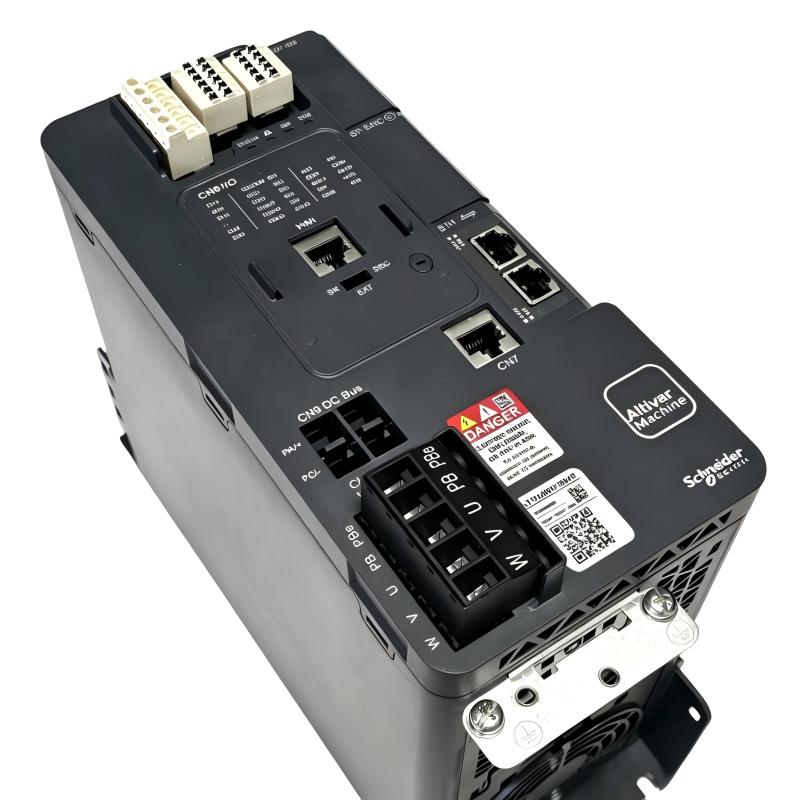

The Schneider ATV340U75N4E Variable Speed Drive is a high-performance AC Variable Frequency Drive (VFD) from the Altivar Machine ATV340 series, specifically developed for advanced industrial automation systems that require intelligent motor control, rapid dynamic response, and reliable long-term operation. Designed for OEM machine builders, automation integrators, and industrial manufacturers, the ATV340U75N4E combines Schneider Electric’s advanced vector control technology with embedded Industrial Ethernet communication, enabling seamless integration into modern Industry 4.0 production environments.
Rated for 7.5 kW heavy-duty applications, the drive provides highly accurate control of both three-phase asynchronous induction motors and permanent magnet synchronous motors. Its advanced digital control platform delivers excellent low-speed torque, precise speed regulation, fast acceleration and deceleration, and stable performance under varying load conditions. These capabilities make the drive particularly suitable for demanding machinery where productivity, repeatability, and motion precision are essential.
The integrated Industrial Ethernet interface allows direct communication with Schneider Modicon PLCs, Human Machine Interfaces (HMIs), SCADA platforms, industrial PCs, and Ethernet-based automation networks. Engineers can remotely configure parameters, monitor operating conditions, perform diagnostics, and implement predictive maintenance strategies without requiring additional communication modules.
Comprehensive protection functions—including overload protection, motor thermal protection, overvoltage protection, undervoltage protection, phase-loss monitoring, overtemperature protection, short-circuit protection, motor stall detection, and integrated Safe Torque Off (STO)—help ensure maximum equipment reliability while improving personnel safety and reducing maintenance requirements.
With compact dimensions of 110 × 270 × 234 mm and an approximate weight of 3.0 kg, the ATV340U75N4E offers an excellent combination of high power density and space-saving installation, making it ideal for modern industrial control cabinets.
The drive is widely used in robotic automation, CNC machine tools, packaging equipment, conveyor systems, printing machinery, textile production, woodworking equipment, food and beverage processing, pharmaceutical manufacturing, plastics machinery, automotive assembly, logistics systems, and intelligent manufacturing facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV340U75N4E |
| Product Series | Altivar Machine ATV340 |
| Product Type | Variable Speed Drive |
| Drive Technology | AC Variable Frequency Drive (VFD) |
| Rated Motor Power | 7.5 kW (Heavy Duty) |
| Rated Supply Voltage | 380–480 V AC, Three-Phase |
| Motor Compatibility | Three-Phase Asynchronous Motors and Permanent Magnet Synchronous Motors |
| Control Method | Advanced Sensorless Vector Control |
| Communication | Embedded Industrial Ethernet |
| Mounting Method | Panel Mounted |
| Cooling Method | Forced Air Cooling |
| Safety Function | Safe Torque Off (STO) |
| Protection Functions | Overload, Overvoltage, Undervoltage, Overtemperature, Motor Thermal Protection, Phase Loss, Short Circuit |
| Dimensions | 110 × 270 × 234 mm |
| Weight | 3.0 kg |
Function and Working Principle
The Schneider ATV340U75N4E converts fixed-frequency three-phase AC power into adjustable-frequency and adjustable-voltage output using an advanced IGBT inverter, allowing precise regulation of motor speed and output torque.
Typical operating sequence:
Three-Phase AC Power
↓
AC Rectifier
↓
DC Link
↓
IGBT Inverter
↓
Schneider ATV340U75N4E Variable Speed Drive
↓
Three-Phase AC Motor
↓
Industrial Equipment
During operation, the drive continuously performs the following functions:
- Converts fixed AC power into variable-frequency output
- Delivers accurate motor speed and torque control
- Provides smooth acceleration and deceleration
- Maintains stable operation during changing load conditions
- Optimizes energy efficiency
- Supports Industrial Ethernet communication and remote diagnostics
- Continuously monitors drive and motor performance
- Protects equipment against electrical and thermal faults
Its advanced vector control algorithm ensures fast dynamic response while minimizing mechanical stress and improving production efficiency.
Role in Industrial Control Systems
The ATV340U75N4E functions as the intelligent motor control platform within modern industrial automation systems.
Typical automation architecture:
Industrial Sensors
↓
Schneider Modicon PLC
↓
Industrial Ethernet Network
↓
Schneider ATV340U75N4E Variable Speed Drive
↓
Three-Phase AC Motor
↓
Industrial Machine
Through its embedded Ethernet communication interface, the drive enables centralized monitoring, parameter management, predictive maintenance, and seamless integration into intelligent manufacturing systems.
Industrial Applications
Manufacturing Automation
Typical applications include:
- Automated production lines
- Robotic assembly systems
- Flexible manufacturing cells
- CNC machining centers
- Precision automation equipment
Packaging Industry
Suitable for:
- Filling machines
- Wrapping equipment
- Labeling systems
- Cartoning machinery
- Conveyor lines
Accurate speed synchronization improves product quality and production efficiency.
Material Handling
Common applications include:
- Conveyor systems
- Warehouse automation
- Sorting equipment
- Automated storage systems
- Hoisting machinery
Smooth motor control reduces mechanical wear and extends equipment service life.
Food and Beverage Processing
Typical equipment includes:
- Mixing systems
- Bottling lines
- Filling equipment
- Packaging machinery
- Conveyor applications
Variable speed operation improves process consistency while reducing energy consumption.
Pharmaceutical Manufacturing
Applications include:
- Tablet production
- Packaging systems
- Cleanroom automation
- Material transfer equipment
- Mixing machinery
Precise speed regulation supports highly repeatable manufacturing processes.
Textile Industry
Frequently used for:
- Spinning machines
- Weaving equipment
- Dyeing systems
- Winding machines
- Finishing equipment
Stable motor performance enhances fabric quality and production efficiency.
Machine Tools
Suitable for:
- Milling machines
- Grinding equipment
- Drilling systems
- Cutting machinery
- Precision machining centers
Rapid response and stable torque improve machining precision.
Water and Wastewater Treatment
Applications include:
- Pump systems
- Blower control
- Aeration equipment
- Filtration systems
- Water distribution pumps
Variable speed operation significantly improves energy efficiency while reducing operating costs.
Installation and System Integration
Before installation, engineers should verify:
- Motor specifications
- Input voltage compatibility
- Output current requirements
- Industrial Ethernet network configuration
- Cabinet ventilation
- Protective grounding
- Ambient operating conditions
- Protective device selection
Recommended Installation Procedure
- Disconnect the incoming power supply.
- Mount the drive securely inside the control cabinet.
- Connect the three-phase input power.
- Connect the motor output terminals.
- Install protective grounding.
- Connect the Industrial Ethernet network.
- Configure motor nameplate parameters.
- Set acceleration and deceleration times.
- Configure communication settings.
- Perform motor auto-tuning.
- Verify protection functions.
- Complete commissioning and operational testing.
Compatible System Components
| Component | Function |
|---|---|
| Schneider Modicon PLC | Central machine control |
| ATV340U75N4E | Variable speed motor control |
| Human Machine Interface (HMI) | Operator interface |
| Industrial Ethernet Switch | Network communication |
| SCADA System | Centralized monitoring |
| Three-Phase AC Motor | Mechanical drive |
| Encoder Feedback Device | Speed monitoring |
| Industrial Sensors | Process feedback |
| Circuit Breakers | Electrical protection |
| Motor Protection Devices | Equipment safety |
Recommended Alternative Models
| Model | Product Type | Recommended Application |
|---|---|---|
| ATV340U55N4E | Variable Speed Drive | Medium-power Ethernet automation |
| ATV340D11N4E | Variable Speed Drive | Heavy-duty industrial machinery |
| ATV340D15N4E | Variable Speed Drive | Large-scale manufacturing equipment |
| ATV340D18N4E | Variable Speed Drive | High-load industrial processes |
| ATV340U75N4E | Variable Speed Drive | High-performance Ethernet-based motor control |
Key Advantages
- Altivar Machine ATV340 high-performance drive platform
- Rated for 7.5 kW heavy-duty applications
- Embedded Industrial Ethernet communication
- Advanced sensorless vector motor control
- Excellent low-speed torque and speed accuracy
- Supports asynchronous and permanent magnet synchronous motors
- Integrated Safe Torque Off (STO)
- Comprehensive electrical and motor protection
- Compact panel-mounted construction
- Optimized for Industry 4.0 automation systems
- Dimensions of 110 × 270 × 234 mm
- Approximate weight of 3.0 kg
Technical FAQs
What is the Schneider ATV340U75N4E?
The Schneider ATV340U75N4E is an Ethernet-enabled Variable Speed Drive (VFD) from the Altivar Machine ATV340 series for advanced industrial motor control.
What is its primary function?
It regulates the speed and torque of AC motors while providing Industrial Ethernet connectivity for intelligent automation systems.
What are the physical dimensions?
The drive measures 110 × 270 × 234 mm.
What is the approximate weight?
The drive weighs approximately 3.0 kg.
Which motors are supported?
The drive is compatible with three-phase asynchronous induction motors and permanent magnet synchronous motors.
Which communication features are available?
The embedded Industrial Ethernet interface supports integration with PLCs, HMIs, SCADA systems, and industrial automation networks for remote diagnostics, monitoring, and configuration.
Which industries commonly use this drive?
It is widely applied in manufacturing, robotics, packaging, food processing, pharmaceuticals, automotive production, logistics, textile machinery, plastics processing, woodworking, machine tools, and water treatment facilities.
Does the drive include integrated protection?
Yes. It provides overload protection, overvoltage protection, undervoltage protection, overtemperature monitoring, motor thermal protection, phase-loss detection, short-circuit protection, and Safe Torque Off (STO).
What should engineers verify before installation?
Engineers should verify motor ratings, power supply specifications, communication network configuration, grounding, cabinet ventilation, and protective devices.
What should be tested before commissioning?
Commissioning should include verification of wiring integrity, Ethernet communication, parameter configuration, motor rotation direction, protection functions, auto-tuning results, and complete operational performance.
Conclusion
The Schneider ATV340U75N4E Variable Speed Drive combines advanced vector motor control, embedded Industrial Ethernet communication, intelligent diagnostics, and comprehensive protection features in a compact industrial package. Designed for demanding automation environments, it delivers exceptional speed accuracy, stable torque output, and high operational efficiency.
With compact dimensions of 110 × 270 × 234 mm and an approximate weight of 3.0 kg, the drive is easy to integrate into industrial control cabinets while providing dependable long-term performance. When deployed alongside Schneider Modicon PLCs, HMIs, Industrial Ethernet infrastructure, SCADA platforms, and compatible AC motors, the ATV340U75N4E provides a scalable, energy-efficient, and future-ready motor control solution for modern industrial automation systems.
