Product Overview

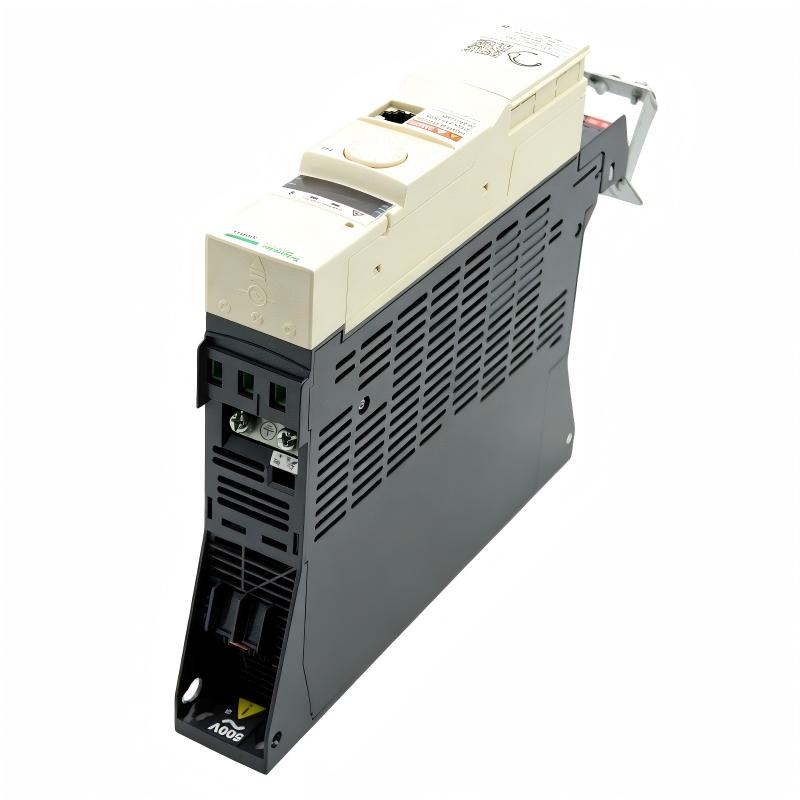

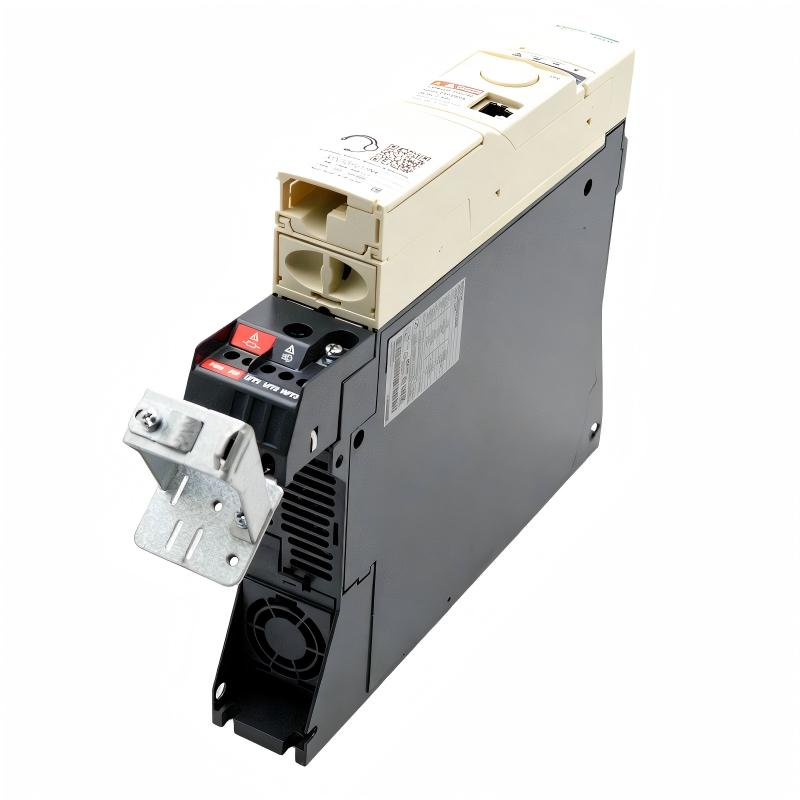

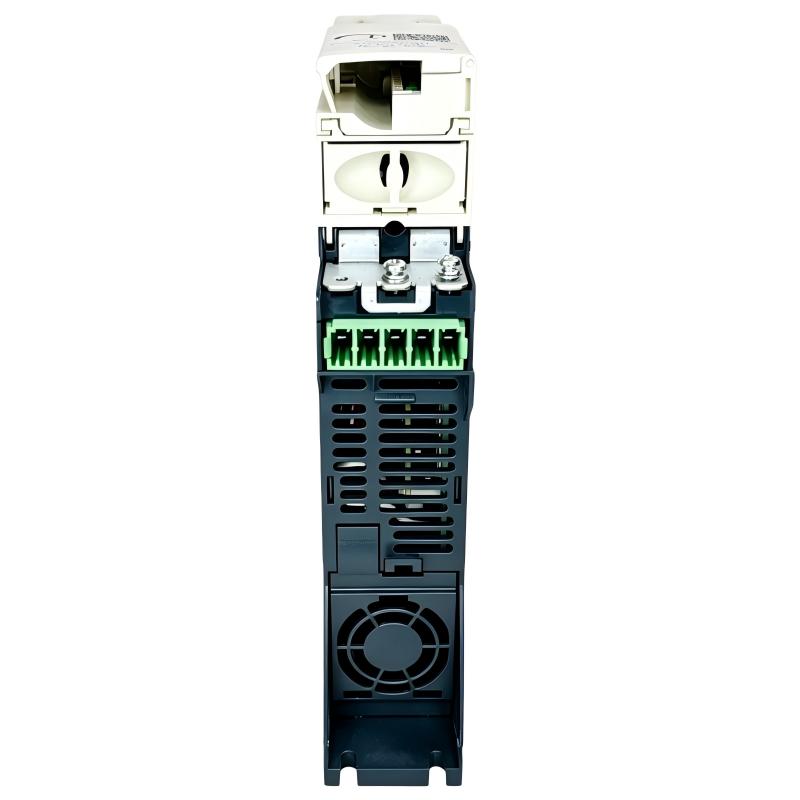

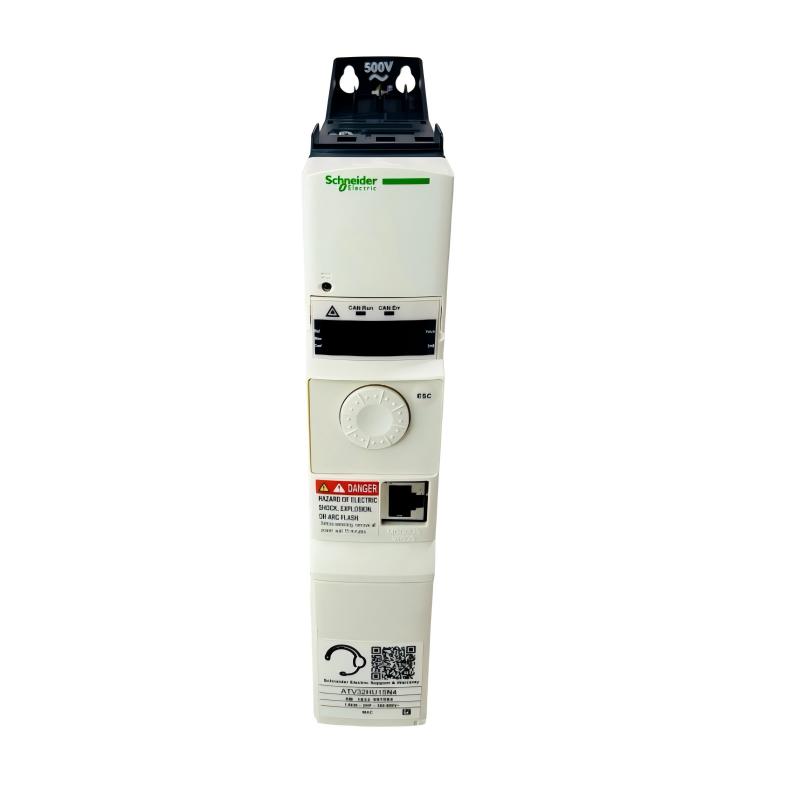

The Schneider ATV32HU15N4 Variable Speed Drive is a compact industrial AC drive from the Schneider Electric Altivar 32 (ATV32) series, designed to provide accurate motor speed regulation, high torque performance, and reliable operation for modern industrial automation systems. Rated for 1.5 kW, the drive operates on a three-phase 380–500 VAC power supply and supports both asynchronous induction motors and permanent magnet synchronous motors.

Designed specifically for OEM machinery and industrial manufacturing equipment, the ATV32HU15N4 combines advanced sensorless vector control, integrated EMC filtering, industrial communication interfaces, and intelligent motor protection into a compact cabinet-mounted solution. It enables smooth motor acceleration, stable low-speed operation, and optimized energy efficiency while reducing mechanical wear and maintenance costs.

With dimensions of 45 × 325 × 245 mm and an approximate weight of 2.5 kg, the drive is ideal for installations where cabinet space is limited but high-performance motor control is required.

Typical applications include packaging machinery, conveyor systems, pumps, compressors, fans, textile machinery, food processing equipment, woodworking machinery, material handling systems, and automated production lines.

Technical Specifications

Function and Working Principle

The ATV32HU15N4 converts fixed-frequency AC power into variable voltage and frequency output, allowing precise adjustment of motor speed and torque according to application requirements.

Operating sequence:

Three-Phase AC Supply → Rectifier → DC Bus → PWM Inverter → AC Motor → Industrial Equipment

The drive continuously monitors motor load, operating temperature, and output conditions, automatically optimizing motor performance while protecting the equipment from abnormal operating conditions.

Main functions include:

• Variable motor speed regulation
• High-performance sensorless vector control
• High starting torque
• Soft start and soft stop
• Adjustable acceleration and deceleration
• PID process control
• Energy-saving operation
• Motor overload protection
• Automatic fault diagnostics
• Industrial communication integration

Role in Industrial Automation Systems

The ATV32HU15N4 functions as the intelligent motor control center within industrial automation systems.

Typical automation architecture:

PLC / Industrial Controller

↓

ATV32HU15N4 Variable Speed Drive

↓

Three-Phase AC Motor

↓

Industrial Equipment

↓

Production Process

The drive receives commands from the control system and continuously adjusts motor speed and torque to improve production accuracy, efficiency, and equipment reliability.

Industrial Applications

Packaging Machinery

Suitable for:

• Filling machines
• Wrapping systems
• Cartoning machines
• Labeling equipment
• Packaging conveyors

Conveyor Systems

Provides smooth speed regulation while reducing mechanical impact during starting and stopping.

Pumps and Water Treatment

Improves energy efficiency by matching pump speed to process demand.

Fans and HVAC Systems

Optimizes airflow while reducing electrical power consumption.

Material Handling Equipment

Suitable for warehouse automation, transfer systems, lifting equipment, and logistics applications.

Textile Machinery

Provides accurate motor speed regulation for weaving, spinning, winding, dyeing, and finishing equipment.

Food and Beverage Processing

Ideal for mixers, bottling systems, conveyors, packaging machinery, and automated production lines.

OEM Industrial Machinery

Frequently integrated into customized industrial equipment requiring compact installation and reliable motor control.

Installation and Commissioning

Before installation, engineers should verify:

• Input voltage compatibility
• Motor specifications
• Cabinet ventilation
• Protective grounding
• Cable sizing
• Communication configuration
• Protection devices
• Environmental operating conditions

Recommended Installation Procedure

1. Disconnect the electrical power supply.
2. Mount the drive securely inside the control cabinet.
3. Connect the three-phase input power.
4. Connect the motor output terminals.
5. Connect protective earth.
6. Complete the control wiring.
7. Configure communication parameters.
8. Verify all electrical connections.
9. Restore power.
10. Configure motor parameters.
11. Set acceleration and deceleration times.
12. Configure protection functions.
13. Test motor operation.
14. Verify communication with the PLC or HMI.
15. Complete system commissioning.

Compatible System Components

Recommended Alternative Models

Key Advantages

• Compact Altivar 32 platform
• Rated for 1.5 kW industrial motor applications
• Three-phase 380–500 VAC operation
• Advanced sensorless vector control
• Integrated Class C2 EMC filter
• Smooth acceleration and deceleration
• Excellent low-speed torque
• Integrated Modbus and CANopen communication
• Comprehensive motor protection
• Intelligent fault diagnostics
• Easy installation and commissioning
• Designed for continuous industrial operation
• Dimensions 45 × 325 × 245 mm
• Approximate weight 2.5 kg

Technical FAQs

What is the Schneider ATV32HU15N4?

The ATV32HU15N4 is a 1.5 kW Variable Speed Drive from the Schneider Electric Altivar 32 series for industrial motor control.

What is the primary function of this drive?

It converts fixed-frequency AC power into adjustable voltage and frequency output, providing accurate motor speed and torque control.

What are the physical dimensions?

The drive measures 45 × 325 × 245 mm.

What is the approximate weight?

The drive weighs approximately 2.5 kg.

Which motors are compatible?

The drive supports compatible three-phase AC induction motors and permanent magnet synchronous motors.

Where is the drive typically installed?

It is installed inside industrial control cabinets for automated machinery, conveyors, pumps, compressors, and manufacturing equipment.

Which industries commonly use this drive?

It is widely used in packaging, food processing, textile manufacturing, material handling, water treatment, HVAC, woodworking, and OEM machine building.

Does the drive improve energy efficiency?

Yes. By continuously adjusting motor speed according to process requirements, the drive reduces energy consumption and improves overall production efficiency.

Does the drive include protection features?

Yes. It provides overload protection, motor thermal protection, overvoltage and undervoltage protection, short-circuit monitoring, and intelligent fault diagnostics.

What should engineers verify before installation?

Engineers should verify the input voltage, motor rating, cabinet dimensions, wiring configuration, cooling conditions, communication requirements, and application compatibility before commissioning.

Conclusion

The Schneider ATV32HU15N4 Variable Speed Drive is a reliable and energy-efficient 1.5 kW industrial AC drive developed for demanding automation applications. Its advanced vector control technology, integrated communication functions, intelligent protection features, and compact design make it an excellent solution for modern industrial machinery.

With dimensions of 45 × 325 × 245 mm and an approximate weight of 2.5 kg, the drive is ideally suited for cabinet-mounted installations where installation space, performance, and long-term reliability are essential.

When integrated with compatible PLCs, HMIs, AC motors, industrial communication networks, sensors, and automation equipment, the ATV32HU15N4 delivers precise speed control, improved productivity, reduced maintenance requirements, and dependable long-term operation across a wide range of industrial environments.
