Product Overview

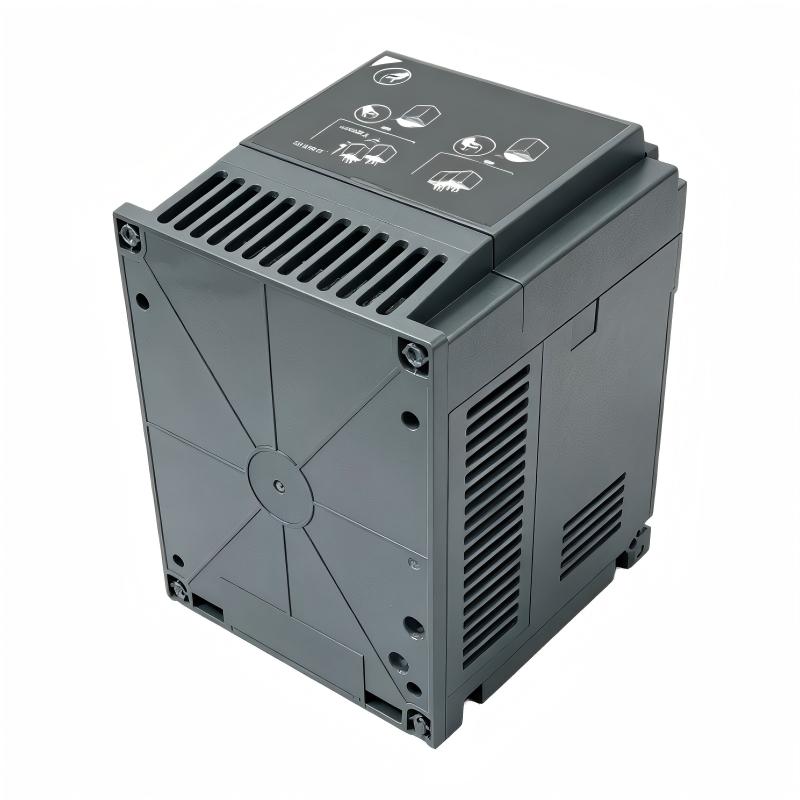

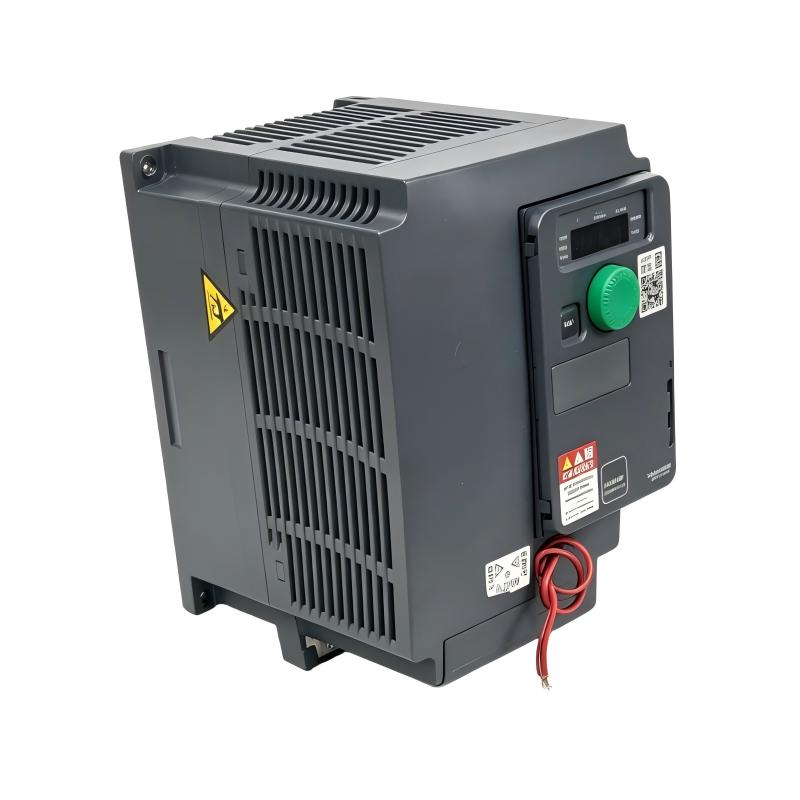

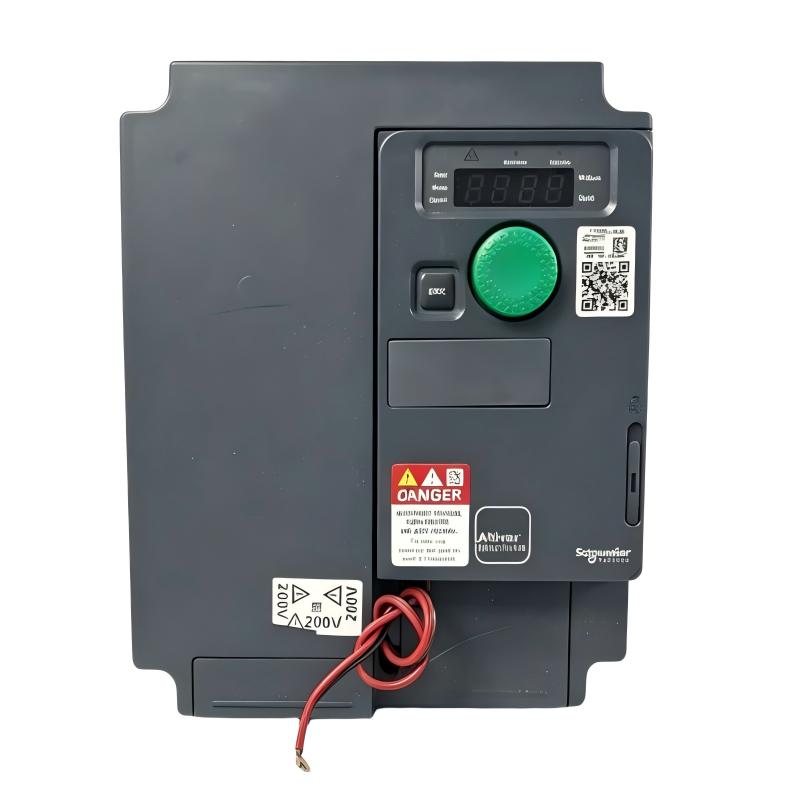

The Schneider ATV320U30M3C Variable Speed Drive is a compact industrial AC drive from the Altivar Machine ATV320 series, designed to provide precise speed regulation, torque control, and energy-efficient motor operation for demanding industrial automation applications. The drive is engineered for OEM machine builders and end users requiring reliable performance, flexible control, and seamless integration into modern production systems.

Designed for 3 kW motor applications with a three-phase 200–240 VAC input, the ATV320U30M3C supports both asynchronous and synchronous motors. It incorporates advanced motor control technology, integrated safety functions, and built-in industrial communication capabilities, making it suitable for both simple and complex machine applications. Its compact design allows efficient installation inside industrial control cabinets while maintaining high performance and reliability.

With dimensions of 140 × 184 × 158 mm and an approximate weight of 2.2 kg, the drive is ideal for applications where cabinet space is limited but high-performance motor control is required.

Typical applications include packaging machinery, conveyors, material handling systems, textile equipment, food and beverage processing, pumps, fans, woodworking machinery, automated assembly lines, and general industrial automation.

Technical Specifications

Function and Working Principle

The ATV320U30M3C converts fixed-frequency AC power into adjustable voltage and frequency output, enabling precise motor speed control according to process requirements.

A simplified operating sequence is:

AC Power Supply → Rectifier → DC Bus → Inverter → AC Motor → Industrial Equipment

The drive continuously adjusts output frequency and voltage to optimize motor performance while protecting both the motor and connected machinery.

Its primary functions include:

• Variable motor speed regulation
• Soft start and soft stop
• High-performance torque control
• Energy-saving operation
• Adjustable acceleration and deceleration
• Motor overload protection
• Fault diagnosis and monitoring
• PID process control
• Industrial communication
• Stable continuous-duty operation

Role in Industrial Automation Systems

The ATV320U30M3C acts as the intelligent motor control unit within industrial automation systems.

Typical system architecture:

PLC / Industrial Controller

↓

ATV320U30M3C Variable Speed Drive

↓

AC Motor

↓

Mechanical Equipment

↓

Industrial Production Process

By accurately regulating motor speed and torque, the drive improves process stability, reduces mechanical wear, and enhances production efficiency.

Industrial Applications

Packaging Machinery

Suitable for:

• Filling equipment
• Wrapping machines
• Cartoning systems
• Labeling machines
• Packaging conveyors

Conveyor Systems

Provides smooth acceleration and deceleration while maintaining stable conveying speed.

Pumping Systems

Optimizes pump performance by adjusting motor speed according to actual process demand.

Fan and Ventilation Equipment

Improves airflow regulation while reducing unnecessary power consumption.

Textile Machinery

Supports spinning, weaving, winding, dyeing, and fabric finishing equipment requiring precise motor control.

Food and Beverage Processing

Widely used in mixers, conveyors, packaging machines, bottling equipment, and processing systems.

Material Handling

Suitable for lifting systems, warehouse automation, transfer equipment, and logistics applications.

OEM Machine Building

An excellent solution for customized industrial machinery requiring compact dimensions, advanced control functions, and reliable long-term performance.

Installation and Commissioning

Before installation, engineers should verify:

• Input voltage compatibility
• Motor specifications
• Cabinet ventilation
• Protective grounding
• Cable sizing
• Control wiring
• Communication configuration
• Environmental conditions

Recommended Installation Procedure

1. Disconnect electrical power.
2. Install the drive vertically inside the control cabinet.
3. Connect the three-phase input supply.
4. Connect the motor output terminals.
5. Connect protective earth.
6. Wire the control terminals.
7. Configure communication interfaces if required.
8. Verify all electrical connections.
9. Restore power.
10. Configure motor parameters.
11. Set acceleration and deceleration profiles.
12. Configure protection settings.
13. Test motor rotation.
14. Verify communication with the PLC or HMI.
15. Complete system commissioning.

Compatible System Components

Recommended Alternative Models

Key Advantages

• Compact Altivar Machine ATV320 design
• Rated for 3 kW motor applications
• Accurate variable-frequency motor control
• High-performance sensorless vector control
• Integrated Modbus and CANopen communication
• Energy-efficient motor management
• Smooth acceleration and deceleration
• Advanced motor protection functions
• Reliable continuous-duty industrial operation
• Easy commissioning and maintenance
• Suitable for OEM and industrial automation systems
• Dimensions 140 × 184 × 158 mm
• Approximate weight 2.2 kg

Technical FAQs

What is the Schneider ATV320U30M3C?

The ATV320U30M3C is a 3 kW Variable Speed Drive from the Schneider Electric Altivar Machine ATV320 series designed for industrial motor speed control.

What is the primary function of this drive?

It regulates motor speed and torque by converting fixed-frequency AC power into variable-frequency output for efficient industrial motor control.

What are the physical dimensions?

The drive measures 140 × 184 × 158 mm.

What is the approximate weight?

The drive weighs approximately 2.2 kg.

What type of power supply does it require?

It is designed for a three-phase 200–240 VAC power supply.

Which communication protocols are supported?

The drive includes integrated Modbus and CANopen communication interfaces for industrial automation integration.

Which industries commonly use this drive?

It is widely used in packaging, food processing, textile manufacturing, material handling, conveyors, pumping systems, HVAC, woodworking, and OEM machinery.

Does the drive improve energy efficiency?

Yes. By adjusting motor speed to match actual process requirements, it helps reduce energy consumption while improving production efficiency.

Does it provide motor protection?

Yes. It incorporates multiple protection functions, including overload, overheating, short-circuit, and fault monitoring features to protect both the drive and connected motor.

What should engineers verify before replacing the drive?

Verify motor rating, supply voltage, communication requirements, cabinet dimensions, wiring configuration, and application compatibility before installation.

Conclusion

The Schneider ATV320U30M3C Variable Speed Drive is a high-performance industrial AC drive that combines compact dimensions, advanced motor control, integrated communication, and comprehensive protection functions in a single unit. Designed for 3 kW applications, it provides reliable speed regulation, optimized energy efficiency, and dependable long-term operation for a wide variety of industrial automation systems.

With dimensions of 140 × 184 × 158 mm and an approximate weight of 2.2 kg, the drive is well suited for cabinet-mounted installations where space efficiency and reliable motor control are essential.

When integrated with compatible PLCs, HMIs, AC motors, sensors, and industrial communication networks, the ATV320U30M3C delivers stable machine performance, improved productivity, reduced maintenance requirements, and dependable operation across demanding industrial environments.
