Product Overview

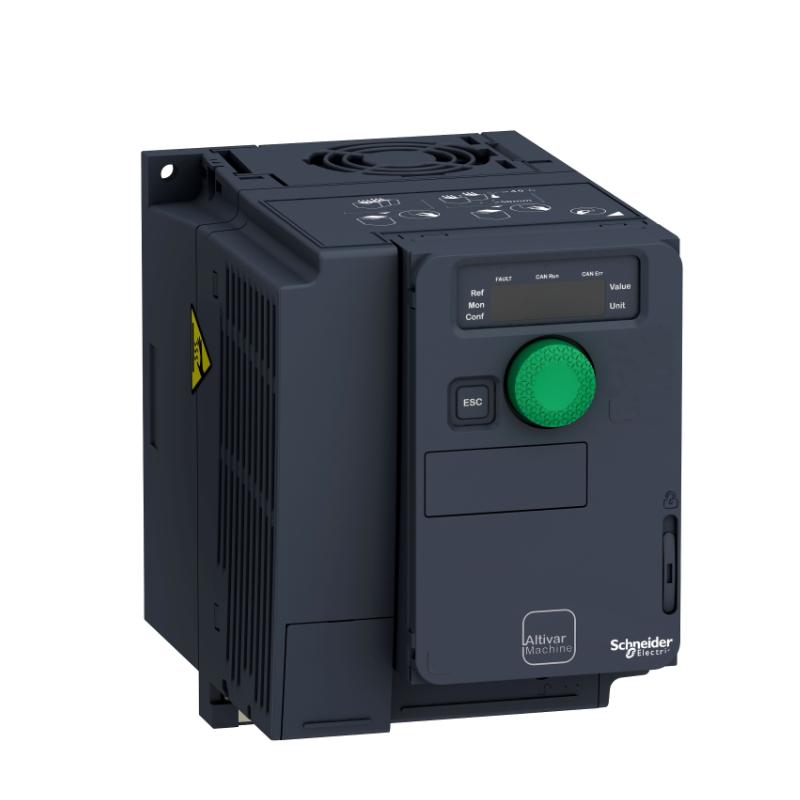

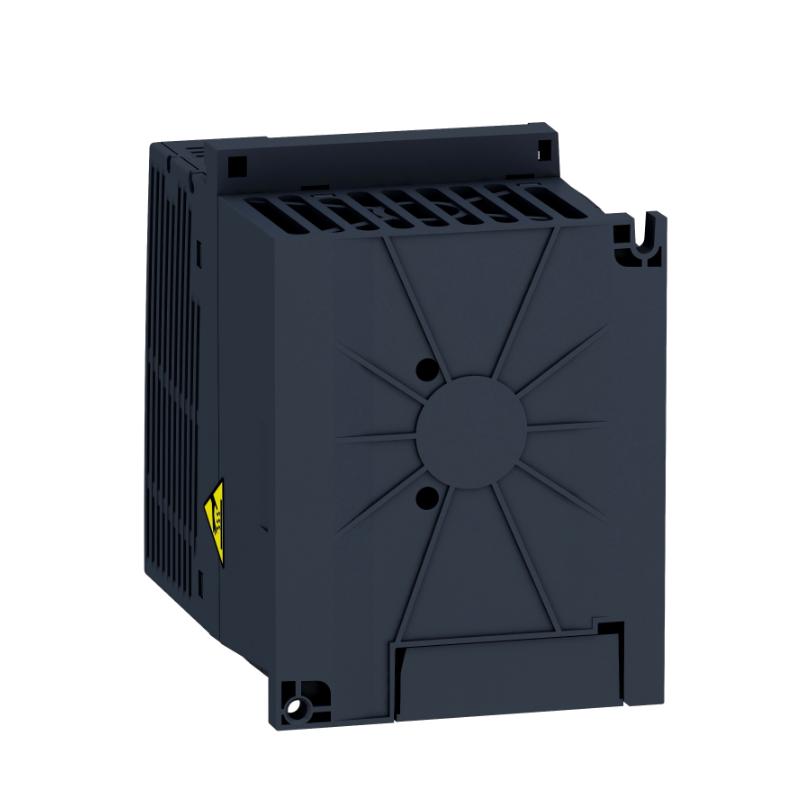

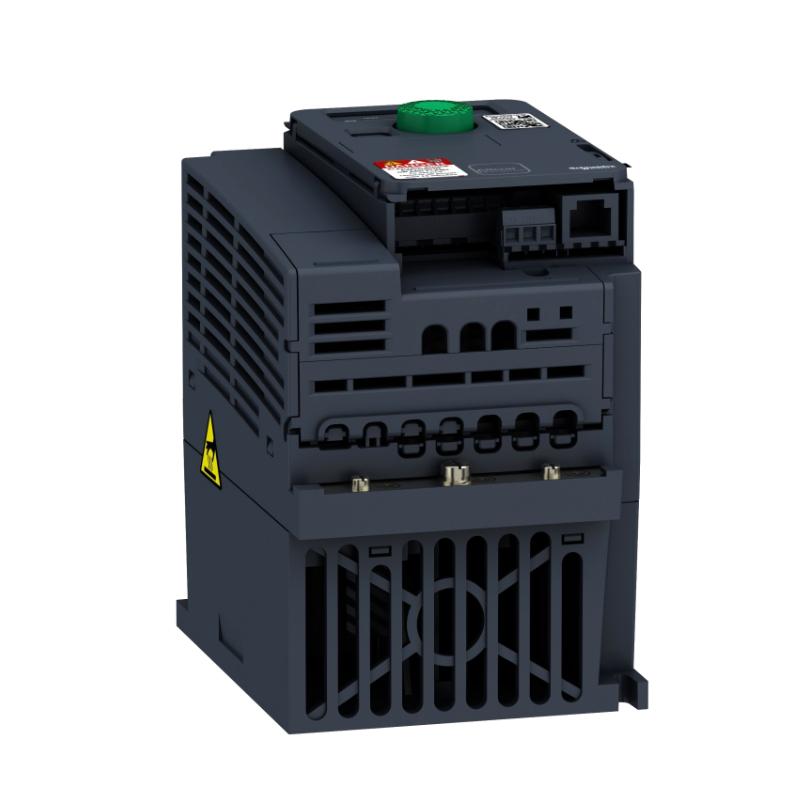

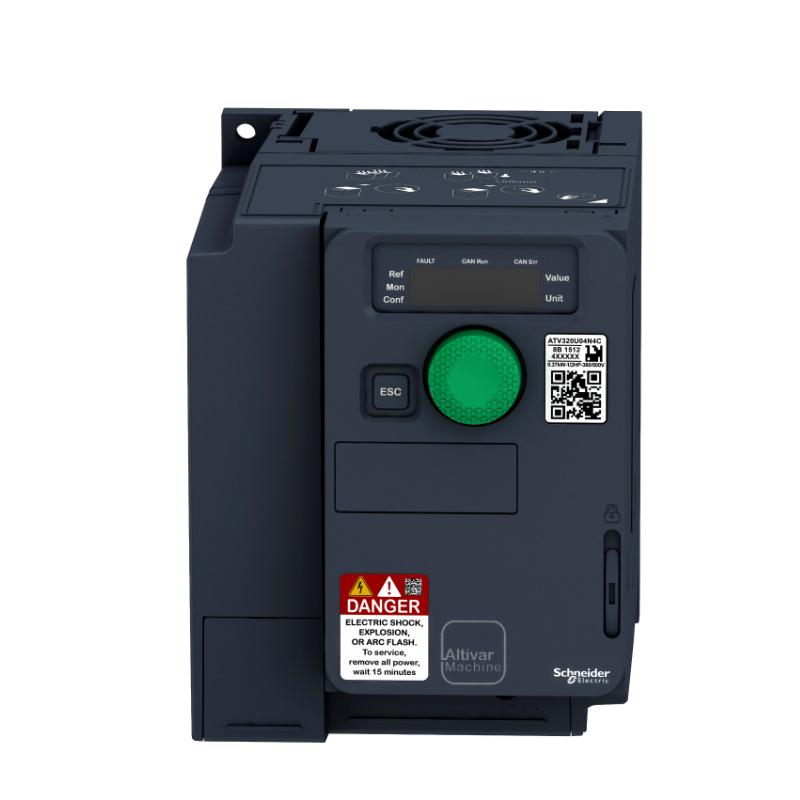

The Schneider ATV320U15N4C is a compact Variable Speed Drive (VSD) from the Altivar Machine ATV320 series, designed for precise motor control in industrial automation and OEM machinery. It supports both asynchronous and synchronous motors and delivers energy-efficient, smooth, and reliable motor operation in a compact panel-mount design.
With a rated motor power of 1.5 kW (2 HP), this drive is ideal for small to medium OEM machines, conveyors, pumps, fans, packaging systems, and other light industrial automation equipment requiring stable speed and torque control.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV320U15N4C |
| Product Type | Variable Speed Drive (VSD) |
| Series | Altivar Machine ATV320 |
| Dimensions | 142 × 158 × 105 mm |
| Weight | 1.3 kg |
| Rated Motor Power | 1.5 kW (2 HP) |
| Input Voltage | 380–500 V AC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Rated Output Current | 4.1 A |
| Output Voltage | 0–500 V AC |
| Output Frequency Range | 0.1–599 Hz |
| Motor Compatibility | Asynchronous and Synchronous Motors |
| Control Method | V/F Control, Sensorless Flux Vector Control |
| Communication Protocols | Modbus RTU, CANopen |
| Optional Communication | EtherNet/IP, Profinet, EtherCAT, Profibus DP, DeviceNet |
| Safety Function | Safe Torque Off (STO) |
| Digital Inputs | 7 |
| Digital Outputs | 3 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Protection Rating | IP20 |
| Cooling Method | Forced-Air Cooling |
| Mounting Type | Compact Panel Mount |
| Operating Temperature | -10°C to +60°C |
| Application | Industrial Automation and OEM Machinery |
Function and Working Principle
The ATV320U15N4C precisely controls motor speed and torque by adjusting output frequency and voltage according to the process requirements, ensuring smooth operation and improved energy efficiency.
Main Functions
- Variable speed motor control
- Sensorless vector control for precise torque at low speed
- Smooth acceleration and deceleration
- Energy-efficient operation under varying loads
- Integrated motor protection: overload, overcurrent, thermal
- Safe Torque Off (STO) safety function
- Communication with PLC and HMI systems
Working Principle
The drive converts incoming AC power to DC through an internal rectifier. The inverter then produces variable-frequency AC output to control motor speed and torque. By continuously adjusting frequency and voltage, the drive ensures optimized motor performance, reduced mechanical stress, and efficient operation.
Role in Industrial Automation Systems
The ATV320U15N4C is a key component in industrial control and OEM automation systems:
- Provides accurate motor speed regulation
- Reduces energy consumption in motor-driven processes
- Protects motors from electrical and thermal overload
- Enables precise process control and automation
- Integrates seamlessly with PLCs, HMIs, and industrial networks
- Ensures stable operation in compact or space-limited panels
Industrial Applications
This drive is commonly used in:
- Conveyor systems
- Packaging machinery
- Pumps and ventilation fans
- Food and beverage processing equipment
- Textile machinery
- Material handling systems
- OEM automation machines
- Light-duty industrial production lines
Installation and System Integration
Proper installation ensures optimal performance:
- Mount vertically inside a ventilated control cabinet or panel
- Maintain adequate clearance for airflow
- Connect to a three-phase 380–500V AC supply
- Ensure proper grounding and EMC compliance
- Configure motor parameters during commissioning
- Verify communication and control settings before operation
- Use suitable circuit protection devices
Compatible Components and Modules
The ATV320U15N4C integrates with:
- Schneider Modicon PLC controllers
- HMI operator panels
- Three-phase induction and synchronous motors
- Motor protection circuit breakers
- Contactors and overload relays
- Modbus RTU and CANopen networks
- Optional EtherNet/IP, Profinet, EtherCAT, Profibus DP, DeviceNet modules
- Remote I/O systems
Recommended Alternative Models
| Model | Product Type | Key Feature | Recommended Application |
|---|---|---|---|
| ATV320U11N4C | Variable Speed Drive | 1.1 kW compact variant | Smaller OEM machinery |
| ATV320U15N4B | Variable Speed Drive | Book-style panel design | Standard OEM applications |
| ATV320U22N4C | Variable Speed Drive | 2.2 kW higher power | Medium-duty machinery |
| ATV310H15N4A | Variable Speed Drive | Cost-effective 1.5 kW drive | General industrial use |
| ATV340U15N4 | Variable Speed Drive | Advanced automation features | High-performance OEM machines |
Key Advantages
- Supports motors up to 1.5 kW
- Compact panel-mount design for space-limited installations
- Advanced sensorless vector control
- Integrated Safe Torque Off (STO) for operator safety
- Flexible industrial communication options
- Energy-efficient operation
- Comprehensive motor protection features
- Easy installation and commissioning
- Suitable for OEM and small automation machinery
- Reliable for continuous industrial operation
Technical FAQs
What is the main function of the ATV320U15N4C?
It provides precise speed and torque control for 1.5 kW motors, improving machine efficiency and process stability.
Which motors are compatible?
Asynchronous and synchronous three-phase motors.
Does it include safety features?
Yes, it includes Safe Torque Off (STO) for safe operation.
What communication protocols are supported?
Standard: Modbus RTU and CANopen. Optional: EtherNet/IP, Profinet, EtherCAT, Profibus DP, DeviceNet.
Is it suitable for compact installations?
Yes, its small footprint (142 × 158 × 105 mm) allows integration in space-limited panels and OEM machines.
Conclusion
The Schneider ATV320U15N4C Variable Speed Drive is a compact, reliable, and energy-efficient solution for modern industrial automation and OEM machinery. With 1.5 kW motor power, advanced vector control, integrated safety features, and flexible communication options, it provides precise motor regulation, energy savings, and smooth operation for a wide range of small to medium industrial applications.
