Product Overview

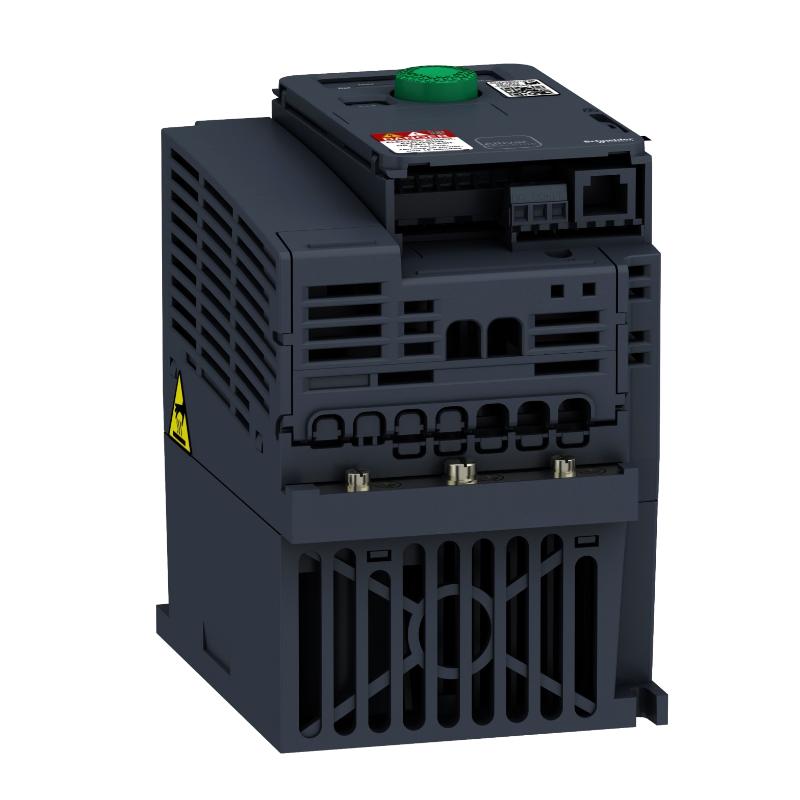

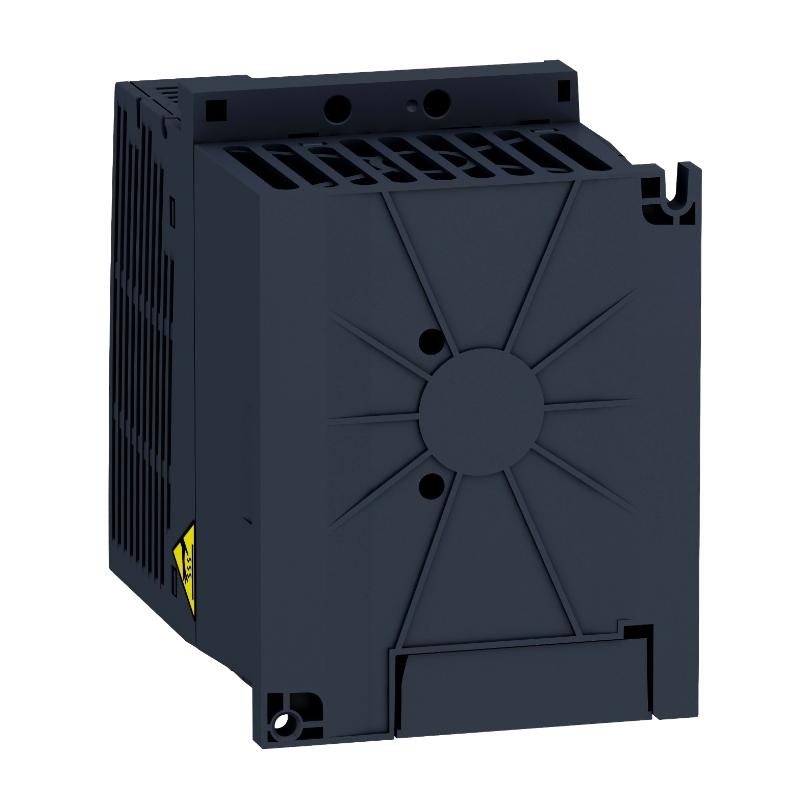

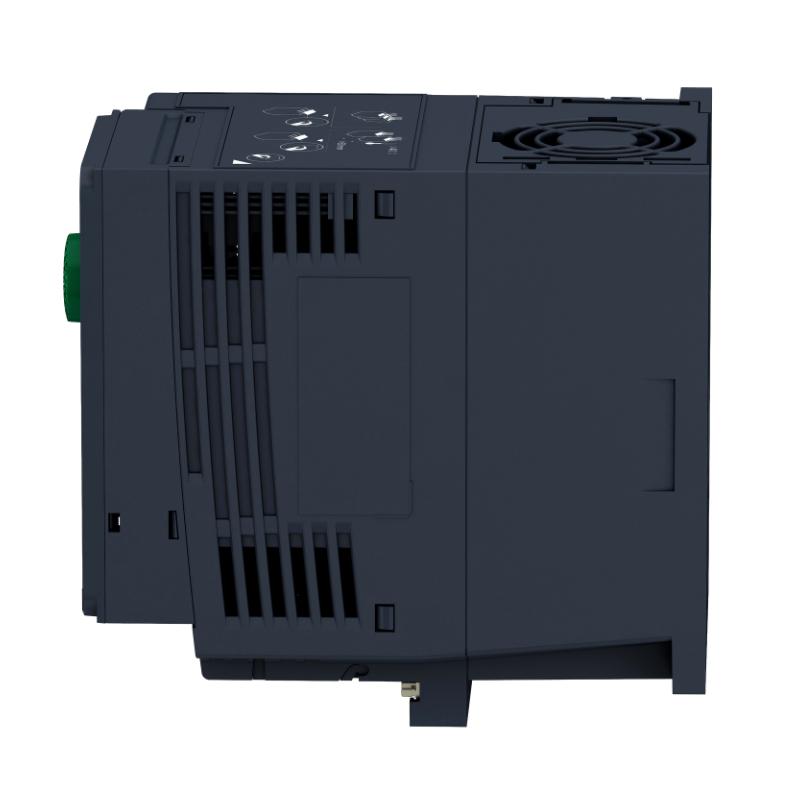

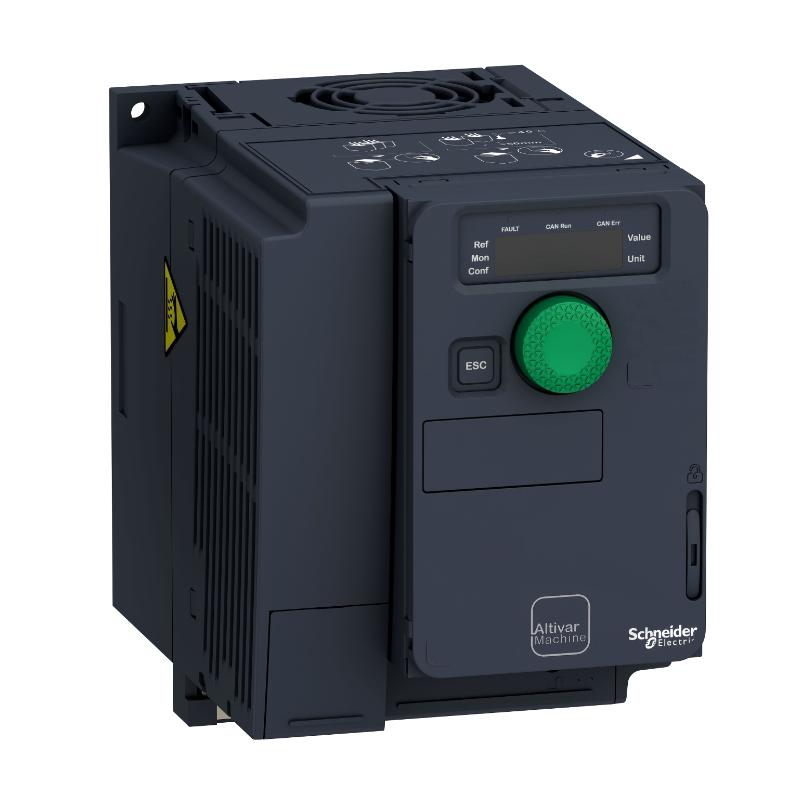

The Schneider Electric ATV320U15M2C is a compact variable speed drive (VFD) from the Altivar Machine ATV320 series, designed for controlling the speed and torque of AC motors in industrial automation systems.
It is commonly used in OEM machinery applications where stable motor control, compact installation size, and flexible configuration are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar Machine ATV320 |
| Model | ATV320U15M2C |
| Product Type | Variable Speed Drive |
| Rated Power | 1.5 kW |
| Supply Voltage | 200–240 V AC, single-phase |
| Output | 3-phase variable AC output |
| Rated Output Current | 8 A |
| Control Method | V/F control + sensorless vector control |
| EMC Filter | Integrated |
| Cooling | Forced air cooling |
| Protection Class | IP20 |
| Mounting Type | Panel mounted |
| Dimensions | 158 × 105 × 142 mm |
| Weight | 1.6 kg |
Function and Working Principle
The drive operates by converting fixed-frequency AC power into a controlled variable-frequency output to regulate motor speed.
Working Process
- AC input is rectified into DC inside the drive
- DC bus stabilizes internal power
- Inverter stage generates controlled AC output
- Output frequency is adjusted according to speed demand
- Motor speed follows the drive command
Key Functions
- Motor speed control
- Smooth acceleration and deceleration
- Stable torque at low speed
- Energy-efficient operation
- Built-in motor protection
- Compact machine integration design
Industrial Applications
- Pumps
- Fans and ventilation systems
- Conveyor systems
- Packaging machines
- Light industrial automation equipment
- Material handling systems
Installation Notes
- Installed inside electrical control cabinets
- Requires proper ventilation for heat dissipation
- Shielded motor cables recommended
- Proper grounding required
- Parameter setup required during commissioning
Compatible Systems
- Three-phase AC induction motors
- Schneider EcoStruxure / Modicon PLC systems
- Motor protection devices
- Industrial control panels and MCC systems
Alternative Models
- ATV320U11M2C
- ATV320U07M2C
- ATV320U22M2C
- ATV312 series (legacy drives)
- ATV340 series (advanced machine control drives)
Key Advantages
- Compact book-style design for OEM equipment
- Stable motor control performance
- Flexible control modes (V/F + vector control)
- Integrated EMC filtering
- Reliable low-speed torque performance
- Easy integration into automation systems
FAQ
Q: What is ATV320U15M2C used for?
It is used for controlling AC motor speed in industrial machines.
Q: Is it a soft starter?
No, it is a variable frequency drive (VFD), not a soft starter.
Q: What motor type is supported?
Three-phase asynchronous AC motors.
Conclusion
The Schneider ATV320U15M2C Variable Speed Drive is a compact and reliable VFD designed for OEM machinery and industrial automation, providing precise motor control, energy efficiency, and flexible system integration.
