Product Overview

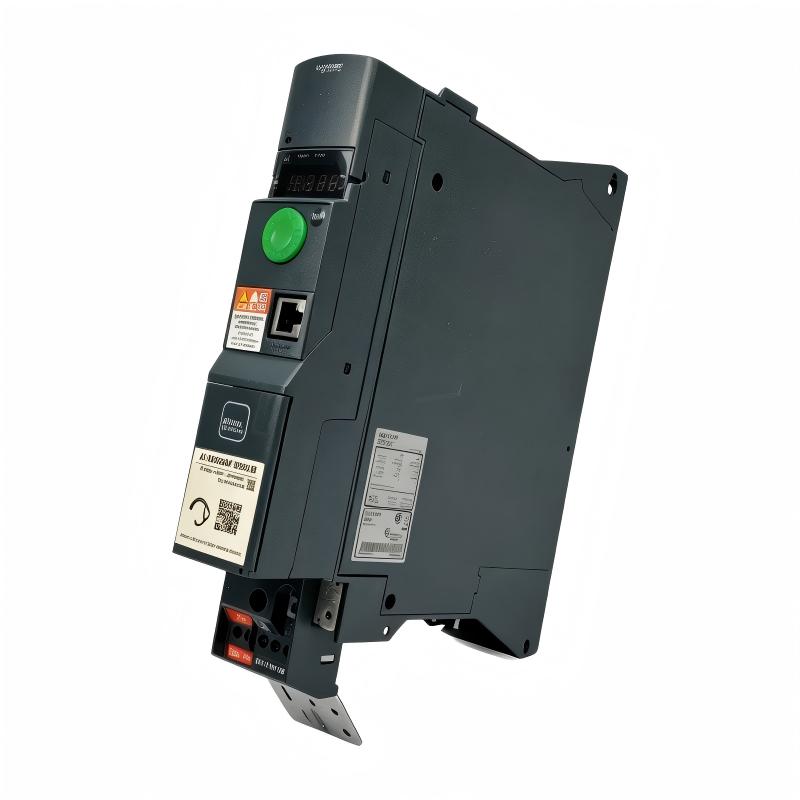

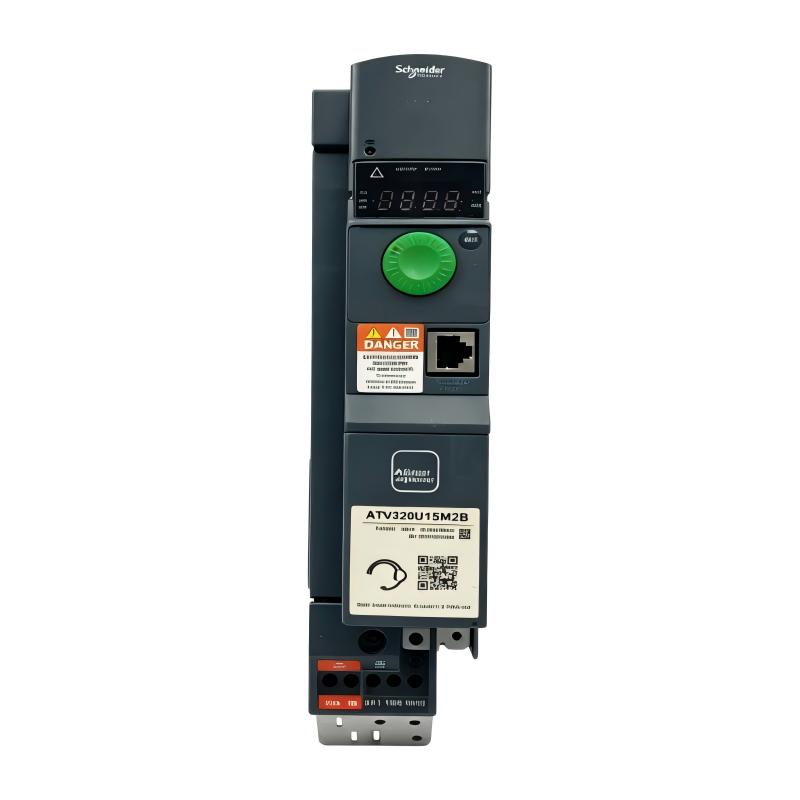

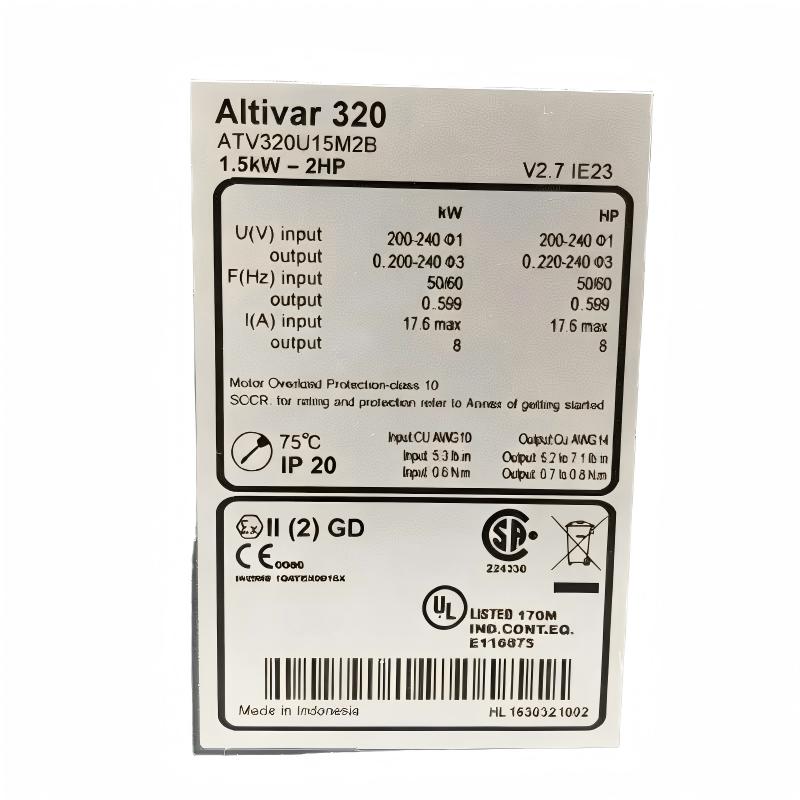

The Schneider Electric ATV320U15M2B Variable Speed Drive is an Altivar Machine ATV320 frequency inverter designed for variable speed and torque control of three-phase AC motors in industrial machinery, OEM equipment, and automated production systems.

This model is designed for a 200–240 V AC single-phase power supply and provides a 1.5 kW (2 HP) motor power rating. It converts the incoming electrical supply into a controlled variable-frequency three-phase output, allowing the connected motor to operate at adjustable speeds according to machine requirements.

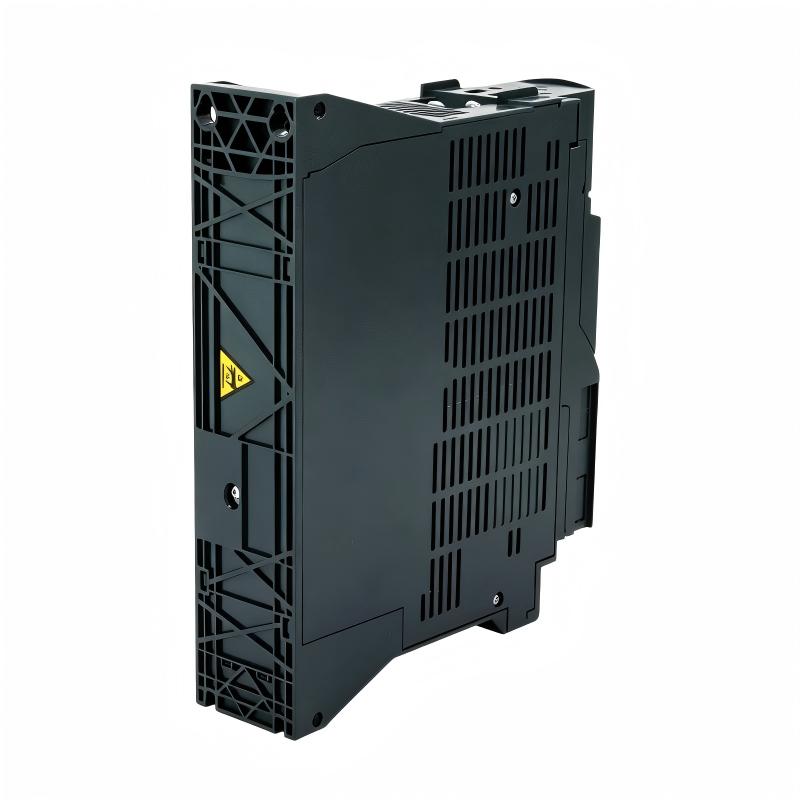

The ATV320U15M2B uses the Book-format enclosure of the ATV320 family. Its specified dimensions are 60 × 325 × 245 mm, with an approximate weight of 2.9 kg. The narrow enclosure is particularly useful in control cabinets where available mounting width is limited.

The drive provides adjustable motor speed, controlled acceleration and deceleration, torque management, motor protection, braking functions, communication capabilities, and machine-oriented safety functions.

The ATV320U15M2B can be used in applications such as conveyors, packaging machinery, feeders, material-handling equipment, pumps, fans, textile machinery, mechanical actuators, and general OEM automation.

Technical Specifications

Function and Working Principle

The primary function of the ATV320U15M2B is to provide adjustable speed and torque control for a compatible three-phase AC motor.

The drive receives 200–240 V single-phase AC power and converts it into a controlled three-phase output for the motor.

The basic conversion process is:

Single-Phase AC Input → Rectifier → DC Link → Inverter → Variable-Frequency Three-Phase Output → Motor

The incoming AC voltage is rectified into DC power. The DC link provides an intermediate energy stage, while the inverter uses semiconductor switching to generate a controlled three-phase waveform.

By changing the output frequency and voltage, the drive can regulate motor speed. The drive also monitors motor current and operating conditions to maintain appropriate motor performance and protection.

The ATV320U15M2B can therefore provide:

• Adjustable motor speed
• Controlled acceleration
• Controlled deceleration
• Soft starting
• Controlled stopping
• Torque management
• Low-speed operation
• Motor current monitoring
• Motor overload protection
• Dynamic braking
• Fault detection
• Warning monitoring
• Speed reference control
• PLC-based motor control

The ATV320 family supports sensorless flux vector control, which can provide improved torque performance and speed regulation compared with basic V/F control in appropriate applications.

This makes the drive suitable for machines where stable motor operation is required across different operating speeds and load conditions.

Role in Industrial Control Systems

The ATV320U15M2B normally acts as the motor-control interface between the electrical power supply and the machine’s three-phase motor.

A typical control architecture is:

PLC / Controller → ATV320U15M2B → Three-Phase AC Motor → Mechanical Load

The PLC manages machine logic, sequencing, sensors, interlocks, and production requirements, while the ATV320U15M2B controls the motor’s electrical operating conditions.

For example, a PLC may send a speed reference to the drive based on production requirements. The ATV320U15M2B processes this command and adjusts the motor output accordingly.

The drive can also transmit operating information back to the controller.

Typical feedback information includes:

• Motor frequency
• Motor current
• Speed reference
• Drive operating status
• Warning status
• Fault status
• Motor-control information
• Diagnostic information

This allows the drive to become part of an integrated machine-control architecture.

When multiple motors are used in a production machine, individual ATV320 drives can be controlled by the same PLC or industrial network. This allows different motors to operate at different speeds while remaining synchronized with the overall machine process.

Industrial Applications

Conveyor Systems

The ATV320U15M2B can control three-phase motors used in conveyor systems for manufacturing, packaging, assembly, and material handling.

Adjustable speed allows conveyors to be synchronized with other production equipment.

Controlled acceleration and deceleration can also reduce mechanical shock on belts, rollers, couplings, and gearboxes.

Packaging Machinery

Packaging machines often require variable motor speeds for feeding, indexing, conveying, and product handling.

The drive can provide the required speed control while the PLC manages the overall machine sequence.

Material Handling

The ATV320U15M2B can be used for rollers, transfer mechanisms, feeders, and other motor-driven material-handling equipment.

Variable speed control can help match machine movement to production requirements.

Pumps

The drive can control compatible pump motors where variable flow or pressure control is required.

Adjusting motor speed allows the pump to respond to changing process requirements.

Fans and Ventilation

Industrial fans can be operated at different speeds according to airflow, ventilation, or cooling requirements.

The drive can regulate the motor speed based on commands from the machine controller.

Textile Machinery

Textile equipment can require precise and stable motor speeds for winding, feeding, and material transportation.

The ATV320U15M2B provides adjustable speed and torque control for compatible applications.

Feeders

Variable speed control is useful for industrial feeders where material flow needs to be adjusted according to production demand.

OEM Machine Building

The 60 mm-wide Book-format enclosure is useful for OEM machines where control cabinet width is limited.

The drive can be installed alongside PLCs, HMIs, circuit protection, sensors, communication modules, and other automation components.

Installation and System Integration

Correct installation is important for safe and reliable operation.

Before installing the ATV320U15M2B, engineers should verify:

• Single-phase input voltage
• Motor rated voltage
• Motor rated current
• Motor rated power
• Motor frequency
• Protective grounding
• Circuit protection
• Motor cable size
• Control wiring
• Cabinet ventilation
• EMC requirements
• Communication requirements
• Braking requirements

The ATV320U15M2B is designed for 200–240 V AC single-phase input.

Typical Installation Procedure

1. Disconnect and isolate the incoming power supply.
2. Confirm that hazardous voltage has been removed.
3. Mount the drive securely in the control cabinet.
4. Install the drive in the recommended vertical position.
5. Maintain appropriate ventilation clearance.
6. Connect the single-phase AC input.
7. Connect the three-phase motor output.
8. Connect protective grounding.
9. Connect digital and analog control signals.
10. Connect communication wiring where required.
11. Enter the motor nameplate information.
12. Select the appropriate motor-control mode.
13. Configure acceleration and deceleration ramps.
14. Configure motor protection settings.
15. Perform motor auto-tuning where applicable.
16. Verify motor rotation direction.
17. Perform a low-speed test.
18. Check drive status and diagnostic information.
19. Verify communication with the PLC.
20. Test the complete machine under operating conditions.

Because the ATV320U15M2B is a Book-format drive, cabinet layout should provide sufficient space for heat dissipation and maintenance access.

Grounding, cable routing, shielding, and EMC installation practices should also be considered as part of the complete machine electrical design.

Communication and Control Integration

The ATV320U15M2B supports communication functions for industrial automation systems.

Standard communication capabilities include:

• Modbus Serial
• CANopen

Optional communication modules can extend the drive’s network connectivity.

Depending on the selected option, the drive can be integrated into networks such as:

• PROFIBUS DP V1
• PROFINET
• EtherNet/IP
• EtherCAT
• DeviceNet
• Ethernet Powerlink
• CANopen

Communication enables the drive to exchange control and diagnostic information with a PLC or industrial controller.

Typical data includes:

• Start command
• Stop command
• Speed reference
• Frequency feedback
• Motor current
• Drive status
• Warning status
• Fault information
• Diagnostic information
• Parameter information

This communication capability allows the ATV320U15M2B to participate in automated machine sequences.

For example, a PLC can send a speed reference, monitor the motor current, read the drive status, and respond to a drive fault without requiring the operator to directly control the drive.

Compatible System Components

The ATV320U15M2B can work with a range of industrial automation and electrical components.

The correct accessories should be selected according to the motor’s electrical characteristics, power supply, braking requirements, EMC environment, communication architecture, and machine safety requirements.

Recommended Alternative Models

The following ATV320 models can be considered when selecting a drive for similar industrial applications.

The ATV320U11M2B can be considered when the application requires approximately 1.1 kW of motor capacity.

The ATV320U18M2B or ATV320U22M2B can be considered when a higher motor power level is required, provided that the machine’s electrical supply and installation requirements are compatible.

For a three-phase 200–240 V supply, the ATV320U15M3C is a relevant alternative.

For machines operating from a 380–500 V three-phase supply, the ATV320U15N4B may be more appropriate.

When replacing an existing drive, engineers should compare the complete electrical and mechanical requirements rather than selecting a replacement based only on motor horsepower.

Key Advantages

• Altivar Machine ATV320 Book format
• 1.5 kW (2 HP) motor rating
• 200–240 V AC single-phase input
• Three-phase motor output
• Approximately 8.0 A nominal output current
• 60 × 325 × 245 mm dimensions
• Approximately 2.9 kg weight
• Sensorless flux vector control
• V/F motor control
• Compatible with asynchronous motors
• Compatible with suitable synchronous motor applications
• Output frequency up to approximately 599 Hz
• Adjustable switching frequency
• Integrated braking capability
• Integrated EMC filtering
• Modbus serial communication
• CANopen communication
• Optional industrial network integration
• IP20 protection
• Fan-cooled design
• Machine safety functions
• Suitable for OEM machinery
• Suitable for compact control cabinets
• Suitable for conveyors
• Suitable for packaging machinery
• Suitable for material-handling systems
• Suitable for feeders
• Suitable for pumps and fans
• Suitable for textile machinery

Technical FAQs

What is the Schneider ATV320U15M2B?

The ATV320U15M2B is a 1.5 kW Altivar Machine ATV320 Variable Speed Drive designed to control compatible three-phase AC motors using a 200–240 V single-phase input supply.

What motor power does the ATV320U15M2B support?

The drive is designed for a 1.5 kW (2 HP) motor application.

What input voltage does it require?

The ATV320U15M2B is designed for a 200–240 V AC single-phase input supply.

What is the nominal output current?

The approximate nominal output current is 8.0 A, depending on the applicable operating and duty conditions.

What are the dimensions?

The specified dimensions are 60 × 325 × 245 mm.

How much does the ATV320U15M2B weigh?

The approximate weight is 2.9 kg.

What type of motor can it control?

The ATV320 family supports compatible asynchronous motors and suitable synchronous motor applications.

Does the drive support sensorless vector control?

Yes. The ATV320U15M2B supports sensorless flux vector control, as well as V/F motor-control modes.

Does it have a braking function?

Yes. The ATV320 platform provides an integrated brake chopper for compatible dynamic-braking applications.

Does the ATV320U15M2B include EMC filtering?

The ATV320U15M2B includes an integrated EMC filtering arrangement appropriate to its drive configuration. The complete installation should still meet the machine’s applicable EMC requirements.

Which communication protocols are supported?

Standard communication includes Modbus Serial and CANopen. Optional modules can provide additional networks such as PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, and DeviceNet.

Can it communicate with a PLC?

Yes. The drive can be integrated with PLC systems for speed references, start/stop commands, operating-status monitoring, fault diagnostics, and machine coordination.

What safety functions are available?

The ATV320 platform includes machine-oriented safety functions such as Safe Torque Off (STO) and other supported safety functions depending on the selected configuration and application.

Where is the ATV320U15M2B commonly used?

Typical applications include conveyors, packaging machines, feeders, material-handling equipment, pumps, fans, textile machinery, mechanical equipment, and OEM automation systems.

What is the difference between ATV320U15M2B and ATV320U15M3C?

Both are intended for approximately 1.5 kW motor applications, but their input configurations differ. The ATV320U15M2B uses a 200–240 V single-phase input, while the ATV320U15M3C is designed for a 200–240 V three-phase input. Their mechanical formats and dimensions are also different.

What is the difference between ATV320U15M2B and ATV320U15N4B?

The main difference is the supply voltage. The ATV320U15M2B is designed for 200–240 V single-phase input, while the ATV320U15N4B is designed for a higher 380–500 V three-phase supply.

What should be checked before replacing an ATV320U15M2B?

The replacement should be checked for input voltage and phase configuration, motor rated current, motor power, overload requirements, physical dimensions, mounting arrangement, communication requirements, EMC configuration, braking requirements, and machine safety functions.

Conclusion

The Schneider Electric ATV320U15M2B Variable Speed Drive is a compact 1.5 kW AC frequency inverter designed for variable speed and torque control of three-phase AC motors in industrial machinery and OEM automation applications.

Its 200–240 V single-phase input makes it suitable for machine installations where single-phase electrical supply is available while three-phase motor control is required. The drive provides adjustable speed operation, controlled acceleration and deceleration, sensorless flux vector control, motor protection, braking capability, communication functions, and machine-oriented safety features.

With dimensions of 60 × 325 × 245 mm and an approximate weight of 2.9 kg, the Book-format design allows efficient installation in control cabinets where available width is limited.

The ATV320U15M2B can be integrated with PLCs, HMIs, three-phase motors, sensors, braking components, communication modules, and other industrial automation equipment. Typical applications include conveyors, packaging machinery, feeders, pumps, fans, textile equipment, material-handling systems, and OEM production machinery.

For system integrators, machine builders, and maintenance engineers, correct selection should consider the 200–240 V single-phase supply, 1.5 kW motor rating, motor rated current, overload requirements, cabinet dimensions, EMC conditions, communication architecture, braking requirements, and machine safety requirements.

When these parameters are properly matched to the application, the ATV320U15M2B provides a compact and versatile solution for industrial motor speed control.
