Product Overview

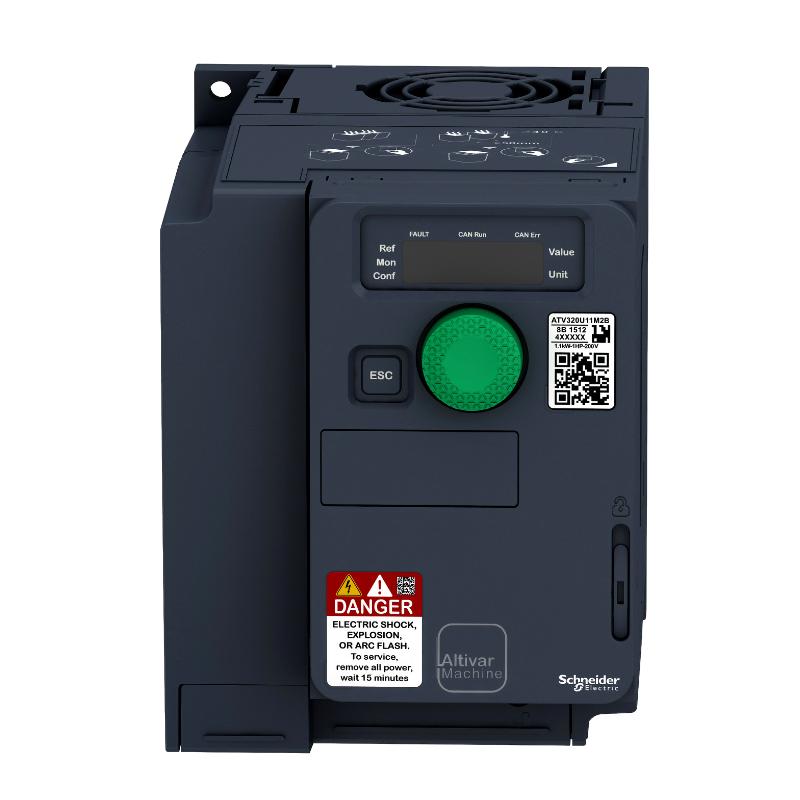

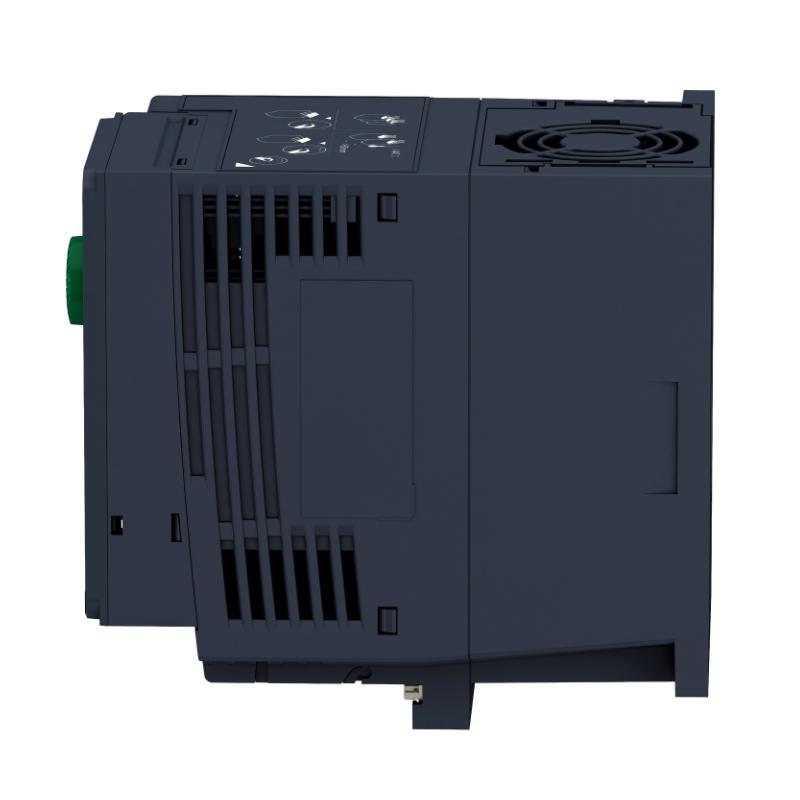

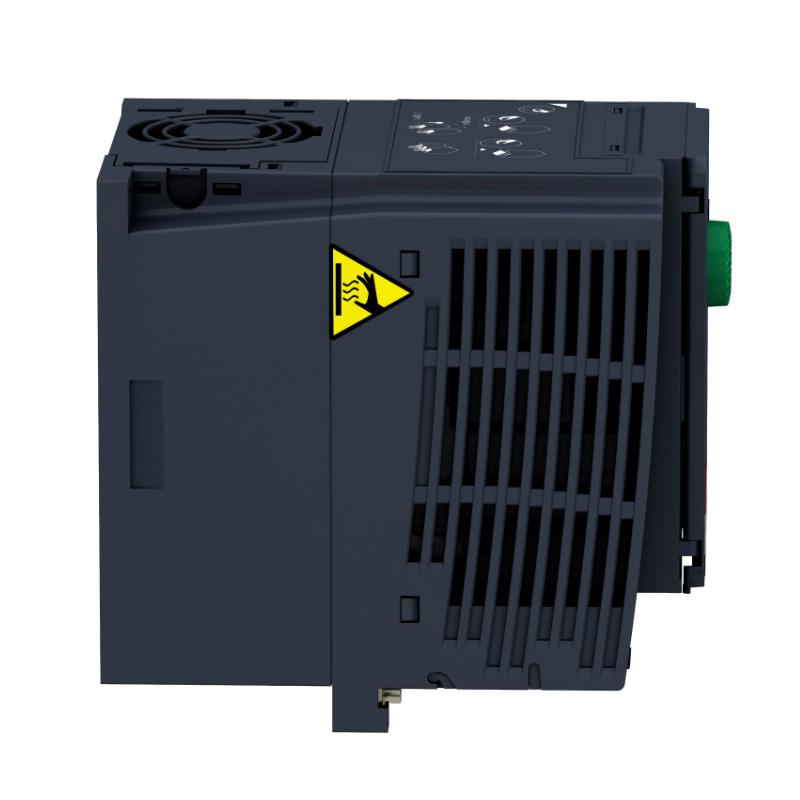

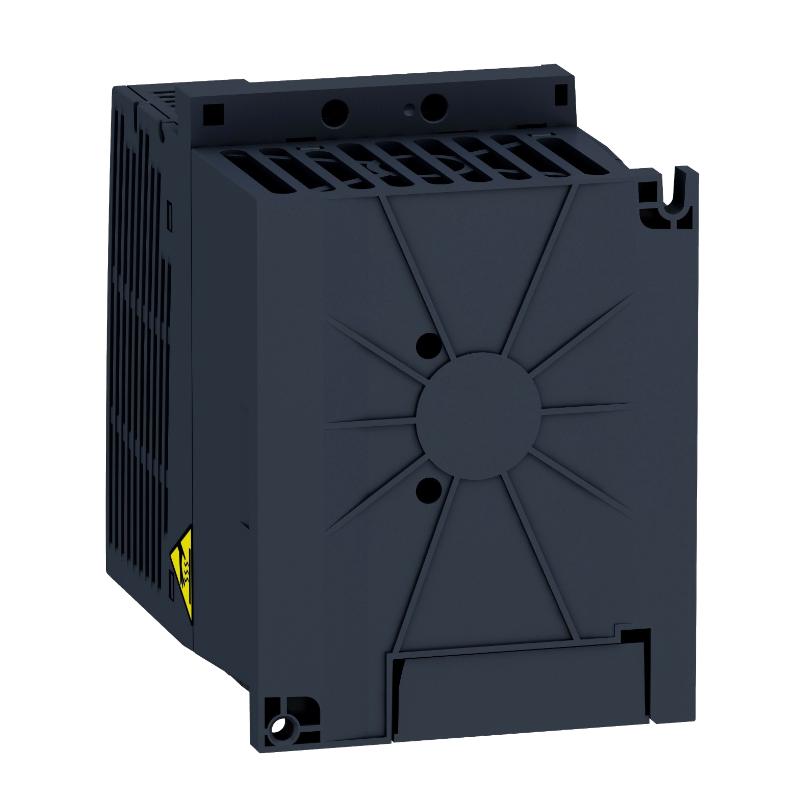

The Schneider Electric ATV320U11M2C is a compact variable speed drive (VFD) from the Altivar Machine ATV320 series, designed for controlling the speed and torque of three-phase AC motors.
It is mainly used in OEM machinery and industrial automation systems requiring stable motor control and compact installation space.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar Machine ATV320 |
| Model | ATV320U11M2C |
| Product Type | Variable Speed Drive |
| Rated Power | 1.1 kW |
| Supply Voltage | 200–240 V AC, single-phase |
| Output | 3-phase variable AC output |
| Rated Output Current | 6.9 A |
| Control Method | V/F control + sensorless vector control |
| EMC Filter | Integrated |
| Cooling | Forced air cooling |
| Protection Class | IP20 |
| Mounting Type | Panel mounted |
| Dimensions | 158 × 105 × 142 mm |
| Weight | 1.6 kg |
Function and Working Principle
The drive controls motor speed by converting fixed-frequency AC input into a variable-frequency output for the motor.
Working Process
- AC input is rectified into DC inside the drive
- DC bus stabilizes internal power
- Inverter generates controlled AC output
- Output frequency is adjusted based on speed command
- Motor speed follows the command signal
Key Functions
- Motor speed control
- Smooth acceleration and deceleration
- Stable torque at low speed
- Energy-efficient operation
- Built-in motor protection
- Flexible machine integration
Industrial Applications
- Pumps
- Fans and ventilation systems
- Conveyors
- Packaging machines
- Material handling systems
- Light industrial automation equipment
Installation Notes
- Installed inside electrical control cabinets
- Requires proper ventilation for heat dissipation
- Shielded motor cables recommended
- Proper grounding required
- Parameter configuration required during commissioning
Compatible Systems
- Three-phase AC induction motors
- Schneider EcoStruxure / Modicon PLC systems
- Motor protection devices
- Industrial control panels and MCC systems
Alternative Models
- ATV320U06M2C
- ATV320U07M2C
- ATV320U15M2C
- ATV312 series (legacy drives)
- ATV340 series (advanced machine control drives)
Key Advantages
- Compact book-style design
- Stable motor control performance
- Flexible control modes
- Integrated EMC filtering
- Good low-speed torque capability
- Easy OEM system integration
FAQ
Q: What is ATV320U11M2C used for?
It is used for controlling AC motor speed in industrial machines.
Q: Is it a soft starter?
No, it is a variable frequency drive (VFD).
Q: What motor type is supported?
Three-phase asynchronous AC motors.
Conclusion
The Schneider ATV320U11M2C Variable Speed Drive is a compact and reliable VFD designed for OEM machinery, providing stable motor control, energy efficiency, and flexible integration in industrial automation systems.
