Product Overview

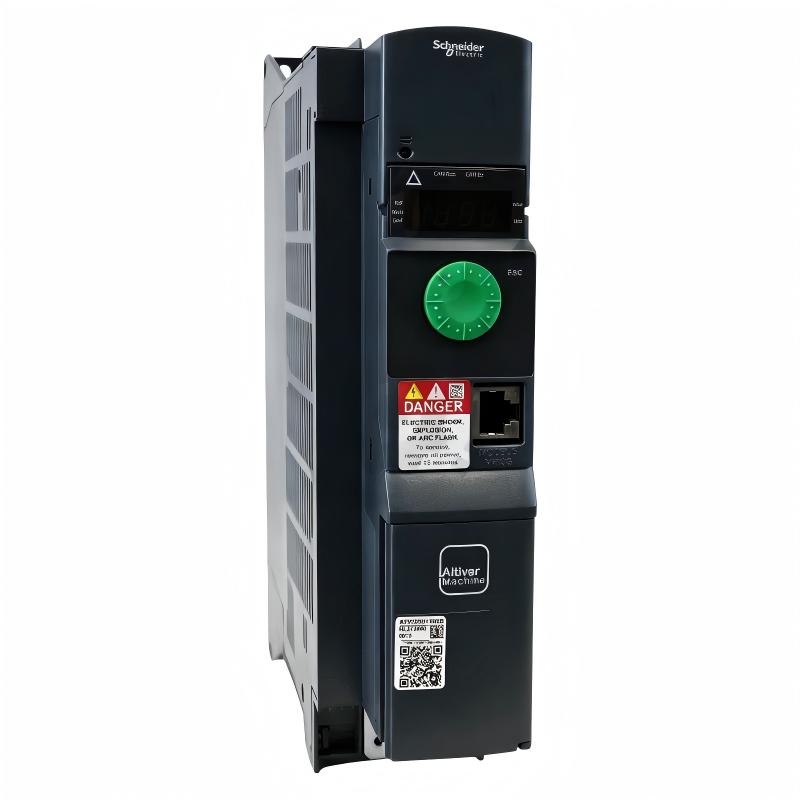

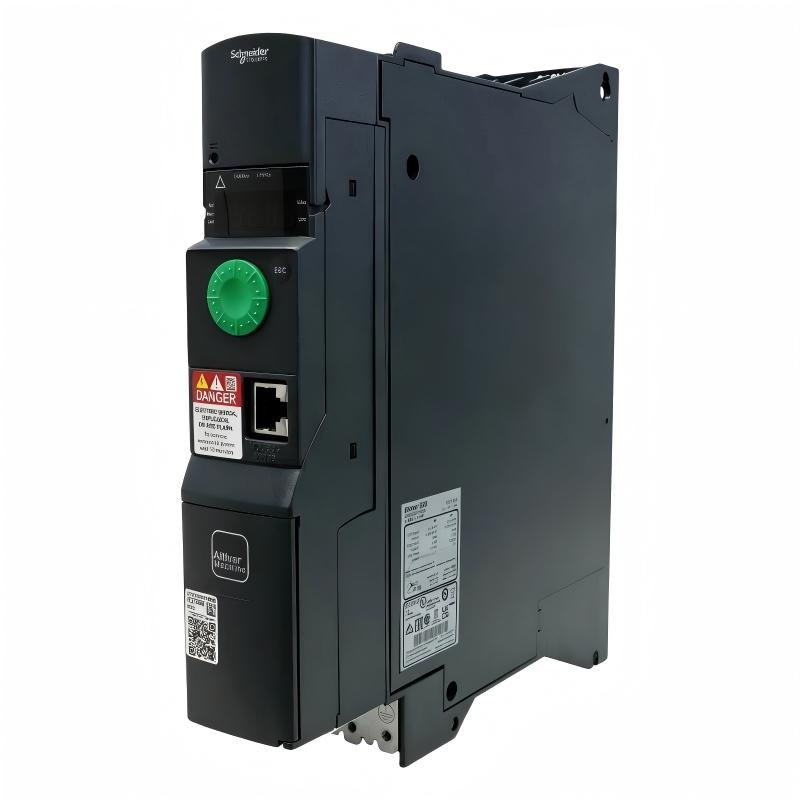

The Schneider Electric ATV320U11M2B Variable Speed Drive is an Altivar Machine ATV320 frequency inverter designed for variable speed control of AC motors in industrial machinery, OEM equipment, and automated production systems.

This model is rated for 1.1 kW (1.5 HP) motor applications and is designed for a 200–240 V AC single-phase power supply. It provides controlled motor acceleration, deceleration, speed regulation, torque control, motor protection, braking capability, and communication functions.

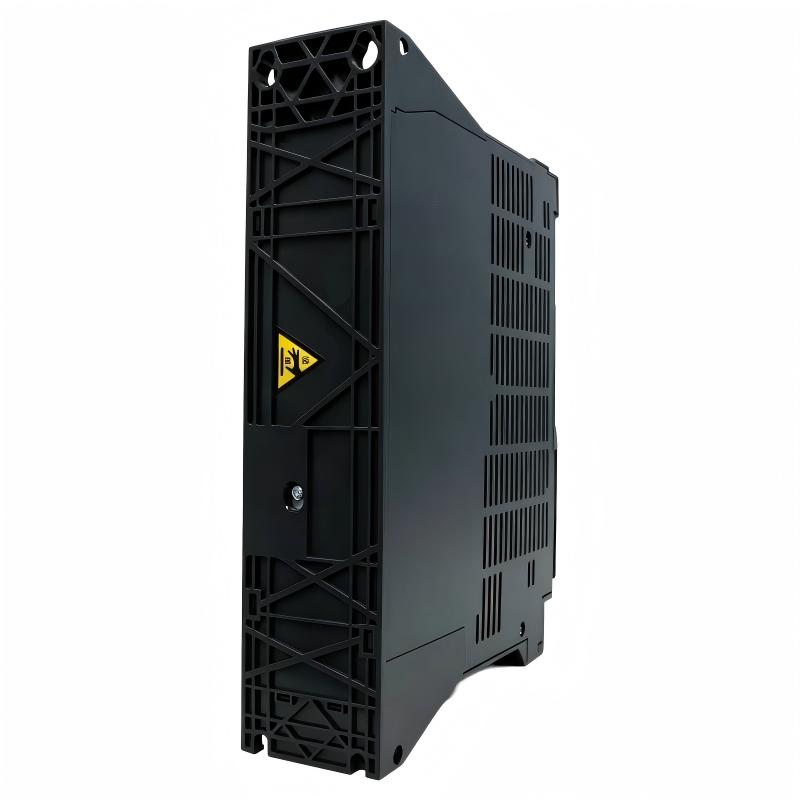

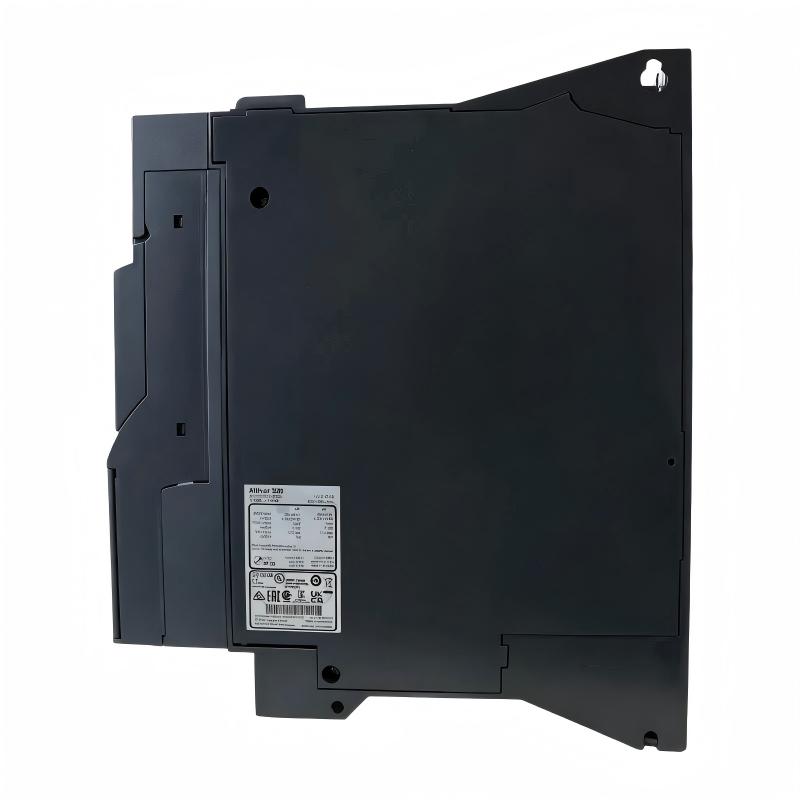

The ATV320U11M2B uses the Book-format enclosure of the ATV320 product family. Its specified dimensions are 60 × 325 × 245 mm, with an approximate weight of 2.9 kg. The narrow enclosure is especially useful for machine control cabinets where installation width is limited but a full-featured variable speed drive is required.

The drive is suitable for controlling both compatible asynchronous and synchronous motors. It can operate as a standalone motor controller or as part of a larger PLC-based automation system.

Typical applications include conveyors, packaging machines, feeders, pumps, fans, material-handling systems, textile equipment, lifting-related machinery, and general OEM automation.

Technical Specifications

Function and Working Principle

The main function of the ATV320U11M2B is to regulate the speed and torque of a connected three-phase AC motor.

The drive receives 200–240 V single-phase AC power and internally converts the electrical energy into a controlled three-phase output for the motor.

The basic power-conversion process is:

Single-Phase AC Input → Rectifier → DC Link → Inverter → Variable-Frequency Three-Phase Output → Motor

The rectifier converts the incoming AC supply into DC power. The DC link provides the intermediate energy storage stage, while the inverter section converts the DC voltage into a controlled three-phase AC output.

By changing the output frequency and voltage, the drive can regulate motor speed and torque.

The ATV320U11M2B can therefore provide:

• Adjustable motor speed
• Controlled acceleration
• Controlled deceleration
• Soft starting
• Controlled stopping
• Torque management
• Low-speed operation
• Motor current monitoring
• Motor overload protection
• Dynamic braking
• Fault detection
• Alarm monitoring
• Speed reference control
• PLC-based motor control

The ATV320 platform supports sensorless flux vector control, which provides improved motor torque performance compared with simple V/F control in suitable applications.

This is particularly useful for machines where the motor must maintain stable operation over a relatively wide speed range.

Role in Industrial Control Systems

The ATV320U11M2B typically operates as the motor-control interface between the machine’s electrical supply and its motor.

A typical industrial architecture can be represented as:

PLC / Controller → ATV320U11M2B → Three-Phase AC Motor → Mechanical Load

The PLC controls the overall machine sequence, while the ATV320U11M2B performs the detailed electrical control of the motor.

For example, a PLC can send a speed reference to the drive when a conveyor needs to increase or decrease its operating speed. The ATV320U11M2B converts this reference into the corresponding motor frequency and voltage.

The drive can also provide operating information back to the controller.

Typical feedback data includes:

• Motor frequency
• Motor current
• Speed reference
• Drive status
• Warning status
• Fault status
• Operating state
• Diagnostic information

This creates a closed information path between the machine controller and the motor-control system.

In applications using multiple motors, several ATV320 drives can be coordinated by a PLC or industrial network. Each drive can control an individual motor while the controller synchronizes the overall machine process.

Industrial Applications

Conveyor Systems

The ATV320U11M2B can control conveyor motors used in manufacturing, assembly, packaging, and material-handling systems.

Adjustable speed allows the conveyor to synchronize with other production equipment.

Controlled acceleration and deceleration can also help reduce mechanical stress on belts, rollers, couplings, and gear systems.

Packaging Machinery

Packaging equipment frequently requires variable motor speed for feeding, indexing, conveying, and positioning.

The ATV320U11M2B can provide controlled motor operation while allowing the PLC to manage the complete packaging sequence.

Feeders

Industrial feeders may require different motor speeds according to production demand.

The drive allows the motor speed to be adjusted without changing the mechanical transmission ratio.

Pumps

The ATV320U11M2B can control compatible pump motors where flow or pressure needs to be adjusted according to process requirements.

Variable speed operation can provide more flexible control than a fixed-speed motor arrangement.

Fans and Ventilation Systems

Industrial fans can be operated at different speeds according to cooling or ventilation requirements.

The drive can regulate the fan motor according to the machine’s control strategy.

Material Handling

Rollers, transfer systems, lifting mechanisms, feeders, and other material-handling equipment can use variable speed motor control.

Textile Machinery

Textile machines can require stable and adjustable motor speeds for winding, feeding, and material transportation.

The ATV320U11M2B can provide the required speed-control capability for compatible equipment.

OEM Machine Building

The 60 mm-wide Book-format enclosure makes the drive suitable for OEM machinery where cabinet width is limited.

Machine builders can integrate the drive into a centralized control cabinet together with PLCs, HMIs, circuit protection, sensors, and communication equipment.

Installation and System Integration

Correct installation is essential for reliable and safe operation.

Before installing the ATV320U11M2B, engineers should verify:

• Single-phase input voltage
• Motor rated voltage
• Motor rated current
• Motor rated power
• Motor frequency
• Protective grounding
• Circuit protection
• Motor cable size
• Control wiring
• Cabinet ventilation
• EMC requirements
• Communication requirements
• Braking requirements

The ATV320U11M2B is designed for a 200–240 V AC single-phase supply.

Typical Installation Procedure

1. Disconnect and isolate the incoming electrical supply.
2. Verify that the drive and connected circuits are de-energized.
3. Mount the drive securely inside the control cabinet.
4. Install the unit in the recommended vertical orientation.
5. Provide adequate ventilation clearance.
6. Connect the single-phase AC input.
7. Connect the three-phase motor output.
8. Connect protective grounding.
9. Connect digital and analog control signals.
10. Connect communication wiring when required.
11. Enter the motor nameplate data.
12. Select the appropriate motor-control mode.
13. Configure acceleration and deceleration ramps.
14. Configure motor protection parameters.
15. Perform motor auto-tuning when applicable.
16. Verify motor rotation direction.
17. Perform a low-speed test.
18. Check the drive’s status and diagnostic information.
19. Verify communication with the PLC or controller.
20. Perform a complete machine test.

The ATV320U11M2B includes an integrated EMC filter, which can simplify EMC design compared with a drive that requires a separate input EMC filter. However, the complete installation must still follow the machine’s grounding, cable routing, shielding, and EMC requirements.

Communication and Control Integration

The ATV320U11M2B supports communication functions for integration with industrial automation systems.

Standard communication capabilities include:

• Modbus Serial
• CANopen

Optional communication modules can provide additional industrial networking capabilities.

Depending on the selected communication option, the drive can be integrated with networks such as:

• PROFIBUS DP V1
• PROFINET
• EtherNet/IP
• EtherCAT
• DeviceNet
• Ethernet Powerlink
• CANopen

Communication allows the PLC or supervisory controller to exchange information with the drive.

Typical control and monitoring data includes:

• Start command
• Stop command
• Speed reference
• Frequency reference
• Motor current
• Drive status
• Warning status
• Fault status
• Diagnostic information
• Parameter values

This allows the drive to become an integrated part of the machine automation system.

For example, a PLC can command the ATV320U11M2B to run at a specific speed, monitor its operating status, detect a fault, and initiate a controlled machine response.

Compatible System Components

The ATV320U11M2B can work together with a range of Schneider Electric and compatible industrial automation components.

Accessory selection should be based on the actual motor, electrical supply, braking requirements, EMC conditions, communication architecture, and machine safety design.

Recommended Alternative Models

The following ATV320 models may be considered for applications with similar motor-control requirements.

The ATV320U07M2B is appropriate when approximately 0.75 kW of motor capacity is sufficient.

The ATV320U15M2B can be considered when a 1.5 kW motor is required, while the ATV320U22M2B provides a higher 2.2 kW power level.

For applications with three-phase 200–240 V input, the ATV320U11M3C is a relevant alternative. When the machine uses a 380–500 V three-phase supply, the ATV320U11N4B may be more appropriate.

For replacement applications, the motor rated current should be checked rather than selecting a replacement solely according to motor power. Input voltage, overload duty, physical dimensions, communication requirements, EMC configuration, braking requirements, and safety functions should also be verified.

Key Advantages

• Altivar Machine ATV320 Book format
• 1.1 kW (1.5 HP) motor rating
• 200–240 V AC single-phase input
• Three-phase motor output
• Approximately 6.9 A nominal output current
• 60 × 325 × 245 mm dimensions
• Approximately 2.9 kg weight
• Sensorless flux vector control
• V/F control
• Supports compatible asynchronous motors
• Supports compatible synchronous motors
• Output frequency up to 599 Hz
• Adjustable switching frequency
• Integrated EMC filter
• Integrated brake chopper
• Modbus serial communication
• CANopen communication
• Optional industrial network integration
• IP20 protection
• Fan-cooled design
• Machine safety functions
• Suitable for OEM machinery
• Suitable for compact control cabinets
• Suitable for conveyors
• Suitable for packaging machinery
• Suitable for feeders
• Suitable for pumps and fans
• Suitable for material-handling systems

Technical FAQs

What is the Schneider ATV320U11M2B?

The ATV320U11M2B is a 1.1 kW Altivar Machine ATV320 Variable Speed Drive designed to control compatible three-phase AC motors using a 200–240 V single-phase power supply.

What motor power does it support?

The ATV320U11M2B is rated for a 1.1 kW (1.5 HP) motor application.

What input voltage does it require?

The drive is designed for a 200–240 V AC single-phase supply.

What is the nominal output current?

The nominal output current is approximately 6.9 A for the specified heavy-duty application.

What are the dimensions?

The ATV320U11M2B measures approximately 60 × 325 × 245 mm.

How much does the drive weigh?

The approximate weight is 2.9 kg.

What type of motor can it control?

The ATV320 platform supports compatible asynchronous and synchronous motors, including suitable high-efficiency and permanent-magnet motor applications.

Does the ATV320U11M2B support vector control?

Yes. The drive supports sensorless flux vector control, as well as V/F-based motor-control modes.

Does it have an integrated EMC filter?

Yes. The ATV320U11M2B includes an integrated EMC filter suitable for the applicable drive configuration.

Does the drive include a braking function?

Yes. The ATV320U11M2B includes an integrated brake chopper for compatible dynamic-braking applications.

Which communication protocols are available?

The standard communication interfaces include Modbus Serial and CANopen. Optional communication modules can provide networks such as PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet, and other supported protocols.

Can it communicate with a PLC?

Yes. The ATV320U11M2B can communicate with PLC systems for speed control, start/stop commands, drive monitoring, fault handling, and diagnostic functions.

What safety functions does it support?

The ATV320 platform provides machine-safety functions including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS), subject to the applicable configuration and system design.

Where is the ATV320U11M2B commonly used?

Typical applications include conveyors, packaging machinery, feeders, pumps, fans, textile equipment, material-handling systems, lifting-related machinery, and OEM automation equipment.

What is the difference between ATV320U11M2B and ATV320U11M3C?

Both models are designed for approximately 1.1 kW motor applications, but their input configurations are different. The ATV320U11M2B is designed for 200–240 V single-phase input and uses the Book format, while the ATV320U11M3C is designed for 200–240 V three-phase input and uses the Compact format.

What should be checked before replacing an ATV320U11M2B?

Before replacement, engineers should verify the input voltage and phase configuration, motor rated current, motor power, overload requirements, physical dimensions, mounting arrangement, communication network, EMC requirements, braking requirements, and machine safety functions.

Conclusion

The Schneider Electric ATV320U11M2B Variable Speed Drive is a compact 1.1 kW AC frequency inverter designed for variable speed control of three-phase AC motors in industrial machinery and OEM automation systems.

Its 200–240 V single-phase input makes it suitable for machine installations where single-phase supply is available while three-phase motor control is required. The drive provides sensorless flux vector control, adjustable speed and torque, controlled acceleration and deceleration, motor protection, braking capability, communication functions, and machine-safety features.

With dimensions of 60 × 325 × 245 mm and an approximate weight of 2.9 kg, the Book-format design allows the drive to be installed efficiently in control cabinets where panel width is limited.

The ATV320U11M2B can be integrated with PLCs, HMIs, three-phase motors, sensors, braking components, communication modules, and other industrial automation equipment. Typical applications include conveyors, packaging machines, feeders, pumps, fans, textile machinery, material-handling equipment, and OEM production systems.

For system integrators and machine builders, proper drive selection should consider the 200–240 V single-phase supply, 1.1 kW motor rating, approximately 6.9 A output current, overload requirements, cabinet dimensions, EMC configuration, communication architecture, braking requirements, and machine safety requirements.

When these parameters are correctly matched to the application, the ATV320U11M2B provides a flexible and space-efficient solution for industrial motor speed control.
