Product Overview

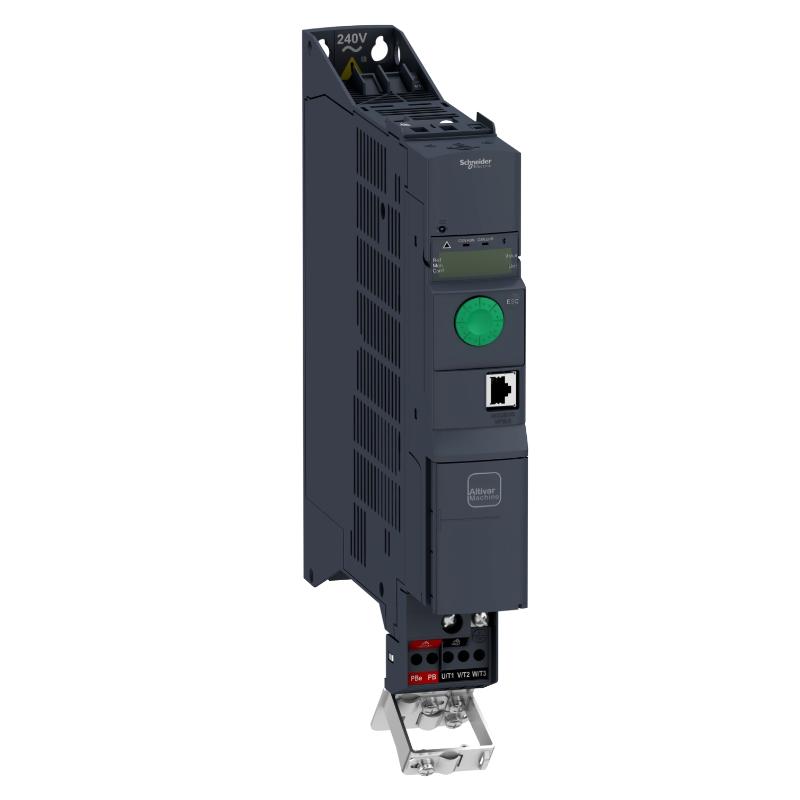

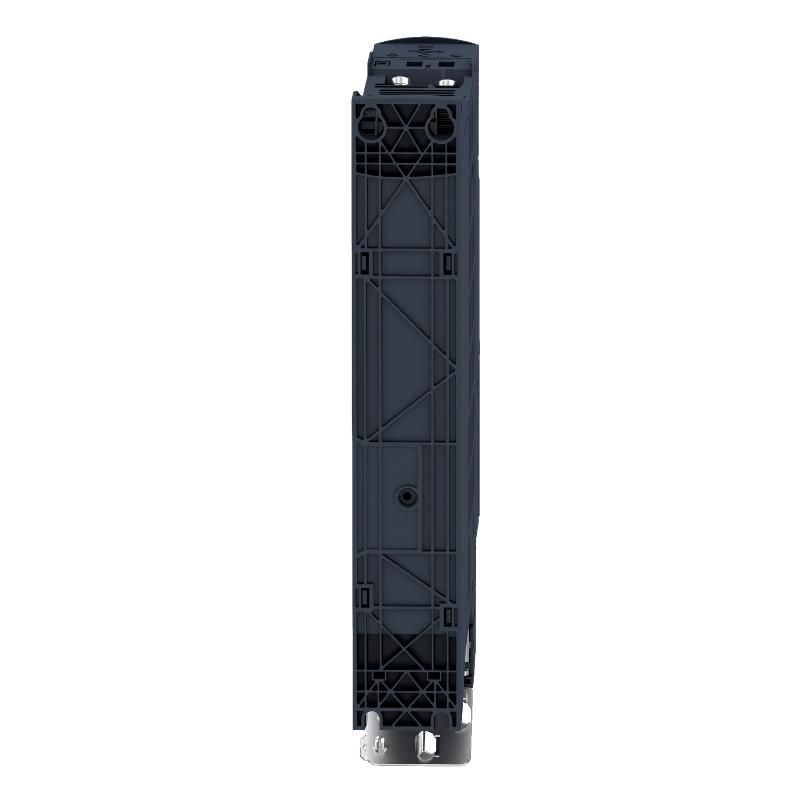

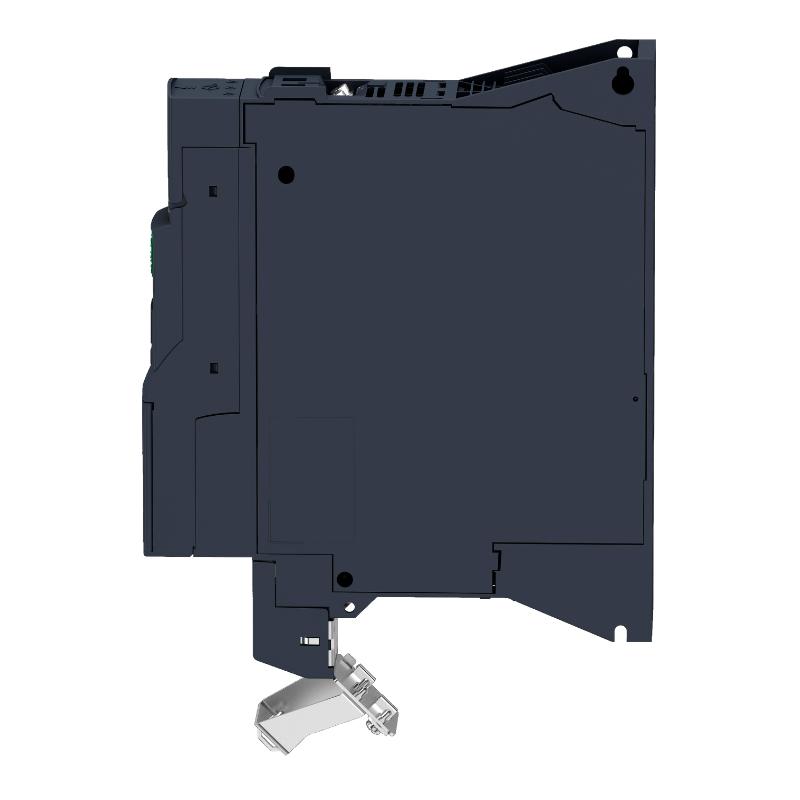

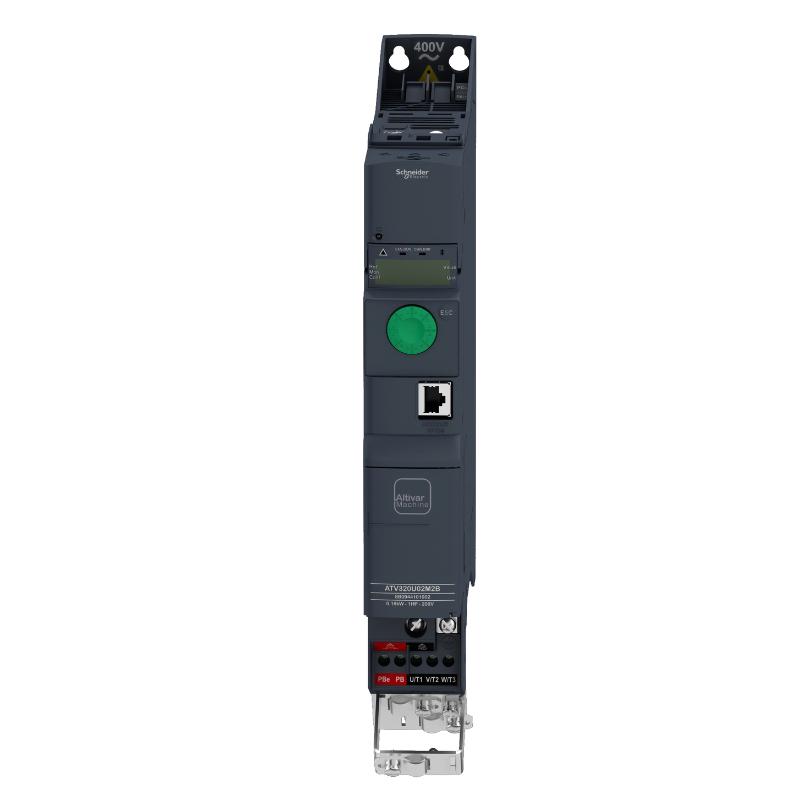

The Schneider Electric ATV320U06N4B is a compact variable speed drive (VFD) from the Altivar Machine ATV320 series, designed for controlling the speed and torque of three-phase AC motors.
It is mainly used in OEM machinery and industrial automation systems where compact size and stable motor control are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar Machine ATV320 |
| Model | ATV320U06N4B |
| Product Type | Variable Speed Drive |
| Rated Power | 0.55 kW |
| Supply Voltage | 380–500 V AC, 3-phase |
| Output | 3-phase variable AC output |
| Rated Current | 1.9 A |
| Control Method | V/F control + sensorless vector control |
| EMC Filter | Integrated |
| Cooling | Forced air cooling |
| Protection Class | IP20 |
| Mounting Type | Panel / book-style drive |
| Dimensions | 325 × 45 × 245 mm |
| Weight | 2.5 kg |
Function and Working Principle
The drive converts fixed-frequency AC power into a variable-frequency output to control motor speed.
Working Process
- AC input is converted into DC inside the drive
- DC bus stabilizes internal energy
- Inverter generates controlled AC output
- Output frequency is adjusted based on speed demand
- Motor speed follows the output frequency
Key Functions
- Motor speed control
- Smooth acceleration and deceleration
- Stable torque at low speed
- Energy-efficient operation
- Built-in motor protection
- Compact machine integration design
Industrial Applications
- Pumps
- Fans and ventilation systems
- Conveyor systems
- Packaging machines
- Light industrial automation equipment
- Material handling systems
Installation Notes
- Installed inside electrical control cabinets
- Requires proper ventilation for heat dissipation
- Shielded motor cables recommended
- Proper grounding required
- Parameter configuration required during commissioning
Compatible Systems
- Three-phase AC induction motors
- Schneider EcoStruxure / Modicon PLC systems
- Motor protection devices
- Industrial control panels
- Communication networks depending on configuration
Alternative Models
- ATV320U06M2C
- ATV320U11N4B / ATV320U22N4B
- ATV312 series (legacy drives)
- ATV340 series (advanced machine control drives)
Key Advantages
- Compact design for OEM machinery
- Stable motor control performance
- Flexible control modes
- Integrated EMC filtering
- Reliable low-speed torque capability
- Easy system integration
FAQ
Q: What is this drive used for?
It is used for controlling the speed of AC motors in industrial machines.
Q: Is it a soft starter?
No, it is a variable frequency drive (VFD).
Q: What type of motor is supported?
Three-phase asynchronous AC motors.
Conclusion
The Schneider ATV320U06N4B Variable Speed Drive is a compact and reliable VFD designed for OEM machinery and industrial automation applications, providing stable motor control and efficient operation.
