Product Overview

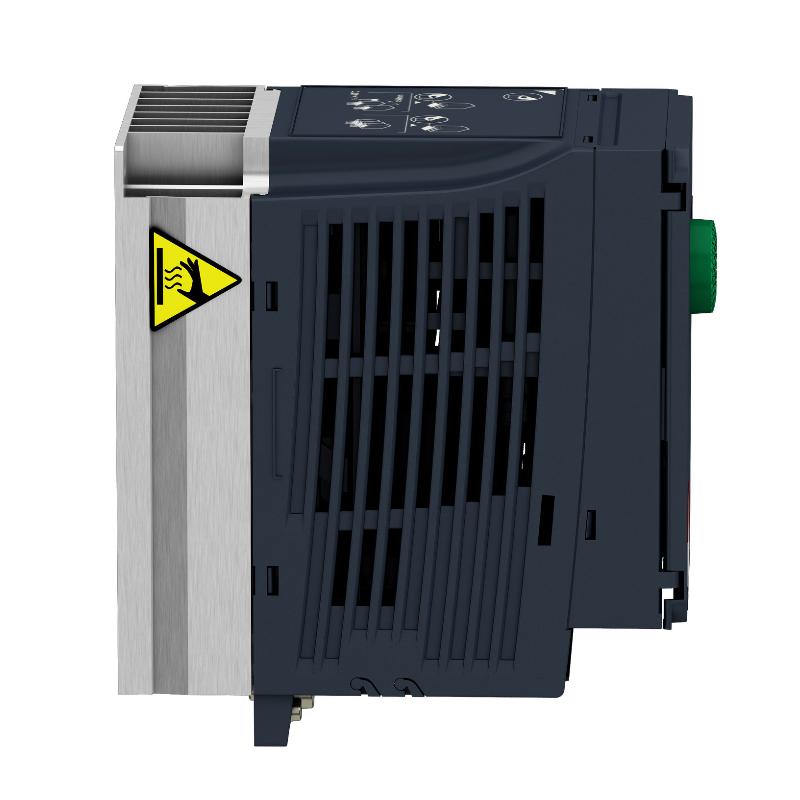

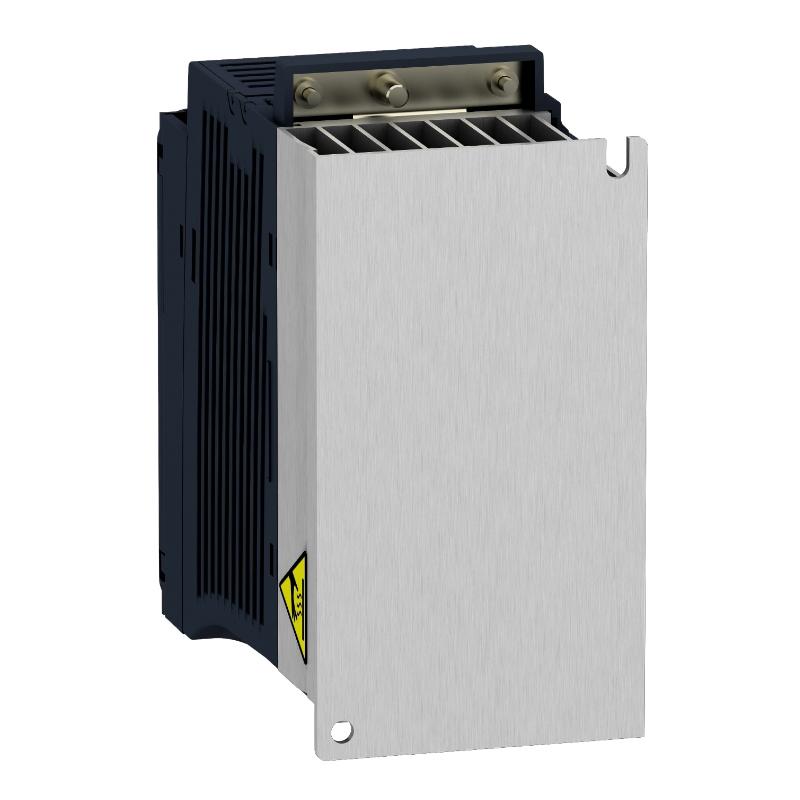

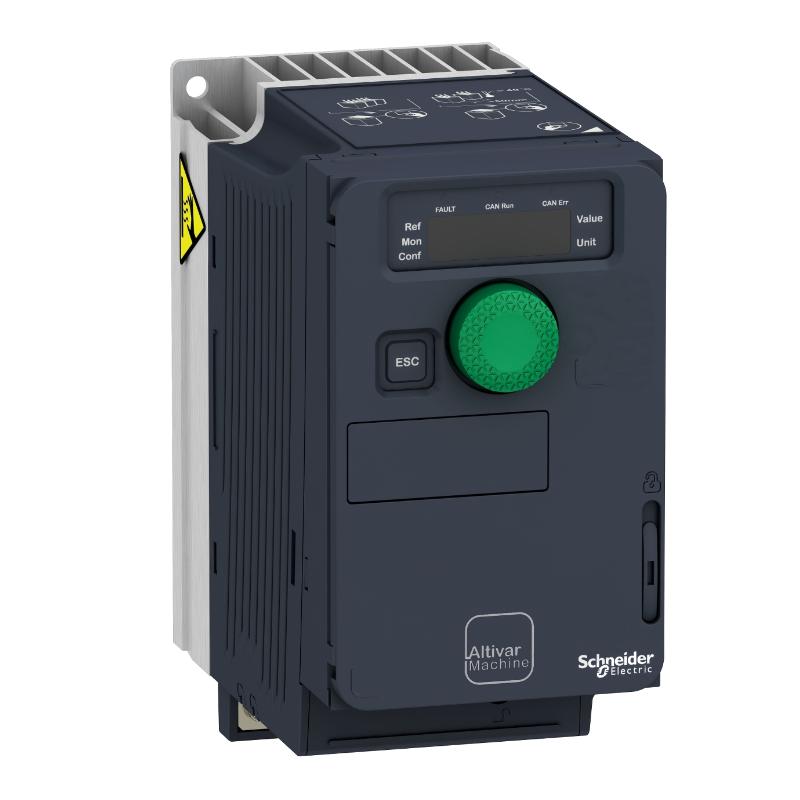

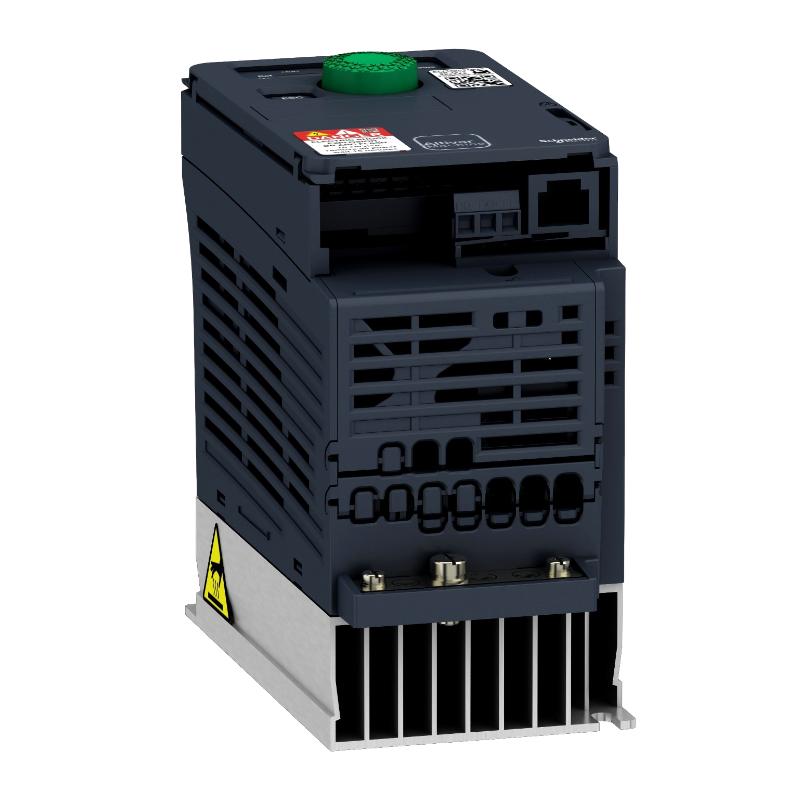

The Schneider Electric ATV320U06M2C is a compact variable speed drive (VFD) from the Altivar Machine ATV320 series. It is designed to control the speed and torque of three-phase AC motors by varying output frequency and voltage.
This drive is optimized for OEM machine applications, offering compact design, flexible control modes, and integrated safety functions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar Machine ATV320 |
| Model | ATV320U06M2C |
| Product Type | Variable Speed Drive (VFD) |
| Rated Power | 0.55 kW (0.75 HP) |
| Supply Voltage | 200–240 V AC, single-phase input |
| Output | 3-phase AC motor output |
| Rated Output Current | ~3.7 A |
| Control Method | V/F control, sensorless vector control |
| EMC Filter | Integrated |
| Protection Class | IP20 |
| Mounting Type | Panel / chassis mounted |
| Dimensions | 143 × 72 × 138 mm |
| Weight | 1.1 kg |
Function and Working Principle
The ATV320U06M2C works by converting fixed-frequency AC power into a variable-frequency output to control motor speed.
Core Process
- AC input is rectified into DC inside the drive
- DC bus stabilizes energy storage
- Inverter stage generates controlled AC output
- Output frequency adjusts motor speed
- Motor speed follows frequency changes
Key Functions
- Variable motor speed control
- Smooth acceleration and deceleration
- Torque control at low speeds
- Energy-efficient operation
- Motor protection functions
- Compact machine integration design
Industrial Applications
- Small pumps
- HVAC fans and blowers
- Conveyor systems
- Packaging machines
- Light industrial automation equipment
- Material handling systems
Installation Notes
- Installed inside control cabinets
- Requires proper ventilation for heat dissipation
- Shielded motor cables recommended to reduce EMI
- Proper grounding is required
- Must be parameterized during commissioning
Compatible Systems
- Three-phase AC induction motors
- Schneider EcoStruxure / Modicon PLC systems
- Motor protection circuit breakers
- Industrial control panels and MCCs
Alternative Models
- ATV310 series (basic drives)
- ATV312 series (legacy general-purpose drives)
- ATV320U11M2C / U22M2C (higher power variants)
- ATV340 series (advanced machine control drives)
Key Advantages
- Compact and space-saving design
- High efficiency motor control
- Flexible control modes (V/F and sensorless vector)
- Integrated EMC filtering
- Suitable for OEM machine design
- Stable low-speed torque performance
FAQ
Q: What is the ATV320U06M2C used for?
It is used to control the speed of AC motors in small industrial machines.
Q: Is it a soft starter?
No, it is a variable frequency drive (VFD), not a soft starter.
Q: What motor type is supported?
Three-phase asynchronous AC motors.
Conclusion
The Schneider ATV320U06M2C Variable Speed Drive is a compact and efficient motor control solution designed for OEM machinery. It provides precise speed regulation, energy savings, and flexible integration into industrial automation systems.
