Product Overview

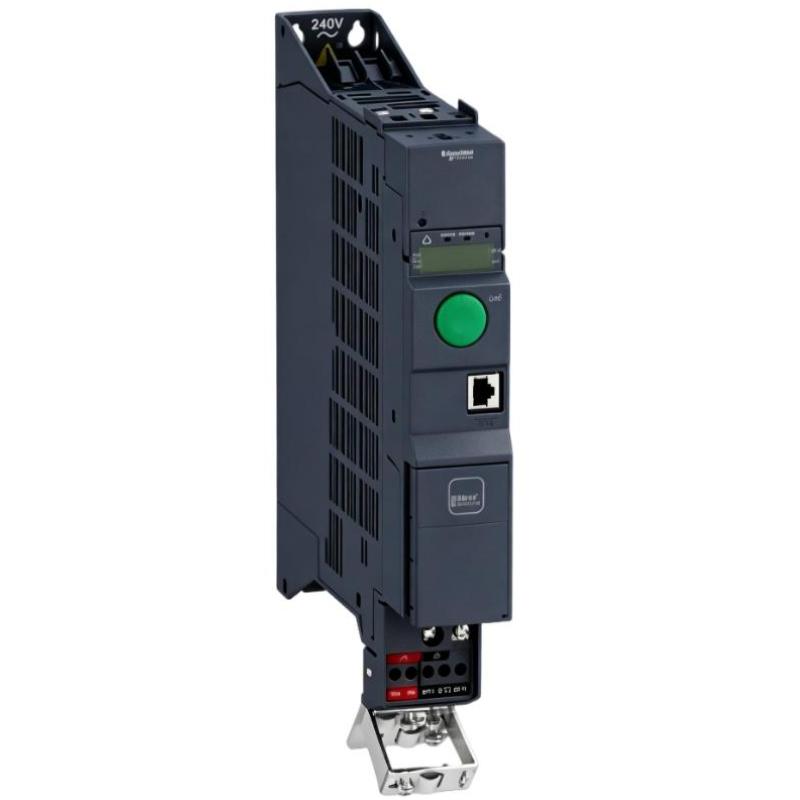

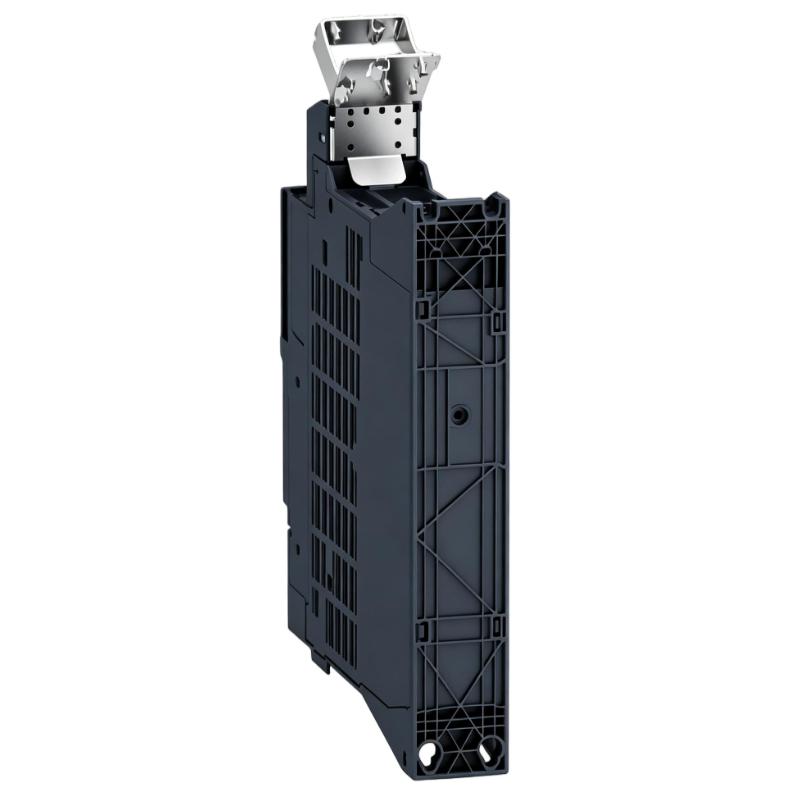

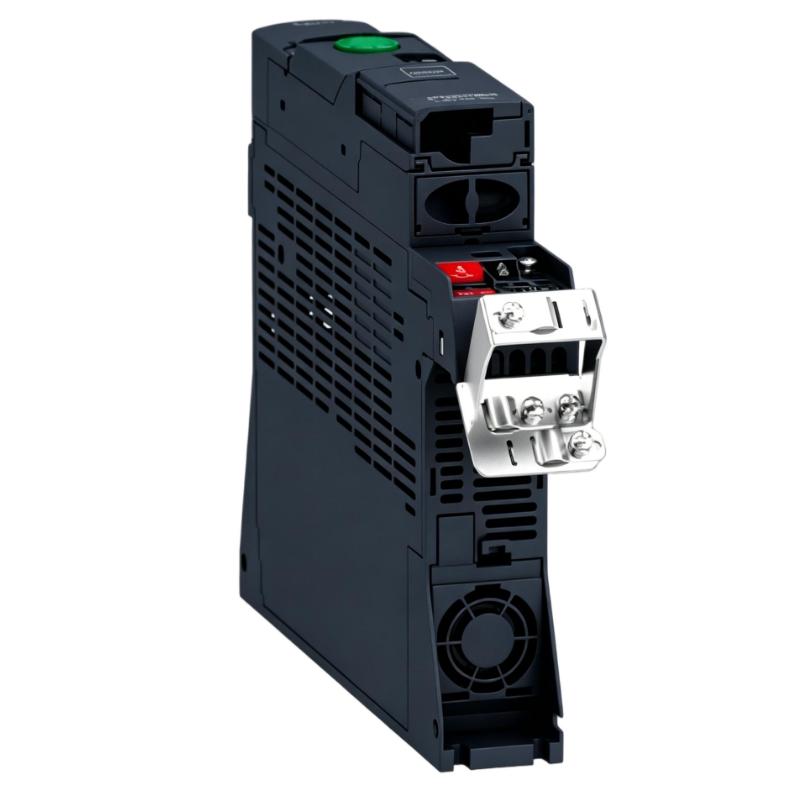

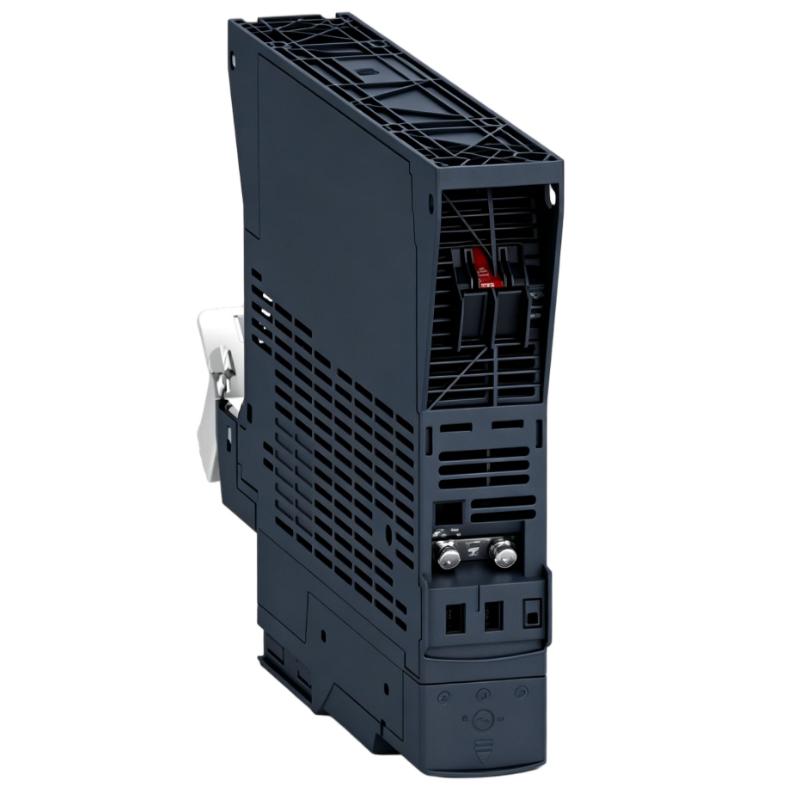

The Schneider Electric ATV320U02M2B Variable Speed Drive is a compact member of the Altivar Machine ATV320 family, specifically developed for industrial machines requiring reliable speed regulation, energy-efficient motor control, and simplified integration into modern automation systems. Despite its compact size, this drive delivers excellent performance for light-duty and medium-duty applications where precise motor control and machine reliability are essential.

Designed for 0.18 kW (0.25 HP) three-phase motors operating from a 200–240 V AC single-phase input, the ATV320U02M2B combines advanced motor-control algorithms with flexible communication capabilities. It supports both asynchronous induction motors and permanent magnet synchronous motors, allowing machine builders to optimize performance across a wide range of equipment.

With dimensions of 45 × 325 × 245 mm and a weight of approximately 2.4 kg, the drive occupies minimal cabinet space while providing stable operation, integrated safety functions, and comprehensive motor protection. It is an excellent solution for compact industrial equipment, packaging machines, conveyors, textile machinery, pumps, fans, and automated production systems.

Technical Specifications

Function and Working Principle

The ATV320U02M2B regulates motor speed by converting a fixed-frequency AC input into a variable-frequency output that matches the operational requirements of the connected motor.

Its operating sequence can be summarized as:

AC Input Power → Rectifier → DC Link → IGBT Inverter → Variable Frequency AC Output → Motor

Through continuous monitoring of motor parameters, the drive automatically adjusts output voltage and frequency to maintain smooth operation under varying load conditions.

Major control functions include:

• Precise speed regulation
• Stable low-speed operation
• Smooth acceleration and deceleration
• High starting torque
• Reduced mechanical vibration
• Improved energy efficiency
• Enhanced motor protection

Advanced digital control technology enables excellent machine performance while minimizing energy consumption and equipment wear.

Role in Industrial Automation Systems

Within an industrial control system, the ATV320U02M2B serves as the intelligent interface between the electrical supply and the driven motor.

A typical automation architecture includes:

• PLC Controller
• HMI Touch Panel
• ATV320 Variable Speed Drive
• AC Motor
• Limit Switches
• Proximity Sensors
• Safety Relay
• Circuit Breaker
• Communication Network

The drive receives operating commands from a PLC or HMI and adjusts motor speed according to machine requirements. Built-in communication interfaces enable efficient monitoring of operating status, alarms, motor current, frequency, and diagnostics.

Its compact size makes it particularly suitable for machinery where cabinet space is limited.

Industrial Applications

The ATV320U02M2B is widely used in compact industrial automation equipment.

Packaging Equipment

Provides precise control of conveyors, labeling systems, sealing machines, and small filling equipment.

Conveyor Systems

Maintains stable conveying speeds while reducing mechanical stress during startup and stopping.

Textile Machinery

Suitable for winding, spinning, and fabric processing equipment requiring accurate speed adjustment.

Pumps and Fans

Optimizes motor speed according to system demand, reducing energy consumption and improving operational efficiency.

Food Processing Equipment

Controls mixers, feeders, conveyors, and packaging machinery requiring consistent motor performance.

OEM Machinery

Ideal for machine builders designing compact automated equipment with reliable motor speed control.

Installation and System Integration

Proper installation helps maximize reliability and service life.

Before commissioning, engineers should verify:

• Input voltage
• Motor specifications
• Cable sizing
• Protective grounding
• Cooling clearance
• Ambient temperature
• Communication requirements
• Protective devices
• Control wiring

Typical Installation Procedure

1. Disconnect all electrical power.
2. Mount the drive on the control panel or DIN rail.
3. Ensure sufficient ventilation space.
4. Connect the single-phase AC input.
5. Connect the three-phase motor output.
6. Install protective grounding.
7. Wire control inputs and outputs.
8. Configure Modbus RTU or CANopen if required.
9. Enter motor nameplate parameters.
10. Configure acceleration and deceleration ramps.
11. Perform motor auto-tuning.
12. Verify motor rotation direction.
13. Test operation without load.
14. Commission the machine under normal operating conditions.

Following Schneider Electric installation guidelines helps ensure safe and reliable operation throughout the drive’s service life.

Compatible System Components

The ATV320U02M2B is commonly integrated with the following automation products.

These components work together to create a reliable and efficient machine automation solution.

Recommended Alternative Models

Depending on machine size and motor power requirements, the following Altivar drives may also be suitable.

Key Advantages

• Compact space-saving design
• Rated for 0.18 kW (0.25 HP) motors
• Single-phase 200–240 V AC input
• Three-phase motor output
• Sensorless Vector Control technology
• Stable low-speed torque
• Output frequency up to 599 Hz
• Integrated Modbus RTU communication
• Built-in CANopen communication
• Safe Torque Off (STO) safety function
• High energy efficiency
• Advanced motor protection
• Easy commissioning and maintenance
• Compatible with Schneider EcoStruxure Machine architecture
• Ideal for OEM machine builders

Technical FAQs

What is the Schneider ATV320U02M2B?

The ATV320U02M2B is a compact Variable Speed Drive designed for controlling small AC motors in industrial automation equipment.

What motor power does it support?

It is designed for motors rated at 0.18 kW (0.25 HP).

What input power is required?

The drive operates from a 200–240 V AC single-phase power supply and provides a three-phase output for the motor.

Which communication protocols are available?

Standard communication includes Modbus RTU and CANopen.

Does it support sensorless vector control?

Yes. The drive incorporates Sensorless Vector Control for improved speed accuracy and torque performance.

What are the dimensions of the drive?

The overall dimensions are 45 × 325 × 245 mm.

How much does the drive weigh?

The approximate product weight is 2.4 kg.

Can the drive be connected to a PLC?

Yes. It integrates easily with Schneider Modicon PLCs and other industrial controllers through supported communication networks.

Which industries commonly use this drive?

Typical applications include packaging equipment, conveyors, textile machinery, pumps, fans, food processing equipment, and OEM automation systems.

Which software is used for setup?

The drive can be configured, commissioned, and diagnosed using Schneider Electric SoMove software and integrated into EcoStruxure Machine Expert projects.

Conclusion

The Schneider Electric ATV320U02M2B Variable Speed Drive is a compact yet highly capable AC drive designed to provide efficient motor control for small industrial machines and automation equipment. Supporting 0.18 kW motors, 200–240 V AC single-phase input, and advanced Sensorless Vector Control technology, it delivers smooth speed regulation, excellent energy efficiency, and dependable operation.

Its compact dimensions of 45 × 325 × 245 mm and lightweight 2.4 kg construction make it particularly suitable for installations where cabinet space is limited. Integrated communication interfaces, comprehensive motor protection, and functional safety features further enhance its value for modern automation systems.

For OEM machine manufacturers, system integrators, and maintenance engineers, the ATV320U02M2B offers a reliable, flexible, and cost-effective motor control solution that supports long-term equipment performance and efficient industrial production.
