Product Overview

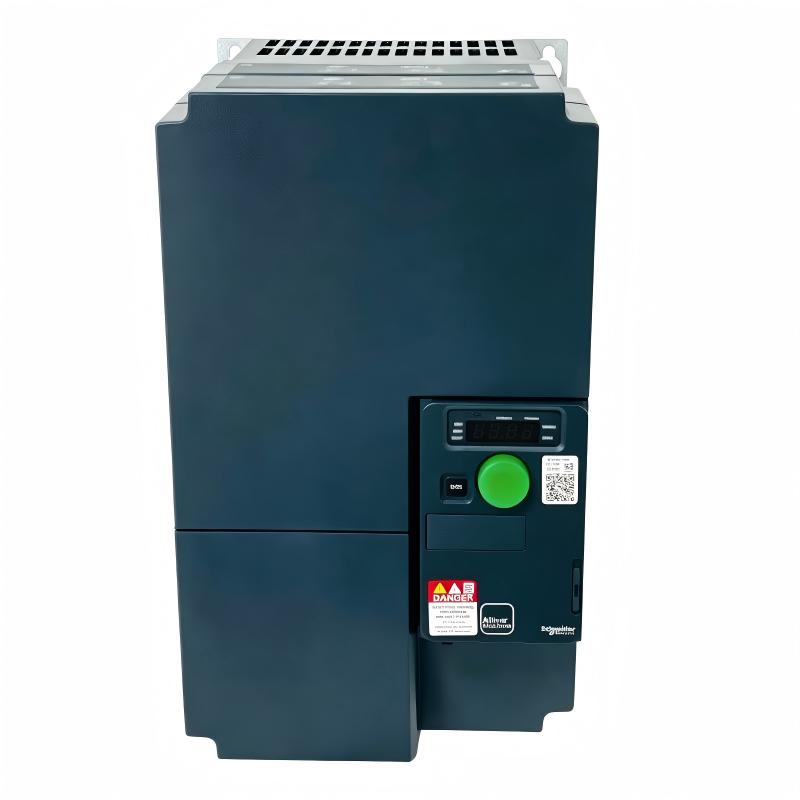

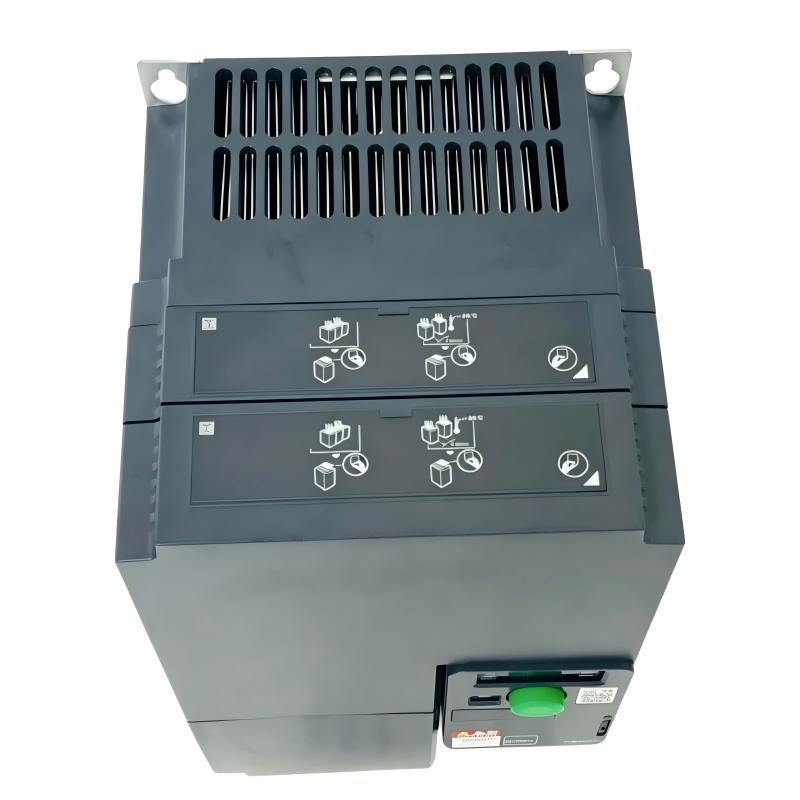

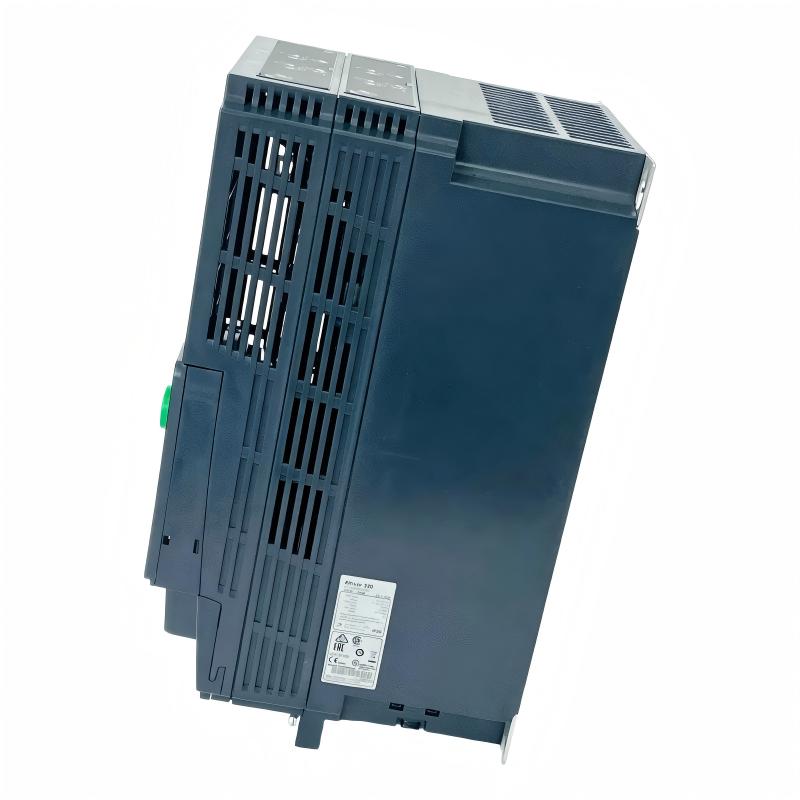

The Schneider Electric ATV320D15S6C Variable Speed Drive is a high-performance member of the Altivar Machine ATV320 family, specifically engineered for industrial machinery and OEM automation applications that require accurate motor speed control, high torque performance, and reliable operation. Designed for machine builders and system integrators, the ATV320D15S6C combines advanced motor control technology, compact mechanical design, and integrated communication capabilities to improve machine productivity and energy efficiency.
The drive is rated for 15 kW (20 HP) motors and operates on a three-phase 500–600 V AC power supply, making it suitable for high-voltage industrial environments. It supports both asynchronous induction motors and permanent magnet synchronous motors, delivering precise speed regulation and stable torque across a wide operating range.
With compact dimensions of 180 × 330 × 198 mm and a weight of approximately 6.5 kg, the ATV320D15S6C minimizes cabinet space requirements while providing powerful motor control for demanding industrial applications. It is fully compatible with Schneider Electric’s EcoStruxure Machine architecture, enabling simplified commissioning, diagnostics, and lifecycle management through engineering software and industrial communication networks.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Product Series | Altivar Machine ATV320 |
| Model | ATV320D15S6C |
| Product Type | Variable Speed Drive |
| Rated Motor Power | 15 kW (20 HP) |
| Rated Input Voltage | 500–600 V AC |
| Power Supply | Three-phase |
| Input Frequency | 50/60 Hz |
| Motor Compatibility | Asynchronous and Permanent Magnet Synchronous Motors |
| Control Modes | Sensorless Vector Control (SVC), V/F Control |
| Output Frequency Range | 0.1–599 Hz |
| Built-in Communication | Modbus RTU, CANopen |
| Protection Rating | IP20 |
| Cooling Method | Forced Air Cooling |
| Functional Safety | Safe Torque Off (STO) |
| Installation | Wall-mounted / Cabinet-mounted |
| Dimensions | 180 × 330 × 198 mm |
| Weight | 6.5 kg |
| Operating Environment | Industrial Automation Systems |
| Typical Applications | Machine Control, Conveyor Systems, Pumps, Fans, Packaging Equipment |
Function and Working Principle
The ATV320D15S6C converts fixed-frequency AC input power into adjustable-frequency AC output, allowing precise regulation of motor speed and torque.
The basic operating process is:
Three-Phase AC Input → Rectifier → DC Bus → IGBT Inverter → Variable Frequency Output → AC Motor
The drive continuously adjusts voltage and output frequency according to process requirements while monitoring motor operating conditions.
Its intelligent control system provides:
- Accurate speed regulation
- Stable low-speed torque
- Smooth starting and stopping
- Fast dynamic response
- Reduced mechanical wear
- Lower energy consumption
- Enhanced motor protection
Sensorless Vector Control enables high-performance operation without requiring an external encoder in many applications, simplifying system design while maintaining excellent control accuracy.
Role in Industrial Automation Systems
The ATV320D15S6C serves as the central motor-control device within modern industrial automation systems.
A typical automation configuration includes:
- PLC Controller
- HMI Operator Panel
- ATV320 Variable Speed Drive
- Three-Phase AC Motor
- Industrial Sensors
- Safety Relays
- Circuit Protection Devices
- Industrial Communication Network
- Power Distribution System
The PLC or supervisory controller sends operating commands to the drive, which regulates motor speed, acceleration, deceleration, and torque according to machine requirements.
Built-in Modbus RTU and CANopen communication interfaces enable seamless integration into industrial control systems, while optional communication modules allow connectivity with Ethernet-based industrial networks.
Industrial Applications
The Schneider ATV320D15S6C is designed for a wide variety of industrial machine applications.
Packaging Machinery
Provides accurate speed synchronization for conveyors, filling equipment, labeling machines, wrapping systems, and automated packaging lines.
Material Handling Systems
Controls conveyors, lifting equipment, transfer systems, palletizers, and automated warehouse machinery.
Pumps and Fans
Optimizes motor speed according to system demand, improving energy efficiency and reducing operating costs.
Textile Machinery
Ensures stable speed regulation for spinning, weaving, winding, and fabric processing equipment.
Woodworking Equipment
Suitable for CNC routers, saws, milling machines, sanding systems, and automated woodworking production lines.
General Industrial Manufacturing
Widely used in automated production equipment requiring reliable motor control, reduced downtime, and improved process efficiency.
Installation and System Integration
Correct installation is essential for achieving optimum drive performance and long service life.
Before installation, engineers should verify:
- Input voltage
- Motor specifications
- Power cable size
- Grounding system
- Cabinet ventilation
- Ambient operating temperature
- Communication requirements
- Protective devices
- EMC compliance
- Motor insulation compatibility
Typical Installation Procedure
- Disconnect all incoming electrical power.
- Mount the drive vertically inside the control cabinet.
- Ensure sufficient ventilation clearance.
- Connect the three-phase input power.
- Connect motor output terminals.
- Install protective grounding.
- Wire control terminals.
- Connect communication networks if required.
- Enter motor nameplate parameters.
- Configure acceleration and deceleration ramps.
- Perform motor auto-tuning.
- Verify motor rotation direction.
- Test operation under no-load conditions.
- Commission the complete machine.
Following recommended EMC wiring practices and proper cable shielding helps minimize electrical interference and improve system reliability.
Compatible System Components
The ATV320D15S6C is commonly integrated with the following Schneider Electric automation products and industrial components.
| Component | Function |
|---|---|
| Schneider Modicon PLC | Machine logic control |
| EcoStruxure Machine Expert | Engineering and programming |
| SoMove Software | Drive configuration and diagnostics |
| Three-Phase AC Motor | Variable-speed motor operation |
| Braking Resistor | Dynamic braking |
| EMC Filter | Electromagnetic compatibility |
| Line Reactor | Input power conditioning |
| Motor Reactor | Motor protection |
| Human Machine Interface (HMI) | Operator monitoring |
| Industrial Ethernet Gateway | Network communication |
| CANopen Devices | Distributed automation |
| Industrial Sensors | Machine feedback |
Together, these components provide a complete industrial motion-control solution for machine automation.
Recommended Alternative Models
Depending on motor power requirements and supply voltage, the following Schneider Electric drives may also be suitable.
| Model | Type | Key Feature | Typical Application |
|---|---|---|---|
| ATV320D15S6C | Variable Speed Drive | 15 kW, 500–600 V | Industrial machinery |
| ATV320D11S6C | Variable Speed Drive | 11 kW High Voltage | Medium-duty equipment |
| ATV320D18S6C | Variable Speed Drive | 18.5 kW Output | Heavy-duty automation |
| ATV320D15M3C | Variable Speed Drive | 15 kW, 200–240 V | Low-voltage machinery |
| ATV340 Series | High Performance Drive | Advanced motion control | Complex automation |
| ATV630 Series | Process Drive | Pumps and fans | Process industries |
Key Advantages
- Rated for 15 kW (20 HP) industrial motors
- Designed for 500–600 V AC three-phase power systems
- Compact cabinet-saving construction
- Advanced Sensorless Vector Control
- Excellent low-speed torque performance
- Smooth acceleration and deceleration
- Output frequency up to 599 Hz
- Built-in Modbus RTU communication
- Integrated CANopen communication
- Safe Torque Off (STO) functional safety
- Reliable industrial-grade construction
- High energy efficiency
- Simplified commissioning using SoMove software
- Compatible with Schneider EcoStruxure Machine architecture
- Suitable for continuous industrial operation
Technical FAQs
What is the Schneider ATV320D15S6C?
The ATV320D15S6C is a 15 kW Variable Speed Drive designed for industrial machine automation and precise AC motor speed control.
What input voltage does it require?
The drive operates on a 500–600 V AC three-phase power supply.
Which motor types are supported?
It supports both asynchronous induction motors and permanent magnet synchronous motors.
Which communication protocols are integrated?
The standard drive includes Modbus RTU and CANopen communication interfaces.
Can the drive communicate with a PLC?
Yes. It integrates easily with Schneider Modicon PLCs and other industrial controllers through supported communication networks.
What are the physical dimensions?
The drive measures 180 × 330 × 198 mm.
What is the product weight?
The approximate product weight is 6.5 kg.
Is dynamic braking supported?
Yes. The ATV320D15S6C supports compatible external braking resistors for applications requiring rapid deceleration.
What industries commonly use this drive?
Typical applications include packaging, material handling, pumps, fans, textile machinery, woodworking equipment, and automated manufacturing systems.
Which software is used for configuration?
The drive can be commissioned and configured using Schneider Electric SoMove software and integrated into EcoStruxure Machine Expert engineering projects.
Conclusion
The Schneider Electric ATV320D15S6C Variable Speed Drive is a robust and efficient AC drive designed for demanding industrial automation applications operating on 500–600 V AC three-phase power systems. With a 15 kW motor rating, advanced Sensorless Vector Control technology, integrated communication interfaces, and built-in functional safety, it provides precise motor control while improving machine productivity and operational efficiency.
Its compact dimensions of 180 × 330 × 198 mm and lightweight 6.5 kg design simplify installation inside modern control cabinets without compromising performance. Whether used in packaging equipment, conveyor systems, pumps, fans, textile machinery, or general manufacturing, the ATV320D15S6C delivers dependable speed regulation, reduced energy consumption, and long-term reliability.
For machine builders, system integrators, and maintenance engineers, the ATV320D15S6C offers a flexible and scalable solution that integrates seamlessly with Schneider Electric automation products, helping create efficient, high-performance industrial control systems.
