Product Overview

Efficient motor speed control is an important part of modern industrial automation, particularly for machines that require adjustable operating speeds, controlled acceleration, and reliable motor protection. The Schneider ATV310HU22N4E is an Easy Altivar 310 Variable Speed Drive (VSD) designed to control compatible three-phase asynchronous motors in industrial machine applications.

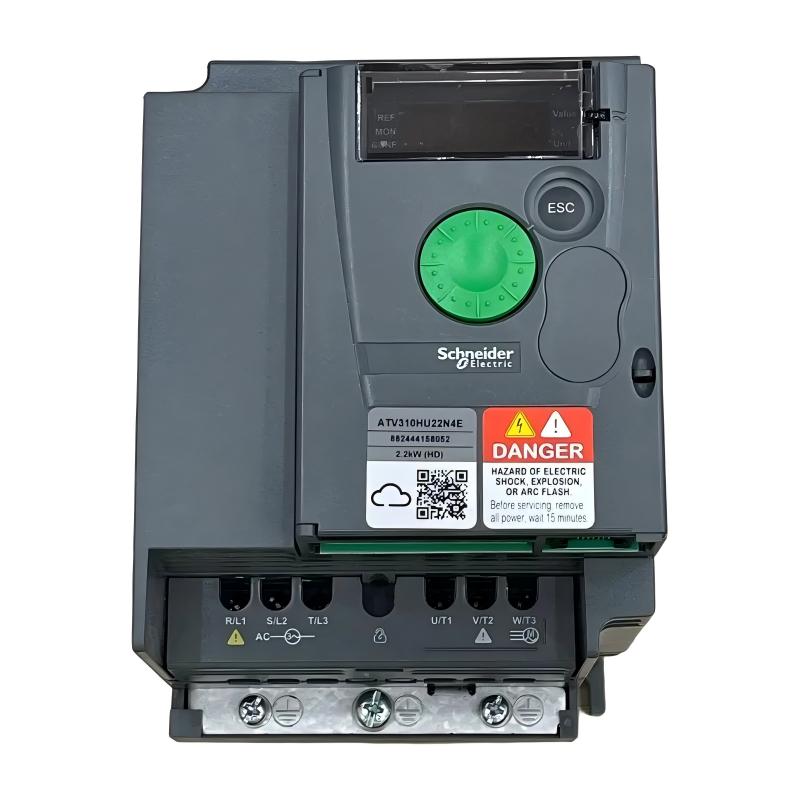

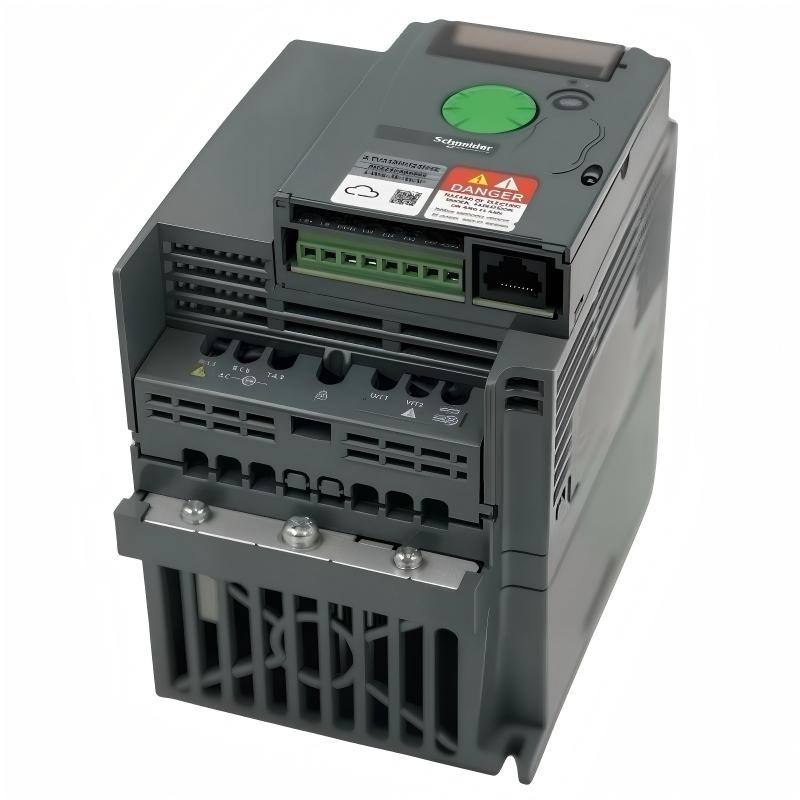

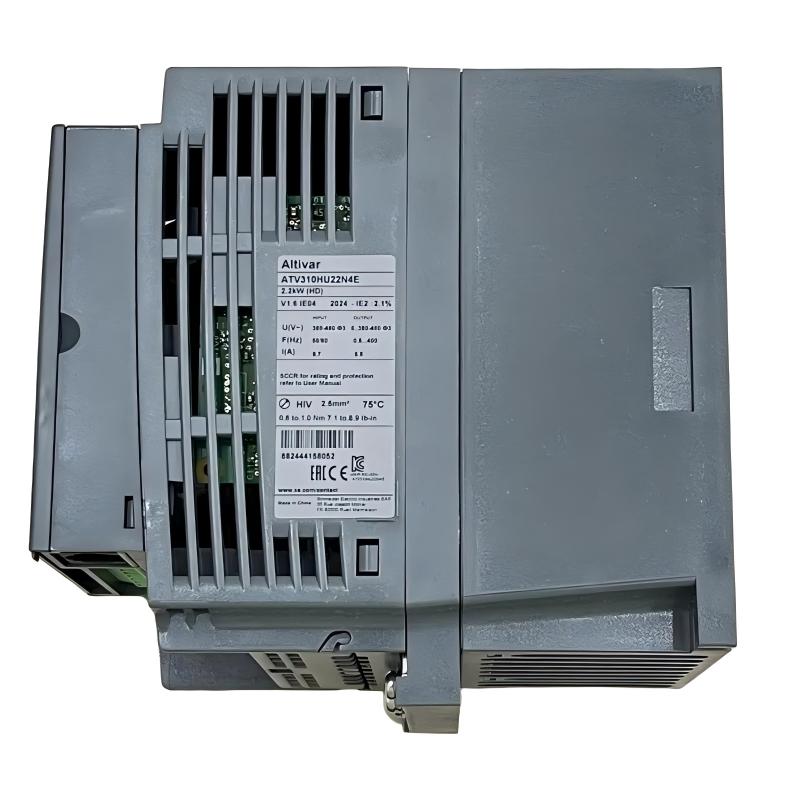

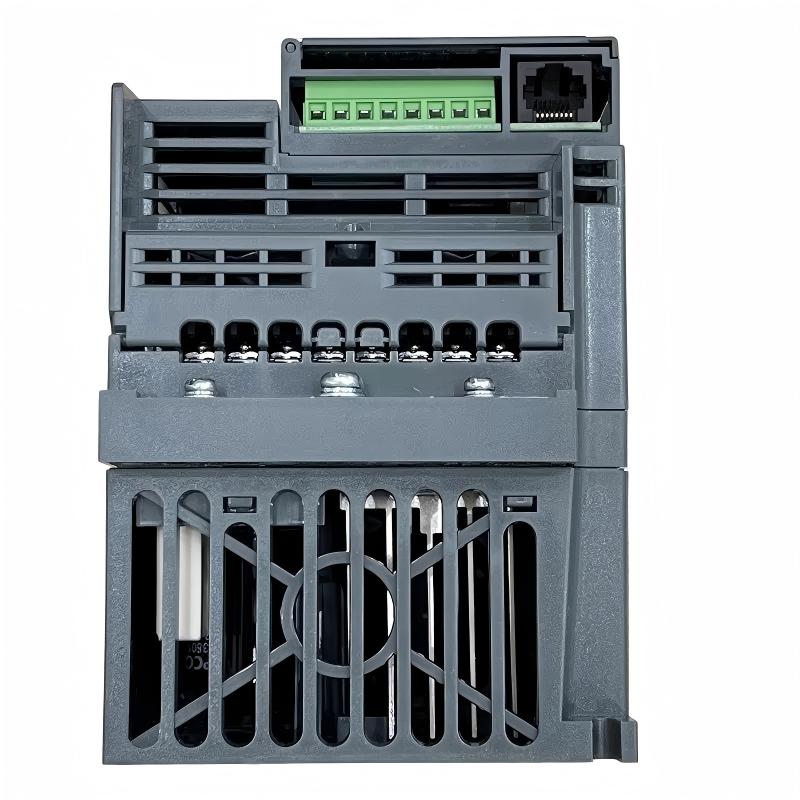

The ATV310HU22N4E is a compact variable speed drive designed for motor applications where reliable frequency conversion and straightforward machine integration are required. It provides adjustable motor speed by controlling the frequency and voltage supplied to the connected AC motor.

Unlike a conventional fixed-speed motor starter, a variable speed drive allows the motor to operate at different speeds according to the requirements of the production process. This makes the ATV310HU22N4E useful for conveyors, pumps, fans, material-handling equipment, packaging machinery, and other general-purpose industrial machines.

The specified dimensions of the ATV310HU22N4E are 143 × 105 × 151 mm, and its approximate weight is 1.1 kg. Its compact design allows it to be installed in space-constrained industrial control cabinets and machine panels.

The ATV310HU22N4E supports multiple motor-control functions, including U/F control and sensorless vector control. These control methods allow the drive to be configured for different motor and load characteristics.

The drive can also communicate with industrial automation equipment through Modbus RTU over RS-485, making it suitable for PLC-based control systems.

For OEM machine builders, system integrators, and industrial maintenance teams, the ATV310HU22N4E provides a practical solution for integrating adjustable-speed motor control into compact automation systems.

Technical Specifications

Function and Working Principle

The primary function of the ATV310HU22N4E is to regulate the operating speed of a compatible three-phase asynchronous motor.

A standard AC motor connected directly to a fixed-frequency supply generally operates at a relatively constant speed. The variable speed drive introduces electronic power conversion between the electrical supply and motor, allowing the output frequency and voltage to be controlled.

The basic operating sequence can be represented as:

Three-Phase AC Input → Rectifier → DC Link → Inverter → Variable-Frequency AC Output → Motor

The drive processes the incoming AC power and generates a controlled three-phase output.

By adjusting the output frequency, the ATV310HU22N4E can change motor speed according to the required machine operating condition.

The drive can provide:

• Adjustable motor speed
• Controlled acceleration
• Controlled deceleration
• Smooth motor starting
• Controlled stopping
• Adjustable frequency
• Motor protection
• Fault monitoring
• Alarm monitoring
• PLC communication

The ATV310HU22N4E supports U/F control and sensorless vector control.

U/F control is appropriate for many basic motor applications where straightforward frequency-based control is sufficient.

Sensorless vector control provides a more advanced control method that can improve motor performance and torque characteristics without requiring a physical speed feedback sensor.

The drive also includes protective functions designed to help detect abnormal operating conditions.

These can include:

• Motor overload protection
• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Motor thermal protection
• Drive thermal protection
• Phase monitoring
• Fault detection
• Alarm monitoring

For example, in a conveyor application, the PLC can send a start command and speed reference to the ATV310HU22N4E.

The drive increases the output frequency according to the configured acceleration ramp. During operation, the PLC can adjust the speed reference when production requirements change.

When the machine stops, the drive can reduce the output frequency according to the configured deceleration ramp.

This provides smoother and more flexible motor control than direct fixed-speed operation.

Role in Industrial Control Systems

The ATV310HU22N4E acts as a motor-control interface between the automation controller and the connected three-phase motor.

A typical control system may include:

• Schneider Modicon PLC
• Schneider HMI
• ATV310HU22N4E Variable Speed Drive
• Three-phase asynchronous motor
• Motor circuit breaker
• Magnetic contactor
• Proximity sensors
• Pressure sensors
• Temperature sensors
• Remote I/O modules
• Modbus communication network
• RS-485 communication equipment
• Industrial communication gateway
• SCADA system
• Emergency stop equipment

The PLC receives process information from sensors and determines the required motor operating condition.

The ATV310HU22N4E receives the appropriate control command and regulates the motor.

When Modbus RTU is used, the drive can exchange information with compatible industrial controllers.

Depending on the system configuration, the controller can monitor:

• Motor operating status
• Drive status
• Motor frequency
• Speed reference
• Fault conditions
• Alarm conditions
• Communication status
• Selected operating parameters

This allows the drive to operate as an integrated component of the machine automation system.

Industrial Applications

The Schneider ATV310HU22N4E is suitable for compact industrial machines that require adjustable-speed control for compatible motors.

Typical applications include:

• Small conveyor systems
• Material handling equipment
• Packaging machinery
• Small pumps
• Industrial fans
• Ventilation equipment
• Textile machinery
• Printing machinery
• Assembly machines
• Production-line equipment
• Processing machinery
• Machine tools
• OEM machinery
• General-purpose motor applications

Conveyor Systems

The ATV310HU22N4E can regulate conveyor motor speed according to production requirements.

Controlled acceleration and deceleration can reduce sudden mechanical stress during starting and stopping.

The PLC can also adjust conveyor speed according to production-line conditions.

Pump Applications

For suitable pump applications, variable-speed control allows the motor speed to be adjusted according to process requirements.

The speed reference can be controlled through a PLC or another compatible automation system.

Industrial Fans

Variable-speed control allows compatible fan motors to operate at different speeds according to ventilation or process requirements.

This provides more flexible airflow management than fixed-speed operation.

Packaging Machinery

Packaging equipment frequently requires coordinated motor movement and controlled acceleration.

The ATV310HU22N4E can provide variable-speed control for suitable motor-driven mechanisms within the machine.

Material Handling

Material-handling equipment can use the drive to regulate the speed of rollers, conveyors, feeders, and other compatible motor-driven mechanisms.

Installation and System Integration

Correct installation is essential for reliable operation of the ATV310HU22N4E.

Recommended installation practices include:

• Install the drive inside a suitable industrial control cabinet.
• Mount the drive according to the recommended orientation.
• Provide adequate ventilation.
• Maintain appropriate clearance around the drive.
• Verify the incoming three-phase supply voltage.
• Connect protective grounding correctly.
• Use appropriately rated input cables.
• Use appropriately rated motor cables.
• Separate power cables from sensitive control wiring where practical.
• Verify the connected motor nameplate.
• Configure the motor parameters correctly.
• Select the appropriate control mode.
• Configure acceleration and deceleration ramps.
• Verify motor rotation during commissioning.
• Configure Modbus parameters when network control is required.
• Check drive alarms before normal production.
• Perform an initial low-speed test.

The ATV310HU22N4E is intended for a three-phase 380–460 VAC supply, so the incoming power system should be checked before the drive is energized.

Motor configuration should correspond to the actual motor connected to the drive.

Typical motor parameters may include:

• Motor rated voltage
• Motor rated current
• Motor rated frequency
• Motor rated speed
• Motor power
• Minimum frequency
• Maximum frequency
• Acceleration time
• Deceleration time

Incorrect configuration can cause excessive current, unstable motor operation, poor torque performance, or protective trips.

Because the ATV310HU22N4E is installed inside industrial control equipment, cabinet ventilation and thermal management should also be considered.

Compatible System Components

The ATV310HU22N4E can be integrated with Schneider automation equipment and standard industrial electrical components.

Typical associated components include:

• Schneider Modicon PLC
• Schneider HMI
• Easy Altivar 310 series drives
• Modbus RTU devices
• RS-485 communication equipment
• Industrial communication gateways
• Motor circuit breakers
• Magnetic contactors
• Three-phase asynchronous motors
• Remote I/O modules
• Proximity sensors
• Pressure transmitters
• Temperature sensors
• Emergency stop devices
• Industrial control cabinets
• SCADA systems

A typical automation architecture can be represented as:

Field Sensors → PLC → ATV310HU22N4E → Three-Phase Motor → Machine

Field sensors provide information to the PLC.

The PLC processes the information and determines the required motor operating condition.

The ATV310HU22N4E receives the appropriate command and converts it into controlled motor operation.

An HMI can provide operators with access to selected parameters, motor speed, drive status, alarms, and diagnostic information.

Recommended Alternative Models

Depending on motor power, supply requirements, load characteristics, and control architecture, the following Schneider models may also be considered:

The appropriate alternative should be selected based on the actual motor and application requirements.

Important selection factors include:

• Motor rated power
• Motor rated current
• Supply voltage
• Load type
• Duty cycle
• Overload requirements
• Required control method
• Communication requirements
• Installation dimensions
• Cooling requirements
• Environmental conditions

A drive with a similar motor-power rating should not automatically be considered a direct replacement. Electrical specifications, control functions, communication interfaces, mounting requirements, and application conditions should be verified before substitution.

Key Advantages

• Easy Altivar 310 variable speed drive
• Compact industrial motor-control design
• 2.2 kW motor capacity
• Approximately 3 HP motor rating
• Three-phase 380–460 VAC input
• Designed for three-phase asynchronous motors
• Variable-frequency speed control
• U/F control
• Sensorless vector control
• Adjustable acceleration
• Adjustable deceleration
• Controlled motor starting
• Controlled motor stopping
• Motor overload protection
• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Motor thermal protection
• Fault monitoring
• Modbus RTU communication
• RS-485 interface
• RJ45 communication connector
• Forced-air cooling
• IP20 protection
• Compact cabinet installation
• Dimensions of 143 × 105 × 151 mm
• Weight of approximately 1.1 kg
• Suitable for conveyors
• Suitable for pumps
• Suitable for industrial fans
• Suitable for packaging machinery
• Suitable for material handling
• Suitable for OEM machine applications

Technical FAQs

What is the Schneider ATV310HU22N4E?

The Schneider ATV310HU22N4E is an Easy Altivar 310 Variable Speed Drive designed to control compatible three-phase asynchronous motors in industrial machine applications.

What is the motor power rating?

The ATV310HU22N4E is designed for 2.2 kW motor applications, equivalent to approximately 3 HP.

What input voltage does the ATV310HU22N4E use?

The drive is designed for a three-phase 380–460 VAC power supply.

What are the dimensions of the ATV310HU22N4E?

The specified dimensions are 143 × 105 × 151 mm.

How much does the ATV310HU22N4E weigh?

The specified product weight is approximately 1.1 kg.

What type of motor can it control?

The ATV310HU22N4E is designed for compatible three-phase asynchronous AC motors within its applicable electrical ratings.

Does the ATV310HU22N4E support Modbus?

Yes. The ATV310 series supports Modbus RTU communication through an RS-485 interface.

Does the drive support sensorless vector control?

Yes. The ATV310HU22N4E supports both U/F control and sensorless vector control.

What are typical applications for the ATV310HU22N4E?

Typical applications include conveyors, pumps, industrial fans, packaging machinery, material handling equipment, processing machines, assembly equipment, and other compact industrial machines.

Can the ATV310HU22N4E be integrated with a PLC?

Yes. The drive can be integrated into PLC-based automation systems using Modbus communication or suitable control interfaces.

What is the protection rating?

The ATV310HU22N4E is specified with an IP20 protection rating.

Why use a variable speed drive for a 2.2 kW motor?

A variable speed drive provides adjustable motor speed, controlled acceleration and deceleration, smoother starting and stopping, and better coordination between the motor and machine-control system.

What should be checked before replacing this drive?

The replacement should be checked against motor power and current, input voltage, load characteristics, duty requirements, control method, communication functions, physical dimensions, cooling requirements, and environmental conditions.

Conclusion

The Schneider ATV310HU22N4E Variable Speed Drive is a compact Easy Altivar 310 drive designed for reliable variable-speed control of compatible three-phase asynchronous motors.

With a 2.2 kW motor rating, three-phase 380–460 VAC input, U/F and sensorless vector control, integrated protection functions, and Modbus RTU communication capability, the ATV310HU22N4E is suitable for a wide range of compact industrial automation and machine-control applications.

Its specified dimensions of 143 × 105 × 151 mm and approximate weight of 1.1 kg make it suitable for control cabinets and machine panels where installation space is limited.

When combined with Schneider PLCs, HMIs, sensors, motor protection equipment, communication devices, and compatible three-phase motors, the ATV310HU22N4E can provide dependable variable-speed control for conveyors, pumps, fans, packaging equipment, material-handling systems, processing machinery, and other industrial applications.
