Product Overview

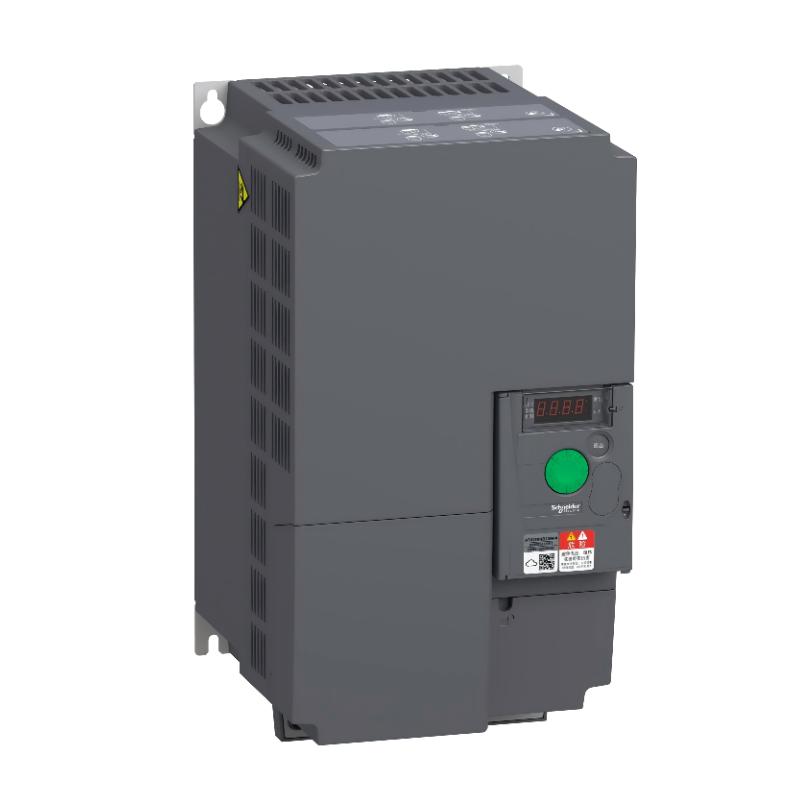

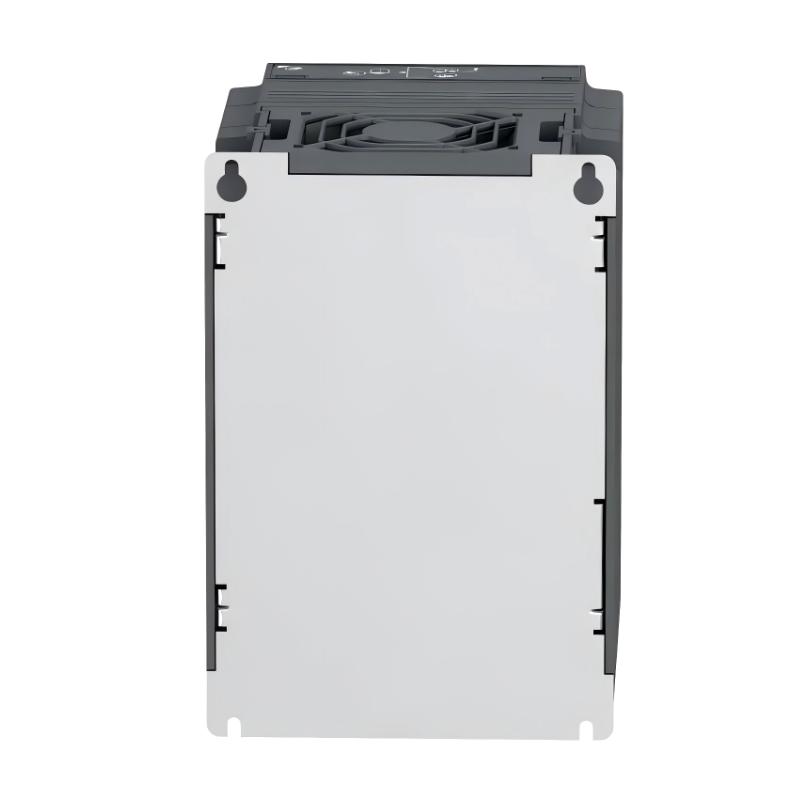

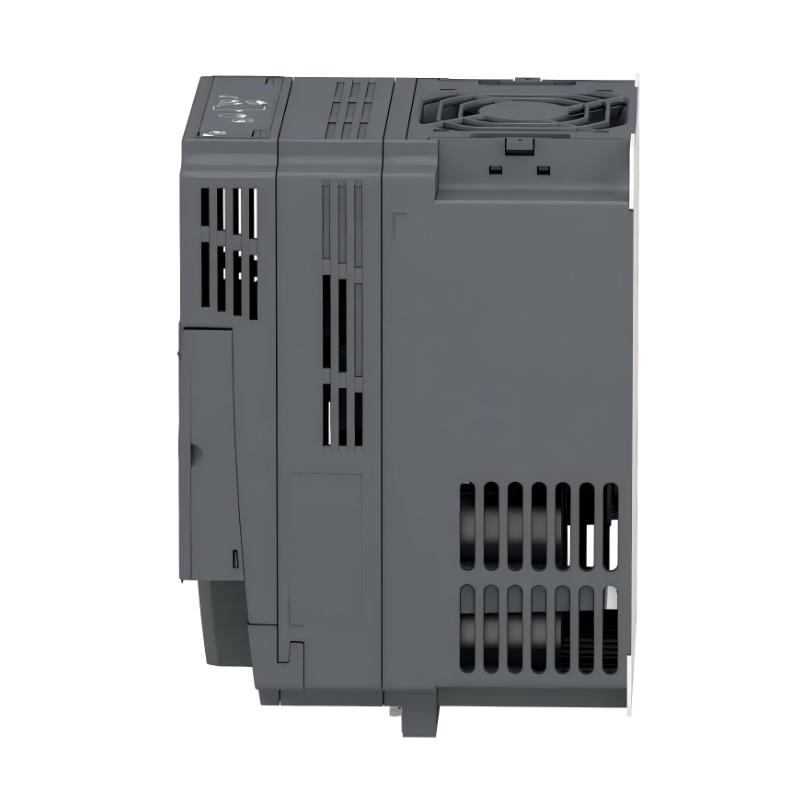

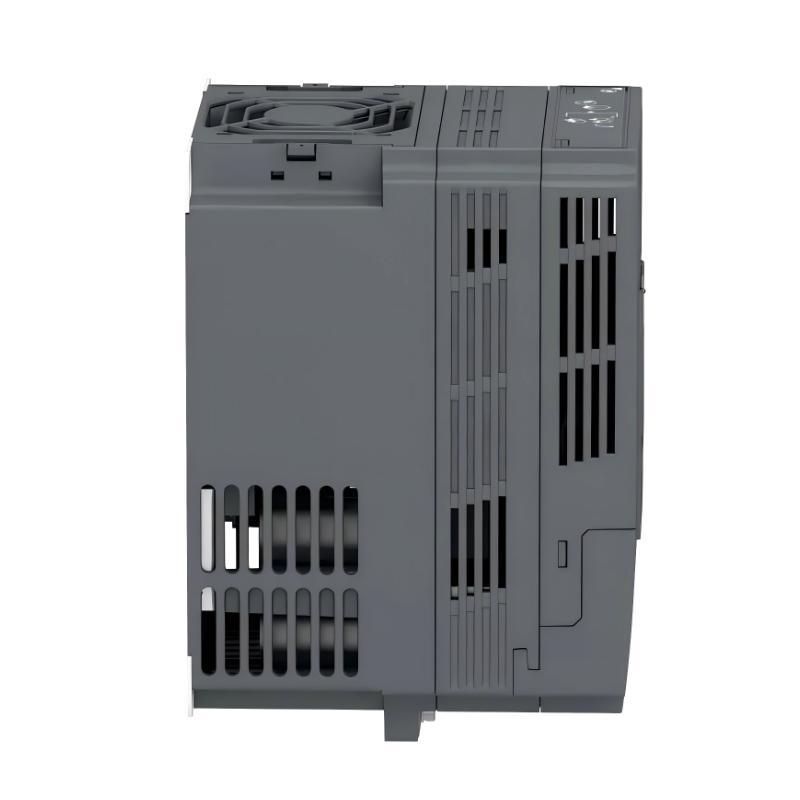

The Schneider ATV310HD15N4A is a high-performance variable speed drive (VSD) from the Altivar 310 series, designed to provide efficient motor control for industrial automation applications. Engineered for three-phase asynchronous motors, this drive delivers precise speed regulation, reliable torque performance, and enhanced energy efficiency across a wide range of industrial processes.
With a rated motor power of 15 kW, the ATV310HD15N4A is suitable for demanding applications such as conveyors, pumps, fans, compressors, mixers, and manufacturing machinery where stable motor operation and process optimization are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV310HD15N4A |
| Product Type | Variable Speed Drive (VSD) |
| Dimensions | 330 × 180 × 191 mm |
| Weight | 6.3 kg |
| Input Voltage | 380–460 V AC, 3-Phase |
| Rated Motor Power | 15 kW |
| Rated Output Current | 32 A |
| Motor Type | Three-Phase Asynchronous Motor |
| Control Method | V/F Control, Sensorless Vector Control |
| Output Frequency Range | 0.5–400 Hz |
| Communication Protocol | Modbus RTU |
| Protection Rating | IP20 |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Overload Capacity | 150% Rated Current for 60 Seconds |
| Operating Temperature | -10°C to +50°C |
| Application | Industrial Motor Speed Control |
Function and Working Principle
The ATV310HD15N4A controls motor speed by adjusting the output voltage and frequency supplied to the motor. This allows machinery to operate at the precise speed required by the process, improving efficiency and reducing energy consumption.
Core Functions
- Variable motor speed control
- Soft start and soft stop functionality
- Torque optimization
- Energy-saving operation
- Motor protection and diagnostics
- Process performance enhancement
Working Principle
The drive first converts incoming AC power into DC through an internal rectifier. The inverter section then generates a variable-frequency AC output that drives the motor. By continuously adjusting frequency and voltage, the ATV310HD15N4A provides accurate motor control while maintaining stable torque characteristics.
Role in Industrial Automation Systems
Within industrial automation systems, the ATV310HD15N4A performs several critical tasks:
- Controls motor speed according to production requirements
- Improves energy efficiency in variable-load applications
- Minimizes mechanical stress on motors and equipment
- Extends equipment service life
- Supports automated process control
- Enhances system reliability and productivity
Its flexibility makes it suitable for both standalone equipment and integrated automation architectures.
Industrial Applications
The ATV310HD15N4A is commonly deployed in:
- Conveyor systems
- Industrial pumping stations
- Ventilation and HVAC systems
- Packaging machinery
- Material handling equipment
- Compressors
- Food and beverage processing lines
- Textile manufacturing equipment
- Woodworking machinery
- General industrial automation systems
Its 15 kW power capability allows it to support medium-to-heavy-duty motor control applications.
Installation and System Integration
Proper installation helps maximize performance and operational reliability.
Installation Recommendations
- Install vertically inside a control cabinet
- Maintain sufficient ventilation clearance
- Connect to a three-phase power supply
- Use appropriately sized motor and power cables
- Ensure proper grounding and EMC compliance
- Configure motor parameters before commissioning
Following these guidelines helps achieve optimal drive performance and service life.
Compatible System Components
The ATV310HD15N4A is frequently integrated with:
- Schneider Electric Modicon PLCs
- Magelis HMI operator panels
- Three-phase induction motors
- Motor protection circuit breakers
- Industrial contactors
- Remote I/O modules
- Modbus communication networks
- Industrial Ethernet gateways
These components together create a complete motor control and automation solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ATV310HD11N4A | Variable Speed Drive | 11 kW Capacity | Medium-Duty Applications |
| ATV310HD18N4A | Variable Speed Drive | 18.5 kW Capacity | Higher Power Systems |
| ATV320D15N4C | Variable Speed Drive | Advanced Communication Options | Smart Automation |
| ATV340D15N4 | High-Performance Drive | Enhanced Dynamic Control | Complex Machinery |
| ATV310HU75N4A | Compact Variable Speed Drive | Space-Saving Design | Compact Installations |
Key Advantages
- Precise motor speed and torque control
- Supports motors up to 15 kW
- Built-in Modbus RTU communication
- Sensorless vector control technology
- Compact industrial design
- Integrated motor protection features
- Energy-efficient operation
- Easy commissioning and maintenance
Technical FAQs
What is the primary function of the ATV310HD15N4A?
It controls the speed and torque of three-phase motors while improving efficiency and reducing energy consumption.
What motor size is supported?
The drive is designed for motors with a rated power of up to 15 kW.
Does it support industrial communication?
Yes. The drive includes built-in Modbus RTU communication capability.
Can it be used in pump and fan applications?
Yes. It is specifically well-suited for pumps, fans, conveyors, and industrial machinery.
Does the drive include motor protection?
Yes. It provides overload, overcurrent, overvoltage, undervoltage, and thermal protection functions.
Conclusion
The Schneider ATV310HD15N4A Variable Speed Drive is a powerful and reliable motor control solution for medium-to-high power industrial applications. Featuring 15 kW motor capacity, sensorless vector control, integrated protection functions, and Modbus communication support, it delivers efficient motor performance and operational reliability.
For engineers, system integrators, and maintenance professionals seeking dependable variable speed motor control, the ATV310HD15N4A offers an excellent balance of performance, efficiency, and long-term industrial durability.
