Product Overview

Reliable motor control is an essential requirement in industrial automation systems where machines need stable speed regulation, controlled acceleration, and dependable operation under changing load conditions. The Schneider ATV310HD11N4E is an Easy Altivar 310 Variable Speed Drive (VSD) designed to control compatible three-phase asynchronous motors in industrial machinery and simple machine applications.

The ATV310HD11N4E is designed for 11 kW motor applications and operates with a three-phase 380–460 VAC power supply. It provides variable-frequency motor control by regulating the frequency and voltage delivered to the connected motor. This allows the motor to operate at different speeds according to the requirements of the production process.

Compared with direct-on-line motor operation, variable-speed control can provide smoother starting and stopping, reduce mechanical stress, and give machine designers greater flexibility in controlling motor-driven equipment.

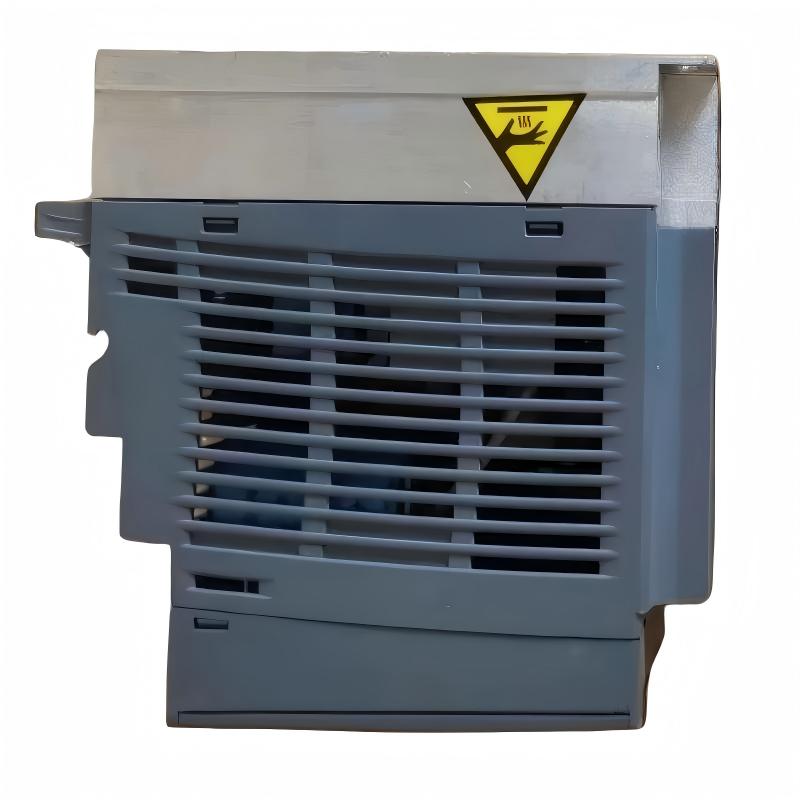

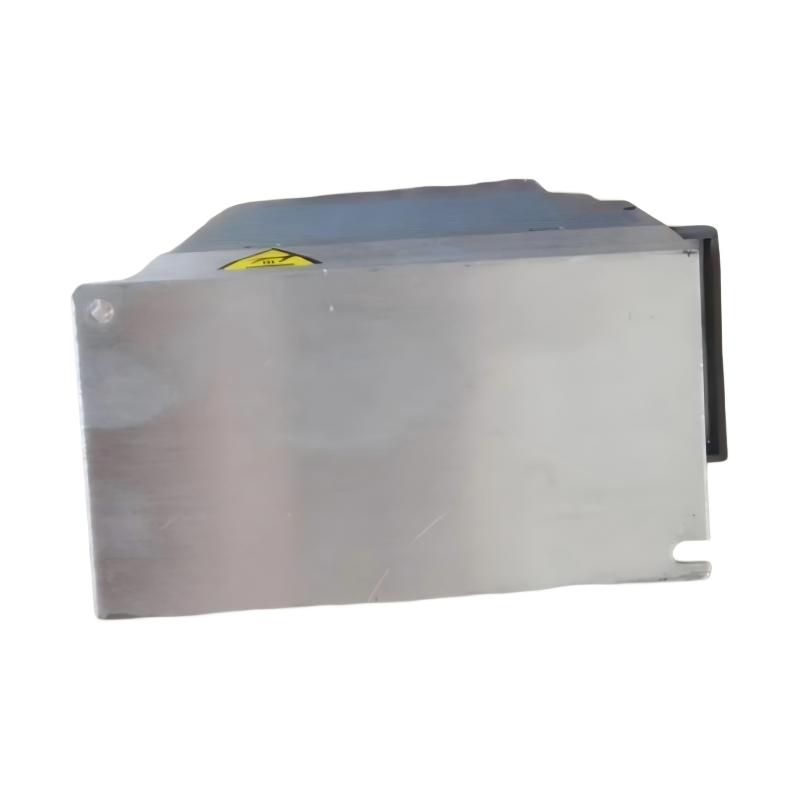

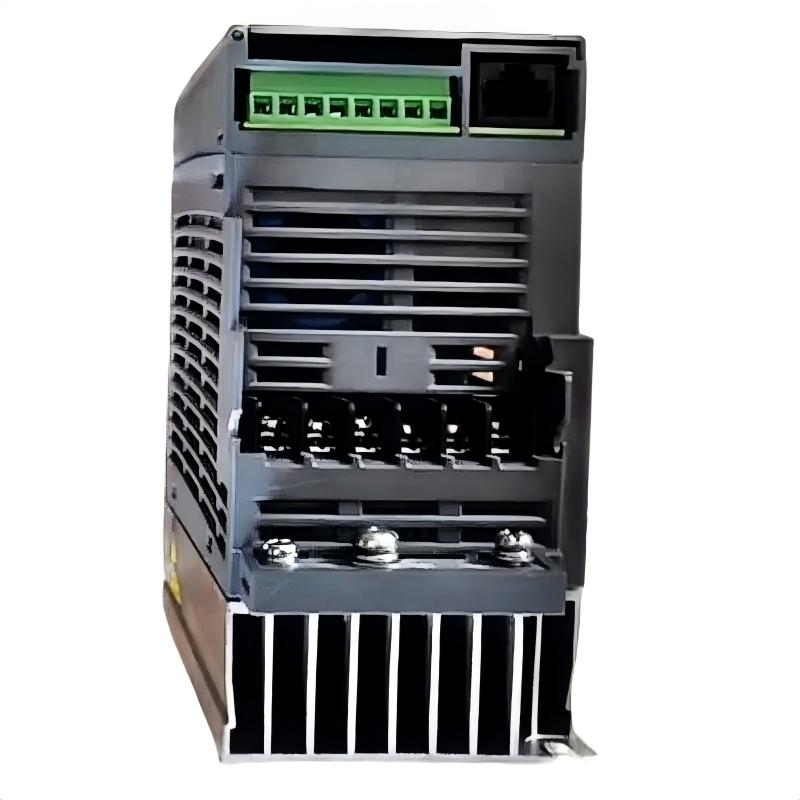

The ATV310HD11N4E has a specified size of 232 × 150 × 171 mm and a weight of approximately 3.7 kg. Its compact design makes it suitable for industrial control cabinets, machine panels, and OEM equipment where reliable motor control is required within a relatively limited installation space.

The drive can also be integrated into automation systems using Modbus RTU communication through an RS-485 interface, allowing motor control and operating information to be incorporated into a larger PLC-based control architecture.

Technical Specifications

Function and Working Principle

The primary function of the Schneider ATV310HD11N4E is to regulate the speed and operating characteristics of a compatible three-phase asynchronous motor.

An AC induction motor normally operates according to the frequency of the electrical supply. By changing the frequency supplied to the motor, a variable speed drive can change the motor’s operating speed.

The ATV310HD11N4E performs this function through an electronic power-conversion system.

The basic operating sequence is:

Three-Phase AC Input → Rectifier → DC Link → Inverter → Variable-Frequency AC Output → Motor

The drive converts the incoming AC power into a controlled output suitable for motor operation. The output frequency and voltage are adjusted according to the selected control mode and motor parameters.

Important functions include:

• Variable motor speed regulation
• Adjustable acceleration
• Adjustable deceleration
• Smooth motor starting
• Controlled motor stopping
• Motor torque control
• V/F control
• Sensorless vector control
• Motor thermal protection
• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Overload monitoring
• Underload monitoring
• Motor phase monitoring
• Fault detection
• Fault diagnostics
• Modbus communication
• Adjustable operating parameters

For example, a material-handling system may require different conveyor speeds depending on production conditions. Instead of using mechanical speed-changing equipment, the PLC can provide a speed reference to the ATV310HD11N4E. The drive then adjusts the motor output frequency to achieve the required operating speed.

Role in Industrial Control Systems

The ATV310HD11N4E acts as an important motor-control component between the automation controller and the motor-driven mechanical equipment.

A typical system may include:

• Schneider Modicon PLC
• Schneider HMI
• Easy Altivar 310 Variable Speed Drive
• Three-phase asynchronous motor
• Motor protection circuit breaker
• Magnetic contactor
• Proximity sensors
• Pressure sensors
• Temperature sensors
• Remote I/O modules
• Modbus communication network
• Industrial communication gateway
• SCADA monitoring system
• Emergency stop circuits

The PLC can determine the required motor speed based on information received from field sensors and operator commands. The ATV310HD11N4E then receives the appropriate control command and regulates the motor.

The drive can also exchange operating information with the control system through Modbus RTU. Depending on the system configuration, information such as operating status, frequency, alarms, and fault conditions can be monitored by the PLC or HMI.

This makes the ATV310HD11N4E suitable for integrated machine-control architectures where motor operation is coordinated with other automation functions.

Industrial Applications

The Schneider ATV310HD11N4E can be used in a wide range of industrial machinery requiring variable-speed control for motors up to its rated capacity.

Typical applications include:

• Industrial conveyor systems
• Material handling equipment
• Packaging machinery
• Pumping systems
• Industrial fans
• Ventilation systems
• Processing machinery
• Textile machinery
• Printing equipment
• Machine tools
• Assembly equipment
• Production-line machinery
• OEM industrial machines
• General-purpose motor-driven equipment

Conveyor Systems

Large conveyor systems require stable motor operation and controlled acceleration. The ATV310HD11N4E can regulate conveyor speed according to production requirements while providing controlled starting and stopping.

Material Handling

Material-handling equipment may use variable-speed motors for conveyors, rollers, feeders, and other mechanisms. Electronic speed control allows the machine to coordinate motor operation with other production equipment.

Pumping Systems

For compatible industrial pumps, motor speed can be adjusted according to process requirements. This can provide more flexible flow control than fixed-speed motor operation.

Industrial Fans

The drive can regulate fan speed according to ventilation requirements. Reducing motor speed when full airflow is unnecessary can help optimize system operation.

Processing Machinery

Industrial processing equipment frequently requires adjustable motor speed to accommodate different products, production rates, or process stages.

Installation and System Integration

Proper installation is essential for reliable operation of the ATV310HD11N4E.

Recommended installation practices include:

• Install the drive inside a suitable electrical control cabinet.
• Mount the drive in the recommended orientation.
• Provide adequate ventilation around the drive.
• Maintain sufficient clearance for heat dissipation.
• Verify the incoming three-phase voltage before energizing.
• Connect protective grounding correctly.
• Select appropriately rated input and motor cables.
• Keep power cables separated from sensitive control wiring where practical.
• Enter the motor nameplate parameters accurately.
• Configure the appropriate motor-control mode.
• Set acceleration and deceleration times according to the mechanical system.
• Verify motor rotation during commissioning.
• Configure communication parameters when Modbus control is required.
• Check fault and alarm information before placing the machine into production.
• Perform a low-speed test before full-load operation.

The ATV310HD11N4E should be matched with a motor whose rated voltage, current, power, and operating characteristics are compatible with the drive.

Correct parameter configuration is particularly important for higher-power motor applications. Incorrect motor data can result in excessive current, poor torque performance, unstable operation, or protective trips.

Compatible System Components

The ATV310HD11N4E can operate as part of a larger Schneider industrial automation architecture.

Typical compatible system components include:

• Schneider Modicon PLC
• Schneider HMI
• Easy Altivar 310 series drives
• Modbus RTU devices
• RS-485 communication equipment
• Industrial communication gateways
• Motor circuit breakers
• Magnetic contactors
• Three-phase asynchronous motors
• Remote I/O modules
• Proximity sensors
• Pressure transmitters
• Temperature sensors
• Emergency stop devices
• Industrial control cabinets
• SCADA systems

A typical control architecture can be represented as:

Field Sensors → PLC → ATV310HD11N4E → Three-Phase Motor → Mechanical Equipment

The PLC receives process information from sensors and operator interfaces, calculates the required operating condition, and sends commands to the variable speed drive.

The ATV310HD11N4E converts those commands into controlled motor operation.

Recommended Alternative Models

Depending on motor power, supply requirements, installation space, and control functions, the following models may also be considered:

Alternative model selection should be based on the motor’s rated current and power, supply voltage, load characteristics, overload requirements, communication architecture, installation dimensions, and environmental conditions.

A model with a different power rating should not automatically be considered a direct replacement. Electrical ratings and system compatibility should always be verified before substitution.

Key Advantages

• Easy Altivar 310 variable speed drive
• Designed for industrial machine applications
• 11 kW motor-control capacity
• Approximately 15 HP motor rating
• Three-phase 380–460 VAC input
• Three-phase asynchronous motor control
• Variable-frequency speed regulation
• V/F motor control
• Sensorless vector control
• Adjustable acceleration and deceleration
• Smooth motor starting and stopping
• Motor overload protection
• Overcurrent protection
• Overvoltage and undervoltage protection
• Modbus RTU communication
• RS-485 communication interface
• RJ45 communication connection
• Industrial cabinet installation
• Compact dimensions of 232 × 150 × 171 mm
• Weight of approximately 3.7 kg
• Suitable for conveyors and material-handling equipment
• Suitable for pumps and fans
• Suitable for processing and production machinery
• Suitable for OEM machine applications

Technical FAQs

What is the Schneider ATV310HD11N4E?

The Schneider ATV310HD11N4E is an Easy Altivar 310 Variable Speed Drive designed to regulate the speed of compatible three-phase asynchronous motors in industrial machine applications.

What is the rated motor power?

The ATV310HD11N4E is designed for 11 kW motor applications, equivalent to approximately 15 HP.

What input voltage does the ATV310HD11N4E use?

The drive is designed for a three-phase 380–460 VAC power supply.

What are the dimensions of the ATV310HD11N4E?

The specified dimensions are 232 × 150 × 171 mm.

How much does the ATV310HD11N4E weigh?

The specified product weight is approximately 3.7 kg.

What type of motor can it control?

The drive is designed for compatible three-phase asynchronous AC motors within the applicable voltage, current, and power ratings.

Does the ATV310HD11N4E support Modbus communication?

Yes. The drive supports Modbus RTU communication through an RS-485 interface.

Can it be connected to a Schneider PLC?

Yes. The ATV310HD11N4E can be integrated with PLC-based automation systems through Modbus communication or appropriate control interfaces.

What are typical applications?

Typical applications include conveyors, material handling systems, industrial fans, pumps, packaging equipment, processing machinery, textile equipment, printing machines, and other industrial motor-driven systems.

Why use a variable speed drive for an 11 kW motor?

A variable speed drive provides controlled motor starting, adjustable speed, controlled stopping, and flexible process control. For suitable applications, it can also reduce mechanical stress and improve overall system operating efficiency.

Conclusion

The Schneider ATV310HD11N4E Variable Speed Drive is an 11 kW Easy Altivar 310 drive designed to provide controlled speed regulation for compatible three-phase asynchronous motors in industrial automation and machine applications.

By regulating motor frequency and voltage, the drive provides adjustable motor speed, controlled acceleration and deceleration, motor protection, and integration with PLC-based control systems. Its 380–460 VAC three-phase input and Modbus RTU communication capability make it suitable for industrial automation architectures requiring reliable motor control and communication.

With dimensions of 232 × 150 × 171 mm and a weight of approximately 3.7 kg, the ATV310HD11N4E provides a compact solution for higher-power machine applications compared with smaller Easy Altivar 310 models.

When integrated with Schneider PLCs, HMIs, sensors, motor protection devices, communication networks, and compatible three-phase motors, the ATV310HD11N4E can provide a practical motor-control solution for conveyors, material handling equipment, pumps, fans, packaging machinery, processing systems, and other industrial automation applications.
