Product Overview

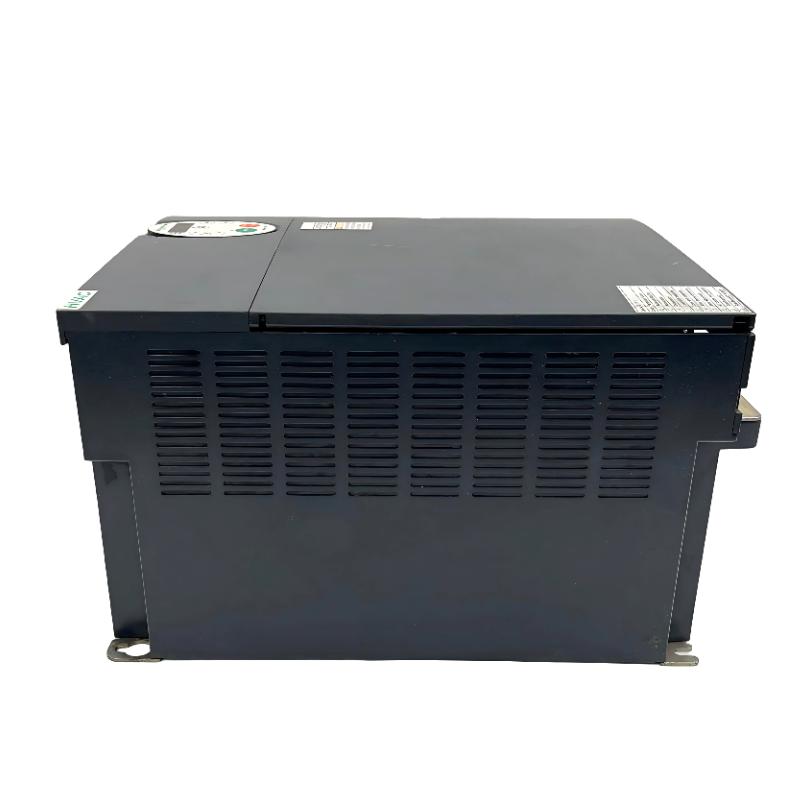

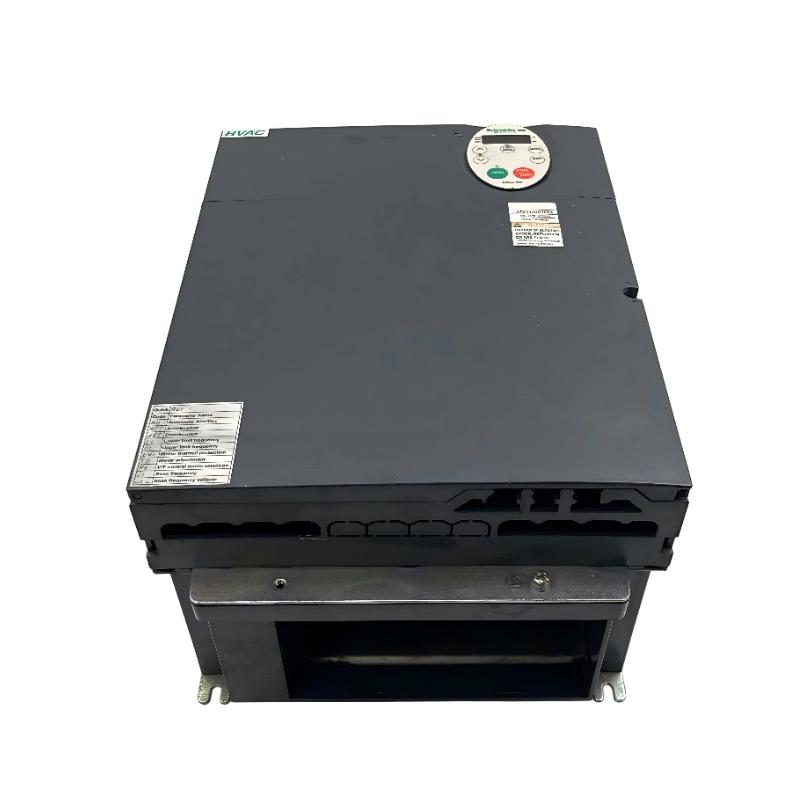

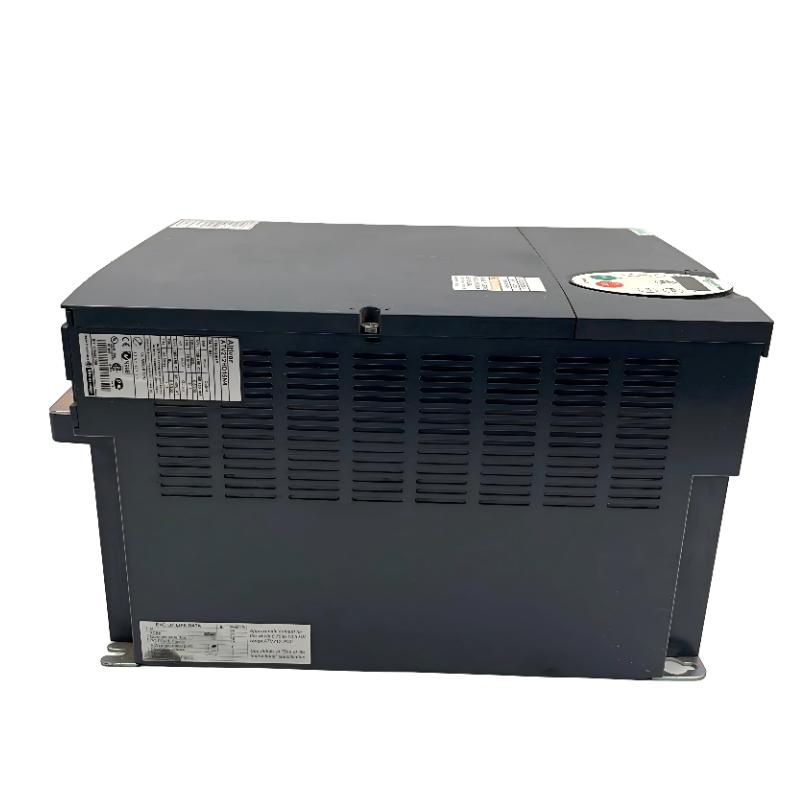

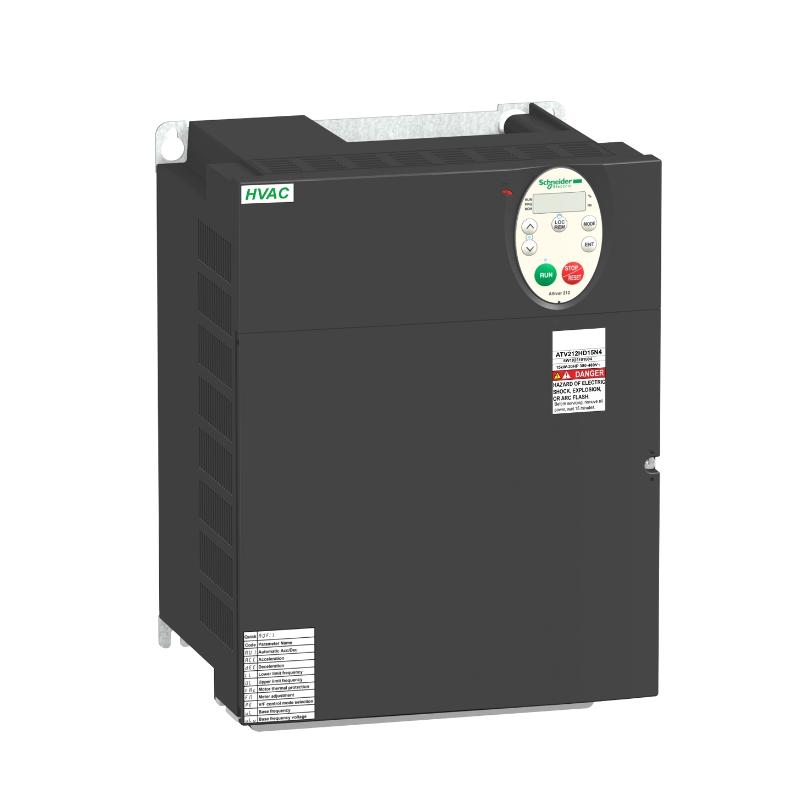

Precise and efficient motor control is critical in modern industrial automation. The Schneider ATV212HD15N4 Frequency Converter delivers advanced speed and torque management for three-phase motors, ensuring energy savings, enhanced process control, and reliable operation in demanding industrial environments.
Designed for high-power applications, this frequency converter supports large motors, providing smooth acceleration, precise regulation, and protection against electrical faults. Its robust construction ensures long-term durability and seamless integration into industrial automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV212HD15N4 |
| Product Type | Frequency Converter |
| Function | Motor speed and torque control |
| Motor Power | 15 kW |
| Output Voltage | 3-phase 380–480 V AC |
| Dimensions | 330 × 190 × 245 mm |
| Weight | 11.65 kg |
| Mounting Type | Panel / Wall Mountable |
| Input Voltage Range | 380–480 V AC |
| Output Frequency | 0–500 Hz |
| Control Type | V/f control |
| Operating Temperature | -10°C to 50°C |
| Environment | Industrial-grade |
| Application | Motor control, industrial automation |
Function and Working Principle
The ATV212HD15N4 operates by converting AC input into a variable frequency output to control motor speed and torque. Key functions include:
- Smooth speed regulation for energy-efficient motor operation
- Precise torque control to protect motors and connected machinery
- Soft-start and dynamic braking functions to reduce mechanical stress
- Robust and modular design suitable for panel or wall installation
By controlling both voltage and frequency, the converter ensures stable motor performance, reduces energy consumption, and protects equipment in high-demand industrial applications.
Role in Industrial Control Systems
This frequency converter plays a central role in industrial automation by:
- Providing accurate speed and torque control for pumps, fans, compressors, and conveyors
- Protecting motors from overcurrent, overheating, and voltage fluctuations
- Enabling integration into PLCs and automation networks for process optimization
- Improving energy efficiency and reducing operational costs
It ensures safe, efficient, and reliable operation of industrial processes.
Industrial Applications
The Schneider ATV212HD15N4 is widely applied in:
- Large-scale pumping and HVAC systems
- Conveyors and material handling systems
- Fans, compressors, and heavy machinery
- Packaging, assembly, and production lines
- Energy-intensive manufacturing processes
- High-power industrial automation requiring precise motor control
Its high power output and robust construction make it ideal for demanding industrial environments.
Installation and System Integration
Proper installation is essential for optimal performance:
- Mounted on panels or walls according to manufacturer instructions
- Connected to three-phase AC input and motor output terminals
- Integrated with PLCs or automation networks for process monitoring
- Maintain proper ventilation and thermal management
- Follow industrial wiring, grounding, and safety standards
Correct installation ensures reliable motor operation, safety, and long-term system performance.
Compatible System Components
The ATV212HD15N4 typically integrates with:
- Schneider PLCs and I/O modules
- Three-phase motors and motor protection devices
- Industrial sensors for speed, torque, or process feedback
- Control panels, wiring accessories, and terminal blocks
These components together form a reliable and efficient industrial motor control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ATV212H150N4 | Frequency Converter | 1.5 kW output, compact design | Medium motor applications |
| ATV212HD11N4 | Frequency Converter | 11 kW output, high power capability | Large industrial motors |
| ATV212HD15N4 | Frequency Converter | 15 kW output, heavy-duty | High-power industrial motors |
| ATV212HD18N4 | Frequency Converter | 18 kW output, advanced performance | Very large motor systems |
Key Advantages
- Provides precise speed and torque control for high-power three-phase motors
- Energy-efficient operation reduces operational costs
- Protects motors from overcurrent, overheating, and voltage fluctuations
- Robust, industrial-grade construction for demanding environments
- Compact and modular design for flexible installation
- Supports continuous operation and high-demand industrial applications
Technical FAQs
What is the main function of the ATV212HD15N4?
It delivers variable frequency output for precise speed and torque control of high-power industrial motors.
Where is it typically used?
It is used in pumps, fans, conveyors, compressors, and other heavy-duty motor-driven industrial systems.
Does it provide motor protection?
Yes, it includes protections against overcurrent, overheating, and voltage fluctuations.
Is it suitable for high-power applications?
Yes, it is designed for motors up to 15 kW in demanding industrial environments.
Conclusion
The Schneider ATV212HD15N4 Frequency Converter is a critical component for industrial automation, providing precise motor control, energy efficiency, and protection for high-power industrial motors. Its robust construction, advanced control features, and reliable performance make it ideal for demanding industrial systems.
For engineers and system integrators, this converter ensures safe, efficient, and continuous operation in high-demand industrial applications.
