Product Overview

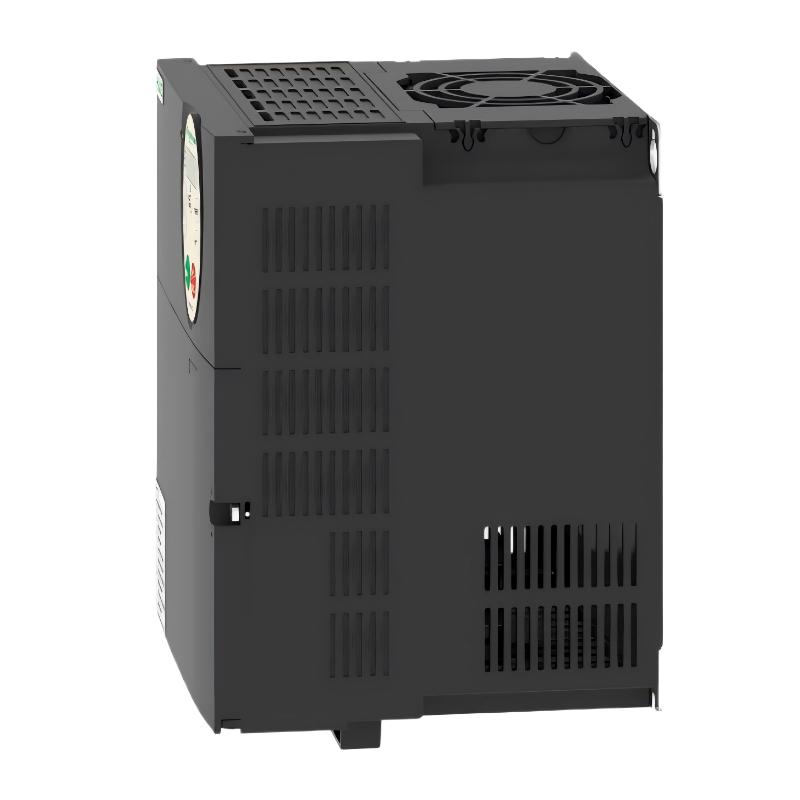

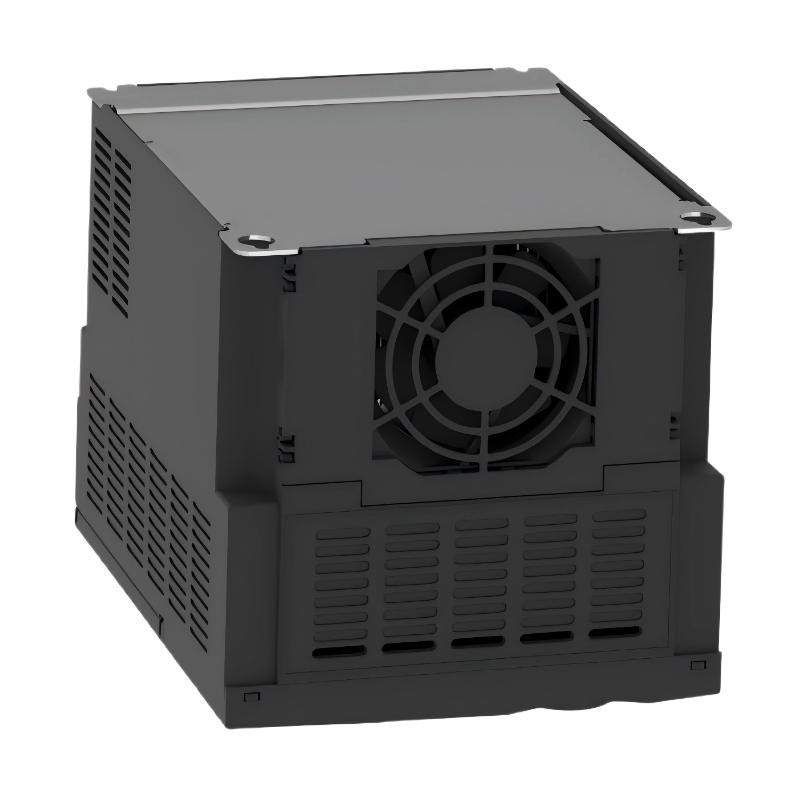

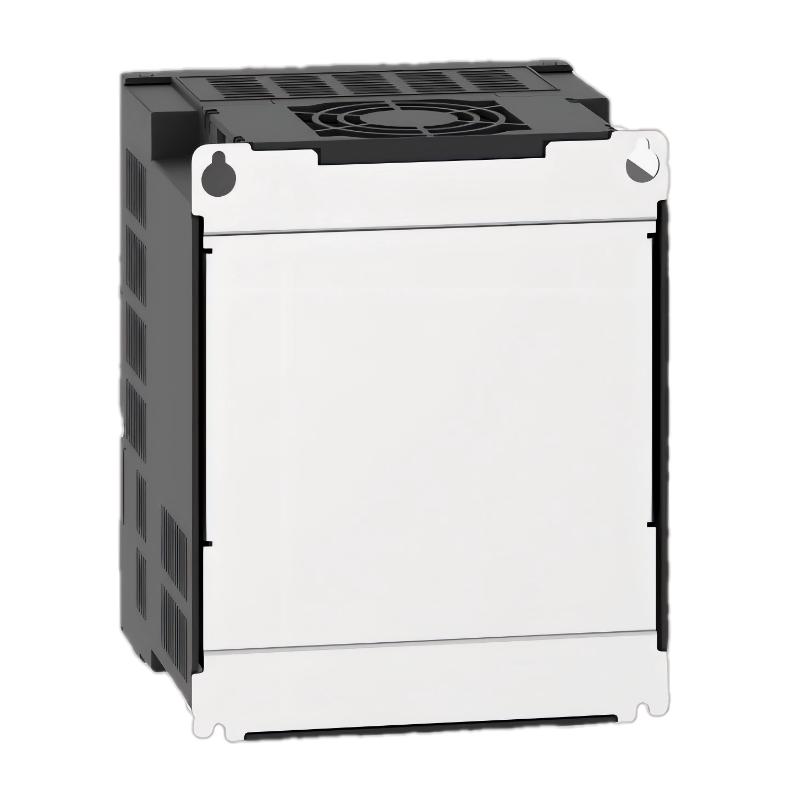

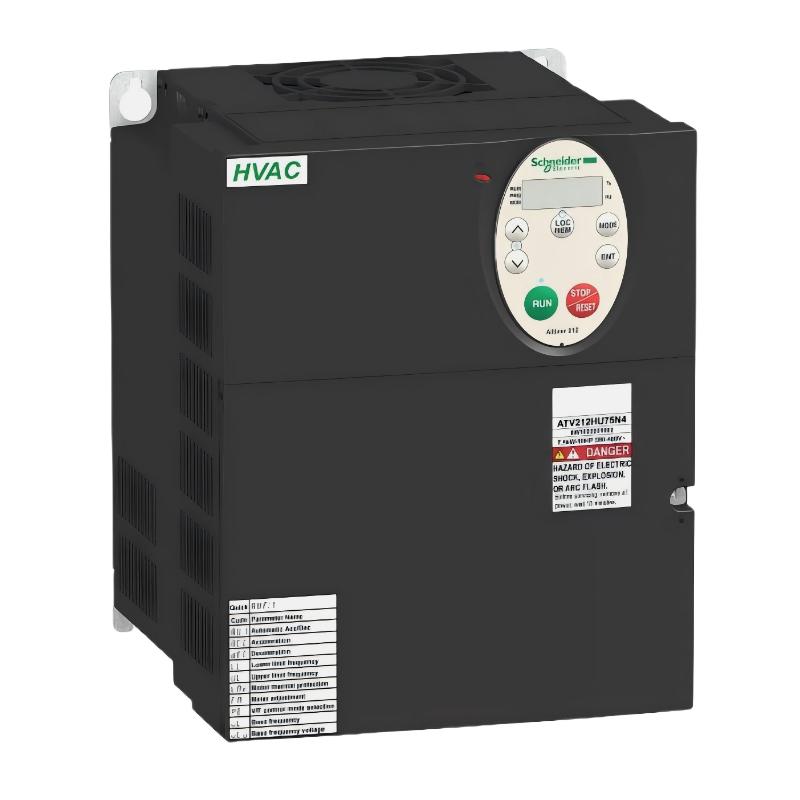

Efficient motor control is essential in modern industrial automation systems. The Schneider ATV212HD11N4 Frequency Converter provides precise speed and torque management for three-phase motors, ensuring optimal process control, energy savings, and extended equipment lifespan.
Designed for high power applications, this converter is suitable for demanding industrial environments where reliability, performance, and safety are critical. Its robust construction and advanced control features allow seamless integration into automation networks.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV212HD11N4 |
| Product Type | Frequency Converter |
| Function | Motor speed and torque control |
| Motor Power | 11 kW |
| Output Voltage | 3-phase 380–480 V AC |
| Dimensions | 232 × 170 × 180 mm |
| Weight | 6.45 kg |
| Mounting Type | Panel / Wall Mountable |
| Input Voltage Range | 380–480 V AC |
| Output Frequency | 0–500 Hz |
| Control Type | V/f control |
| Operating Temperature | -10°C to 50°C |
| Environment | Industrial-grade |
| Application | Motor control, automation systems |
Function and Working Principle
The ATV212HD11N4 operates by converting AC input voltage into a variable frequency output to control motor speed and torque. Its primary functions include:
- Smooth and precise motor speed regulation for energy efficiency and process optimization
- Torque control to protect motors and connected equipment
- Soft-start and dynamic braking functions to reduce mechanical stress
- Compact and robust design for panel or wall installation
By adjusting the frequency and voltage supplied to the motor, the converter ensures stable operation, energy savings, and reliable performance in demanding industrial applications.
Role in Industrial Control Systems
This frequency converter is a key component in industrial automation, offering:
- Precise speed and torque control for pumps, fans, compressors, and conveyors
- Protection for motors against overcurrent, overheating, and voltage fluctuations
- Integration into PLCs and automation networks for coordinated process control
- Improved energy efficiency and operational cost savings
It ensures that industrial processes operate safely, efficiently, and with high reliability.
Industrial Applications
The Schneider ATV212HD11N4 is commonly applied in:
- Pumping and HVAC systems
- Conveyor and material handling systems
- Fans, compressors, and process machinery
- Packaging and assembly lines
- Large industrial motor-driven applications
- Energy-intensive manufacturing and process industries
Its high power capacity and advanced control features make it suitable for demanding industrial environments.
Installation and System Integration
Proper installation is critical for optimal performance:
- Mounted on panels or walls according to manufacturer guidelines
- Connected to three-phase AC input and motor output wiring
- Integrated into PLC or automation systems for process monitoring and control
- Ensure adequate ventilation and thermal management
- Follow electrical safety, grounding, and wiring standards
Correct installation guarantees stable motor operation, safety, and long-term reliability.
Compatible System Components
The ATV212HD11N4 typically works with:
- Schneider PLCs and I/O modules
- Three-phase motors and motor protection devices
- Industrial sensors for speed, torque, or process monitoring
- Control panels and wiring accessories
These components together provide a reliable and efficient motor control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ATV212H075N4 | Frequency Converter | 0.75 kW output, compact design | Small motor applications |
| ATV212H150N4 | Frequency Converter | 1.5 kW output, standard performance | Medium industrial motors |
| ATV212HD11N4 | Frequency Converter | 11 kW output, high power capability | Large industrial motors |
| ATV212HD15N4 | Frequency Converter | 15 kW output, heavy-duty applications | Very large motor systems |
Key Advantages
- Provides precise speed and torque control for high-power three-phase motors
- Energy-efficient operation reduces operational costs
- Protects motors against overcurrent, overheating, and voltage fluctuations
- Robust, industrial-grade design for demanding environments
- Compact design suitable for panel or wall mounting
- Supports continuous operation and critical industrial applications
Technical FAQs
What is the main function of the ATV212HD11N4?
It provides variable frequency output to control speed and torque of high-power industrial motors.
Where is it typically used?
It is used in pumps, fans, conveyors, compressors, and other large motor-driven industrial systems.
Does it provide motor protection?
Yes, it includes overcurrent, overheating, and voltage fluctuation protections.
Is it suitable for high-power applications?
Yes, it can control motors up to 11 kW in demanding industrial environments.
Conclusion
The Schneider ATV212HD11N4 Frequency Converter is a critical component for industrial automation, providing precise motor speed and torque control while enhancing energy efficiency and motor protection. Its high power capacity, robust construction, and advanced features make it ideal for large industrial automation systems.
For engineers and system integrators, this converter ensures reliable motor performance, process optimization, and continuous operation in demanding industrial environments.
